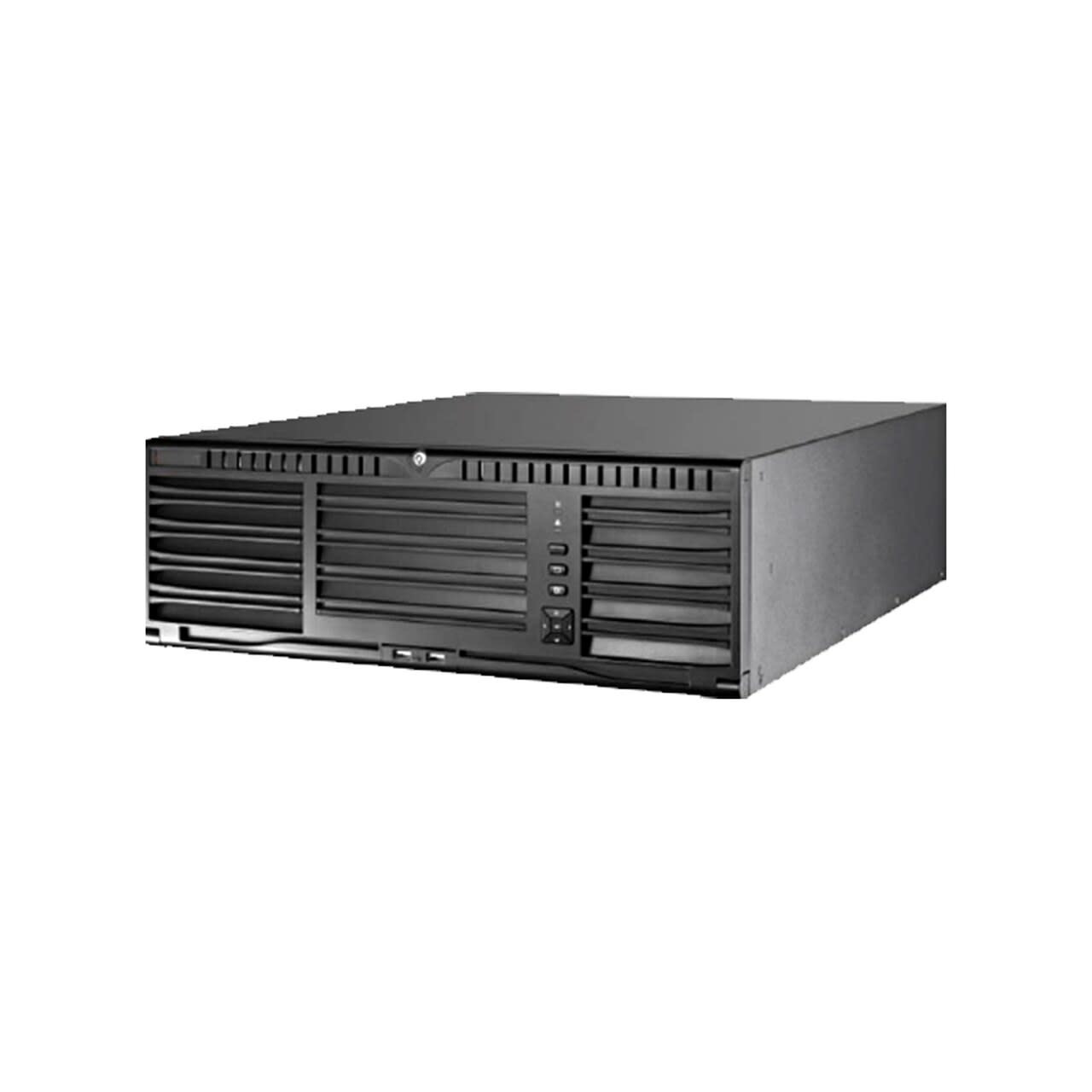

LTS 128 Channel Enterprise Grade 4K NVR, 12MP Playback

Video/Audio Input

IP Video Input:

128 channel

Incoming/Outgoing Bandwidth:

768 Mbps / 768 Mbps

Incoming/Outgoing Bandwidth (RAID mode):

768 Mbps / 768 Mbps

Protocol:

LTS, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, PSIA, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO, HIKVISION

Video/Audio Output

HDMI Output:

Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/ 30 Hz, 2K (2560 × 1440)/ 60 Hz, 1080P (1920 × 1080)/ 60 Hz, UXGA (1600×1200)/ 60 Hz, SXGA (1280 × 1024)/ 60 Hz, 720P (1280 × 720)/ 60 Hz, XGA (1024 × 768)/ 60 Hz

VGA Output:

1 channel Resolution: 1080P (1920 × 1080) / 60 Hz, UXGA (1600×1200) / 60 Hz, SXGA (1280 × 1024) /60 Hz, 720P (1280 × 720) / 60 Hz, XGA (1024 × 768) / 60 Hz

Audio Output :

1CH, RCA (Linear, 1kΩ)

Video & Audio Decoding

Decoding Format:

H.265, H.265+, H.264, H.264 Zip+, MPEG4, MJPEG

Video Resolution:

12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback:

Up to 16 channels

Capability:

68 channel  @ 1080P

Hard Disk

SATA:

16 SATA interfaces supporting hot-plug

Capacity:

Up to 8TB capacity for each HDD

RAID

RAID Type:

RAID 0, 1, 5, 6, and 10

Network Management

Protocol:

IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS

Network Interface:

4, RJ45 10M/100M/1000M self-adaptive Ethernet interface

External Interface

Two-way Audio Input:

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Serial Port:

1 RS - 485,Keyboard

USB Interface:

Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0

Alarm Input/Output:

16/8

Decoding Board:

1

General

Power Supply:

100 ~ 240 VAC, 550 watt

Consumption:

≤ 140 watt (without hard disk or DVD-R/W)

Working Temperature:

32 °F to 122 °F (0°C to + 50°C)

Working Humidity:

10 % ~ 90 %

Casing:

19 inch rack-mounted 3U chassis

Dimensions: (WxDxH)

17.4" × 19.4"× 5.7" (442 mm × 494 mm × 146 mm)

Weight:

≤ 35.3 lb (16 Kg, without hard disk or DVD-R/W)
