    • MCX 1 Cartridge

      Acoustic Signature

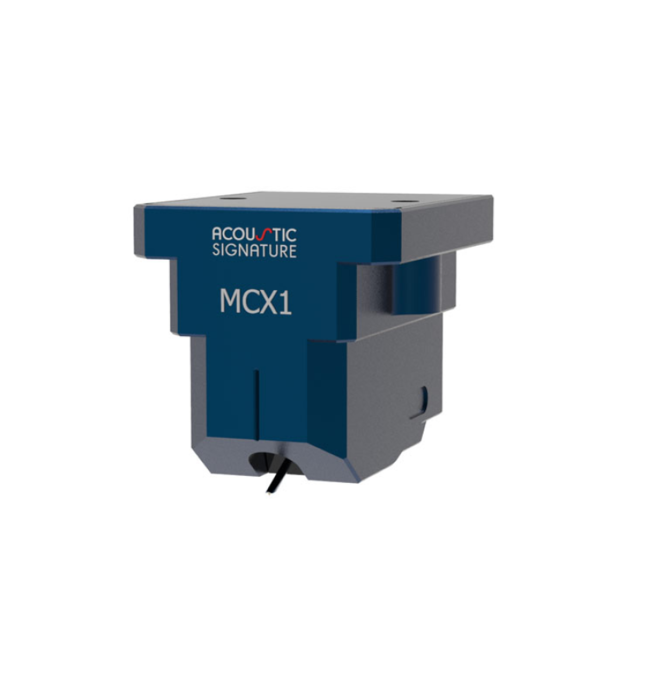

      Acoustic Signature MCX 1 Cartridge

      $695.00

      In stock (0) - 30 - 60 days Available in store: Check availability

      The Acoustic Signature MCX 2 is a modern moving-coil cartridge, manufactured according to the latest technologies. Free Shipping to Continental US Only! Questions? Please call us at (702) 910-4913. Or contact us via Chat.

      Product description

      The optimal partner for our NEO tonearm series. An elliptical stylus assuring precise tracking results, copper coils and a CNC-milled and resonance-optimized chassis developed according to the finite element design principle form the basis for a true all-rounder.

      Features

      - Modern MC cartridge with copper coils

      - Resonance-optimized aluminum chassis

      - Easy mounting

      - Precise tracking due to elliptical stylus

      - Suitable for medium to high mass tonearms

      Specifications

      Voltage Output at 1k Hz, 5 cm / sec.:  0.55 mV

      Channel Balance at 1k Hz : < 1.5 dB

      Channel Separation at 1k Hz : > 21 dB

      Compliance : 15 µm / mN

      Tracking Force Range : 2.1 - 2.5 grams

      Recommended Tracking Force : 2.3 grams ( 23 mN )

      Frequency Range at -3dB : 20 - 25k Hz

      Frequency Response 20 - 20k Hz : ± 2.5 dB

      DC Resistance : 7 Ohm

      Coil Material : Copper

      Cartidge Weight : 12.2 grams

      Recommended Load : 100 Ohm
