Cleerline™ Professional Optical Fiber Test Kit

The Cleerline SSF-TKITP-500 Fiber Optic Test Kit is a high-quality solution for fiber certification in accordance with TIA-568-C standards. This kit includes an Optical Power Meter and Light Source to test both multimode and single mode installed fibers. Four wavelengths, with a range of 70 decibels ( dB ). The Light Source and Power Meter measure link loss, allowing calculation of the link loss budget.

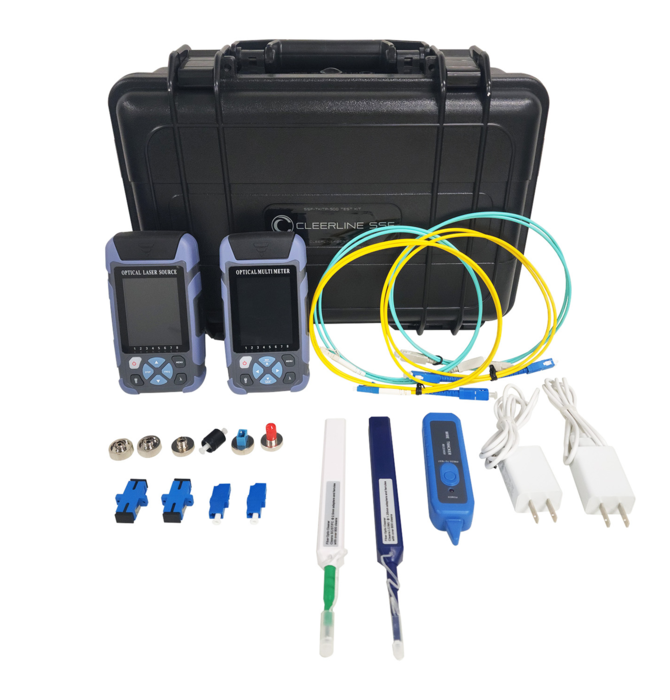

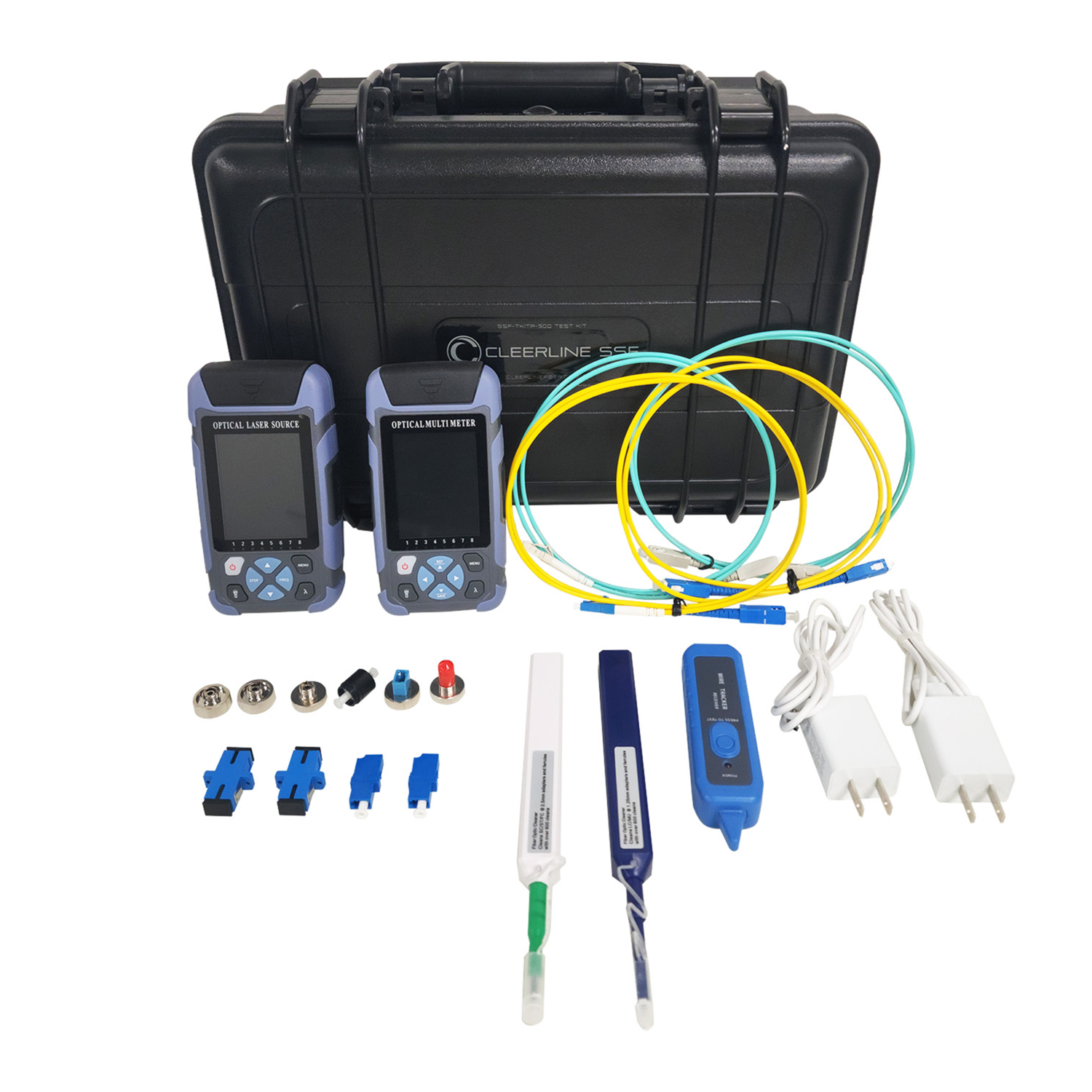

Kit contents

- ( 1 x ) Power Meter

- ( 1 x ) Light Source

- ( 2 x ) 5.0 V Power Supply & USB-C Charging Cable

- ( 1 x ) SC-SC OM3 Reference Patch Cable

- ( 2 x ) LC-SC OM3 Reference Patch Cable

- ( 1 x ) SC-SC OS2 Reference Patch Cable

- ( 2 x ) LC-SC OS2 Reference Patch Cable

- ( 1 x ) ST Adapter ( cable not included )

- ( 1 x ) FC Adapter ( cable not included )

- ( 1 x ) SC-SC Female Adapter

- ( 2 x ) LC-LC Female Adapter

- ( 6 x ) Misc. LS & PM Adapters

- ( 1 x ) Click Cleaner SC, ST, FC @ 2.5mm

- ( 1 x ) Click Cleaner LC @ 1.25mm

- ( 1 x ) VFL Adapter

- ( 1 x ) RJ45 Tone Probe

- ( 1 x ) Downloadable PC Software

- ( 1 x ) Carrying Case & Strap

- Kit includes carrying case & strap

- Tests both multimode and single mode fibers

- Wavelengths of 850, 1300, 1310, and 1550nm

- Storage of up to 1000 test records

- Included PC Software and USB cable

- Built-in LED Flashlight

- Built-in VFL with 2.5mm to 1.5 mm adapter included

- Built-in RJ45 sequencer

- Included AC power supply

- Auto shut-off function

- Rechargeable lithium ion battery
