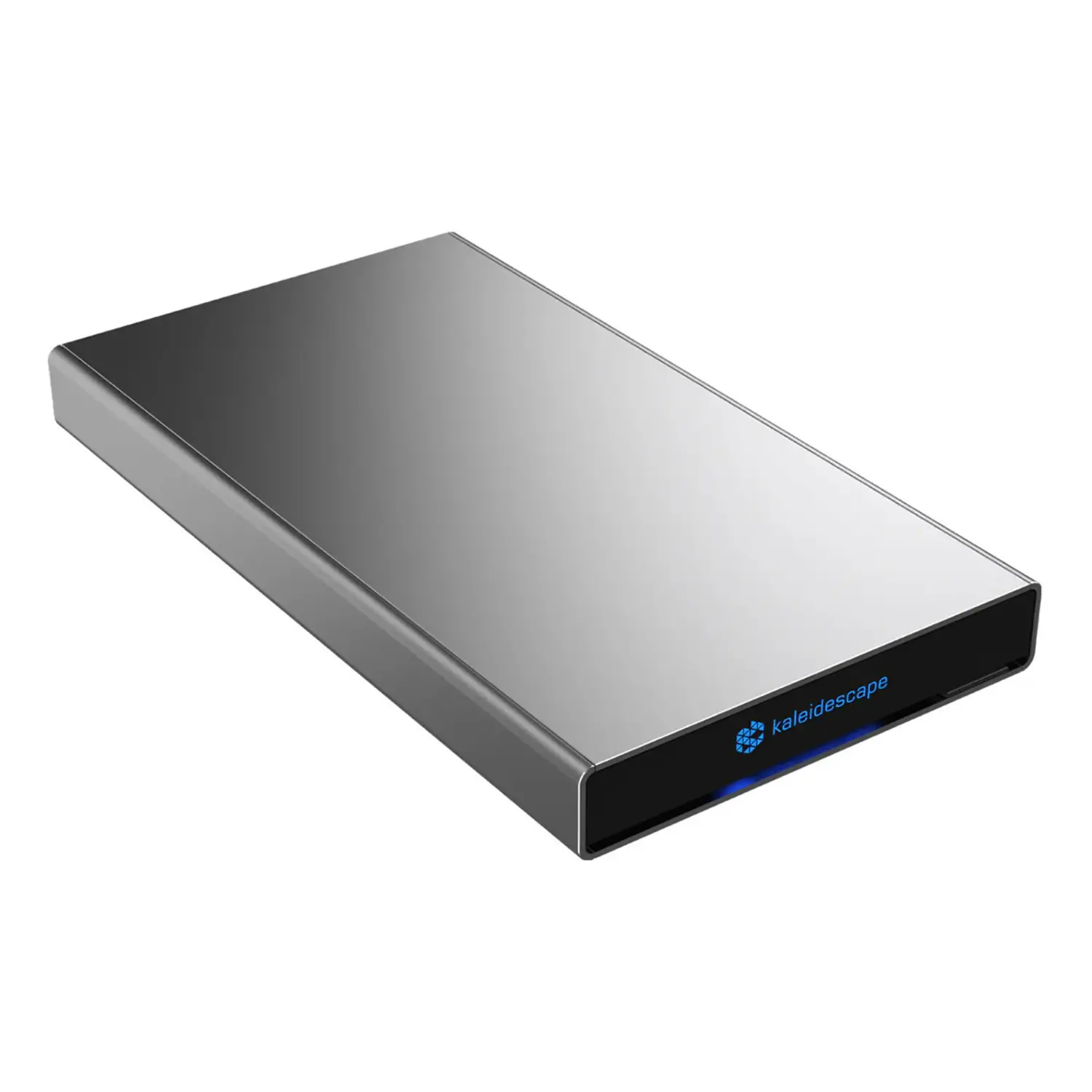

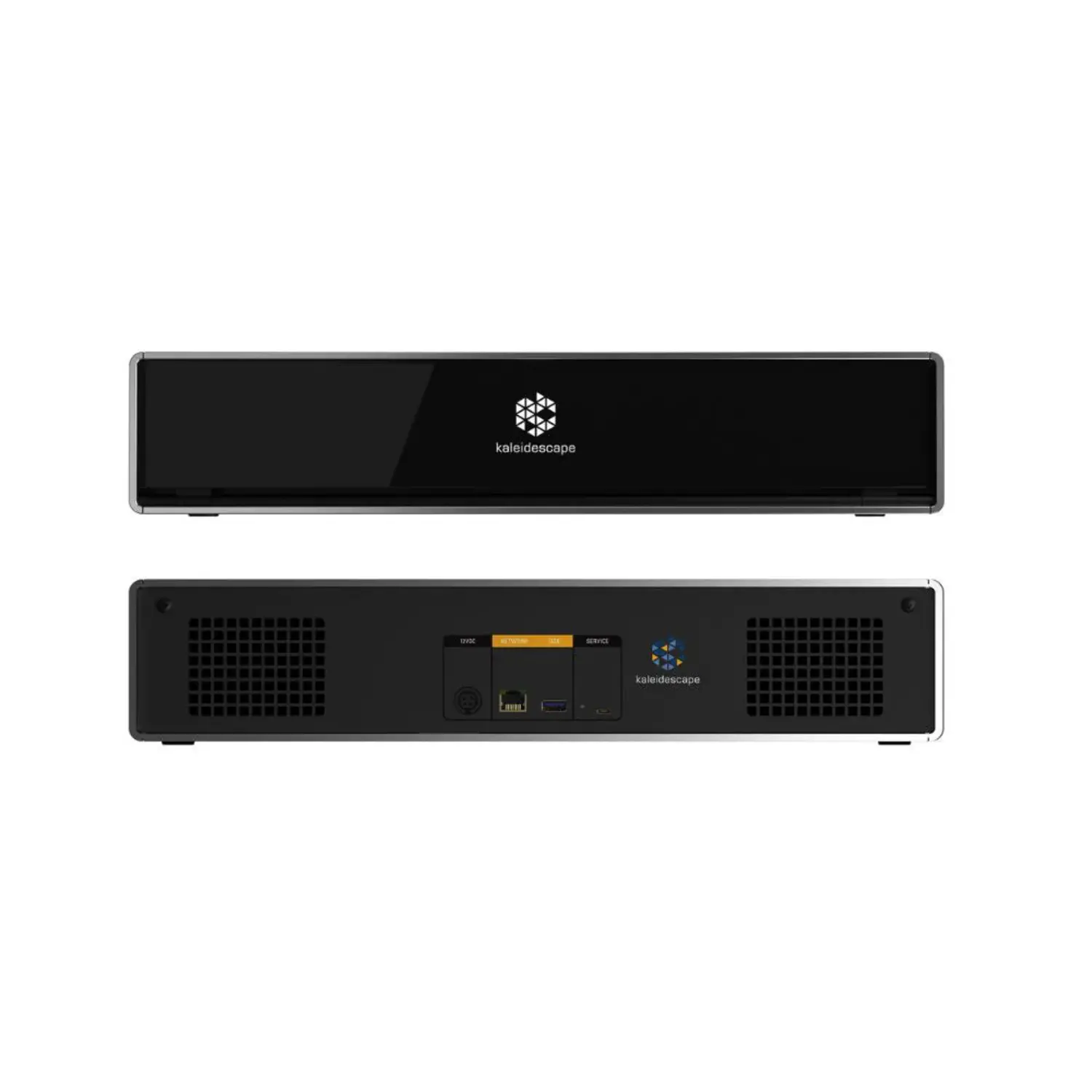

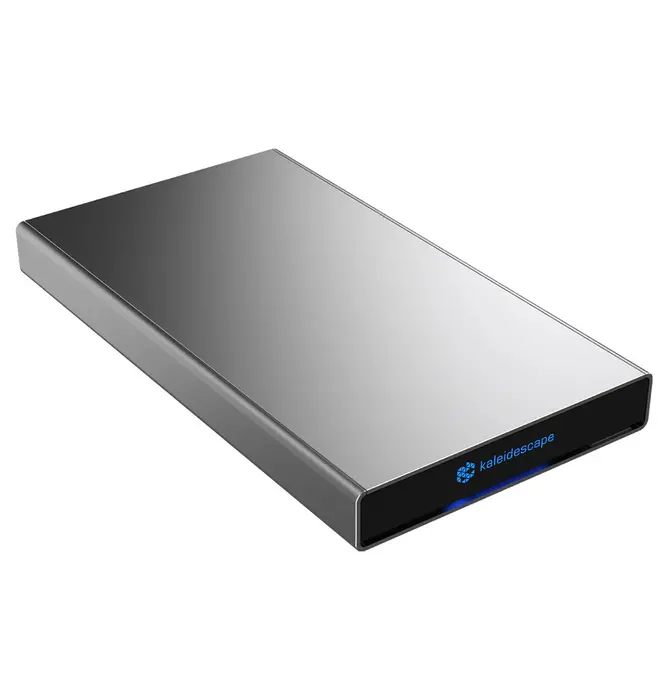

Kaleidescape Terra Compact Movie Server

Kaleidescape’s compact Terra movie server and Strato C movie players offer key features from the top-level Terra sever in a smaller and less expensive package. The compact Terra server downloads a 4K movie in as little as 10 minutes and can simultaneously distribute up to five 4K HDR movies to Strato C players, allowing customers to enjoy their movie collection not just in their theater room, but throughout the home.

Features

- Storage for approximately 350 ( 22 TB ) or 100 ( 6 TB ) 4K movies

- Downloads a 4K HDR movie in as little as 10 minutes, at up to 800 Mbps

- Ability to play back and download content at the same time

- Distributes up to 5 simultaneous playback streams in 4K HDR when connected to Strato C players

- The compact size allows the server to be rack mounted side-by-side with the Strato C

- Movies can be downloaded on up to five systems; perfect for multiple residences

- Custom rack mount shelf sold separately

Specifications

Dimensions: 7.87" ( W ) × 1.52" ( H ) × 14.33" ( D )

Weight:7.2 lbs

Power

Max consumption - 32W

Typical - 20W

External power adapter - 100-240V, 50-60Hz universal input 12V @7A, 84W with detachable line cord

Network: Gigabit Ethernet ( 1000 Base-T )

Other Connection: USB 3.0 ( reserved )

Environment

Operating temperature - 41 to 95°F

Storage temperature - -4 to 140°F

Relative humidity - 20 to 80% (operation), 5 to 90% storage

Maximum operating altitude - 10,000ft

Heat output - 109 BTU/hr ( 32W ) max

Airflow - 5 CFM ( 8.4 m3/hr ) max

Ventilation

Minimum 1" space at the front

Minimum 2" space at the rear

Rack Mount sold separately

Rack shelf available for mounting one or two units in a 19" rack, 1RU space

Certifications

CSA 62368-1, CSA 60950-1, IEC 62368-1, IEC 60950-1, FCC CLASS B, CE

RoHS Compliant

Storage Available with 22TB or 6TB of storage

22TB configuration stores up to 367 4K Ultra HD movies, 600 Blu-ray quality movies, or 3,300 DVD quality movies

12TB configuration stores up to 200 4K Ultra HD movies, 325 Blu-ray quality movies, or 1,800 DVD quality movies

6TB configuration stores up to 100 4K Ultra HD movies, 160 Blu-ray quality movies, or 900 DVD quality movies

Movie Server

Maximum Download Rate - 800 Mbps

Serves 4K Ultra HD ( or 4K HDR ) movies simultaneously to up to 5 viewing zones

Serves Blu-ray movies simultaneously to up to 8 viewing zones

Serves DVD quality movies simultaneously to up to 20 viewing zones

Limited Warranty: 5 years

Shipping Weight & Dimensions: 11.6 lbs, 20" x 14" x 9"
