Product description
Music Reproduction of uncanny Warmth & Beauty
In the 1960s, when the audio industry moved en masse into transistor amplifiers, Luxman stood apart. We recognized the ineffable beauty of vacuum tube audio, and we’ve continued to build tube components without interruption. Part of Luxman’s NeoClassico II Series, the SQ-N150 is the latest heir to that proud tradition, delivering music reproduction of exceptional warmth and clarity.
Meticulous Vacuum Tube Engineering
You’ll enjoy surpassingly detailed, open music reproduction thanks to the exceptional linearity of Luxman’s P-K split phase inversion circuit. We married an input stage of two JJ Electronic ECC 83 miniature double triodes to a push-pull output with four JJ Electronic EL 84 pentodes. And with our deep knowledge of tube design, we configured the SQ-N150 for consistent performance and long operating life. On paper, we rate power output at 10 Watts + 10 Watts at 6 ohms. In practice, the sound is fit for the most demanding listeners.
Versatile Preamplifier

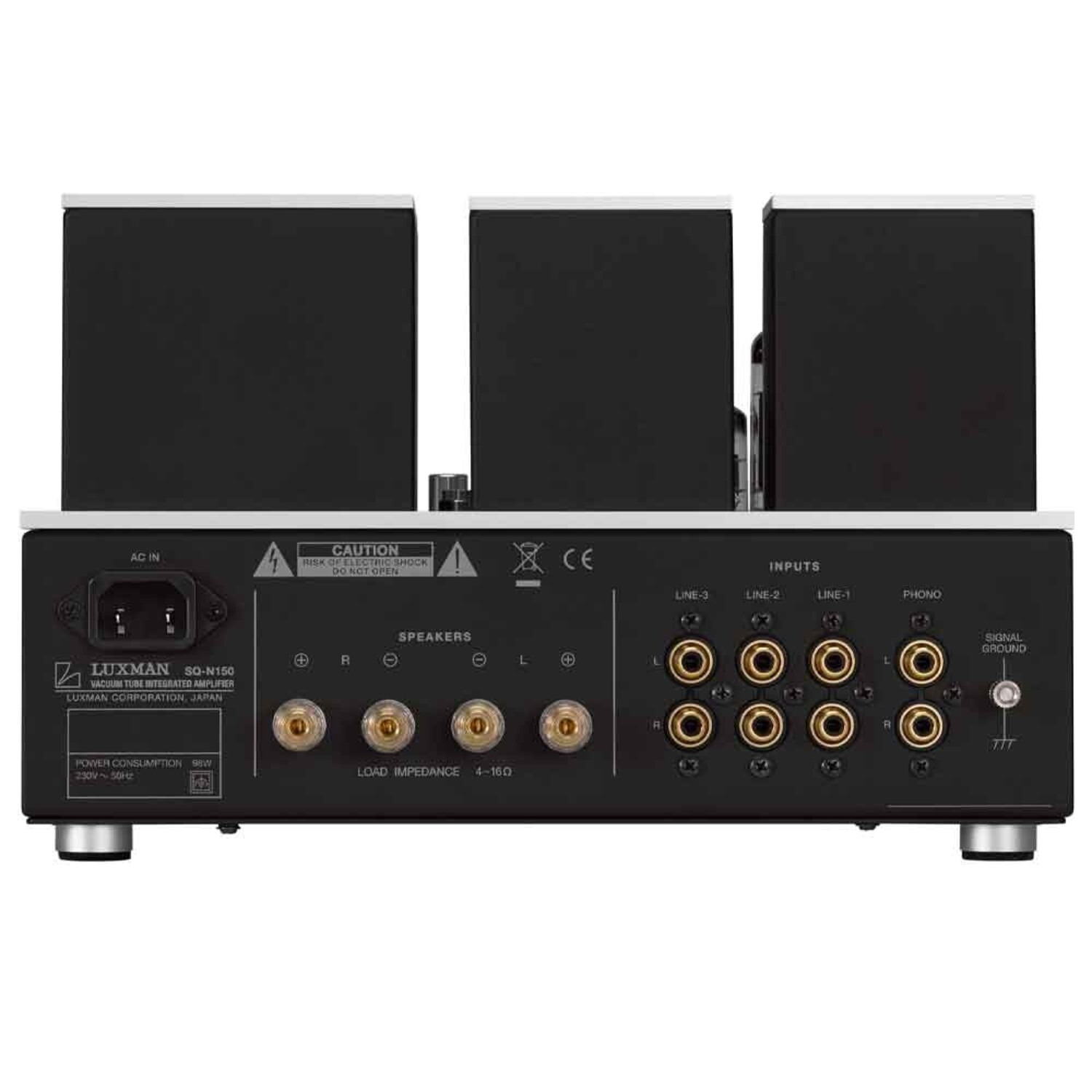

Luxman provides three line inputs and a phono section that accommodates both moving magnet and moving coil cartridges, so you don’t need to purchase a separate MC preamp. We plated the RCA jacks in gold and pitched them at 18 mm to accommodate high-end cables. For minimum crosstalk between left and right channels, we used the same input selector IC as on our top-of-the-line C-900u control amplifier. For ultimate sonic purity, the Line Straight mode can bypass the Bass, Treble and Balance controls. The headphone output jack is ideal for late night listening.
Remote Control
The aluminum-finished remote control operates volume as well as a Luxman CD player, such as the matching Luxman D-N150 digital player.
Elegant Design
The 5 mm thick aluminum chassis has a modest “A4” footprint, just 8-1/4" x 11-3/4" , not including projecting parts. The blasted white inish contrasts nicely with the hairlines on the machined aluminum controls. The orange LED lighting of the analog level meters provides a visual counter-point to the glow of the vacuum tubes.
Dimension:
Speaker terminal ( a ) : 14.5 mm or less
Supported Y-lug terminal ( b ) : 7.5 mm or more
*Connection may not be performed depending on the shape of the Y-lug terminal.
Specifications:
| Rated output | 10 watt +10 watt ( 6 Ω ) |
|---|---|
| Input sensitivity/ input impedance | Phono ( MM ): 3.0 mV / 47k Ω Phono ( MC ): 0.33 mV / 100 Ω Line: 180 mV / 47k Ω |
| Frequency Response | Phono: 20 Hz to 20k Hz ( ± 0.5 dB ) Line: 20 Hz to 80k Hz ( within -3.0 dB ) |
| Total Harmonic Distortion | 1% or less ( 1k Hz, 10 Watt / 6 Ω ) |
| S/N ratio ( IHF-A ) | Phono ( MM ): 84 dB or more Phono ( MC ): 64 dB or more Line: 95 dB or more |
| Circuit | Driver : P-K split phase inversion circuit Output : Pentode power tubes |
|---|---|
| Vacuum Tubes | ECC 83 × 2, EL 84 × 4 |
| Power Supply | 230 Volt ~ ( 50 Hz ) / 115 Volt ~ ( 60 Hz ) |
| Power Consumption | 98 Watt |
| External Dimensions | 297 ( W ) x 188 ( H ) x 251 ( D ) mm 20 mm front panel knob of and 21 mm rear panel terminals are included in the depth measurement |
| Net Weight | 12.4 kg ( main unit ) |
| Accessories | Remote control ( RA-25 ) & Power cable |
Shipping Weight & Dimensions: 33.4 lb, 18" x 14.5" x 14"
