Melco N10P/2 Dual Chassis Music Server

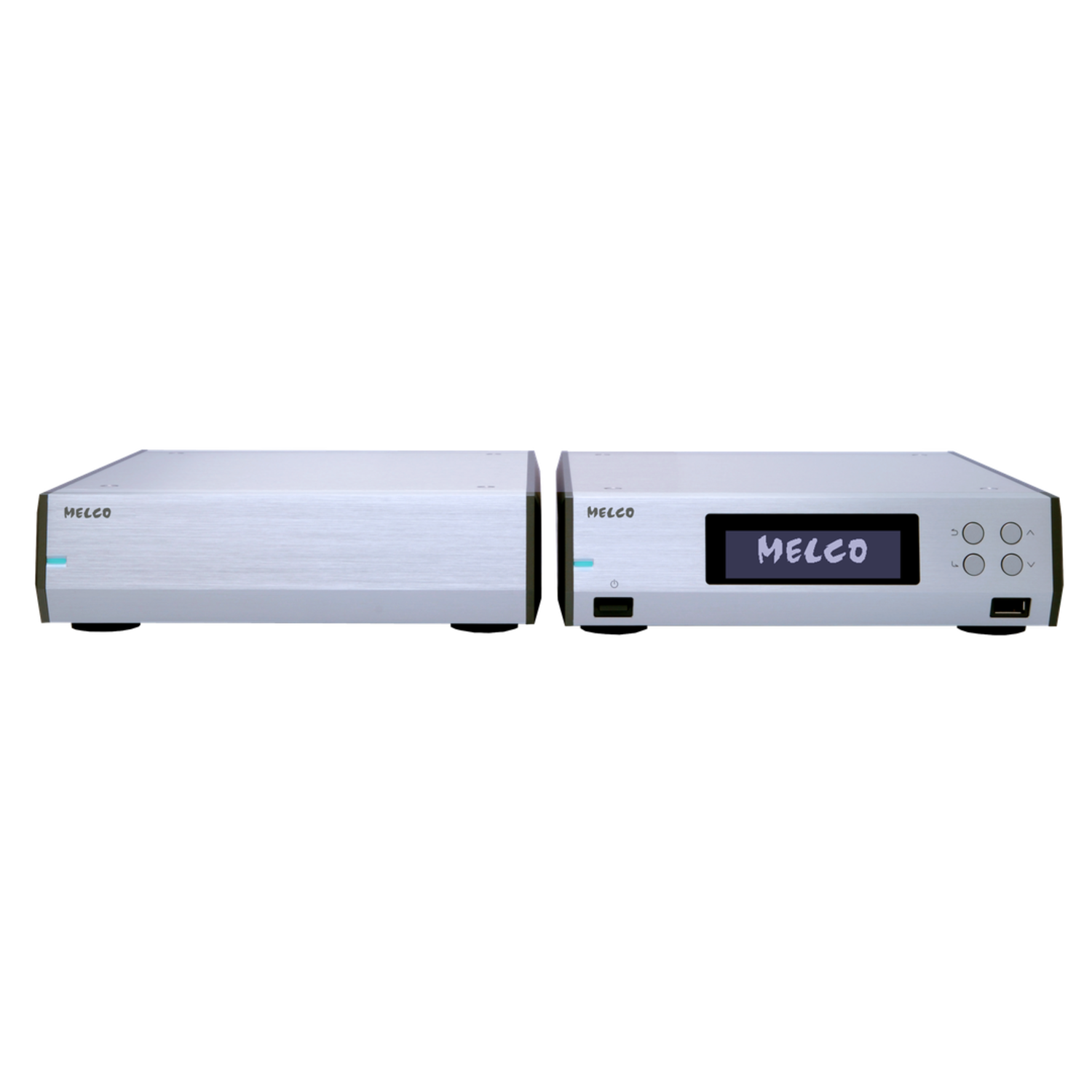

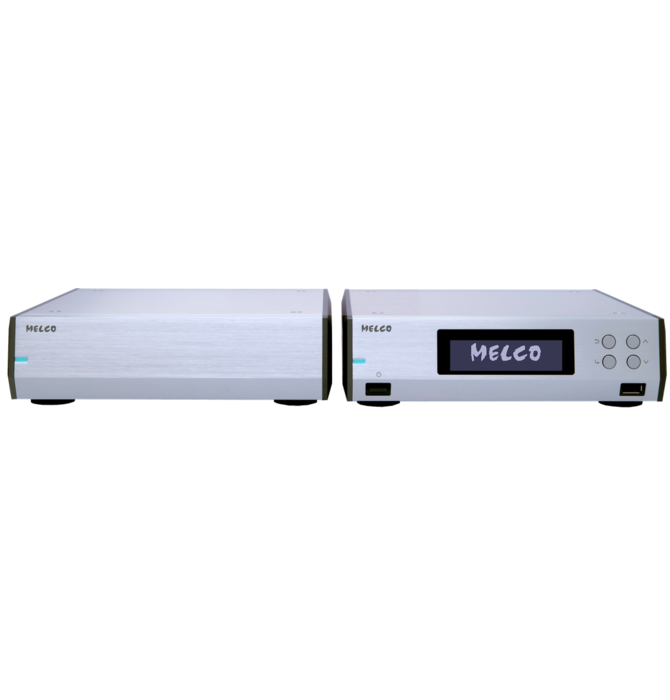

The N10/2 is a two-box solution designed to improve sound quality by separating the unit’s power supply from the sensitive ‘head’ unit.

A half-width design, like the entry-level N100, the N10/2 offers easy placement in the home, but with the sound quality benefits of the enhanced N10 solid aluminium chassis and upgraded internals, plus the linear power supply.

Furthermore, the N10/s is available in two distinct varieties: a 5TB HDD or a premium 3.84 TB SSD version.

Features

- Half-width design benefitting from an external power supply for improved sound quality

- The ‘head’ unit has both newly designed internal electronics hardware and new operating software, with an improved PCB

- Solid aluminum casework (including the end cheeks) for freedom from vibration

- Complex and rigid vibration-reducing internal chassis

- Crystal-clear easy-read low-noise OLED display

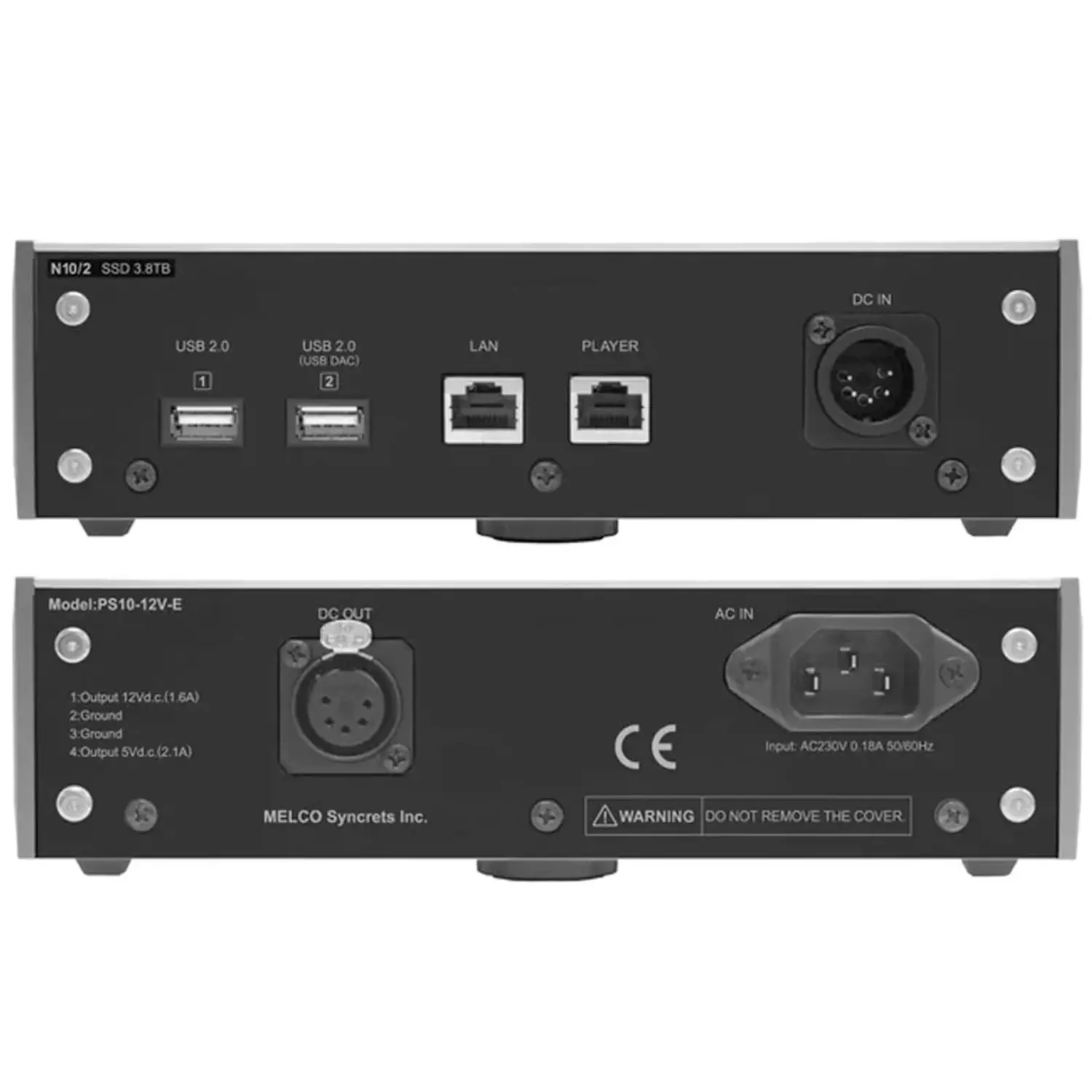

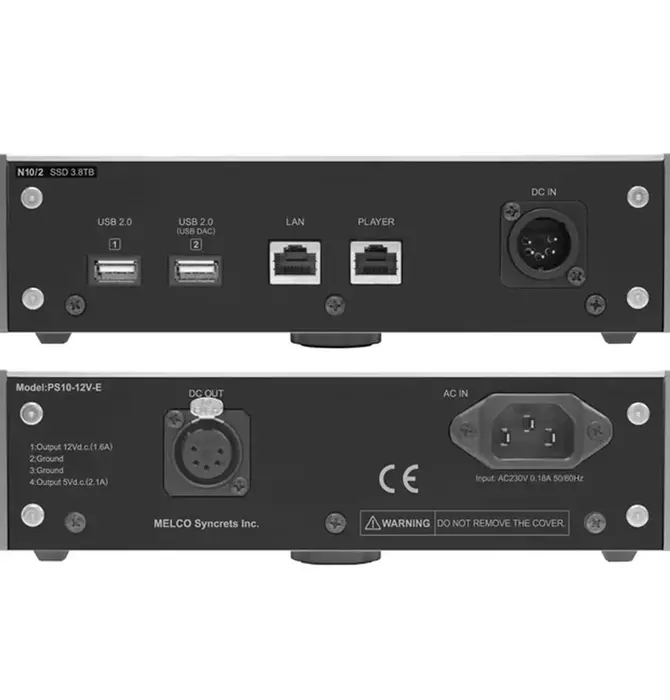

- 2x rear USB 2.0 ports for easy backup/expansion and USB DAC connectivity

- Dedicated Player and LAN ports for improved sound quality

 Specifications

Music Storage

N10/2-S38 1 x 3.84 TB specially selected SSD on Melco HS-S2 isolation platform

Model

N10/2-S38B-E ( Black, AC230V )
N10/2-S38-E ( Silver, AC230V )
N10/2-S38B-EA ( Black, AC120V )
N10/2-S38-EA ( Silver, AC120V )

N10/2-H50 1 x 2.5-inch specially selected HDD 5TB on Melco HS-S2 isolation platform

Model

N10/2-H50B-E ( Black, AC230V )
N10/2-H50-E ( Silver, AC230V )
N10/2-H50B-EA ( Black, AC120V )
N10/2-H50-EA ( Silver, AC120V )

Network Connectivity

- LAN Port-Gigabit Ethernet ( 1000Base-T)
- PLAYER port
- Gigabit Ethernet ( 1000Base-T )
- DHCP server in isolated mode

USB Connectivity

- USB 2.0 Front panel x 1
- USB 2.0 Rear panel x 2
- Assignable as DAC, backup, import, expansion

USB Player Sample Rate Support

- 16-32 bit ( PCM ) to 384 kHz:- auto downsample to suit connected DACs
- Gapless PCM support
- 1 bit ( DSD ) to 11.3 MHz Quad DSD
- Markerless DSD support
- DSD to 32-bit PCM conversion selectable
- Gapless DSD support
- OLED displays player sample rate

Power Supply

Pre-set 220-240 V AC or 110-120 V AC dependent on locality

Low-noise, linear power supply

Dimensions: 8.4" ( W ) x 2.4" ( H ) x 10.5" ( L )

Weight of Head unit Approximately: 7.7 lbs

Weight with Power supply Approximately: 11 lbs

Shipping Dimensions & Weight: 18" x 14" x 8" , 11 Lbs
