4K / 8K HDMI Testing & Troubleshooting Kit

4K / 8K HDMI Testing & Troubleshooting Kit

$2,499.00
          (0 reviews)
In stock
+
  Add to Wishlist
This 40 Gbps Generator and Analyzer Testing Kit from Murideo was built as the ideal testing unit for all custom and commercial integrators. Free Shipping to Continental US only!

The 8K Fox & Hound Testing & Troubleshooting Kit

The Fox & Hound comes with a 40 Gbps Generator and 40 Gbps Analyzer. These tools allow you to confirm correct bandwidth, HDCP, resolution, timing, HDR metadata and many more options that could cause system hiccups if not treated correctly.

With devices like 8k displays and sources becoming normal for all video distribution systems, tons of new video formats are coming with it. How are you going to test those new signals? That is why we set out to develop a simple, affordable solution to troubleshoot system issues for today's integrator. The 8K Fox & Hound: A/V Testing and Troubleshooting Kit is a product that can produce and analyze the newest and highest resolutions - 8k resolutions and refresh rates up to 120hz at 40 Gbps. It's also affordable enough for every integrator to have on any install/service call!

How it works

Place the generator in place of your source and set the analyzer in place of your sink. These units will then read the data being sent throughout the system. The Fox & Hound's generator can alter its signal type to produce any signal found from today's modern sources. This gives the integrator the ability to test new or existing HDMI infrastructure ( cabling, extenders, amplifiers ) against the types of signals it will receive in the real world. This will diminish calls to support and replacement of products! Troubleshooting is a breeze-never worry if a cable or extender is bad again! Not to mention, it's fast-have your a-have your answer to a potential problem in less than a minute.

MU-FXHD-KIT-8K - Details

Features

Generator

HDCP select-able - 2.3, 2.2, 1.4, none - confirms if the system will work or not

Hot plug detect & HDCP lights

Portable/battery operated

EDID read functionality

Audio confidence tests

Optimized ergonomics - 2" color display

RS-232 or USB controllable

HDMI 2.1

HDR ( High Dynamic Range ) injector, and management

Video bandwidth - 40 Gbps

4K @ 10, 12, 16 bit support

HDCP 2.3 compatible

16 bit per pixel deep color depth available ( 48 bit )

Battery: 7.4v li-ion 2600mah internal rechargeable battery

DC 5v power

Analyzer

Analyze any HDMI/DVI signals up to 40 Gbps

Test HDMI/DVI cables up to 40 Gbps

View up to 40 Gbps video content & format info anywhere

Audio confidence tests, 2-channel & multichannel

Advanced EDID analysis & tools - read, write, EDID

Analyze HDR signals & metadata

HDCP tester - 2.3, 2.2, 1.4, none

Portable, battery operated

HDMI 2.1

HDR ( High Dynamic Range ) metadata info frame reading and management

Video bandwidth - 40 Gbps

10, 12, 16 bit support

HDCP 2.3 compatible

16 bit per pixel deep color depth available ( 48 bit )

Battery: 7.4v li-ion 2600mah internal rechargeable battery

DC 5v power

Specifications

Video

HDMI Version: HDMI 2.1 ( FRL5 40 GBPS )

HDCP Version: Up to HDCP 2.3

HDCP On/Off: yes

Max Clock Rate: 600MCSC ( 504 MHz )

Max Throughput Per Channel: 10.0 GBPS ( 40 GBPS total )

Resolution Timings:

8K: 24Hz, 25Hz, 30Hz, 50Hz, and 60Hz - 4K: 24Hz, 30Hz, and 60Hz - 1080 ( HD ): 24Hz, 30Hz, 50Hz, and 60Hz - 720: 50Hz and 60Hz - VESA: 60Hz ( Auto read/output based on EDID )

Video Encoding: RGB- YCBCR

Audio

Audio Channels: Up to 8 ( 7.1 surround sound )

Audio Output: 2 channel LPCM and 8 channel LPCM

VU Meter Channels: Up to 8 ( 7.1 )

Ports

HDMI: Type Audio

Firmware: Micro USB

Environmental

Operating Temp: 23 - 125°F

Storage Temp: -4 - 140°F

Humidity Range: 5-90% RH ( no condensation )

Power

Power ( Single Unit ): 7.4V 2600mAh internal battery or wall adapter

Power Consumption ( total for single unit ): 7.5 watts max

Power Supply ( x 2 ): Input - AC 100-240V ~ 50/60Hz, Output - DC 12V 2A

Physical

Dimensions ( unit only ): 1.19" x 3.09" x 1.19"

Dimensions ( case ): 5" x 11" x 13.13"

Weight ( unit only ): 0.58 lbs

Weight ( case & accessories ): 6 lbs

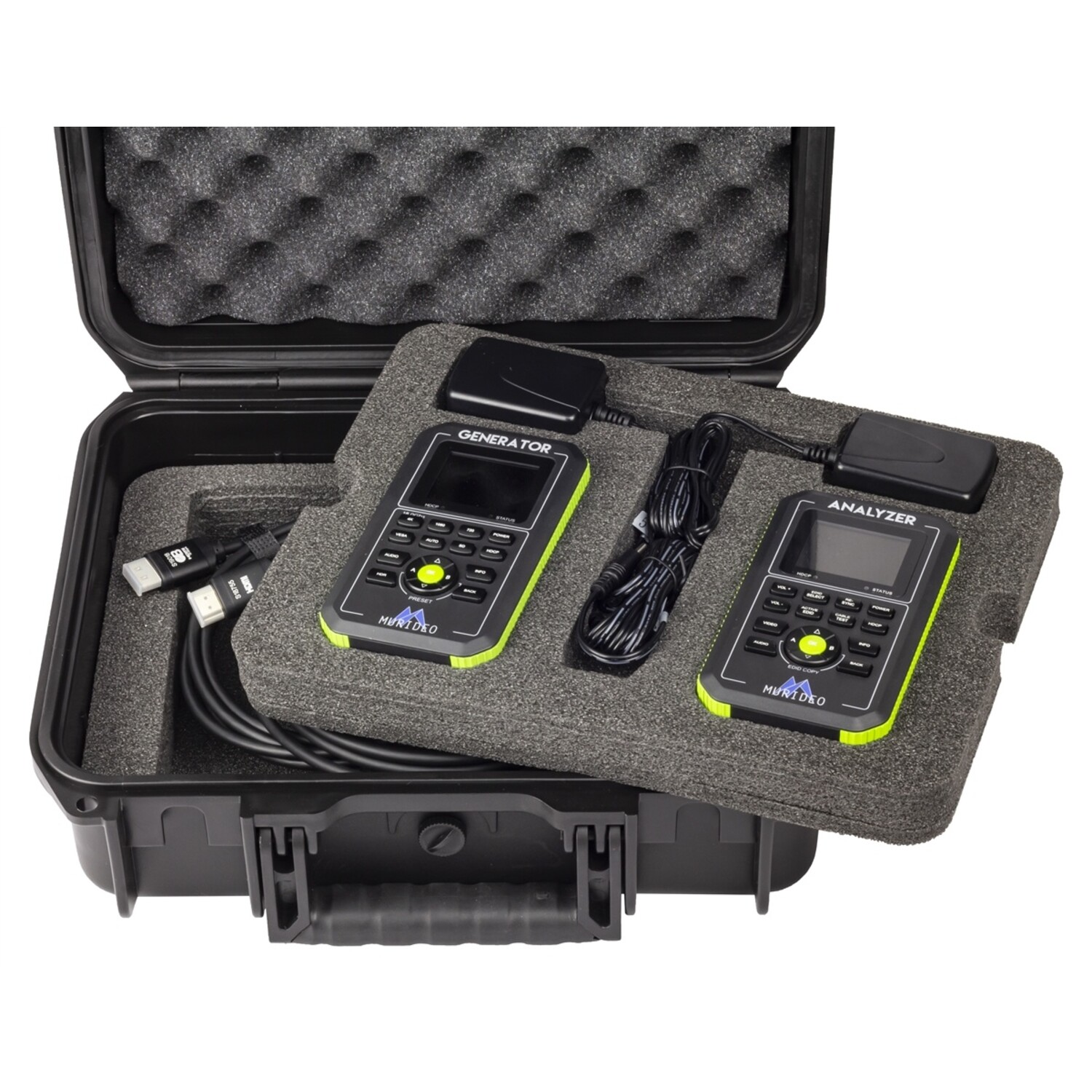

Item Includes

1 x Fox - Generator

1 x Hound - Analyzer

1 x Hard case

2 x 12 Volt 2A power supplies

2 x Micro USB cables

2 x Bullet Train HDMI cables
