Product description

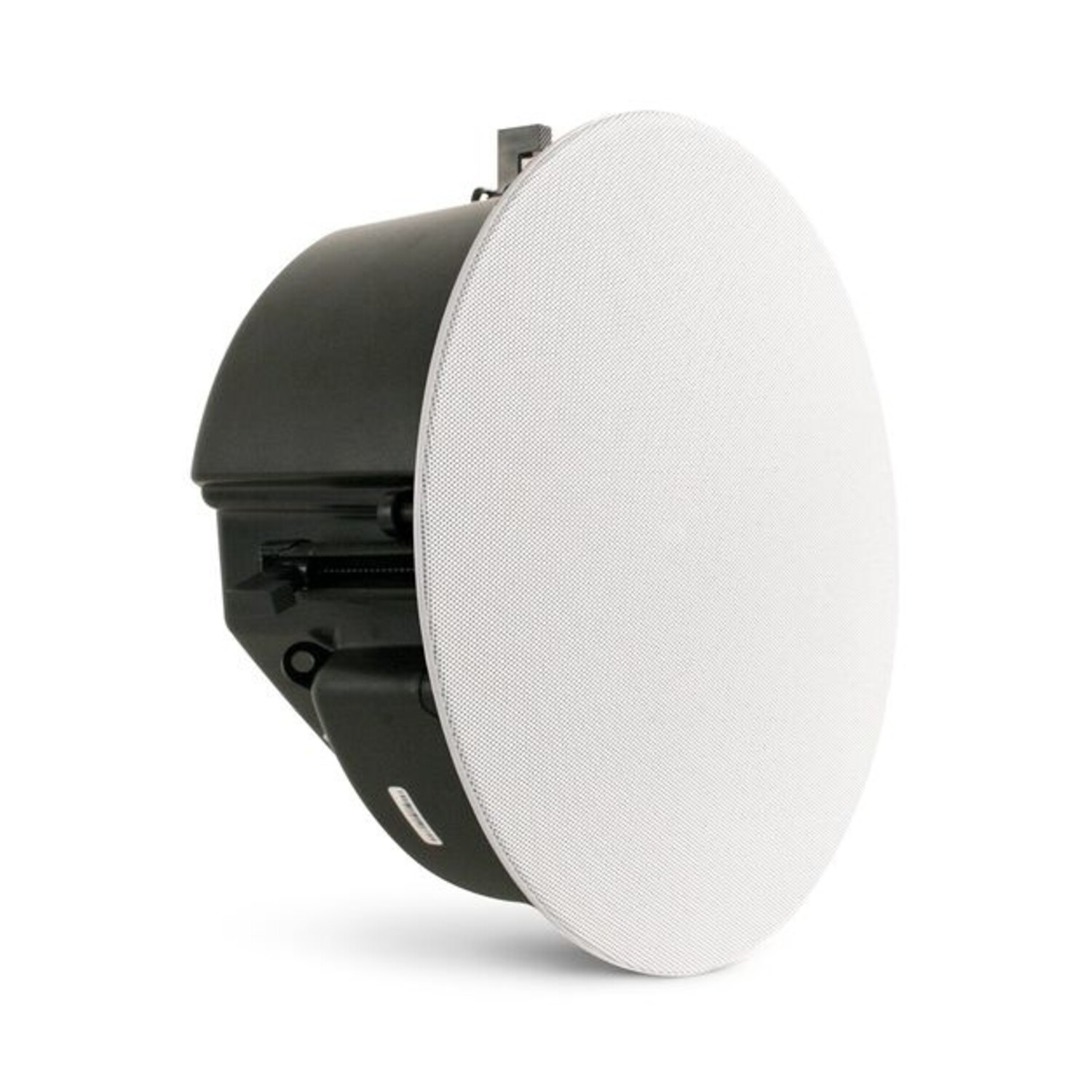

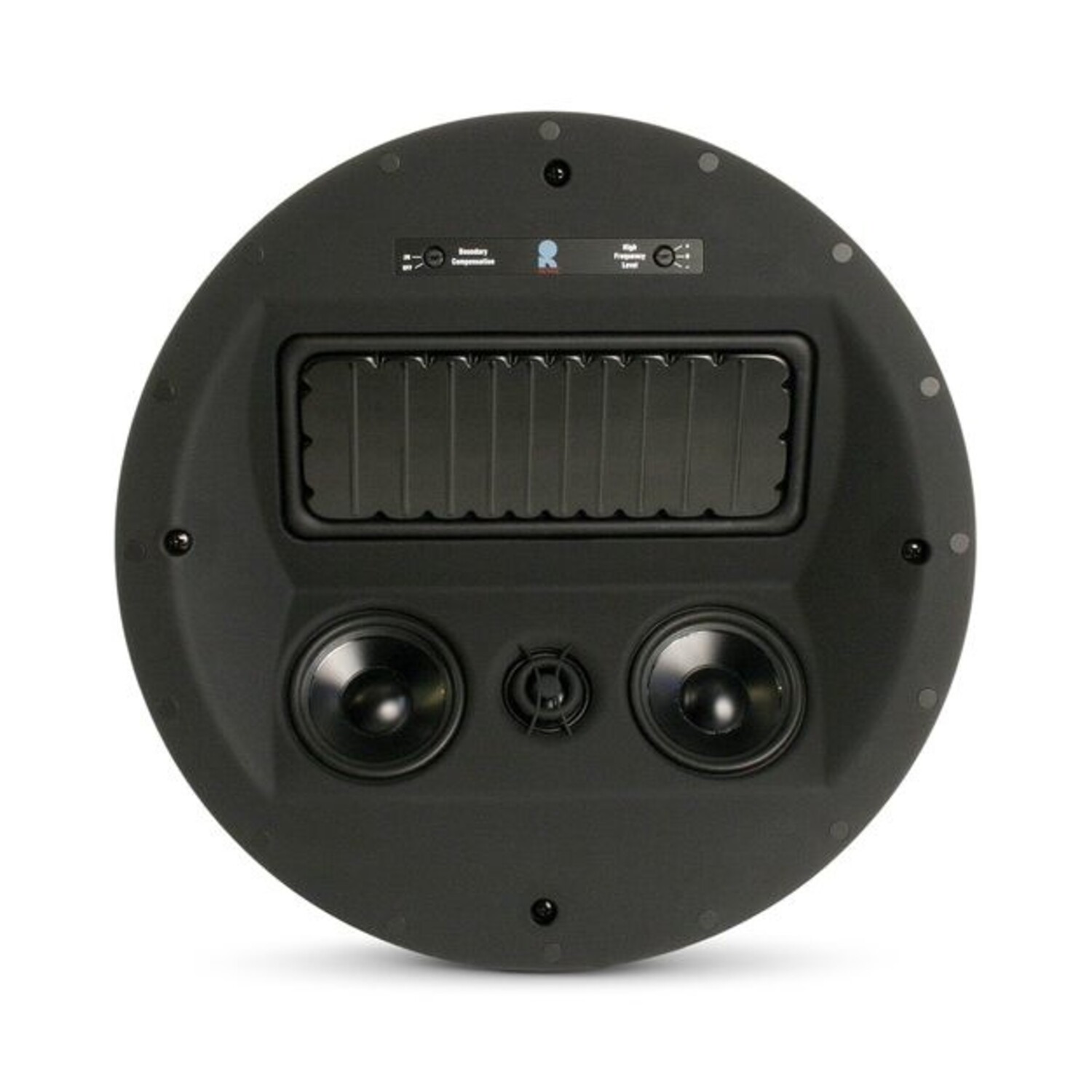

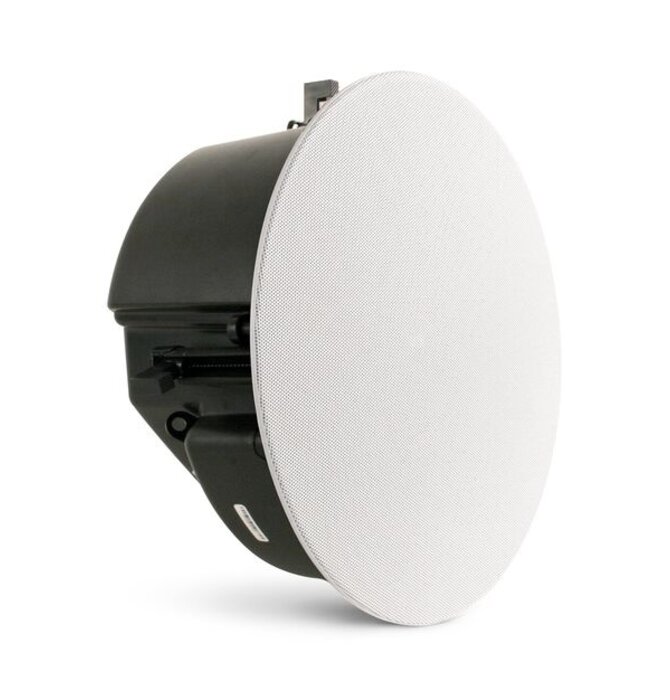

Revel C763L Micro-Ceramic Composite (MCC) Cone Speaker
Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
Highlights
- Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.
- 1-inch (25mm) angle-adjustable, aluminum-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
- High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
- Boundary compensation switch lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall.
- Three-position tweeter level control lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
Specifications
Height | Square grille finished height 12.5" |
Width | Square grille finished width 12.5" |
Depth | Mounting depth 5.7" |
Weight | 4 lbs / Shipping weight 5.2 lbs |
Included Accessories | Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 12.5" (31.8 cm) |
High Frequency Driver Components | 1" aluminum high-output tweeter with waveguide |
Low Frequency Extension | High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation |
Low Frequency Driver Components | 7.8" x 3.4" Micro-Ceramic Composite (MCC) Cone, Diaphragm Flat-Panel Woofer |
Mid-Frequency Driver Components | Two 3.5" micro-ceramic composite (MCC) cone, cast-aluminum frame high-output midranges |
Mounting | C-2 fastening mechanism • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm) |
Recommended Amplifier Power | 10 - 200 Watts RMS |
