Russound 6 Source Controller Kit

Product description

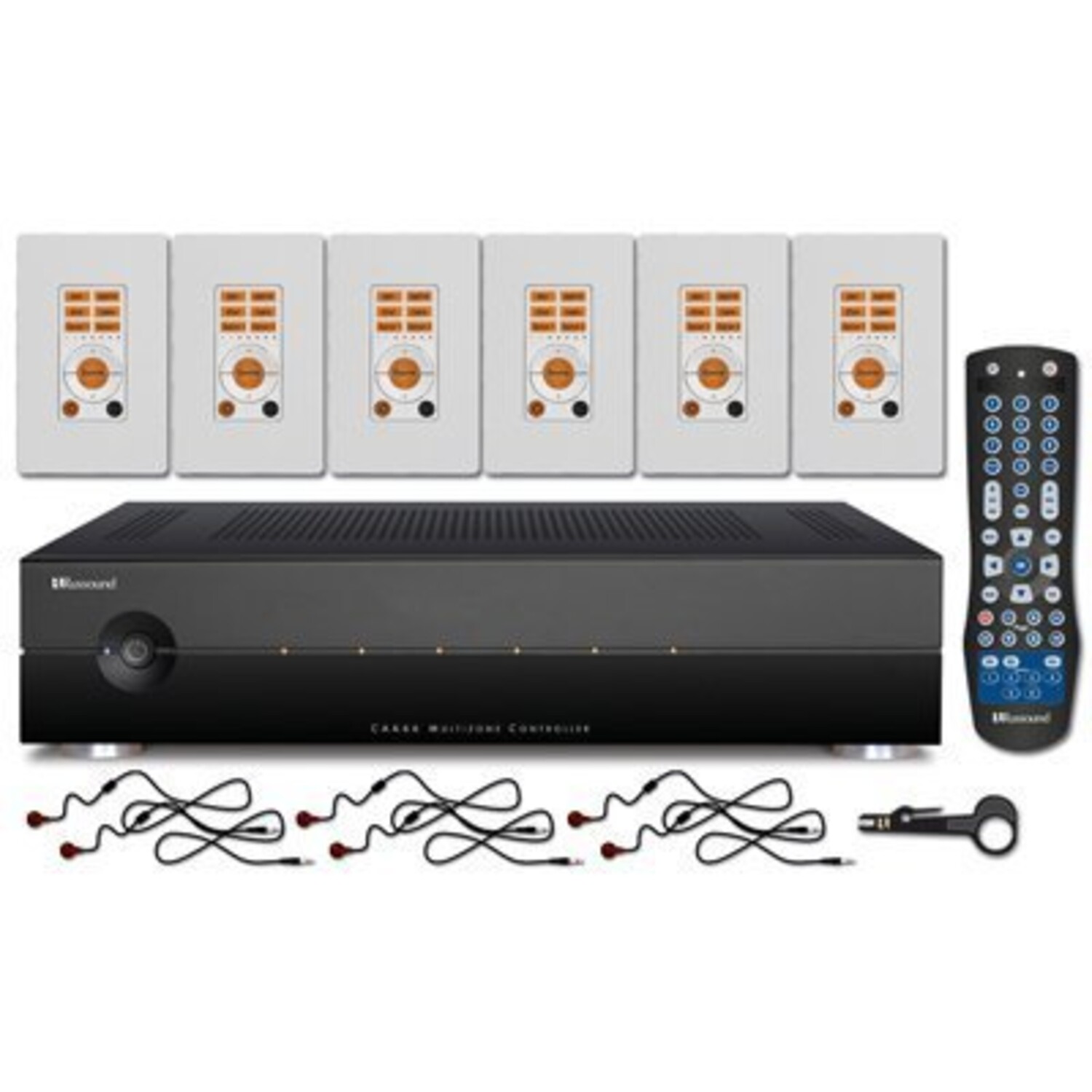

The Russound CAA66L system distributes music from up to six sources to as many as six listening areas in your home system includes: one CAA66 controller/amplifier, six KPL in-wall keypads, and one SRC1 system remote control. As well as expandable up to 36 zones with additional components & keypads.

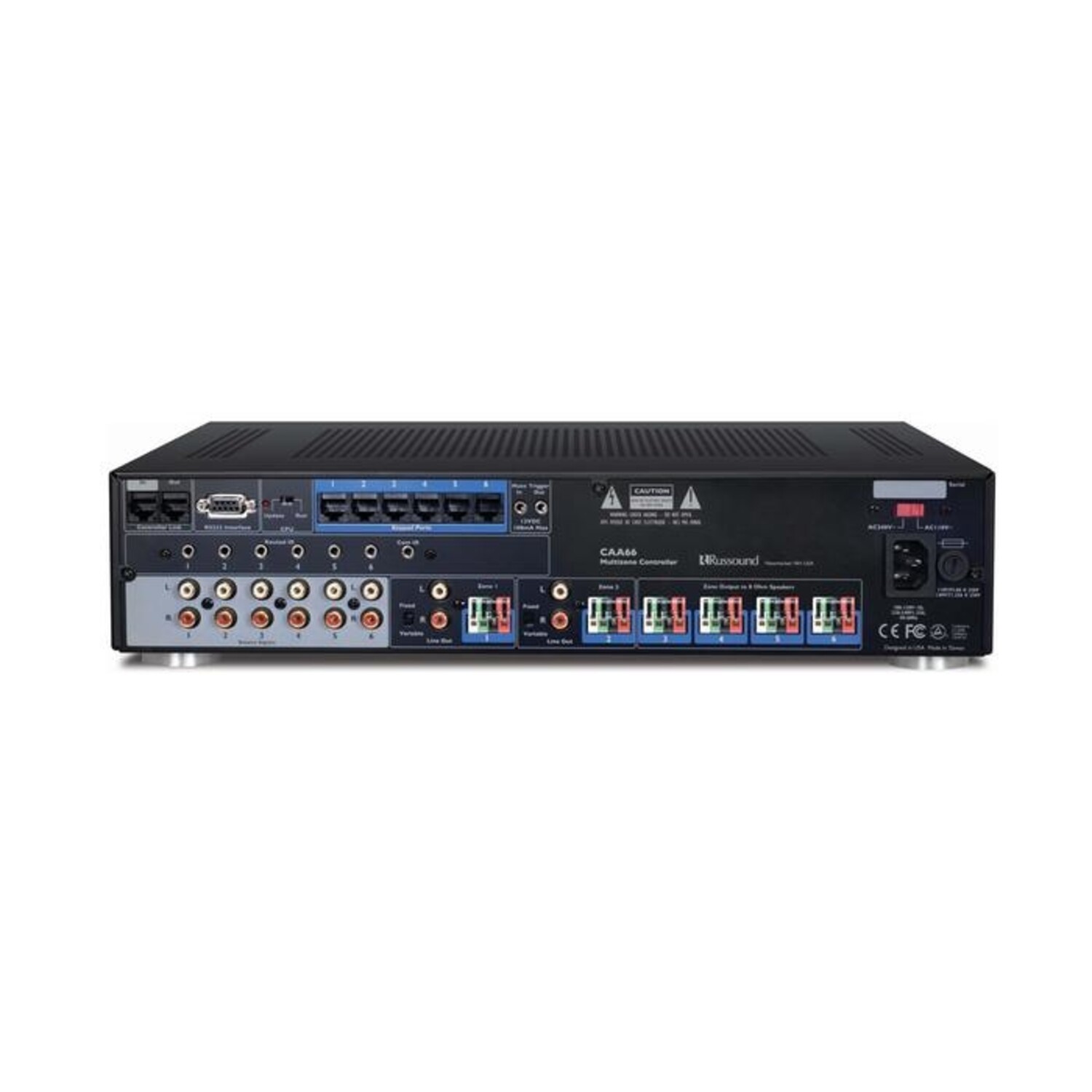

CAA66 Controller/Amplifier:

- 6 RCA stereo inputs for connecting source components

- 6 pairs of speaker connectors

- 20 watts RMS per channel x 12 into 8 ohms

- 6 RJ-45 ports connect to in-wall keypads using CAT-5 or CAT-5e cable

- RS-232 port for integrating a third-party home automation system

- 6 IR outputs (2 dual infrared emitters included)

- Audio line outputs (switchable fixed/variable) for connecting external amplifiers or local audio systems in zones 1 and 2

- Mute trigger allows you to connect an external paging system or doorbell

- Wireless system remote operates connected audio components through IR sensor on system keypads

- 17"W x 3^15/16"H x 12^15/16"D

- Warranty: 3 years

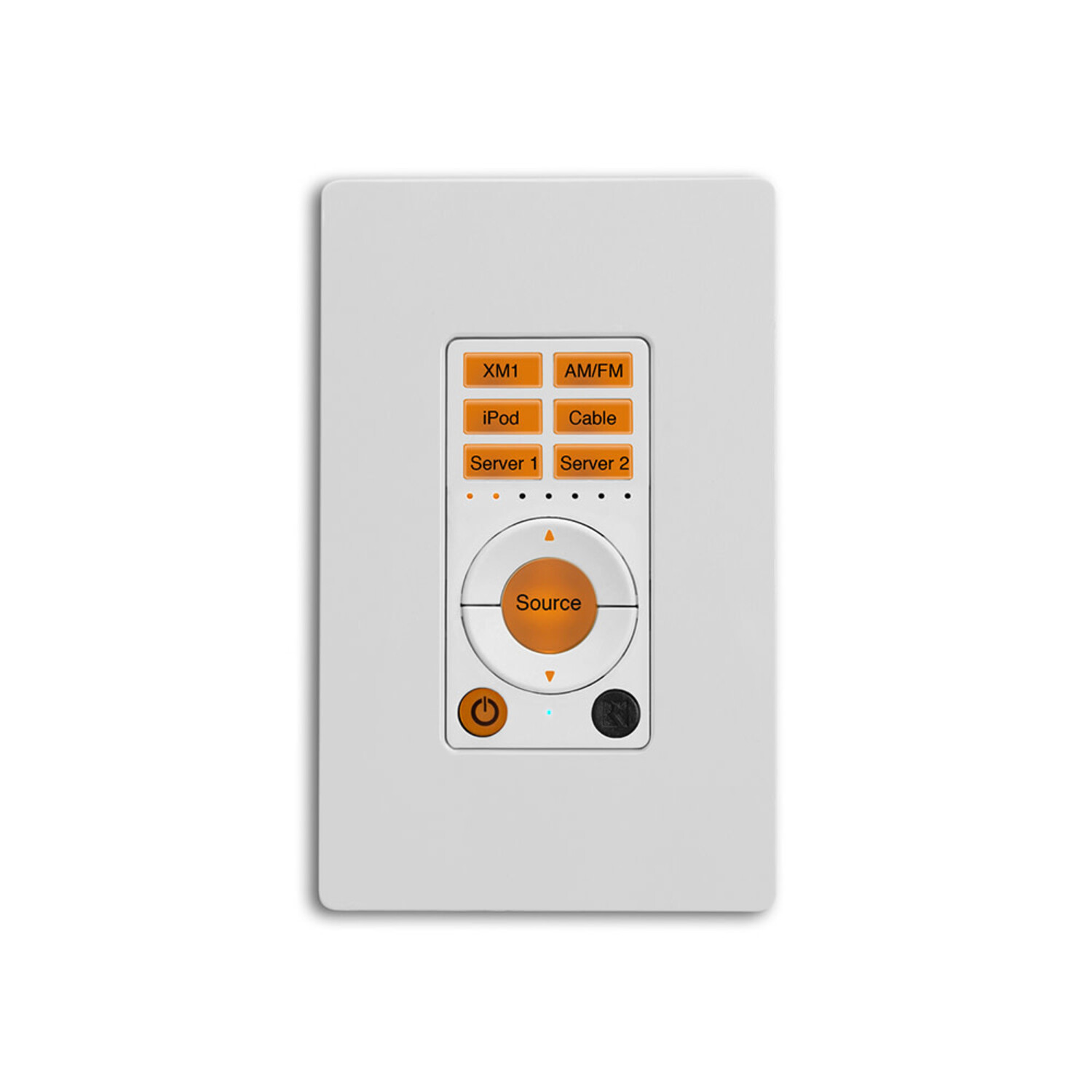

CAA66 KPL Keypad:

- Easy-to-use buttons with visual feedback for simple multi-room control

- Features a 5-character LCD panel with volume and status indication

- Includes programmable source names for personalizing system

- Controls include on/off, volume up/down, source select, and audio/tone adjustments

- Backlit with amber illumination

- Includes a built-in IR receiver with pass-through

- Installs in wall in a single-gang electrical box

- Warranty: 2 years

Zones per Controller: 6

Zones per System: 36 maximum

Audio Source Inputs: 6

Input Impedance: 50 kilohms

Amplifier Channels: 12

Power Output: 20 watts RMS into 8 ohms

Frequency Response: 20 Hz to 20 kHz +0/-2.5 dB

Distortion: <0.10% THD+N from 20 Hz to 20 kHz

Signal-to-noise Ratio:
    >90 dB A-weighted,
    >88 dB unweighted

Speaker Impedance: 8 ohms

Audio Line Outputs: Switchable fixed/variable (zones 1 and 2 only), 2.2 Vrms

Trigger Output: 12 VDC 100 mA max

Mute Trigger Input: 12VDC

Dimensions: 17"W x 3.9"H x 11.5"D (43 x 9.9 x 29.2 cm)

Power Rating: 100–120 VAC 3 A or 220–240 VAC 1.25 A, 50–60Hz

Fuse Rating: F3.0A H 250V USA/Canada
    TF1.25A H 250V Europe

Weight: 17 lb 12.5 oz (8.1 kg)
