AP-505 Stereo Power Amplifier

AP-505 Stereo Power Amplifier

          (0 reviews)
In stock (1)
+
  Add to Wishlist
In Store Only ! The AP-505 stereo power amplifier features a Hypex Ncore class D power amplifier, specifically tuned for TEAC, with a rated output of 70 watt / channel & three-position patent-registered pin-point feet.

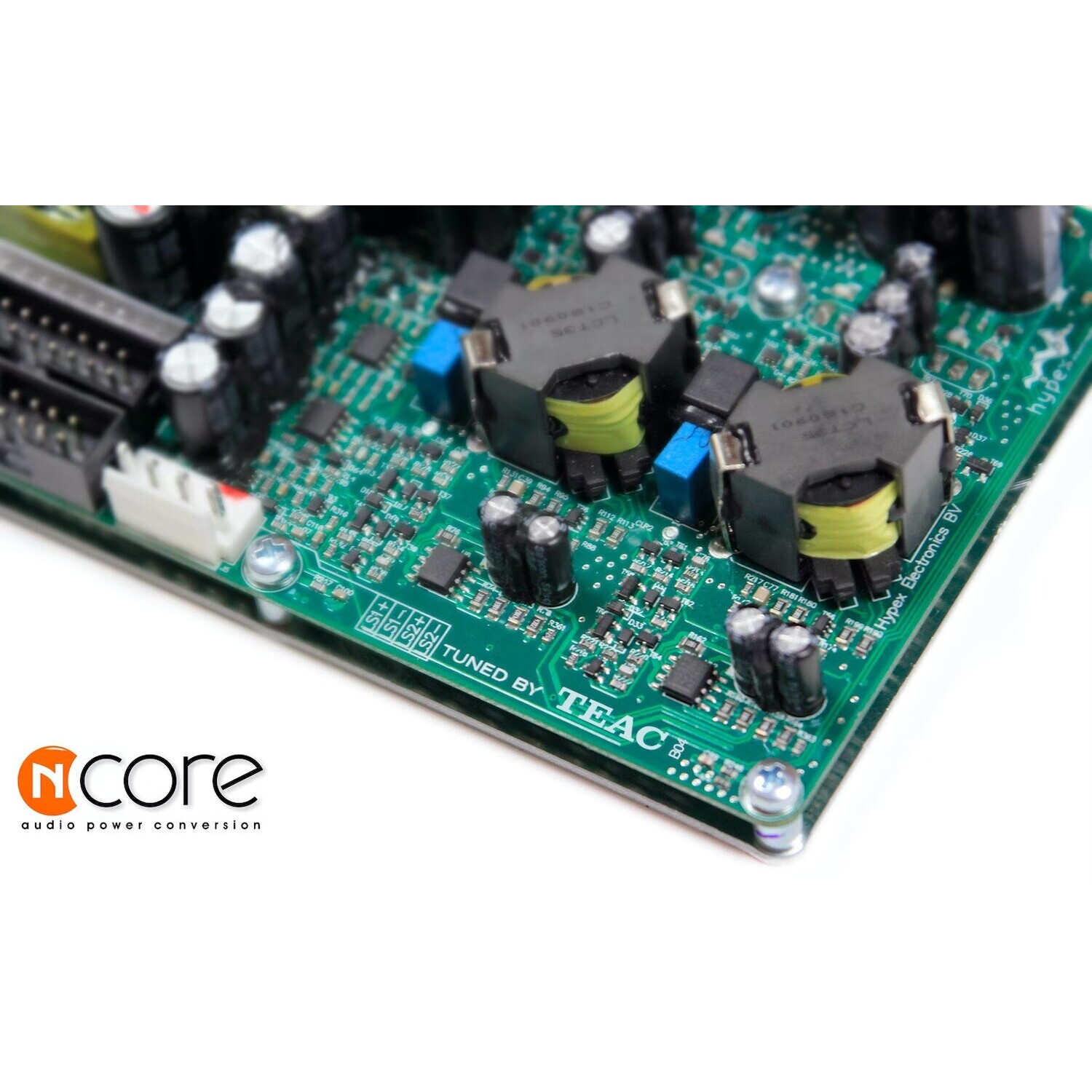

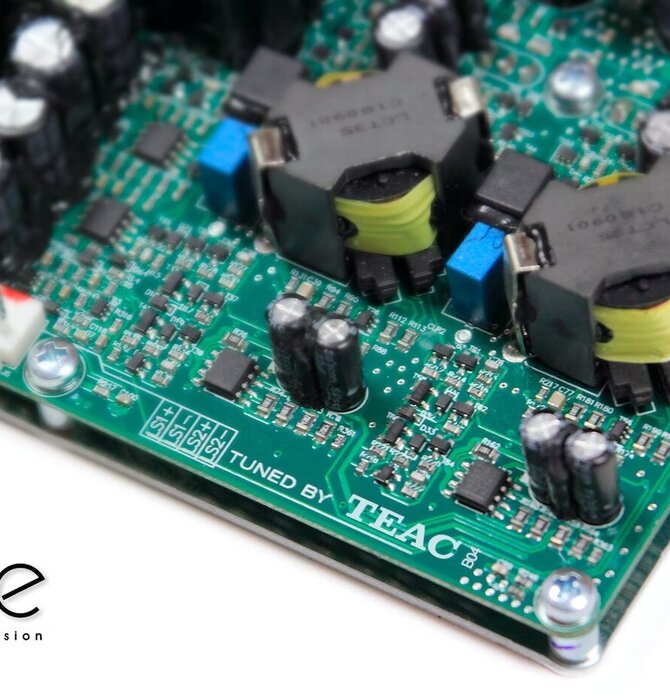

The AP-505 stereo power amplifier features a Hypex Ncore class D power amplifier, specifically tuned for TEAC, with a rated output of 70 watts / channel ( 8 ohms, 1k Hz, THD 0.8% ) & three-position patent-registered pin-point feet.

The power amplifier section has integrated protection circuits to guard against current surges, over-voltage and overheating.

A toroidal-core power transformer is said to improve the power supply's ability to resist fluctuations in output, allowing the AX-505 to maintain its rated output power under heavy load. The power section also integrates Schottky barrier diodes, to increase efficiency and reduce heat. The headphone amplifier with CCLC delivers full low-frequency audio and "a robust headphone soundstage."

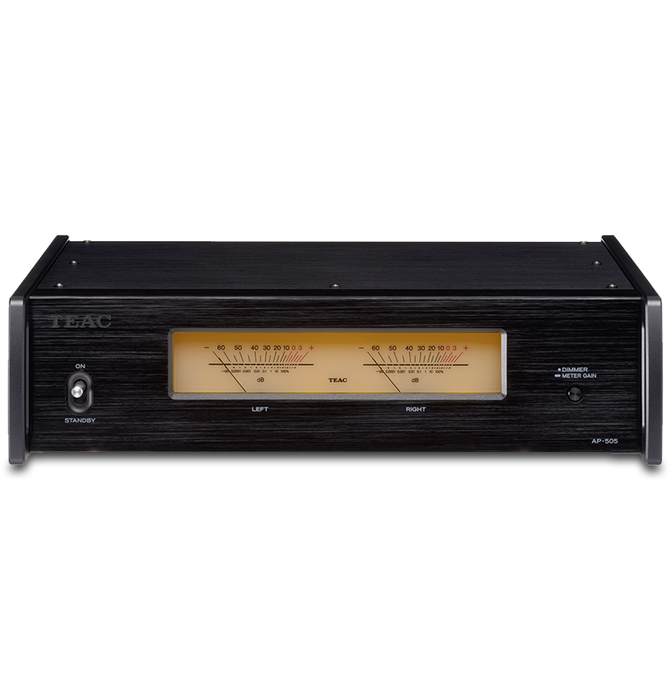

Design details include an aluminum cabinet with machined aluminum knobs and large gold-plated screw-style speaker terminals. VU meters have a four-step dimmable backlight and AD / DA circuits. It's available in black or silver.

TEAC AP-505 Amplifier User's Manual

Specifications

Rated Output Power:
115 watt + 115 watt ( 4 ohms, 1k Hz, THD 0.8% )
70 watt +70 watt ( 8 ohms, 1k Hz, THD 0.8%)

BTL Output Power: 250 watt ( 4 ohms, Monaural ), 200 watt ( 8 ohms, Monaural )

Compatible Speaker Impedance: 4 to 8 ohms

THD: 002% ( XLR in 1 Volt, 1k Hz, 8 ohms, 12.5 Watt JEITA )

S/N Ratio: 110 dB ( XLR in 6 Volt, 1k Hz, 8 ohms, HIF-A )

Frequency Response: 10 Hz to 50k Hz ( ‒5 dB, XLR in 1 Volt, 1k Hz, 8 ohms, 1 Watt JEITA )

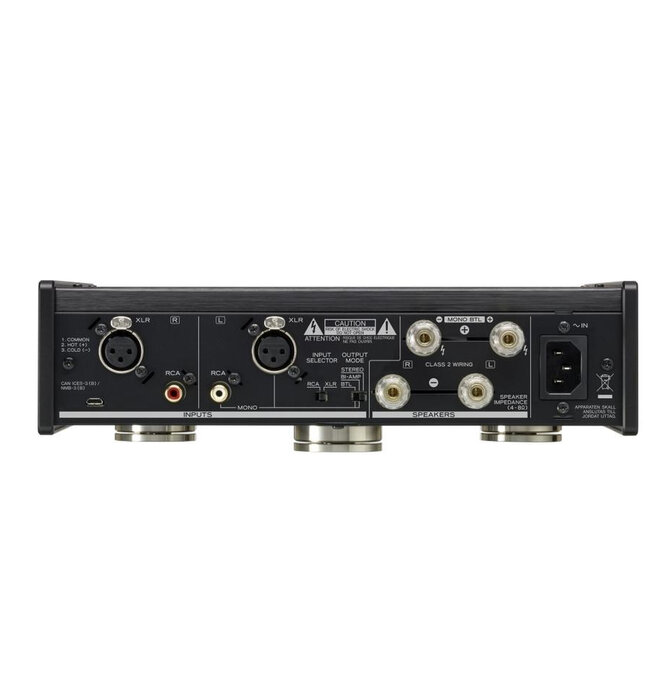

Analog Inputs: RCA x 1 pair ( Unbalanced ) and XLR x 1 pair ( Balanced )

Speaker Terminals: Screw type x 1 set

Operation Power: AC 120 Volt, 60 Hz ( US / Canada )

Power Consumption:  55 watt

Dimensions ( W x H x D ): 4” x 3.3” x 10.4”
