HTM71 S3 Center Channel Speaker ( Each )

HTM71 S3 Center Channel Speaker ( Each )

$2,499.00
          (0 reviews)
Out of stock
+
  Add to Wishlist
Center Channel Speaker w/ Carbon Dome Tweeter, Continuum Cone, & Aerofoil Profile Bass Cone. In Store Only! For Availability & Purchasing, please call us at (702) 910-4913. Or if you have any questions, please contact us via Chat. Each Sold Separately !

In Store Only!

 For Availability & Purchasing, please call us at (702) 910-4913.

Or if you have any questions, please contact us via Chat.

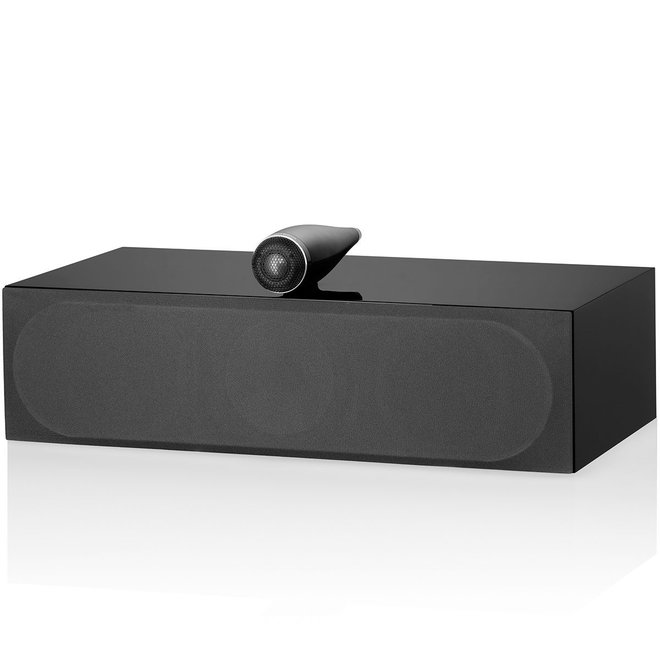

Bowers & Wilkins HTM71 S3 3-Way Center Channel Loudspeaker

Our flagship center-channel speaker features a Carbon Dome drive unit housed in a Tweeter-On-Top enclosure, a 130mm (5in) Continuum Cone FST™ midrange driver – particularly important for clarity with dialogue – and twin Aerofoil™ Profile bass cones. It’s the perfect partner for the 705 S3, 703 S3 and 702 S3.

Uncompromising Vocal Performance

The HTM71 S3 now features Tweeter-on-Top technology, ensuring perfect integration with similarly equipped 700 Series models in a surround sound system.

A House for High Frequencies

The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.

Sharper Detail

Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

Truly Amazing Sound

Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.

Clean & Clear

Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.

A Triumph of Science

Developed using advanced computer model techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.

Bowers & Wilkins HTM71 S3 User's Manual

Bowers & Wilkins HTM71 S3 Info Sheet

Technical Features

- Decoupled Carbon Dome tweeter

- Solid Body Tweeter-on-Top

- Continuum™ cone FST midrange

- Aerofoil™ Profile bass cones

- Flowport™

Description: 3-way vented-box system

Drive Units:

1x ø25mm (1in) Decoupled Carbon Dome high-frequency

1x ø130mm (5in) Continuum cone FST midrange

2x ø130mm (5in) Aerofoil Profile bass

Frequency Range: 45Hz to 33kHz

Frequency Response: (+/-3dB from reference axis) 50Hz - 28kHz

Sensitivity: (on axis at 2.83Vrms at 1m) 89dB

Harmonic Distortion:

2nd and 3rd harmonics (90dB, 1m on axis)

<1% 90Hz - 22kHz

<0.5% 120Hz - 20kHz

Nominal Impedance:  8Ω (minimum 3.0Ω)

Recommended Amplifier Power: 30W - 200W into 8Ω on unclipped programme

Dimensions

Height: 6.5" Cabinet only, 9.2" Including tweeter

Width: 24.7" Cabinet only

Depth: 12.5" Cabinet only, 14" Including grille and terminals

Net Weight: 38.5 lbs
