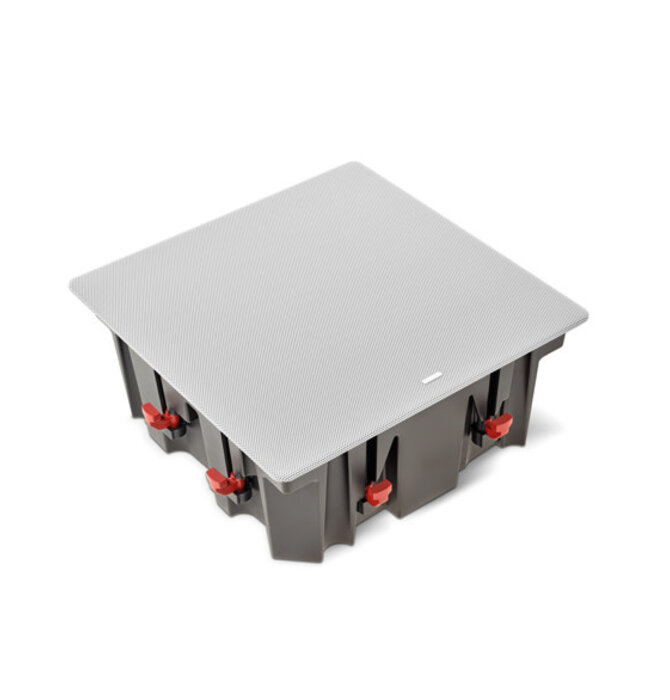

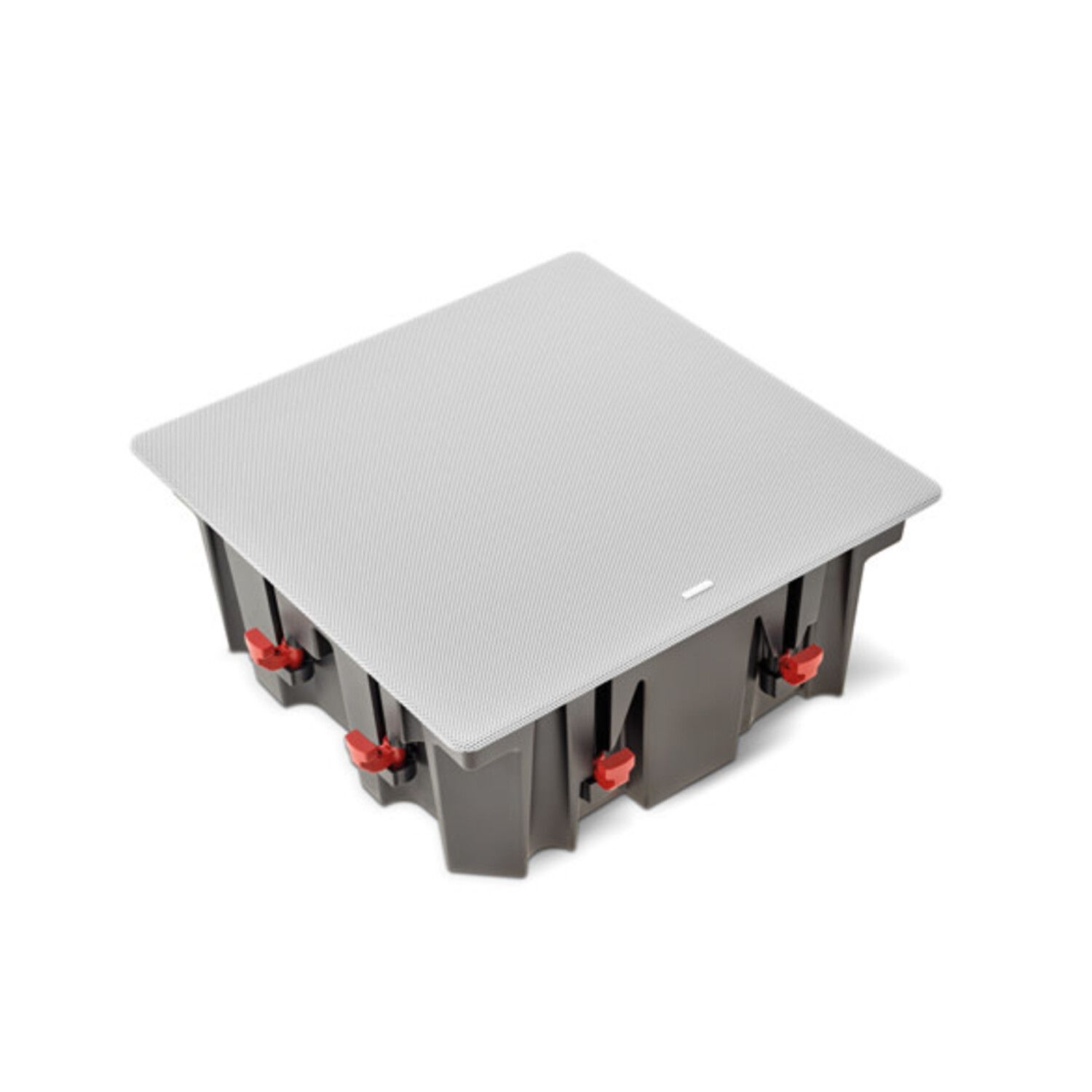

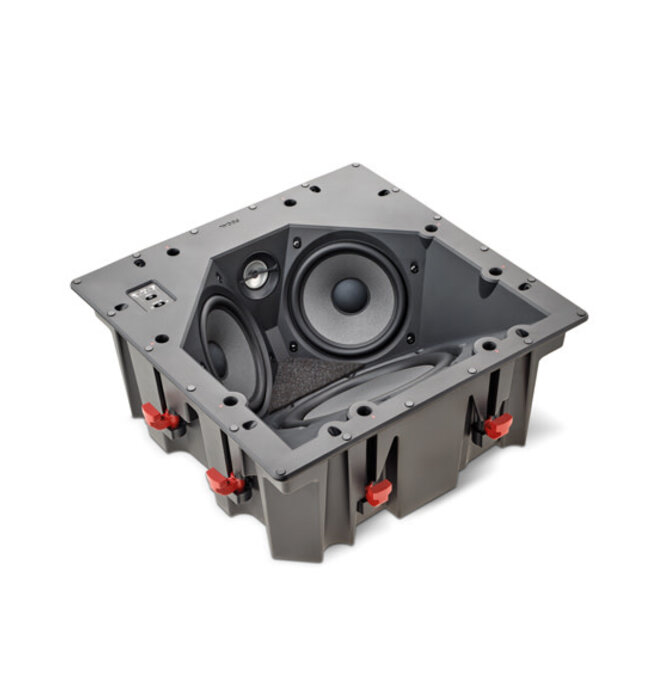

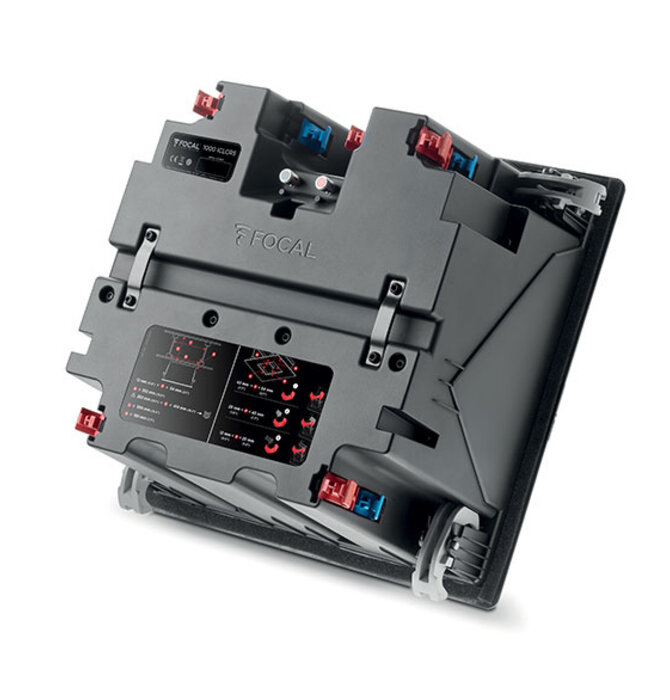

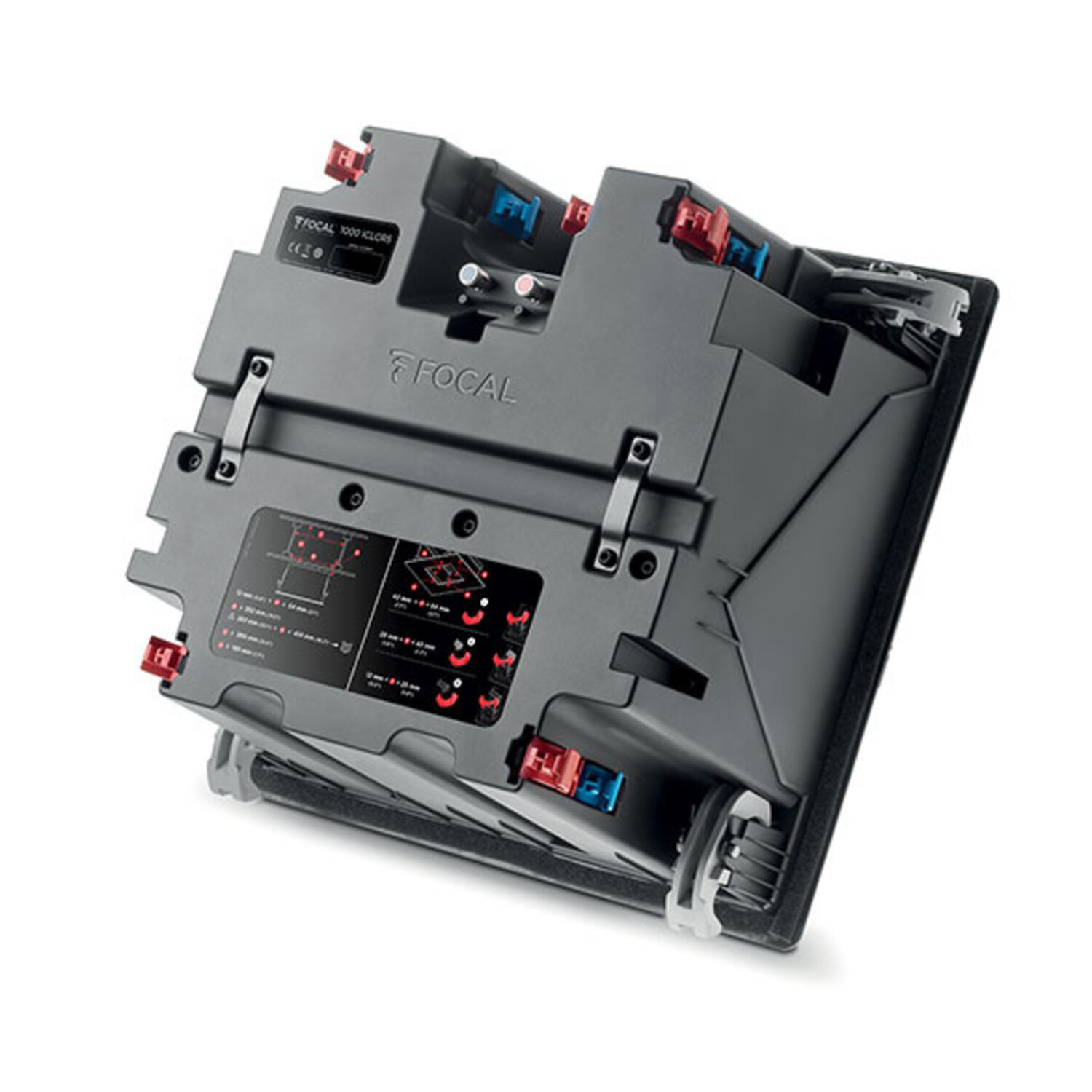

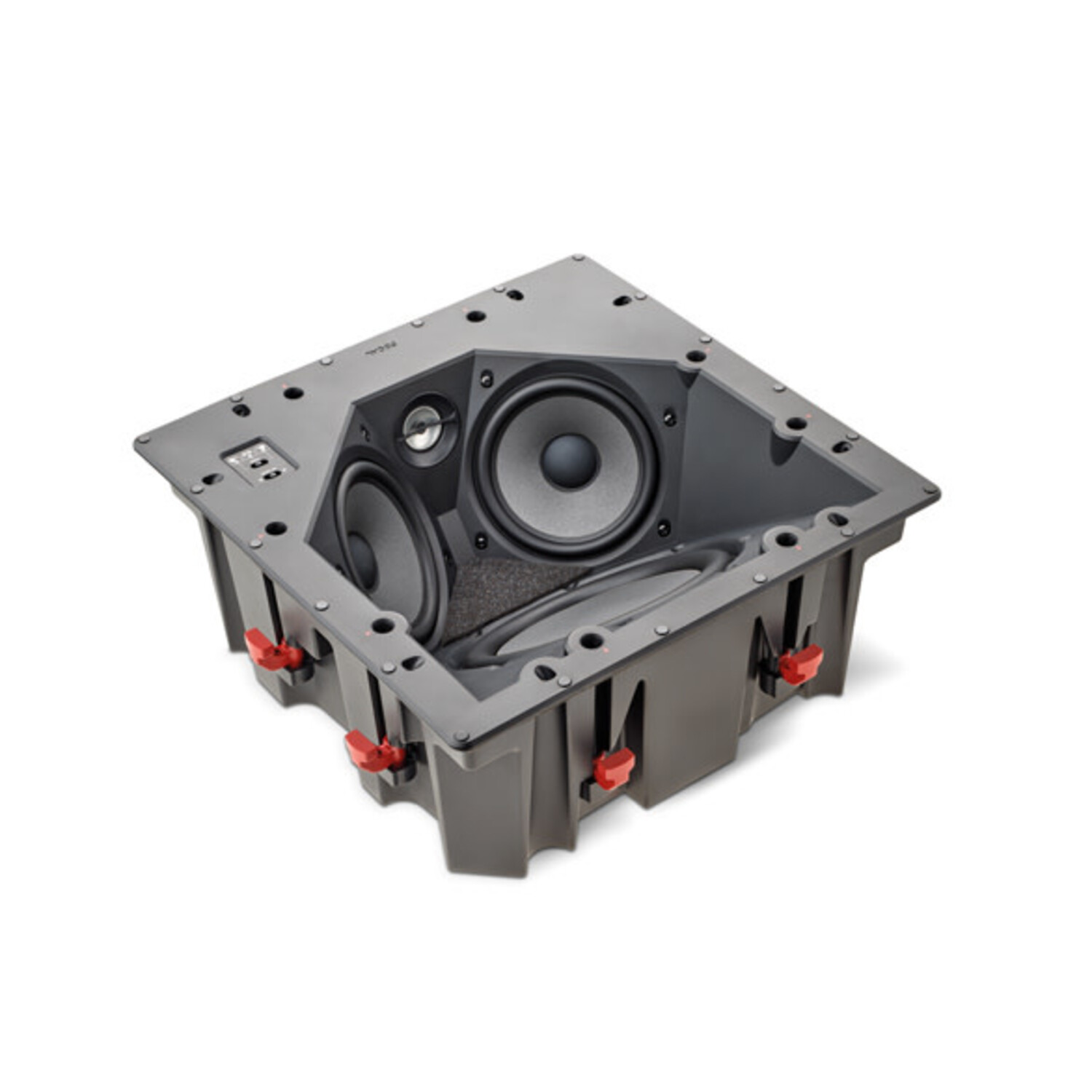

Focal 1000 ICLCR5 In-Ceiling Speaker

Product description

Thanks to its sophisticated design and its adjustable midrange-treble plate, the listening point is perfectly targeted for a listening experience without compromise. The tweeter level can also be set so that it adjusts to your listening room. In addition, this bass-reflex in-ceiling loudspeaker is suited to several types of application: left, central or right front channels and left or right rear channels. Finally, the ready-to-paint magnetic grilles supplied with the product ensure it is totally unobtrusive. The installation is quick and requires no tools, thanks to the patented Easy Quick Install system.

It brings together exclusive technologies, like the ‘W’ cone of the speaker driver & the pure Beryllium tweeter.

This 1000 Series range of loudspeakers embodies Focal excellence for the most sensational—and discreet—listening experience.

Custom Assembly: The Ultimate Home Theater Experience

With the ability to be positioned horizontally or vertically, 1000 IWSUB Utopia has been designed to assemble perfectly with the 1000 IWLCR Utopia 3-way in-wall loudspeaker, enhancing the performance of your Home Cinema installation.

Key Points

- Speaker drivers developed and manufactured in France by Focal

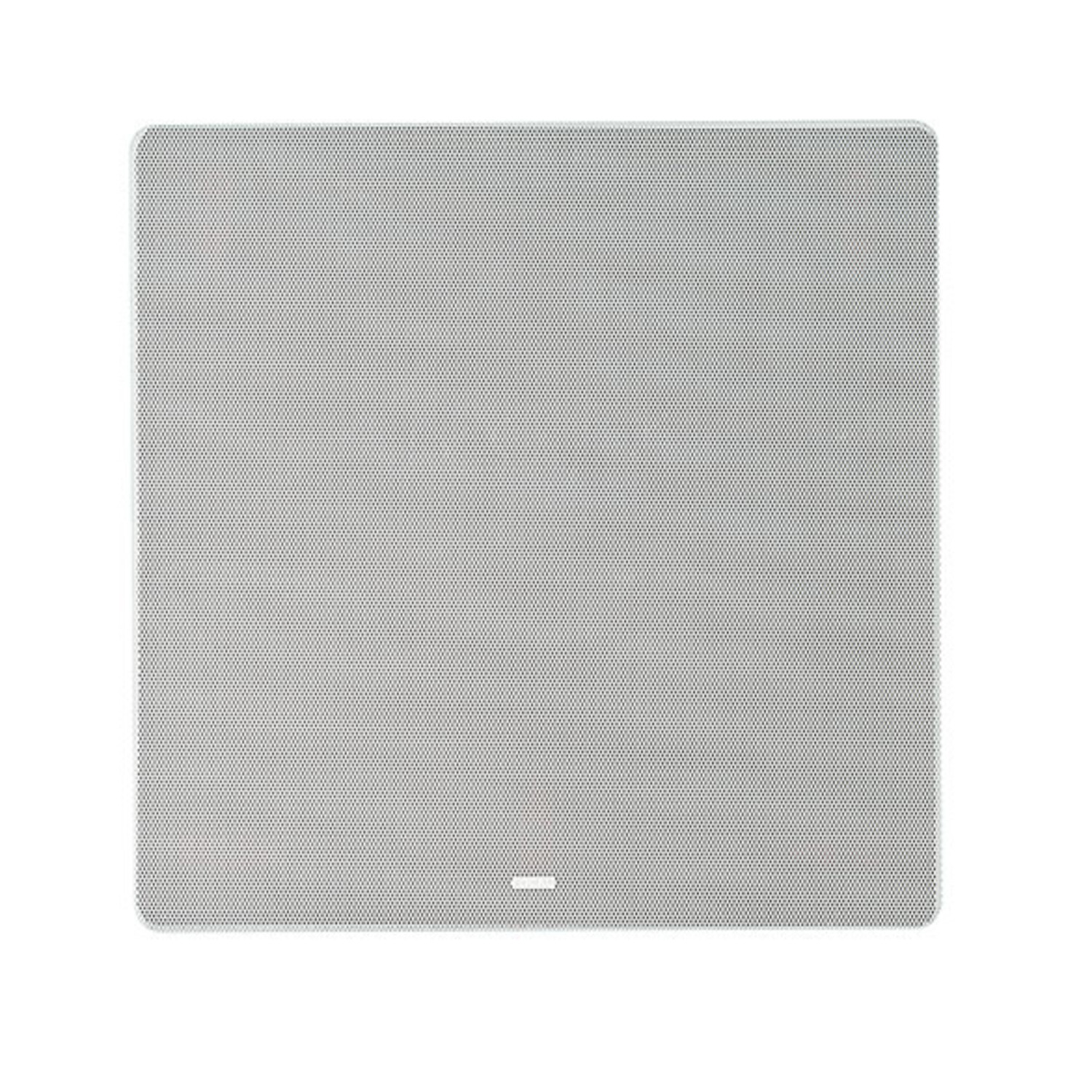

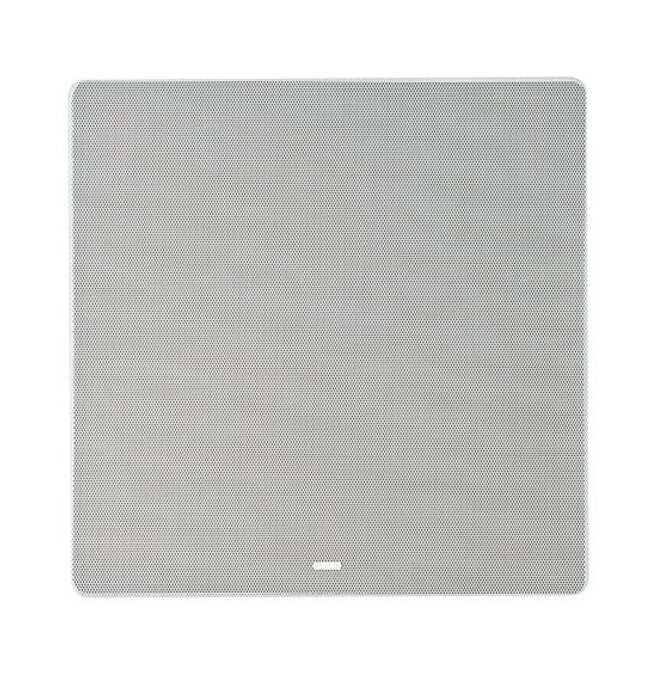

- Delivered with square magnetic grilles ready for painting

- Quick, easy, no-tool product assembly

- Off-axis response control ( tweeter/midrange position and gain setting )

- Fully integrated in-ceiling Home Cinema solution for total discretion

Specifications

Bass-Reflex: 3-way in-ceiling loudspeaker

One Speaker, 5 Applications: front left, central or right-hand channels; back left and right-hand channels

Type of Speaker: 3-way bass-reflex in-ceiling

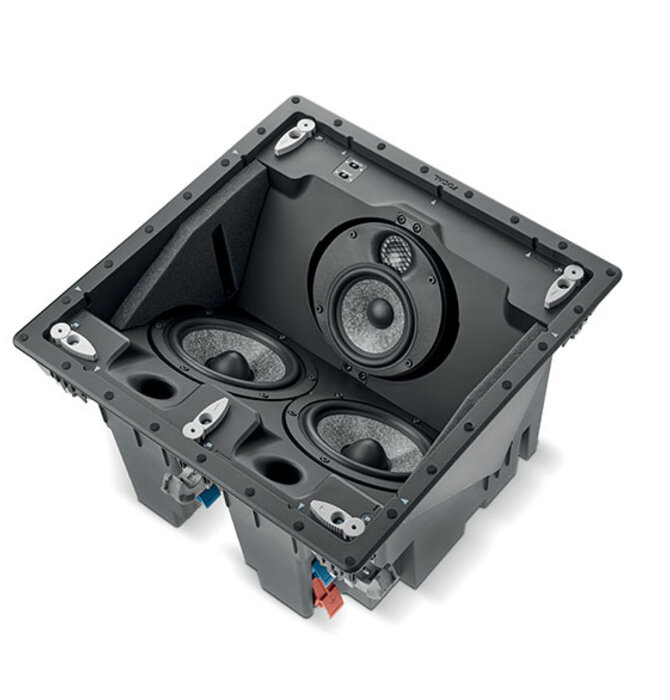

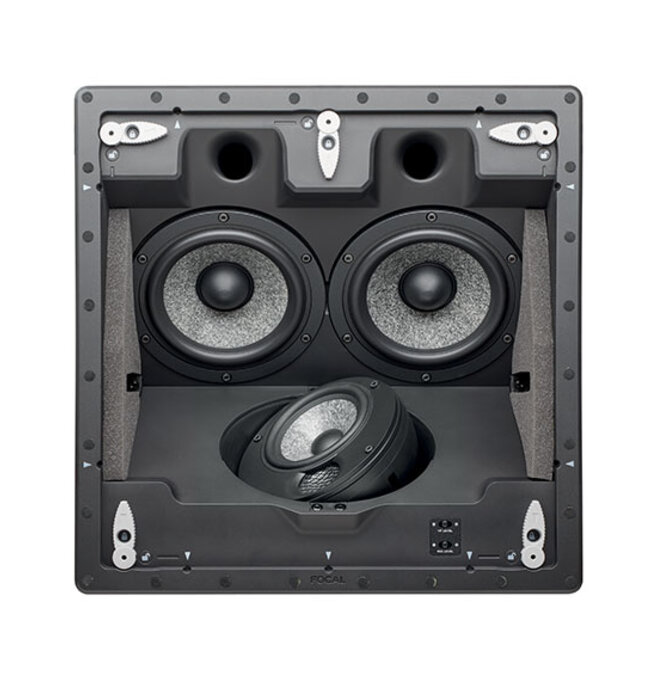

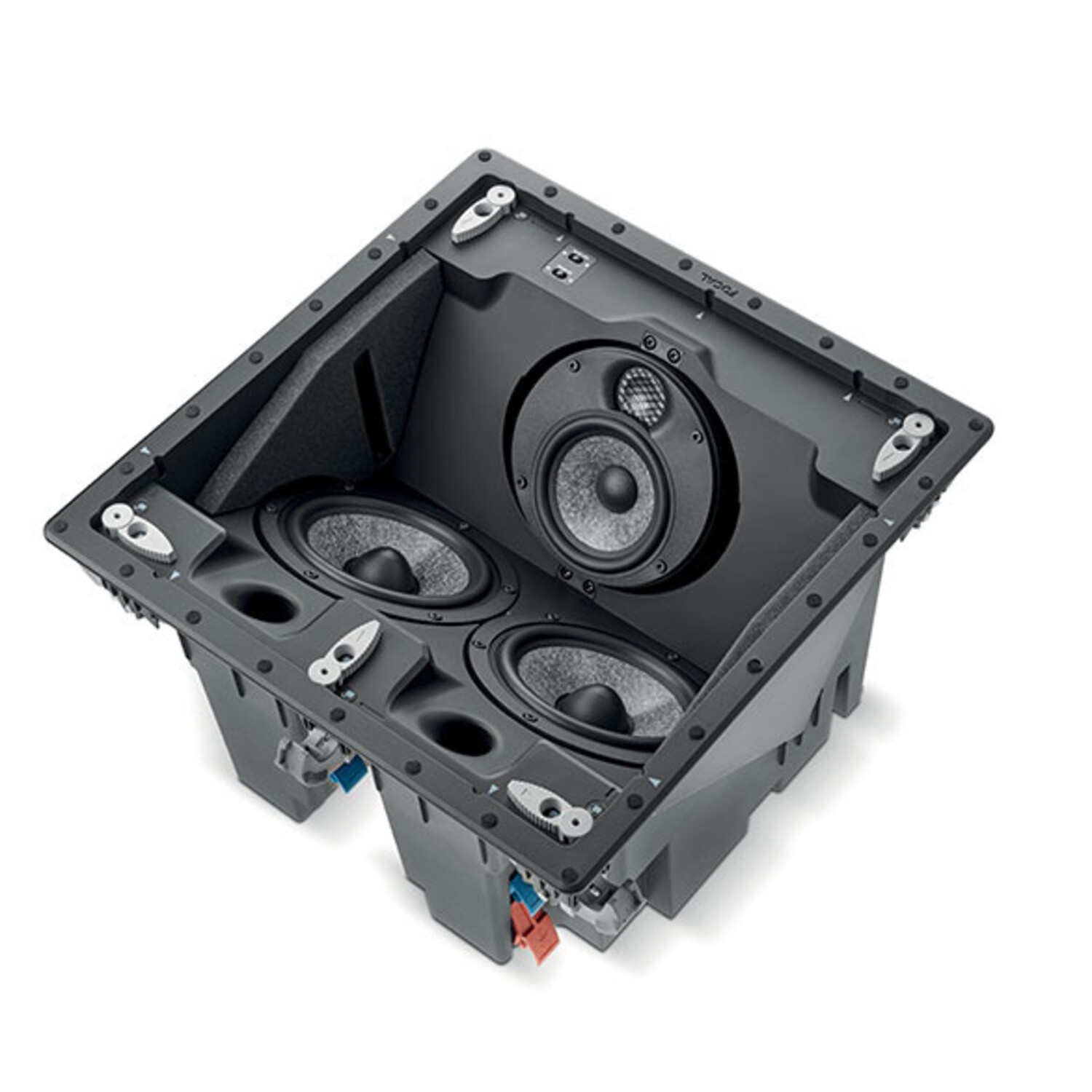

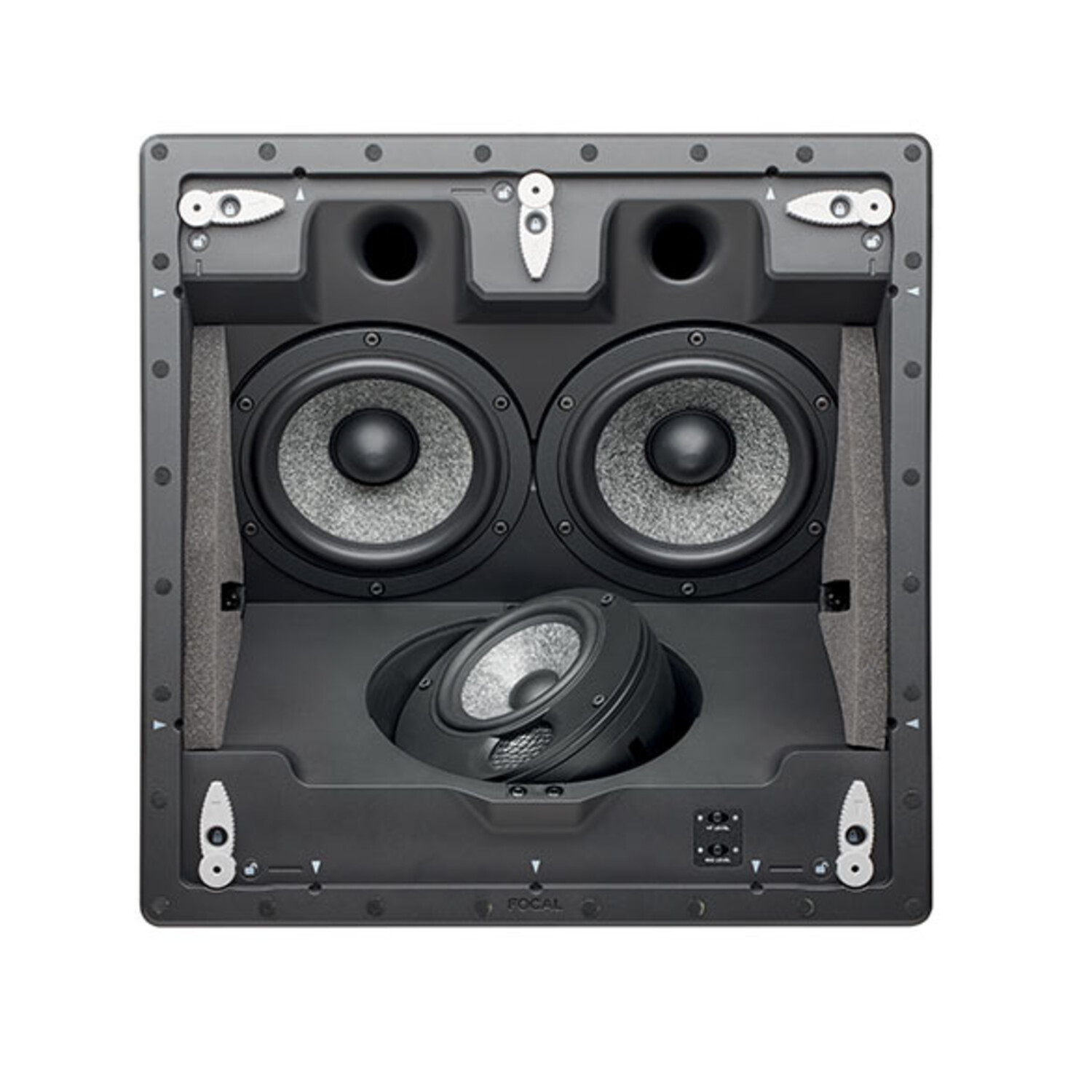

Speaker Drivers: 2 x 5 ⅛ " ( 13cm ) ‘W’ cone Bass, 4" ( 10cm ) ‘W’ cone, Midrange, 1" ( 25mm ) Beryllium inverted dome tweeter

Sensitivity: 91dB

Bandwidth: 53 Hz – 40 kHz

Low-Frequency Cut-Off: 43 Hz

Nominal Impedance: 8 Ω

Minimal Impedance: 2.9 Ω

Recommended Amp Power: 50 – 180 watt

Ext. Size: 14 ⅝" ( H ) x 14 ⅝" ( L ) x 7 ⅝" ( D )

Mounting Dimensions: 13 ⅜" ( H ) x 13 ⅜ " ( L )

Mounting Depth: 7 ½ "

Net Weight ( with grille ): 18.30 lbs

Box Size: 18 ¾" ( L ) x 18 ¾" ( D ) x 11 ⅝" ( H )

Total Weight ( with packaging ): 24.47 lbs

- Product Documentation -

Focal 1000 ICLCR5 User's Manual

Focal 1000 ICLCR5 Specification Sheet

Focal 1000 ICLCR5 Quick Start Guide

Focal 1000 ICLCR5 Cut-Out Template
