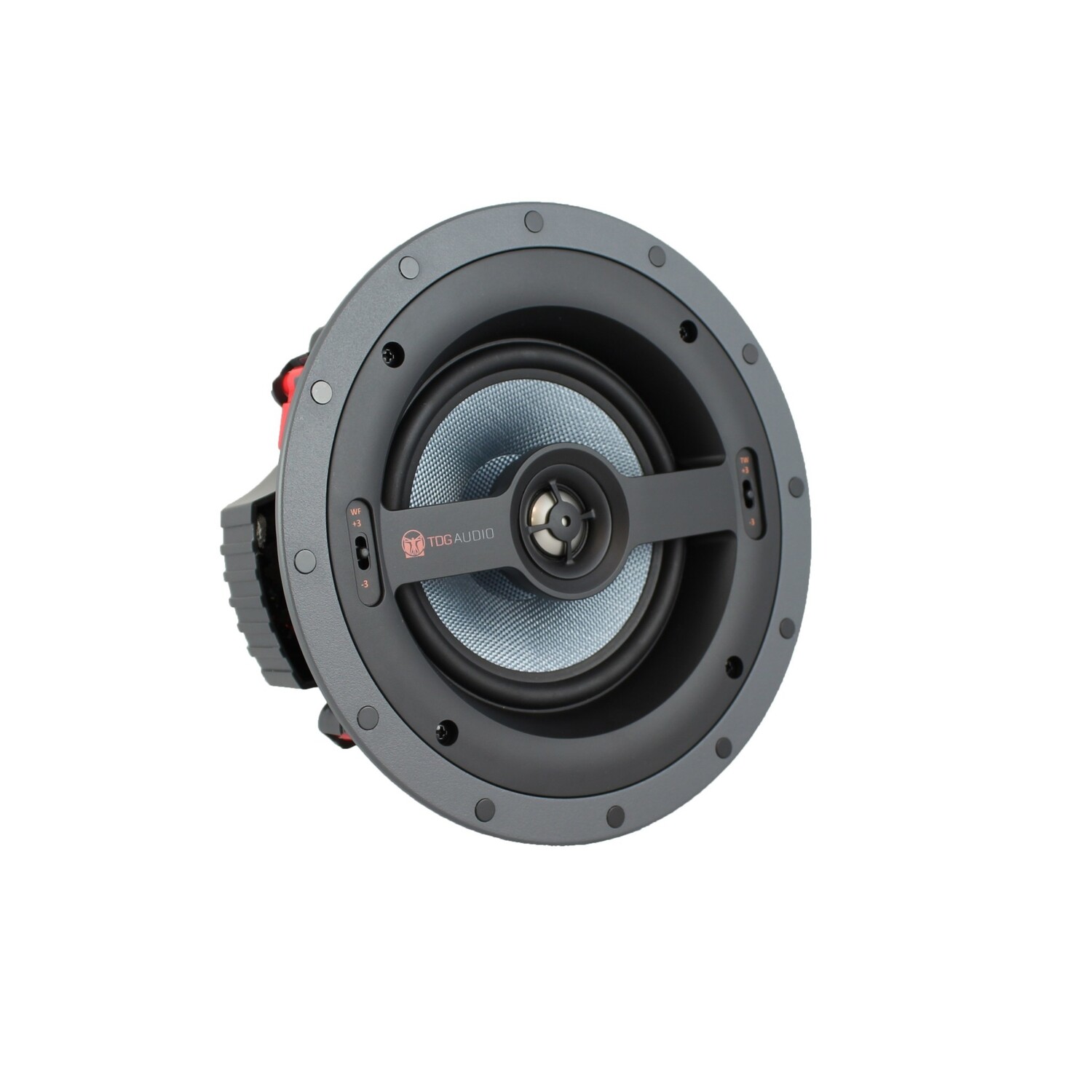

TDG Audio NFC - 63 2-Way In-Ceiling 6.5" speaker with Kevlar Trueform Tweeter

Product description

The goal was to create the finest architectural speakers available. How is such a lofty goal achieved? It starts with a management team that has been designing products for the architectural audio market for over 20 years. One of those products resides in our industry’s Hall of Fame. The team’s experience and engineering expertise is then combined with passion to create speakers that stand apart from the ordinary. To us, great speakers create great music. Our team is genuinely excited about music and still gets a thrill when we listen to our favorite music perfected on one of our newest creations. Of course each of our speakers is backed by our Lifetime warranty.

- Pivoting 1″ diamond cut titanium tweeter

- 6 ½″ Kevlar Trueform™ Woofer

- +/- 3 db tweeter & bass settings

- 5 / 150 watt per channel power handling

- 89 db SPL

- Impedance 8 / 6 / 4 ohms

- Frequency response 45 Hz – 20k Hz

- Lifetime warranty

Features

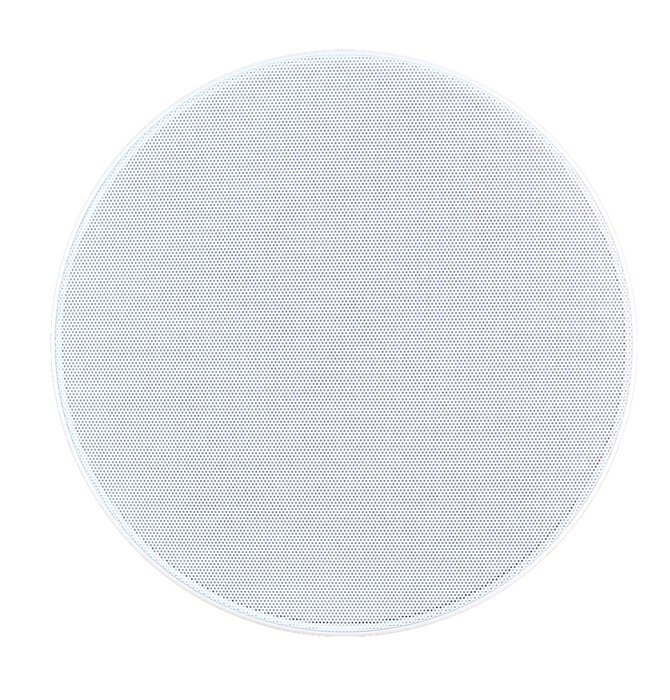

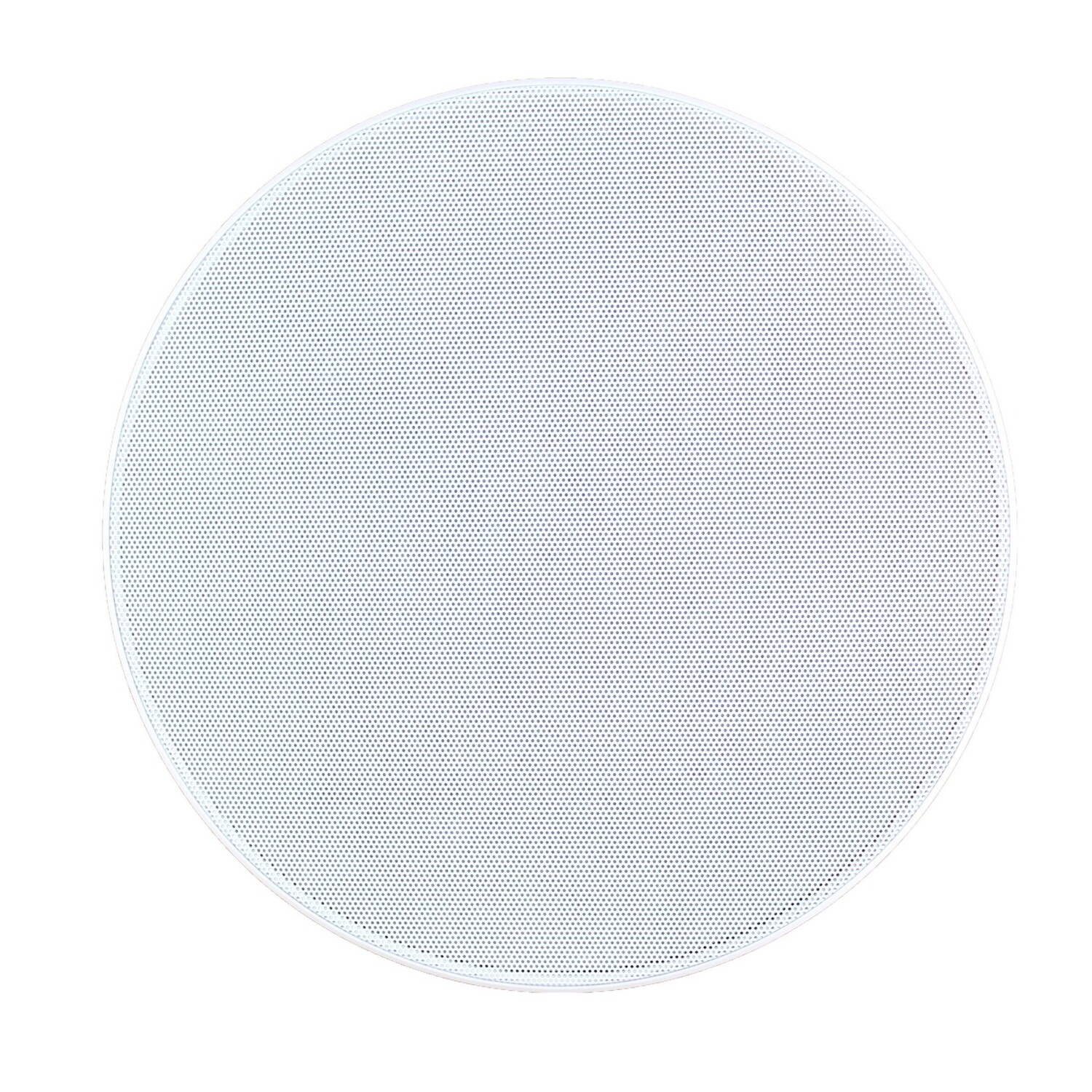

- Smooth modern flangeless design

- One piece frame to maximize rigidity

- Never Rust™ grills firmly attached with neodymium magnets

- XTS™ moisture seal treated crossover

- Extra wide threaded screws for quick dog leg fastening

- Reinforced 2 part dog leg for extra thick ceilings

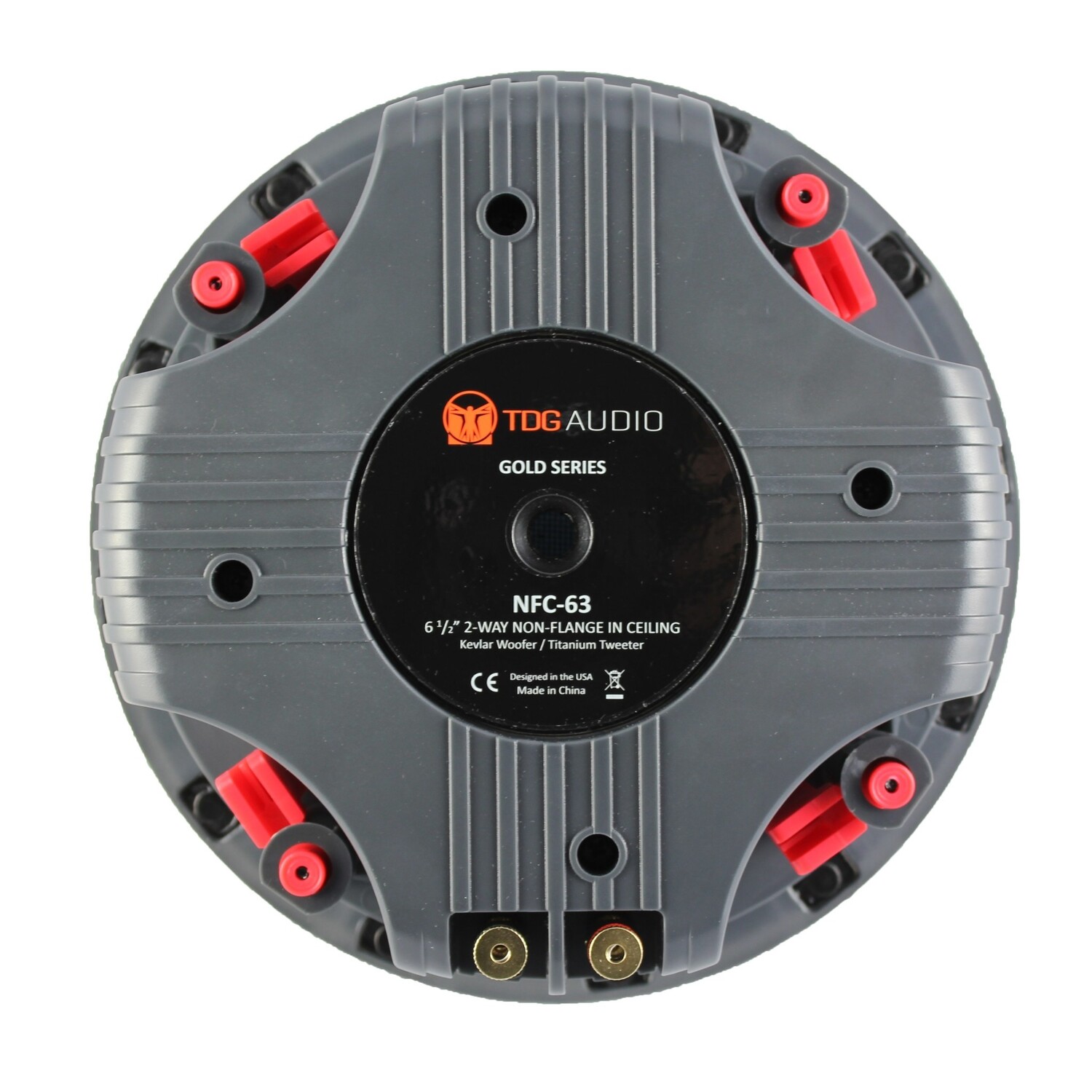

- Gold plated spring loaded push terminals

- Removable scrim cloth

Mechanical Specifications

Total Diameter with Grille: 9 11/16“

Mounting Depth: 4″

Cut Out Dimensions: 8 ¼”

Pre-Construction: Use Vanguard PCBC-6 or MSE-6

Shipping Dimensions & Weight: 11" x 11" x 6" , 6 lbs
