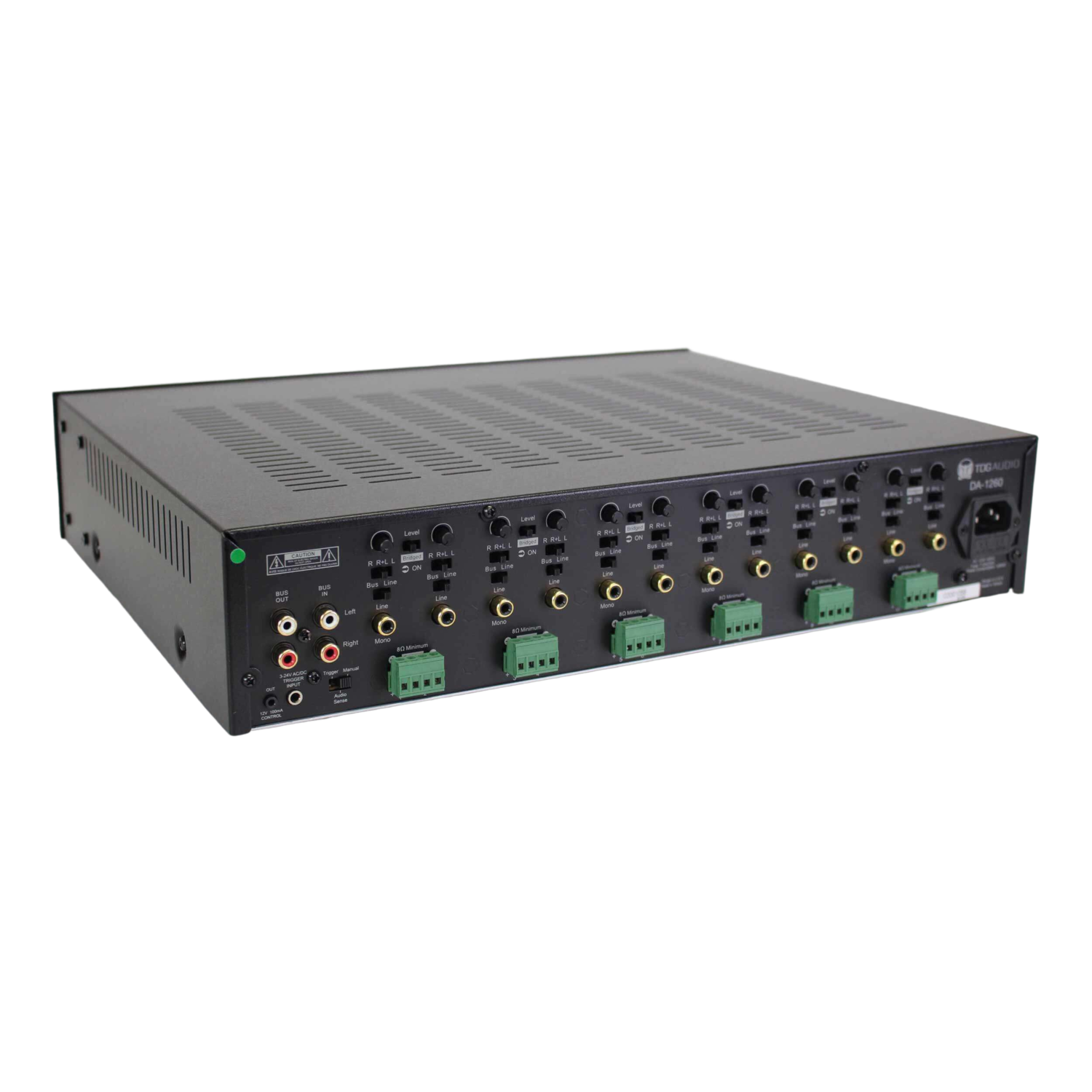

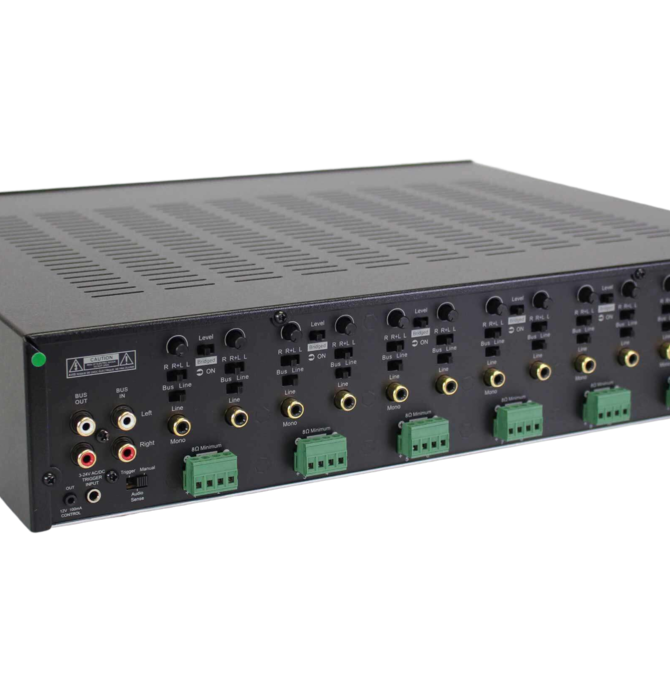

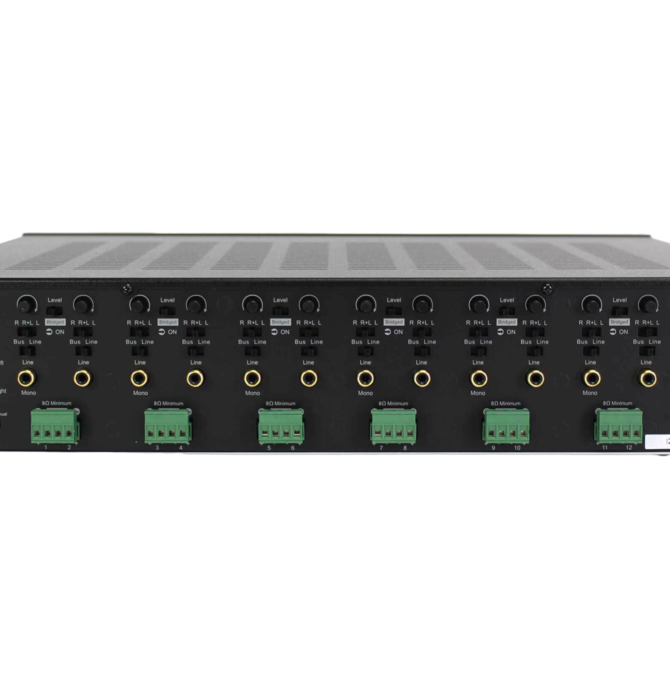

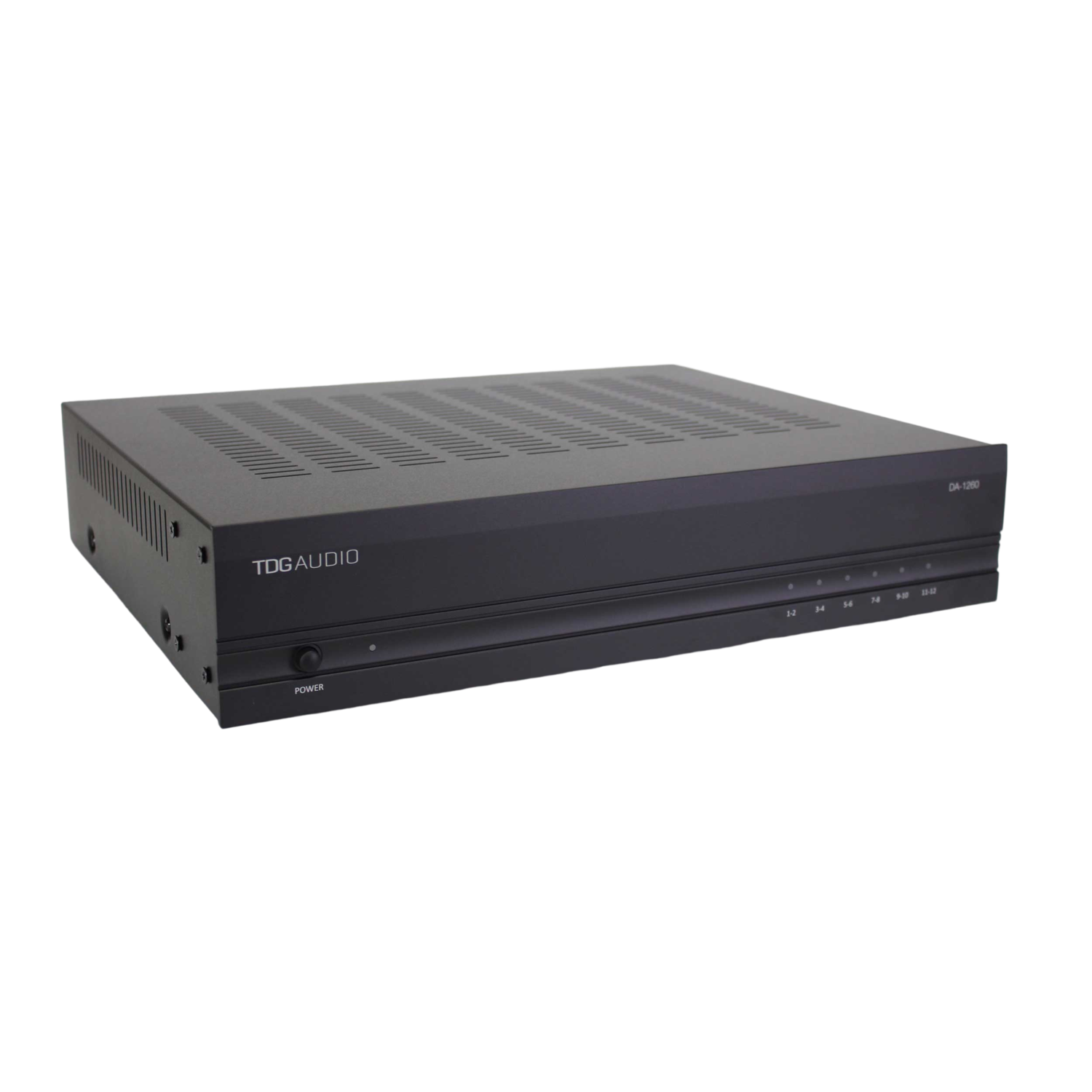

Vanguard Dynamics DA-1260 12 Channel x 60 WPC Multi Channel Toroidal Amplifier

DA-1260 12-Channel Amplifier 60 Watts per Channel

TDG Audio’s DA-1260 is a powerful 6-zone, 12-channel amplifier is a perfect way to expand any audio system to more areas of the home, office, restaurant, or retail store to provide power to speakers in any room or outdoor area.  This slim 2U, rack-mountable multi-channel amplifier is powered by a toroidal transformer providing high efficiency and dampens acoustic noise.  TDG Audio’s DA Series of multi-channel amplifiers are only available through trained installation professionals and offer both exceptional audio quality and intuitive system operation.

Key Features

- 12 x 60 Watt Per Channel Full Digital Amp

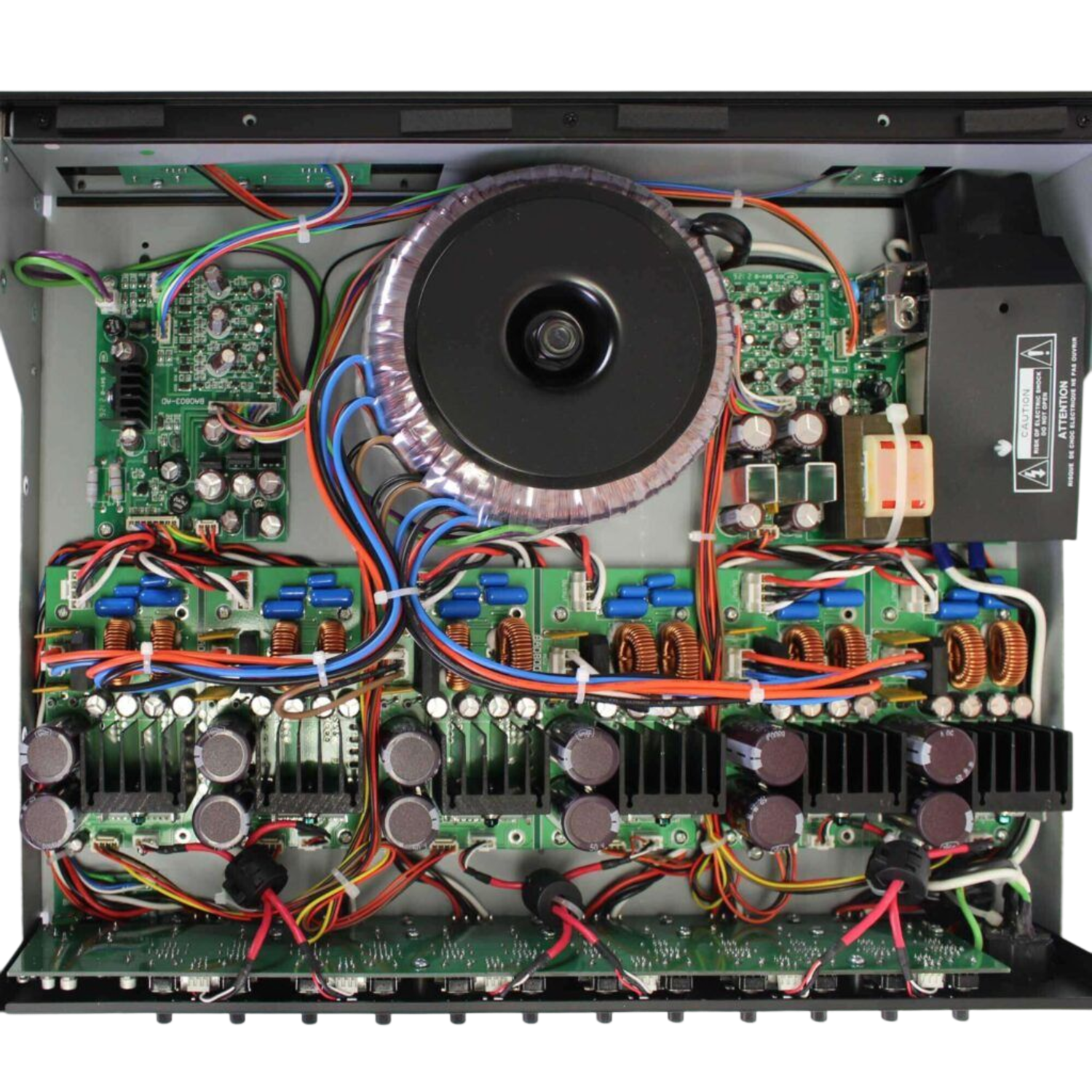

- Toroidal Transformer Digital Amplifier Design
- 2U Rack Height
- Bridgeable Adjoining Channels
- Stereo Summing to Mono
- Auto On/Off w/ 3-24V AC/DC Trigger Input for Remote Power On
- 12V Trigger Output to Power On Other Devices with Voltage Trigger
- DigiPro™ Class D Amplifier Design for Maximum Sound Quality and Cooling
- AUX Inputs with Control Trigger
- Internal Bus-Pass for Multiple Amp Use
- Independent Level Controls for Each Channel
- Includes Rack Ears
- Manufactured by TDG Audio
- 5 Year Parts & Labor Warranty

Specifications

Rated Power Output: 60 Watts Per Channel at 4Ω / 50 Watts Per Channel at 8Ω

Bridged Power Output: 120 Watts at 8Ω

Input Impedance: >22K Ω

S/N Ratio: ( A-WTD ) 102dB

Frequency Response: ± 0.7dB, 20Hz to 20kHz, 8Ω – ± 1.5dB, 20Hz to 20kHz, 4Ω

Input Sensitivity: 900mV for 8 Ω Rated Output

Damping Factor: >60

Separation: 70dB at 1KHz

Total Harmonic Distortion: <0.2% 20Hz to 20kHz

Fuse Rating: 120V Version: T12A/250V

Dimensions: 3.5″ ( H ) x 17.2” ( W ) x 16.125″ ( D )

Weight: 50.3 lbs
