Burmester Module DAC for Burmester 077 or 088 Pre-Amplifier

Product description

It profits from distinguished developments, which have already leveraged the Reference Line 077 Preamplifier to its extraordinary sound characteristics. With a perfect mergence of sound and design in combination with easy and intuitive controlling, the 088 guarantees sensuous and lighthearted listening pleasure.

Due to an innovative circuit-concept, it is possible to use the longevity of wear-free semiconductor-switches without the usual negative influence on the sound. The wellproven volume control from the Reference Line 077 Preamplifier results in an excellent resolution of volume in the 088, as well. The phase shift allows flexible connections and easy combination with other devices with differing PIN-configuration of the XLR-plugs. For an individual configuration the 088 provides a module slot for an optional Phono MC3 or MM2 module, or D/A converter. When no optional module is ordered, the 088 is equipped with a Line module as standard, and therefore has an additional unbalanced high level input.

All inputs may be named individually. The coding via remote control is facilitated by an intelligent assignment assistance. The established dual-mono assembly has been brought to perfection and minimizes effects caused by crosstalk between the channels. The multlayer assembly of the circuit boards minimizes negative effects caused by crosstalk on the inputs.

5 balanced inputs (XLR 3pol.), can be used as unbalanced inputs via adapter if required

Seamless integration into home theatre systems using the surround thruput terminal

Burmester 077 User's Manual

Module slot for one optional Module:

Line module (standard), with unbalanced high level input, cinch

Phono MC3 module (optional), with balanced input, XLR 3pol., input sensitivity and input resistance can be programmed for an ideal adjustment to the pickup, shiftable subsonic filter

Phono MM2 module (optional), with balanced input, XLR 3pol., input sensitivity and input resistance can be programmed for ideal adjustment to the pickup, shiftable subsonic filter

D/A converter module (optional), with S/P-DIF input (cinch) and USB slave input, 069 DAC-technology with upsampling to 96kHz and 192kHz selectable

Input sensitivity can be adjusted individually for every input, therefore disruptive volume leaps when the inputs are changed are avoided

Phase reversal of inputs for a flexible connection of devices with other devices with differing PIN-configuration of the XLR-plugs

1 balanced output with volume control (MAIN OUT), XLR 3pol., equipped with X-AMP2 modules, which have already proven their quality in the Reference 077 Preamplifier

1 balanced TAPE-Output, XLR 3pol., with fixed volume for analogue tape recordings

1 headphone jack, 6,3mm (1/4“)

Output amplification for MAIN OUT selectable between LOW and HIGH for the adjustment for connected power amps or active speakers

Global SETUP-Menu for individual adjustment of basic functions:

Input sensitivity adjustable for every input from -6dB to +12dB

Custom labelling of programmable inputs

Serial number can be read out in display if desired

Operating controls can be switched off on the device in order to prevent maloperation (child-proof lock)

Factory settings can be restored at any time

Separate SETUP-Menu for individual adjustment of special functions:

Volume balance is adjustable for customized acoustics

Volume setting at activation can be programmed

Volume control and volume indication in steps from 1-60 or dB-steps

Brightness of display can be adjusted in four Stepps, display-off function

Power controlling of other Burmester devices, Master/Slave via DC IN/OUT

Vibration-isolating feet with carbon fibre clips for ideal resonance decoupling

Fully DC-coupled without distorting capacitors in the signal path for a precise bass reproduction

Dual-mono design for maximum channel separation

Latest, wear-free Burmester CMOS technology for switching of inputs

Latest CPU technology (ensures capability for future upgrades of controlling unit)

BURLINK for external control via RS-232 and USB as standard

Remote control available as optional accessory

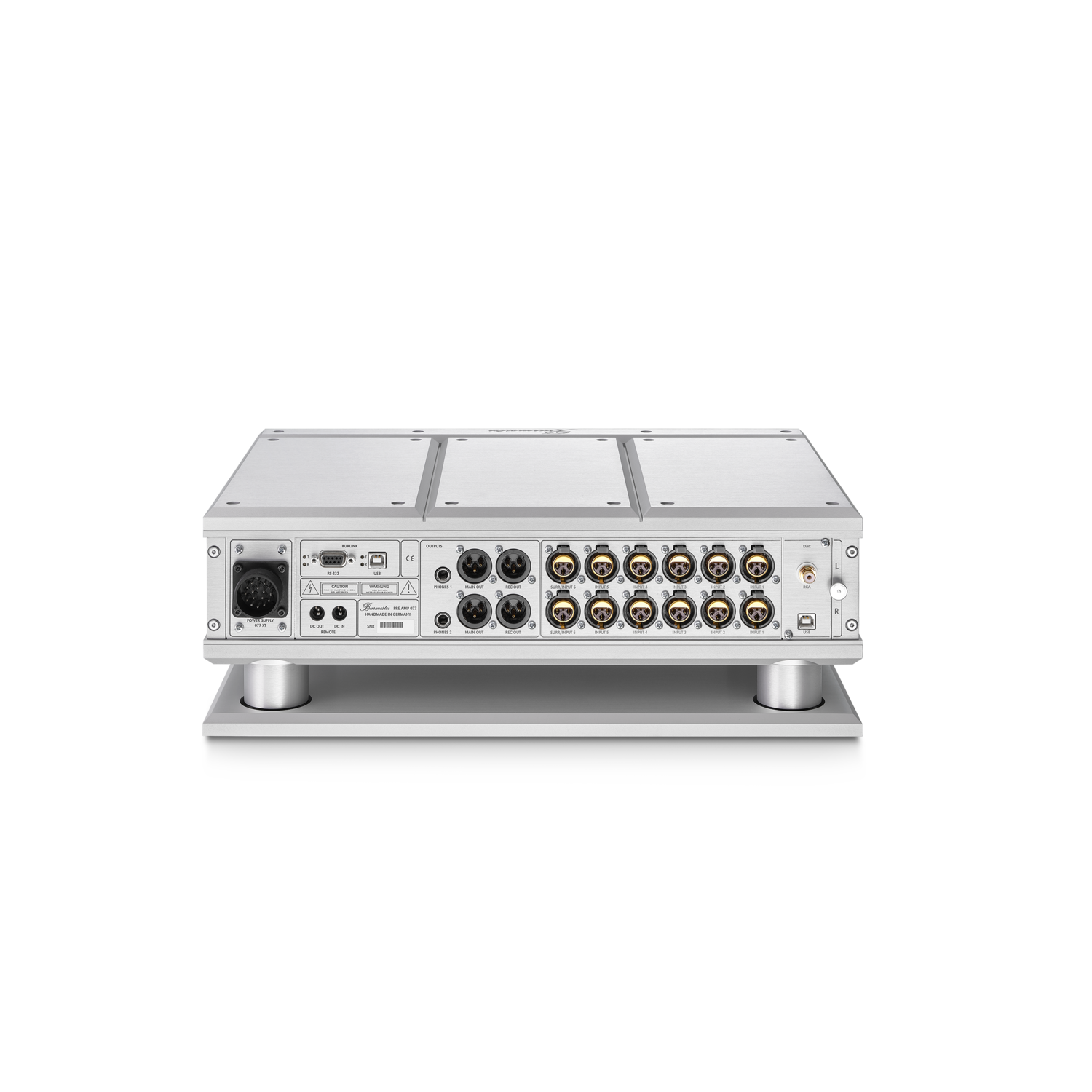

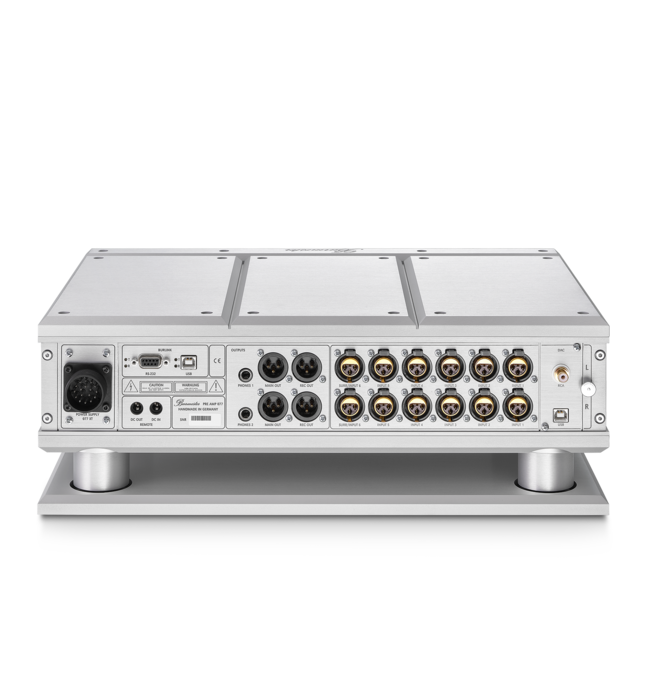

Inputs:

5 x balanced (unbalanced via adapter)

1 x Surround Thruput

1 x Module

LINE (unbalanced) (standard)

Phono MM2 (optional)

Phono MC3 (optional)

DAC Module (RCA + USB) (optional)

1 x balanced (MAIN OUT)

1 x balanced (TAPE)

1 x headphone jack
