IN STORE ONLY !! The all-new ULTIMA integrated amplifier !

The latest review of ULTIMA INTEGRATED

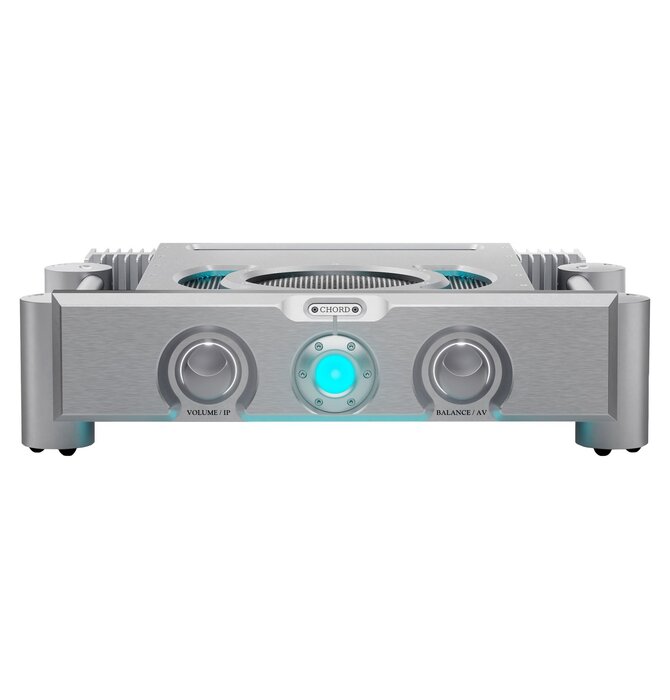

The new ULTIMA INTEGRATED shares the same all-new 28-mm-thick front panel seen in John Franks’ recently introduced ULTIMA PRE 3 preamp. The new frontage offers a perfectly symmetrical aesthetic, centered on a spherical power on/off control which uses the company’s familiar polychromatic ( dimmable ) lighting, giving a clear and simple indication of the amplifier’s playing status. The power sphere is flanked by a newly designed combined volume and input selector, plus a combined balance and AV bypass control.


1 x stereo balanced XLR inputs

3 x stereo unbalanced RCA


1 x Stereo XLR

1 x Stereo balanced XLR AV bypass input

1 x 12 V trigger output/input

Technical Specification

Frequency Response 10 Hz-200 kHz +/- 3 dB THD , 0.01 % 20 Hz-20 kHz

Signal-to-Noise ratio 90 dB on all inputs
Input Impedance: 100 kΩ
Input Maximum Voltage: 3 V RMS Output maximum voltage: 35 V RMS
Gain: 21dB
Channel Separation: 100 dB
Operation Voltage: 80-250 V AC auto-switching
Power Consumption: 200 Watt

Shipping Dimensions & Weight: 24" x 20" 13" , 45 Lbs.
