Qutest USB/System DAC

Qutest USB/System DAC

$1,595.00
          (0 reviews)
Call us for shipping information
+
  Add to Wishlist
The Chord Qutest is a standalone DAC whose performance belies its compact dimensions. With DAC architecture based on the award-winning Hugo 2, Qutest offers class-leading digital conversion.



 For Availability & Purchasing, please call us at (702) 910-4913.

Or if you have any questions, please contact us via chat.

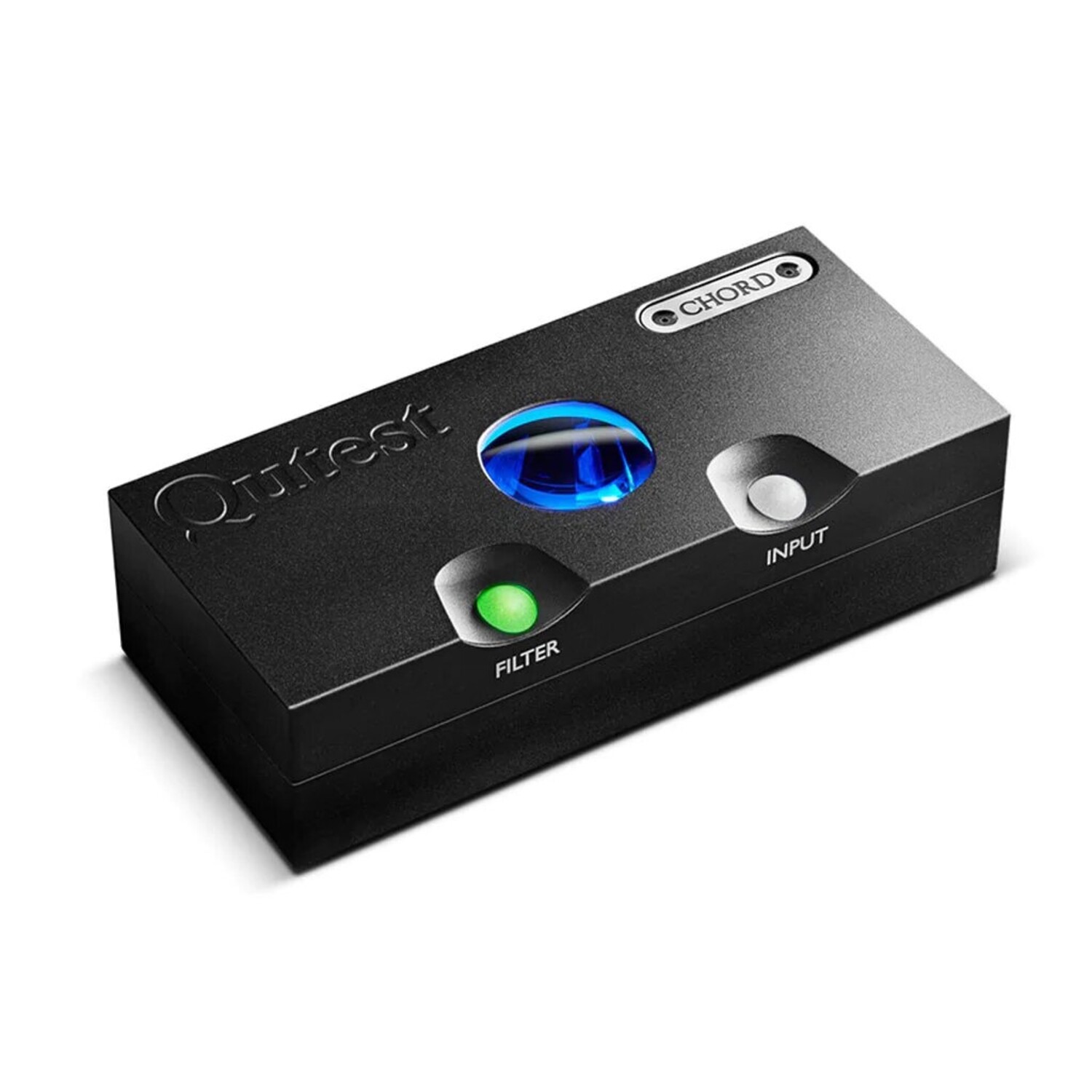

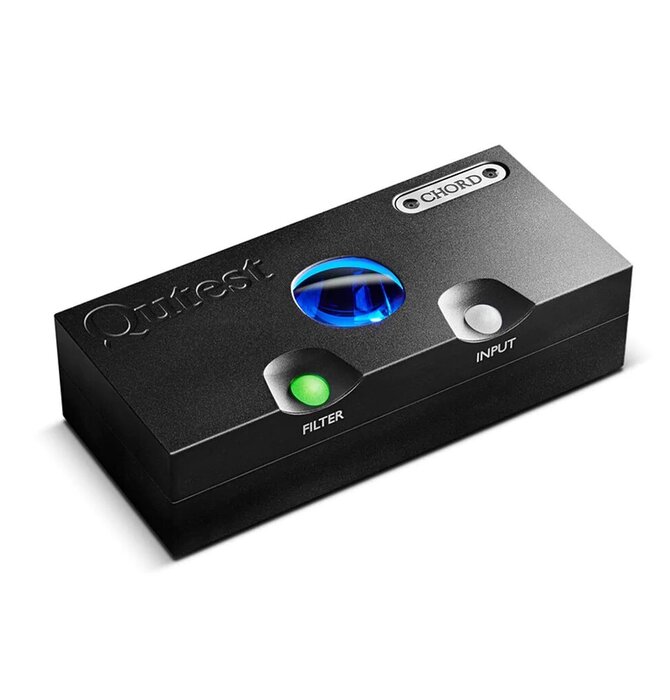

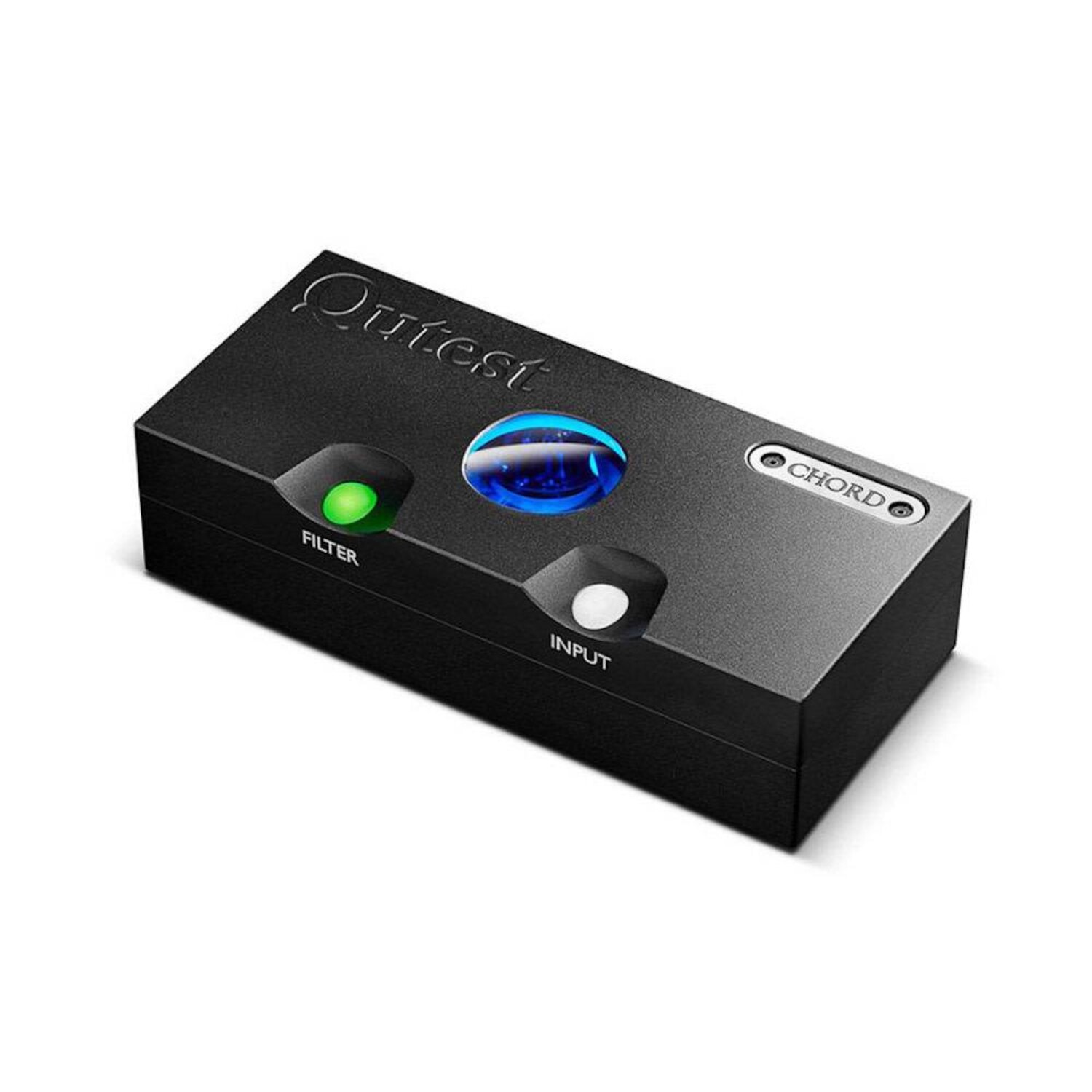

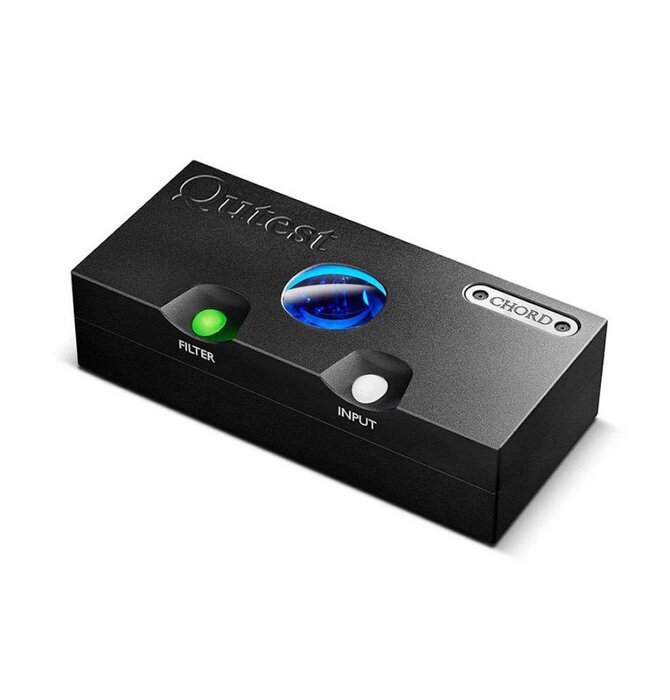

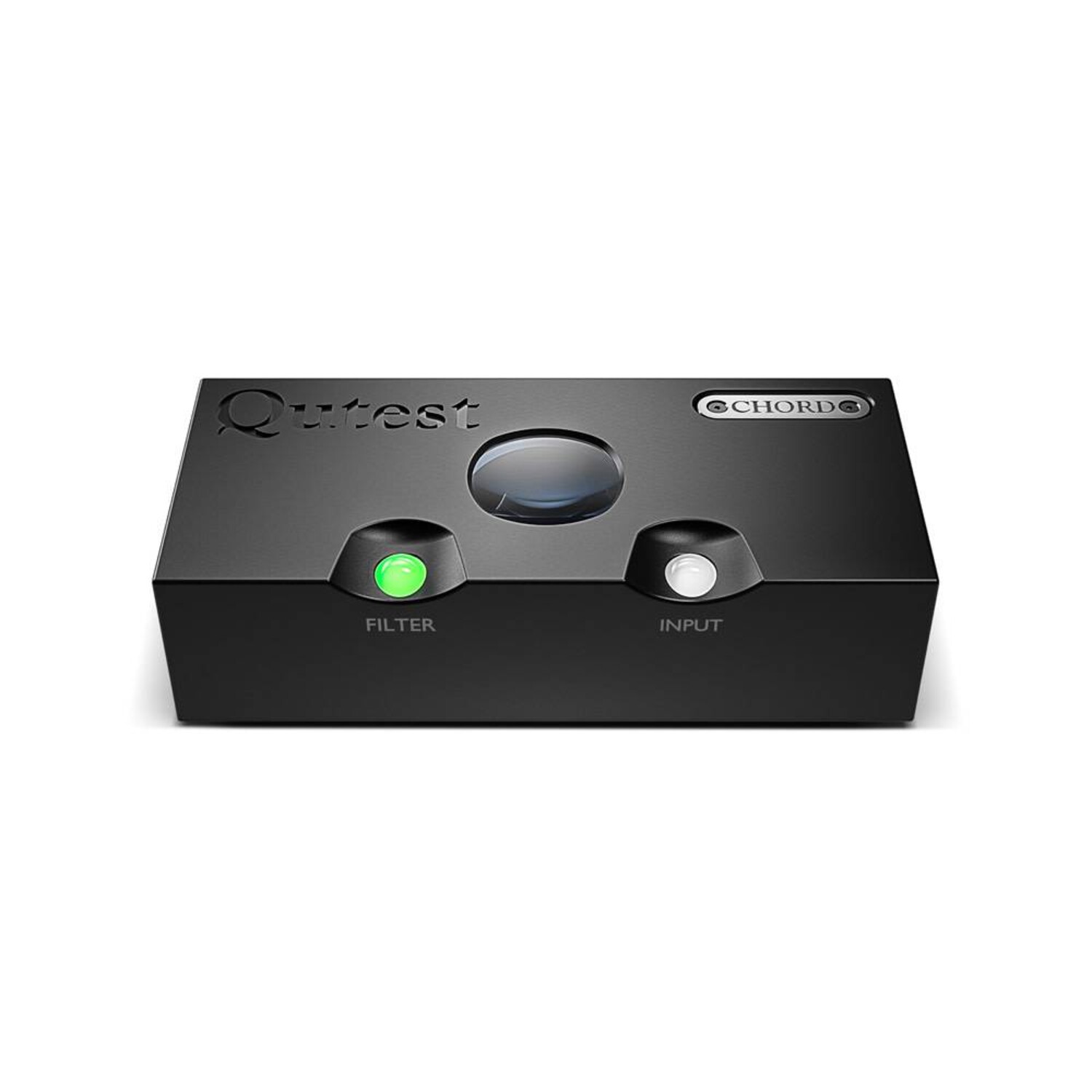

Chord Electronics Qutest DAC

Qutest is our ‘pure’ DAC (it does not contain headphone amplification or rechargeable batteries like some of its range stablemates) and is designed to improve sound quality in the home. It is the latest evolution of our most affordable standalone DAC, the multi-award-winning 2Qute, which it directly replaces.

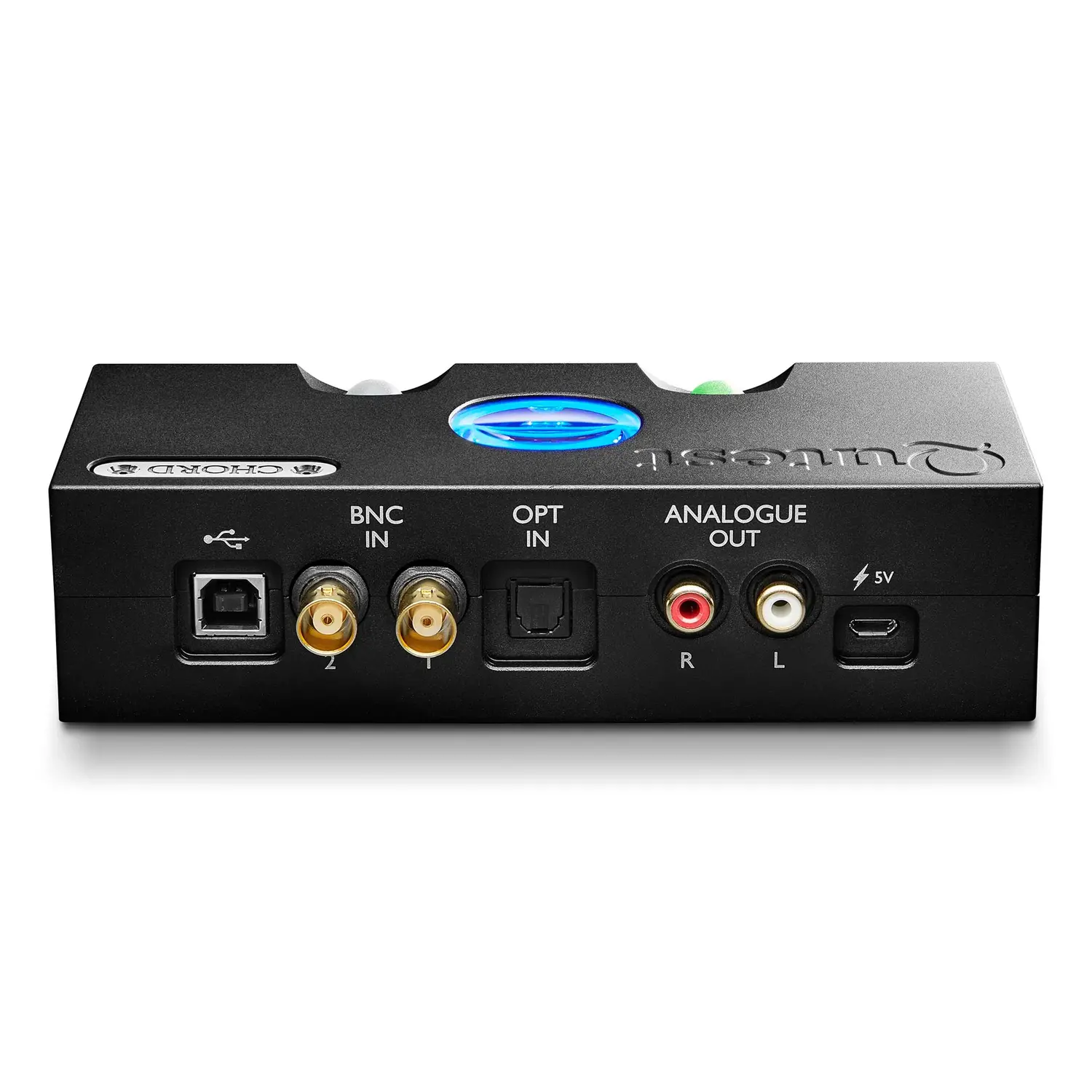

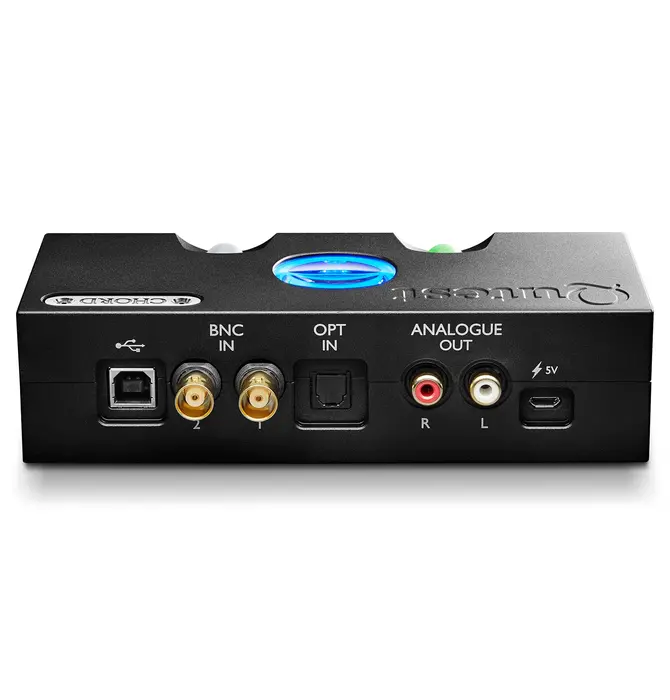

Qutest, which is a What Hi-Fi? Star of CES 2018, is based on our award-winning proprietary FPGA technology developed for the class-leading Hugo 2 DAC / headphone amp, giving it proven class-leading technical and sonic performance. Perfectly equipped to bring the benefits our digital technology to a wide range of connected devices, it features a galvanically isolated USB-B, optical and coaxial digital input, giving an instant performance upgrade, plus the ability to modernize aging digital source components.

The Qutest chassis is all-new, too. It has significantly greater mass than its predecessor and has been precision-machined from solid aircraft-grade aluminum billet. The Qutest PCB nestles within a shallow cavity in the solid aluminum chassis, giving the circuit board greater protection within the casework and additional isolation from external vibration compared to previous designs.

Qutest offers Hugo 2’s proprietary user-selectable frequency-shaping filters and input selection controls, available via two fascia-mounted spheres, introducing useful flexibility. It also features RCA analogue outputs for connection to integrated amplifiers, preamps and headphone amps, plus high-resolution dual-data digital inputs for connection to future Chord Electronics products.

A further new feature is a user-selectable output voltage available in 1, 2 and 3V RMS outputs for flexible connectivity with a wide range of partnering devices.

Materials: Precision machined aluminum casing with polycarbonate  buttons and glass viewing portal. Available in black.

Chord Electronics Ltd. Qutest User's Manual

Specifications

Device Power Supply: 5v 2amp Micro USB

Chipset: Chord Electronics custom coded Xilinx Artix 7 (XC7A15T) FPGA

Tap-length: 49,152

Pulse Array: 10 element pulse array design

Frequency Response: 20Hz – 20kHz +/- 0.2dB

Output Stage: Class A

THD: <0.0001% 1kHz 3v RMS 300Ω

Noise 2.6 uV ‘A’ weighted: No measurable noise floor modulation

Channel Separation: 138 dB at 1kHz 300Ω

Weight: 770 gram

Dimensions: 4.5cm ( H ) 16cm ( W ) 8.8cm ( D )

Boxed Weight: 1.5 Kg
