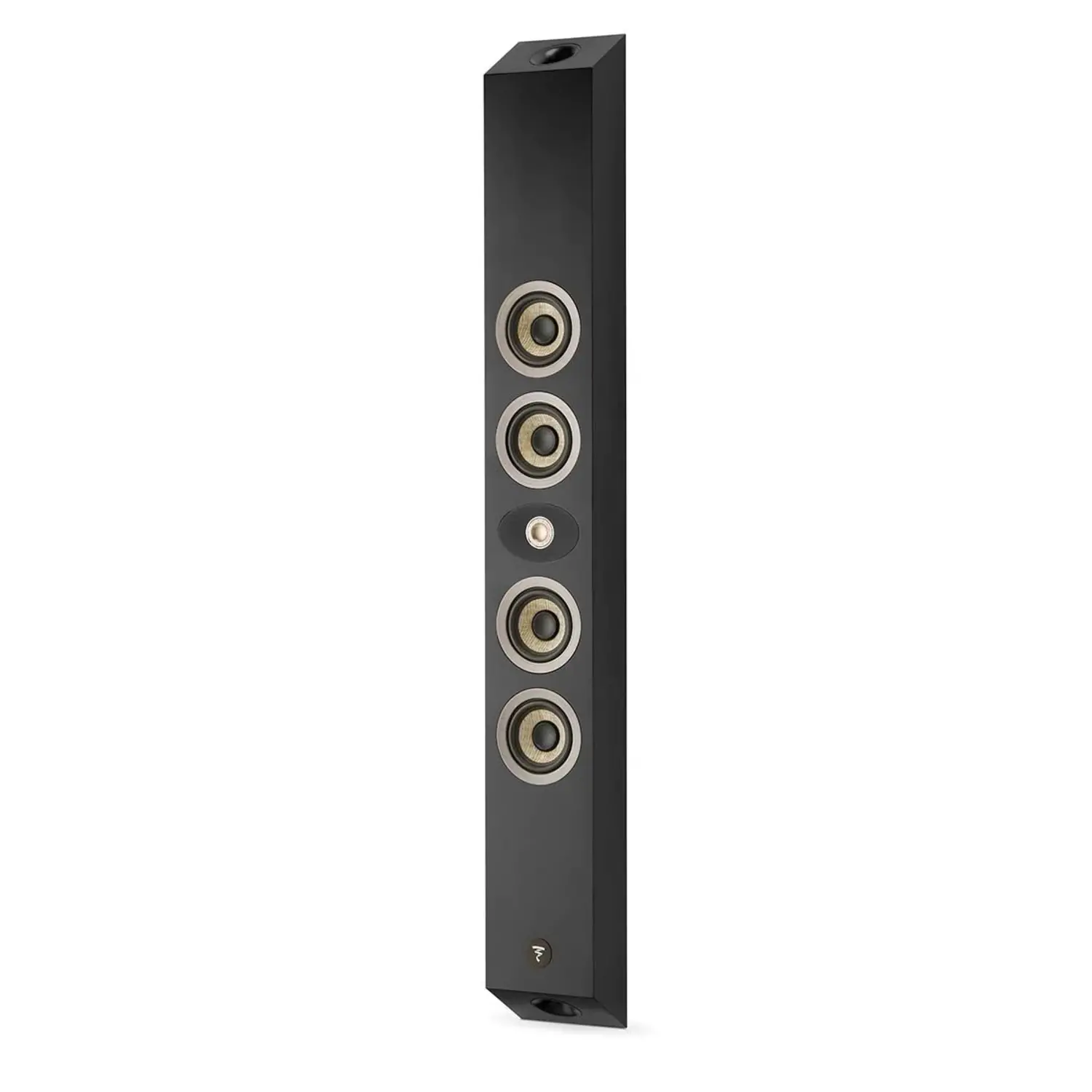

Bass-Reflex 2-Way On-Wall High-End Loudspeaker
The On Wall 301 & On Wall 302 loudspeakers have been designed to deliver high-performance Home Cinema listening and will also bring out the best of your music.
Available in a White High Gloss or Black Satin ﬁnish , On-Wall blends seamlessly into interiors.
Made in France in Focal’s ateliers, On Wall 301 is a wall-mounted loudspeaker that meets all your Home Cinema and Stereo listening needs. Elegantly designed, it is slim and compact whilst delivering ultra-precise, detailed sound thanks to its two Flax Cone speaker drivers. Available in a White High Gloss or Black Satin finish, On Wall 301 is easy to fix to walls ( accessories included ) or set up on a stand ( available as an option ). For a complete Focal system, this loudspeaker is the ideal complement to a 300 Series installation and can also be linked with Dome Flax as well as Chora, Aria and Kanta products, without compromise.
Compact Design Dedicated to Sound Quality
Modern design, bevelled profile, magnetic grille and rotating logo: the loudspeaker is easy to position elegantly around a television. Its bass-reflex concept means that the bass is delivered with power and impact.
The Flax Cone is an exclusive Focal technology made in France. It equips the 4” (100 mm) mid-bass speaker drivers to deliver a real listening experience: voices are reproduced with clarity and detail. Whilst the 1” (25 mm) Aluminium/Magnesium TNF tweeter, also made in France, delivers precise and defined treble.
Two loudspeakers either side of your television and fixed to the wall, a third positioned underneath as a central speaker, two loudspeakers on stands...: configure your installation however you want.
Type: 2-way loudspeaker
Drivers: 2 x 4" Flax MidBass and one 1" Tweeter TNF
Frequency Response: ( ± 3dB ) 53Hz – 28kHz
Low Frequency Point: ( -6dB ) 44Hz
Nominal Impedance: 8 Ω
Minimum Impedance: 5.5 Ω
Recommended Amplifier Power: 25 – 130 watt
Crossover Frequency: 2,500Hz
Dimensions: 3 11/2" ( H ) x 6 1/8" ( W ) x 3 9/16" ( D )
Net Weight with grille: 13 lbs
Shipping Dimensions & Weight
1. 301 On-wall: 37" x 12" x 10 "
2. 302 On-wall: 55" x 11" x 9"
