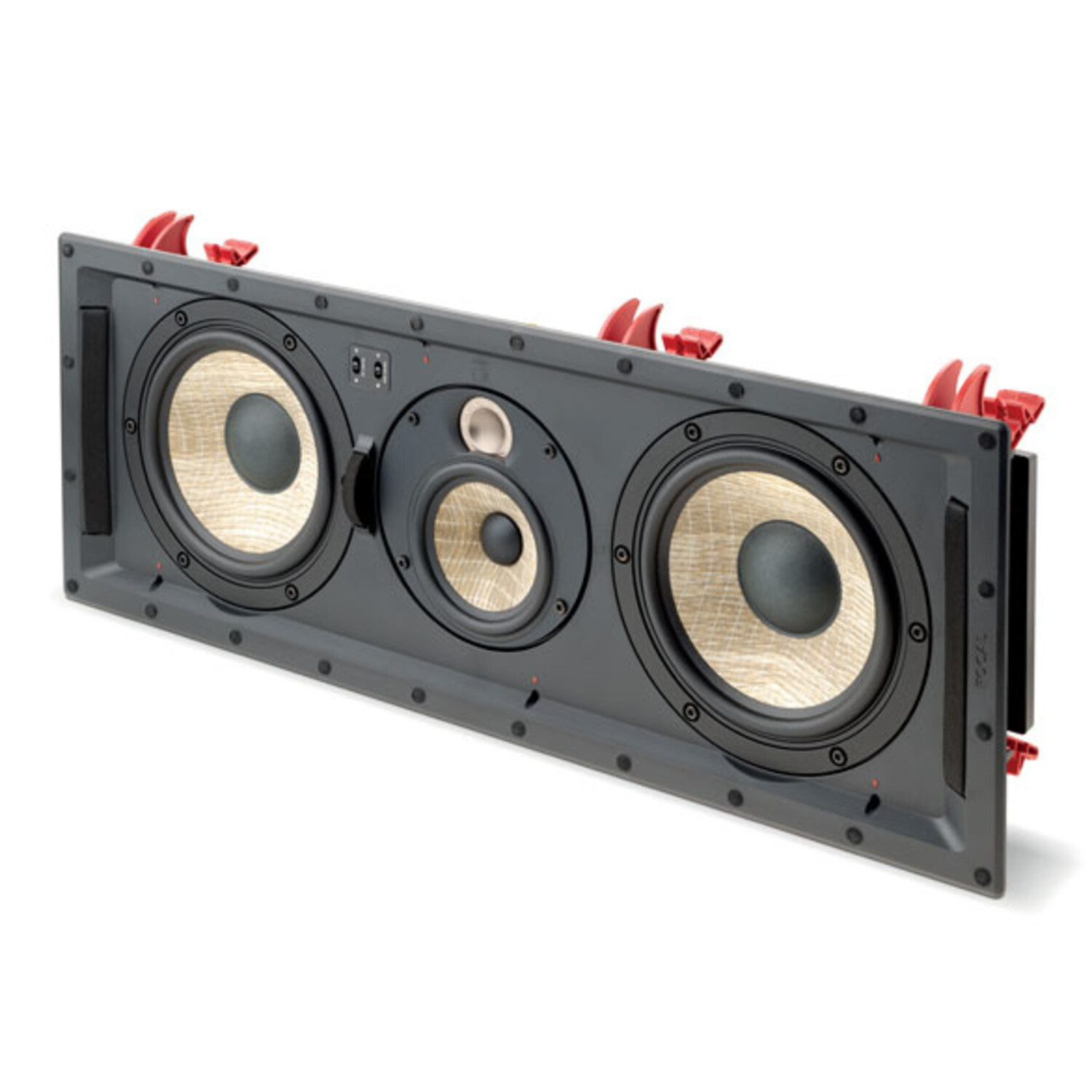

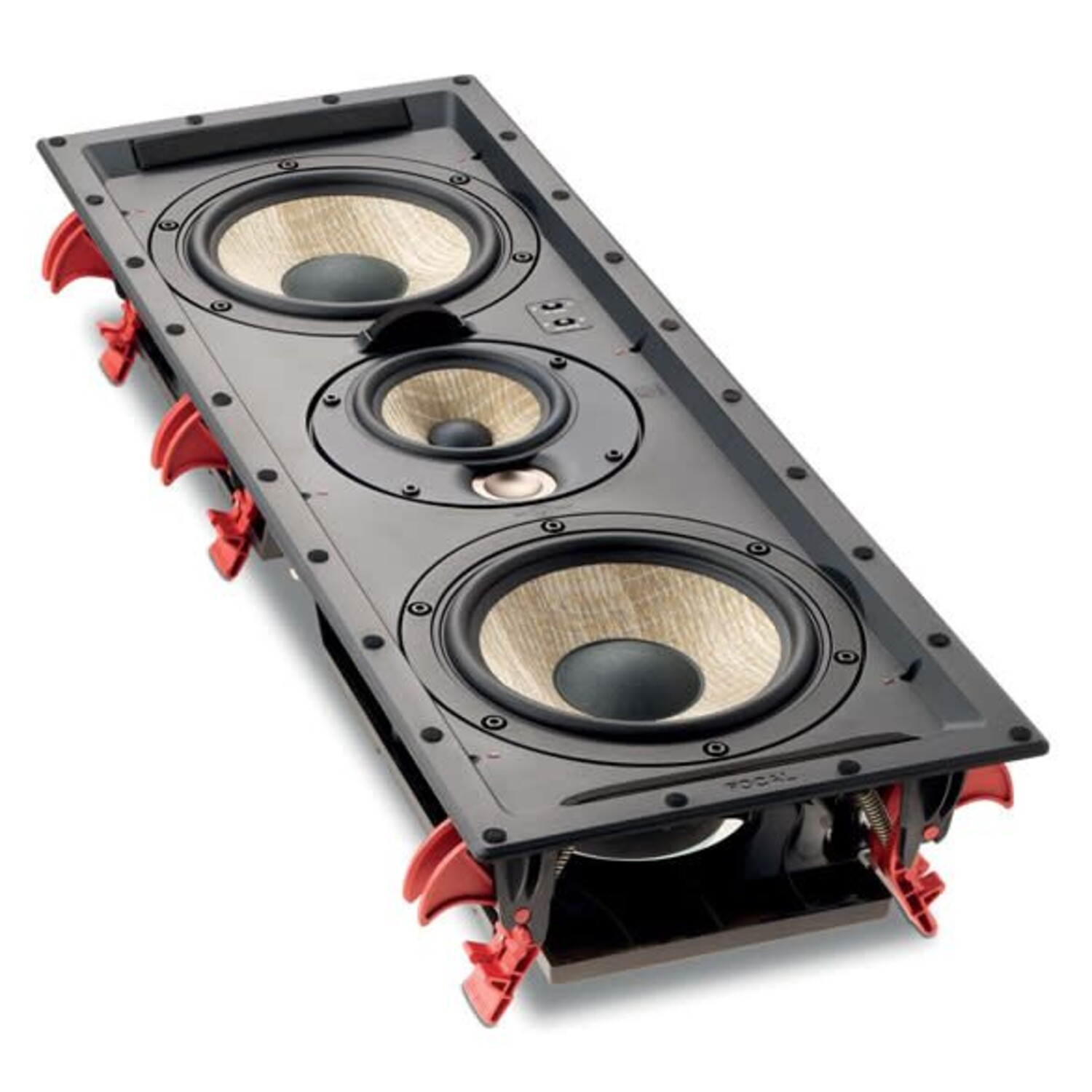

Focal 300 Series 300 IWLCR6 3-Way In-Wall Loudspeaker
The 300 IWLCR6 built-in loudspeaker is made in France and dedicated to a home use. This LCR (Left,Center, Right) loudspeaker is perfect for a Home Cinema set-up with no compromises, in rooms of up to 320ft².
These loudspeakers are equipped with Focal exclusive technologies such as the flax woofer cone & an inverted dome tweeter to deliver a sound quality and precision perfect for your home. The bass are controlled and well defined. The Flax cones produce a natural and accurate sound with great intelligibility, ideal for movie dialogues. Watching a movie will become a completely new experience.
On this in-wall speaker, the mid-treble plate can be rotated by 90° for use as a left, centre or right loudspeaker to aim at the listening spot. The tweeter and mid-levels can be adjusted to adapt to the room acoustics: this will result in the best performances regardless of the environment.

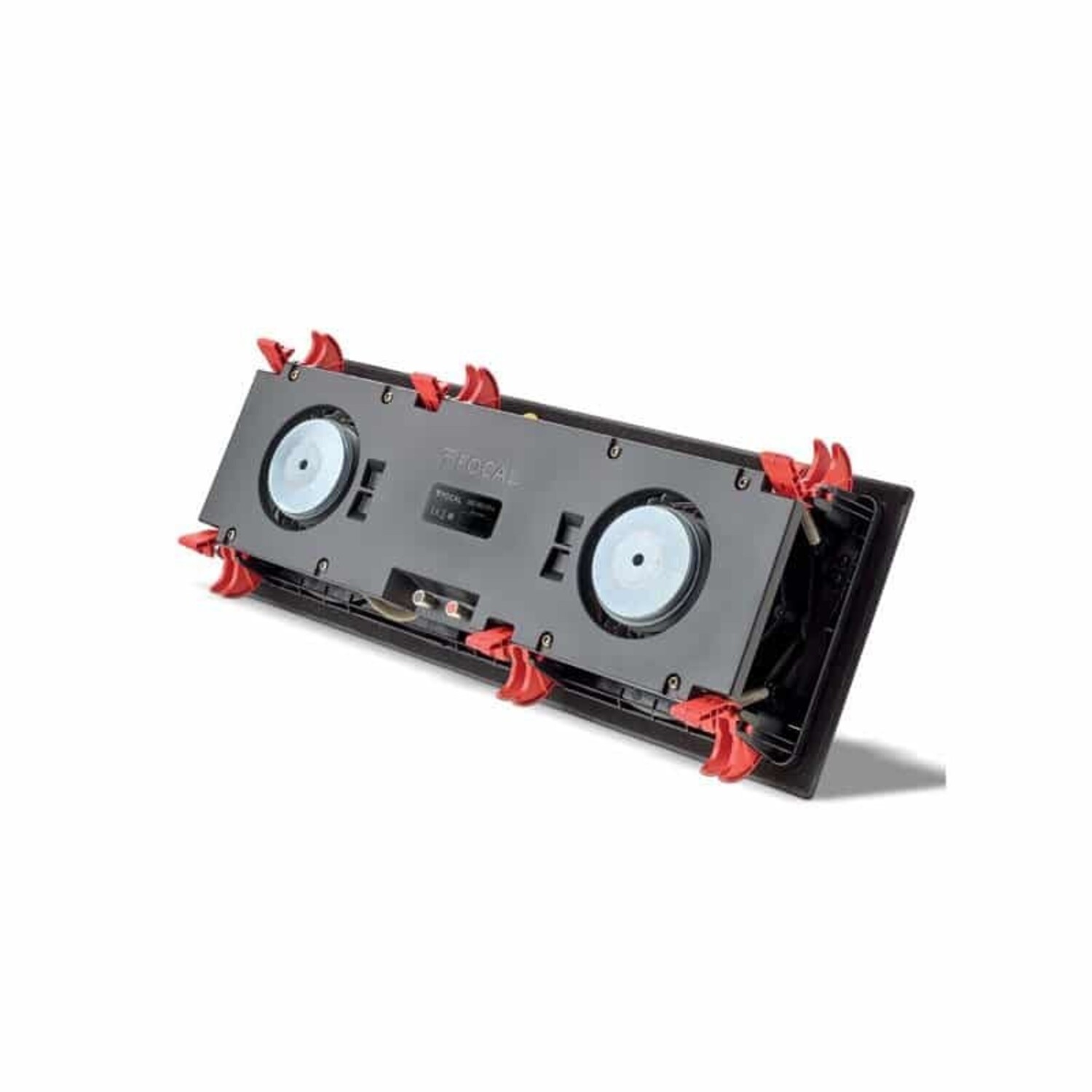

They also provide a major advantage when it comes to installation, which has been greatly simplified with the EQI (easy quick install) system. They require no tools to install, for an unrivaled ease and speed of installation. These new products also meet the most essential criteria regarding use: frameless, magnetic grilles, anti-vibration feet…
Even if the built-in loudspeakers of the 300 Series were designed to reproduce sound as faithful as possible for stereo configurations, they turn out to be also ideal for multichannel applications. It reproduces very precisely the movies’ soundtracks without taking up too much space. These products will blend discreetly with a classic bookshelf or a column loudspeaker system.
The 300 ICW loudspeakers from the 300 Series range can also be installed around your TV screen as stereo loudspeakers or center speaker. They are also suitable for an in-ceiling Atmos® application.
Create an Invisible System
Even if the loudspeakers of the 300 Series were designed to reproduce sound as faithful as possible for stereo configurations, they turn out to be also ideal for multichannel applications. It reproduces very precisely the movies’ soundtracks without taking up too much space. These products will blend discreetly with a classic bookshelf or a column loudspeaker system.
The 300ICW loudspeakers from the 300 Series range can also be installed around your TV screen as stereo loudspeakers or center speaker. They are also suitable for an in-ceiling Atmos® application.
Original Flax Cone
All the speaker driver cones of the 300 SERIES range are made using Flax Sandiwch Technology. Flax is an eco-textile with astounding structural properties: it is light, rigid and well damped for providing greater neutrality of the timbre and better definition.
TNV2 Tweeter developed for these products uses Focal’s exclusive inverted dome technology, allowing for optimal energy transfer and limited directivity.
Perfectly Blent with your Interior
The magnetic grilles supplied with each product are perfect for quick and easy assembly.
In terms of design, all the products of the 300 Series line come with two types of grilles: a square grille and a circular one, to ensure they blend in perfectly with your interior. Another key aspect of the design is that the grilles are frameless, making them even more discreet and elegant.
- 3-way in-wall loudspeaker
- Easy and quick to install without tools
- LCR loudspeaker (left, centre and right) for uncompromising Home Cinema installations • Adjustable mid-treble plate
- Speaker drivers designed and made in France by Focal
- Deep frequency response in the low end and high power handling
- Very balanced mid-range for improved intelligibility for Home Cinema set-ups
- Supplied with a magnetic grille and ready to paint to ensure perfect integration
Type: 3-way In-wall
2 x 61/2" woofers, 4" (10cm) Flax midrange
1" Al/Mg inverted dome tweeter Sensitivity (2.83V/1m) 92dB
Frequency Response: 40-28,000 Hz
Recommended Amplifier Power: 50-150 watts
Sensitivity: 92 dB
Impedance: 8 ohms
Cutout Dimensions: 7-1/2" ( W ) x 22-1/2" ( H )
Overall Dimensions: 8-5/8" ( W ) x 23-3/4" ( H )
Mounting Depth: 4"
Weight: 12.4 lbs.
Warranty: 5 years
Shipping Weight & Dimensions: 18 lb , 27" x 13" x 8'
- Product Documentation -
Focal 300 IWLCR6 Quick Start Guide
Focal 300 IWLCR6 User's Manual
Focal 300 IWLCR6 Cut-Out Template
