Product description

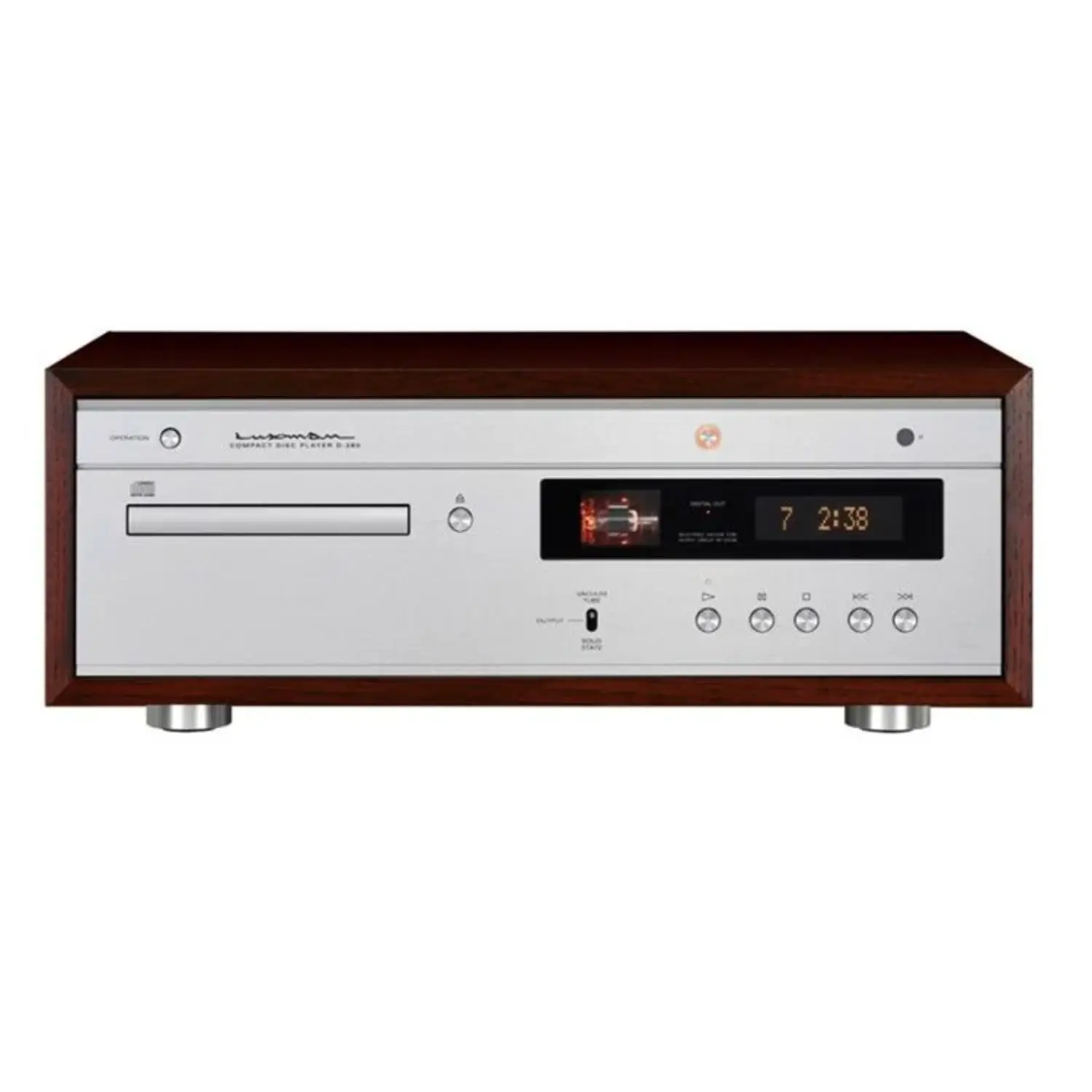

The D-380 is a digital CD player that can also play music through the vacuum tube output and which bears the number ‘38’ – a number synonymous with the golden era of LUXMAN vacuum tube amplifiers. This player features a vacuum tube output consisting of a buffer circuit using ECC82 vacuum tube and a dedicated transformer as well as an advanced digital circuit with a 32-bit compatible DAC and a jitter reduction IC. The D-380 is housed in a classical wooden box and enhances the enjoyment of listening to CD’s for the many fans of music played through this mature music medium.
Luxman D-380 CD Player User's Manual
Specifications
Applicable Disc | 2 channel CD |

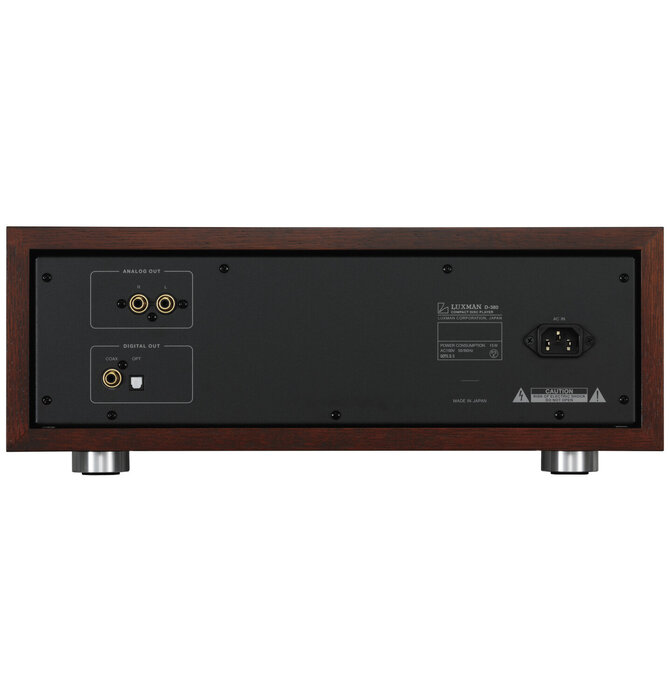

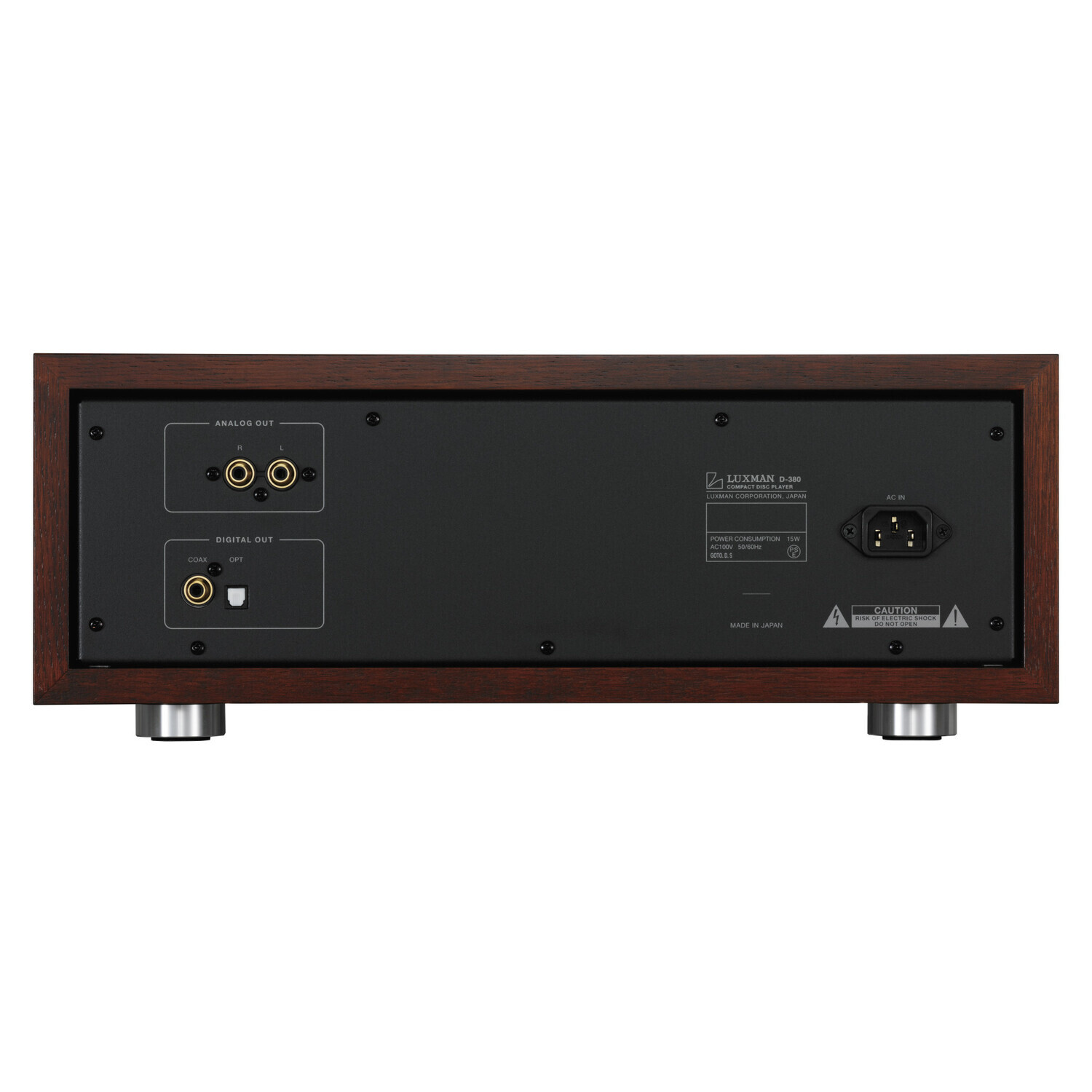

Analog Output | Unbalanced x 1 |
Digital Output | Coaxial x 1, Optical x 1 |
Output Voltage | Solid State: 2.1 Volt, Vacuum Tube: 2.4 Volt |
Output Impedance | 300 Ω |
Frequency Response | Solid State: 20 Hz to 20k Hz ( + 0, - 0.2 dB ) |
Total Harmonic Distortion | Solid State: 0.005 %, Vacuum Tube: 0.8 % |
S/N Ratio ( IHF-A ) | Solid State: 115 dB, Vacuum Tube: 105 dB |
Vacuum Tubes | ECC 82 × 1 |
Power Supply | 230 Volt ~ ( 50 Hz) / 115 Volt ~ ( 60 Hz ) |
Power Consumption | 16 Watt ( at standby ) |
External Dimensions | 440 ( W ) x 167 ( H ) x 286 ( D ) mm front side knob of 4 mm & rear side terminal of 8 mm included in depth |
Net Weight | 10.8 kg |
