Product Specifications

- High-performance stereo preamplifier for digital and analog sources

- 32-bit/384kHz ES9038Pro SABRE DAC

- Supports high-res MQA, FLAC, WAV, & AIFF files

- ES9822Pro SABRE ADC ( Analog-to-digital converter)

- Dynamic Digital Headroom circuit eliminates digital inter-sample peak-clipping distortion

- Ultra-precise, resistor-ladder digital volume control

- Separate signal paths & power supplies for digital and analog sections

- Optional analog bypass mode eliminates interference and noise from digital section when engaged

- Elegant aluminium casework with 7" full-color touchscreen display

- Built-in Dirac Live room correction with included calibration microphone improves clarity and stereo imaging

- Dirac Live Bass Control calibration for seamless blend between the subwoofer(s) & main speakers

- BluOS compatibility for further expansion with BlueSound Wireless Speakers

- Supports Apple AirPlay 2, Spotify Connect, Tidal Connect

- Connects to your home network via built-in dual-band Wi-Fi® or wired Ethernet for music streaming

- Includes support for Amazon Music Unlimited, Spotify®, TIDAL, Napster, Deezer, Qobuz and more

- Free internet radio from TuneIn Radio & iHeartRadio

- Built-in Bluetooth® with aptX HD encoding ( 24 Bit / 96 )

- Works as a Roon player ( requires subscription & Roon Core running on your network )

- Roon Core is media server software that runs on your computer, NAS drive, or other compatible hardware

- Dedicated high-performance headphone amplifier with low output impedance and high output voltage capability

- IR remote

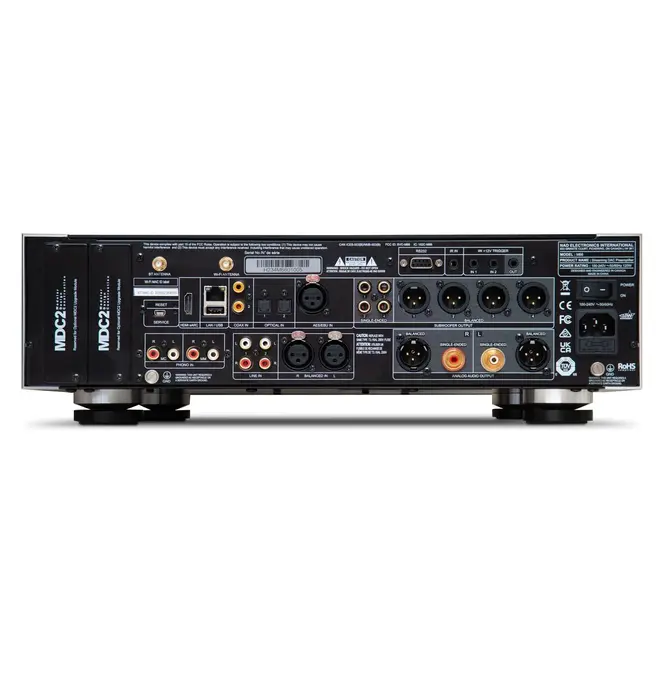

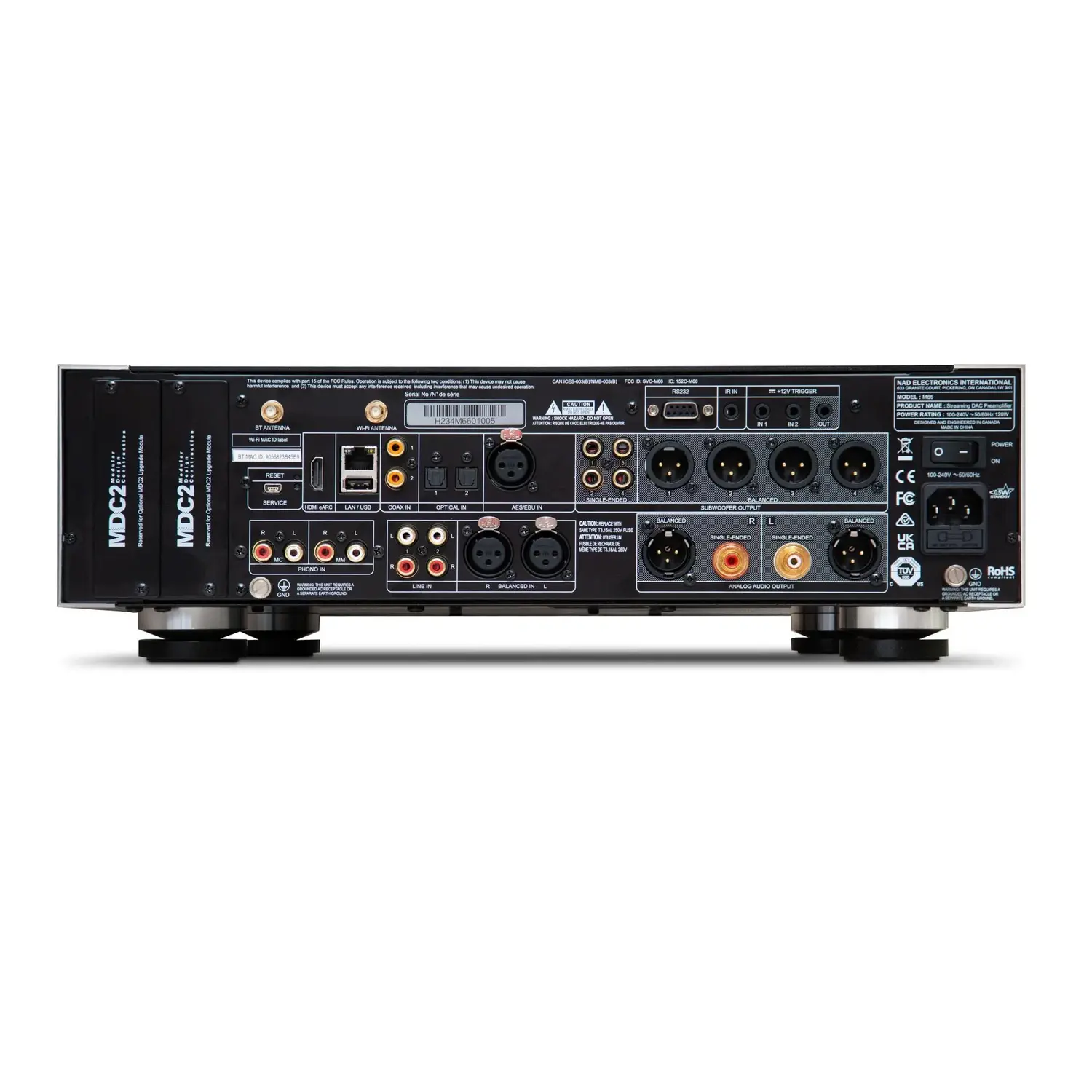

Audio Connections:

- 2 analog stereo phono inputs, one for moving magnet, one for moving coil cartridges

- Ultra-quiet built-in phono stage with precise RIAA equalization, high overload margins, and infrasonic filter

- 2 x RCA analog stereo line-level inputs

- Balanced analog stereo XLR input

- Digital Audio Inputs:

- 2 x Toslink Optical, 2 x Coaxial

- 1 x USB Type-A port for connecting an external flash drive loaded with digital music files

- 1 x AES/EBU balanced XLR digital input

- 1 x HDMI eARC port for connecting to your TV (2-channel PCM only; does not support Dolby Digital or DTS)

- 4 x Balanced & 4 x Unbalanced Subwoofer Outputs

- 2 x MDC2 expansion slots for adding future capabilities

- 1/4" Headphone Jack on front panel

- Ethernet port for wired connection to your home network

- Wi-Fi & Bluetooth Antennas

- IR input & 12-volt trigger in/out

- RS-232 port for integration with 3rd. party control systems like Crestron, Control4, ELAN, and others

Product Dimensions & Warranty:

Dimensions: 17-1/8" ( W ) x 5-1/4" ( H ) x 17-5/8" ( D )

Weight: 18.52

Warranty: 3 Years
