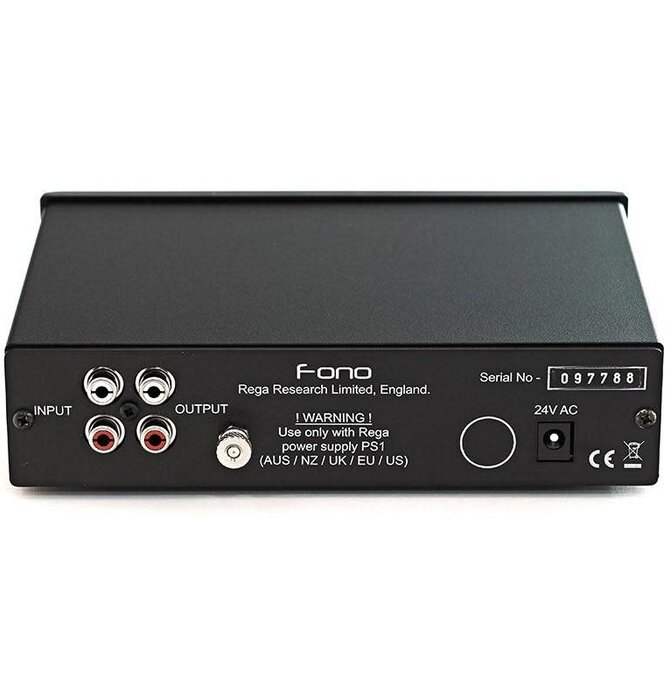

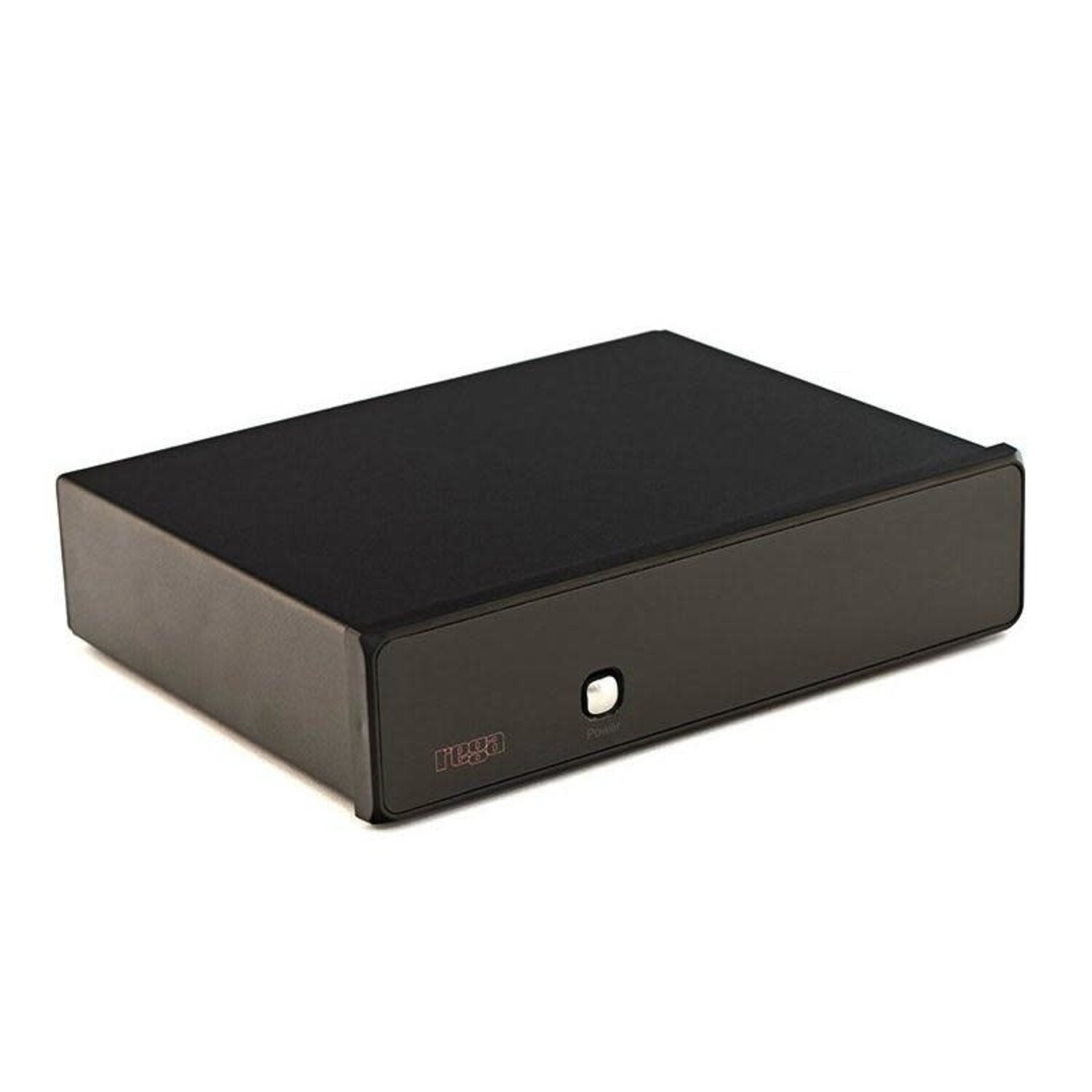

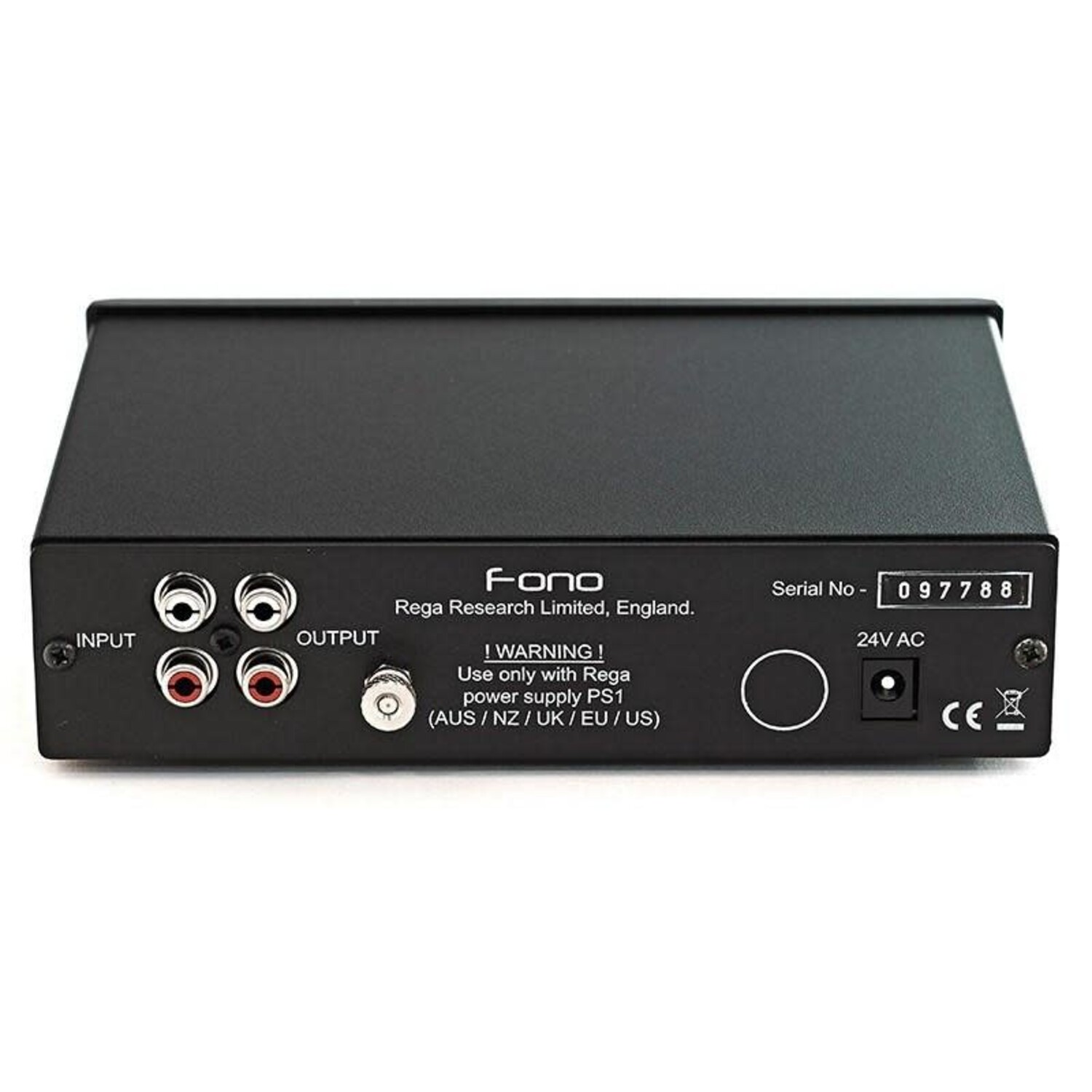

The new Fono MM phono stage has been designed to be effective, easy to use, and above all, to reproduce music. The Fono MM uses a fully discrete, cascaded, complementary amplifier input stage, a configuration designed to optimize the performance of your moving magnet cartridge. Now housed in a brand new redesigned case to match the new Fono MC and Rega's latest range of electronic components offering a modern and sleek look guaranteed to integrate in to any hi-fi system.
The RIAA equalization has been split into two stages to minimize interaction. Polyester capacitors have been used in the signal path and polypropylene capacitors are used in the RIAA equalization circuits.
The aesthetic design of the Fono MM was as important as the quality of its electrical capabilities, so it benefits from the same aluminum case as the Rega TTPSU and Fono MC amplifier, giving it a design which offers a familiar feel and moreover brings it in line with its illustrious bigger brothers.
Rega Research Fono MM User's Manual
Input Sensitivity: 1.7 mV for 200 mV output
Input Loading: 47 KΩ in parallel with 100 pF
Maximum Input Level: 60mV at 1KHz
Gain: 41.4 dB at 1 KHz
Output Impedance: 200 Ω
Recommended Minimum Output Load Resistance: 5 KΩ
Frequency Response: (50 KΩ output load) 15 Hz (-3 dB) to 100 KHz (-0.2 dB)
RIAA Accuracy: (50 KΩ output load) better than +/-0.2 dB 100 Hz to 100 KHz
Power Requirements: 24V AC at 80 mA maximum.
Only to be used with Rega PS1.
Shipping dimensions & weight: 16" x 8" x 3" , 3 pounds
