CCM7.5 S2 In-Ceiling Speaker

CCM7.5 S2 In-Ceiling Speaker

          (0 reviews)
Out of stock
+
  Add to Wishlist
In Store Only ! This is a very serious in-ceiling speaker. If you own a 700 series B&W high end speaker or even some of the top-of-the-line 800 models, you probably know all about the Continuum mid/bass driver they use.

In Store Only!

 For Availability & Purchasing, please call us at (702) 910-4913.

Or if you have any questions, please contact us via Chat.

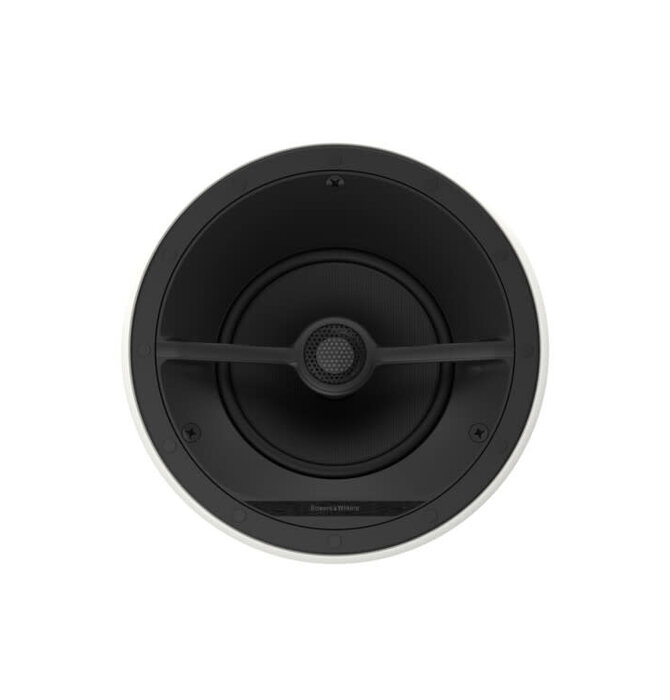

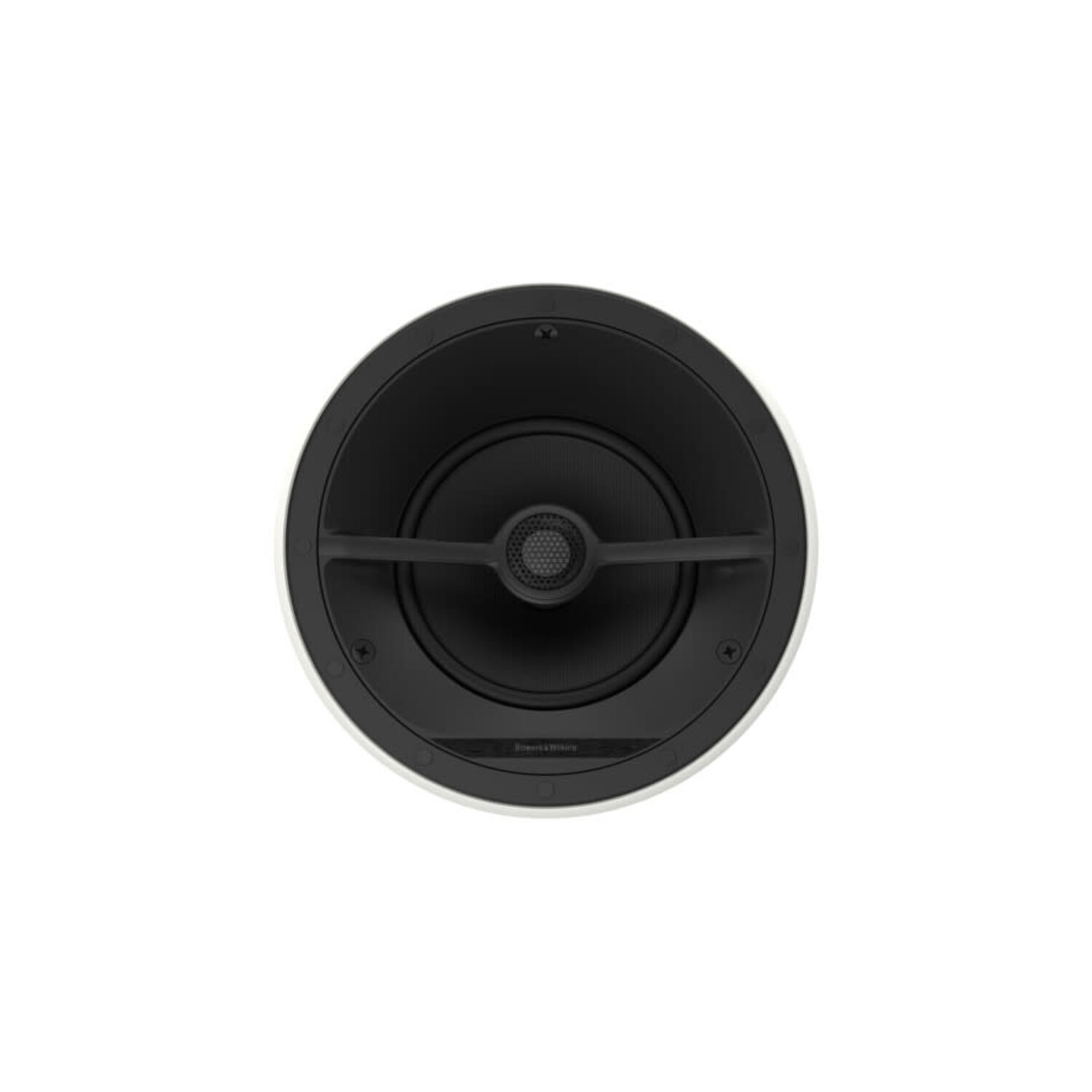

Bowers & Wilkins CCM7.5 S2 In-Ceiling Speaker

Designed for down-firing, in-ceiling use, CCM7.5 S2 can be used as the left, center, right and rear-channel rear speakers in a discreet home cinema system. Its configuration includes a 25mm (1in) Carbon Dome tweeter and a 180mm (7in) Continuum cone mid/ bass cone angled to the mounting surface, allowing for easy direction of the whole array towards the listener to ensure they hear the correct balance of sound. That way, the dialogue is crystal clear, and special effects come across accurately. Thanks to Bowers & Wilkins unique QuickDogs fixing method, installation is simple and if preferred, the supplied round grille can be replaced with an optional, square grille.

 B&W developed this special driver a few years ago for their new 800 models and has been moving its great tech into more affordable products like the 700 series.

We were really impressed to see the S2 version of the 7.5 added this tech with a 7” version of it. The great news for home theater is in the CCM 7.5 S2, the entire driver assembly is at an angle, so you simply rotate the entire speaker at the listening area when you install it.

Even more impressive is just how low in bass response this speaker can reach. Their 3dB down point is 32 Hz which is incredible for an in-ceiling speaker! These move up to the same Carbon Dome tweeter found in the 700 series.

Needless to say, the CCM 7.5 S2 is ideal for Atmos height channels in a serious B&W home theater system. For those of you wanting to do an all in-ceiling 5.1 system in a family room, 3 of these across the front with their angled enclosure can serve you well as your main front channels and simply add another pair for the rears.

Details & Specifications

Design: 2-way in-ceiling system

Technical Features:

Carbon Dome tweeter

Continuum mid/bass

Drive Units:

1" Carbon Dome high-frequency

7" Continuum cone mid/bass

Frequency Range (-6dB): -6dB at 25Hz - 33kHz

Frequency Response -3dB: 32Hz - 28kHz ±3dB

Sensitivity: 90dB spl (2.83Vrms, 1m)

Harmonic Distortion

2nd and 3rd harmonics (90dB, 1m)

<1% 70Hz - 33kHz

<0.5% 100Hz - 28kHz

Impedance Nominal (min): 8 Ohm (Minimum 4.8 Ohm)

Recommended Amplifier Power: 25W - 150W into 8 Ohm on unclipped program

Recommended Back Box: BB 6C

Square Grille Option (Sold Separately): GR68SQ

Approximate Dimensions

Frame Diameter: 11.4"

Depth (Behind Surface): 5"

Cutout Diameter: 10"

Protrusion: 0.33"

Approximate Weight

Unit: 6.83 lbs

Shipping: 10 lbs

Bowers & Wilkins CCM7.5 S2 Info Sheet

Bowers & Wilkins CCM7.5 S2 Installation Instructions
