Focal Series 300 ICW4 In-Ceiling/In-Wall Loudspeaker

Product description

Focal's Original Flax Cone

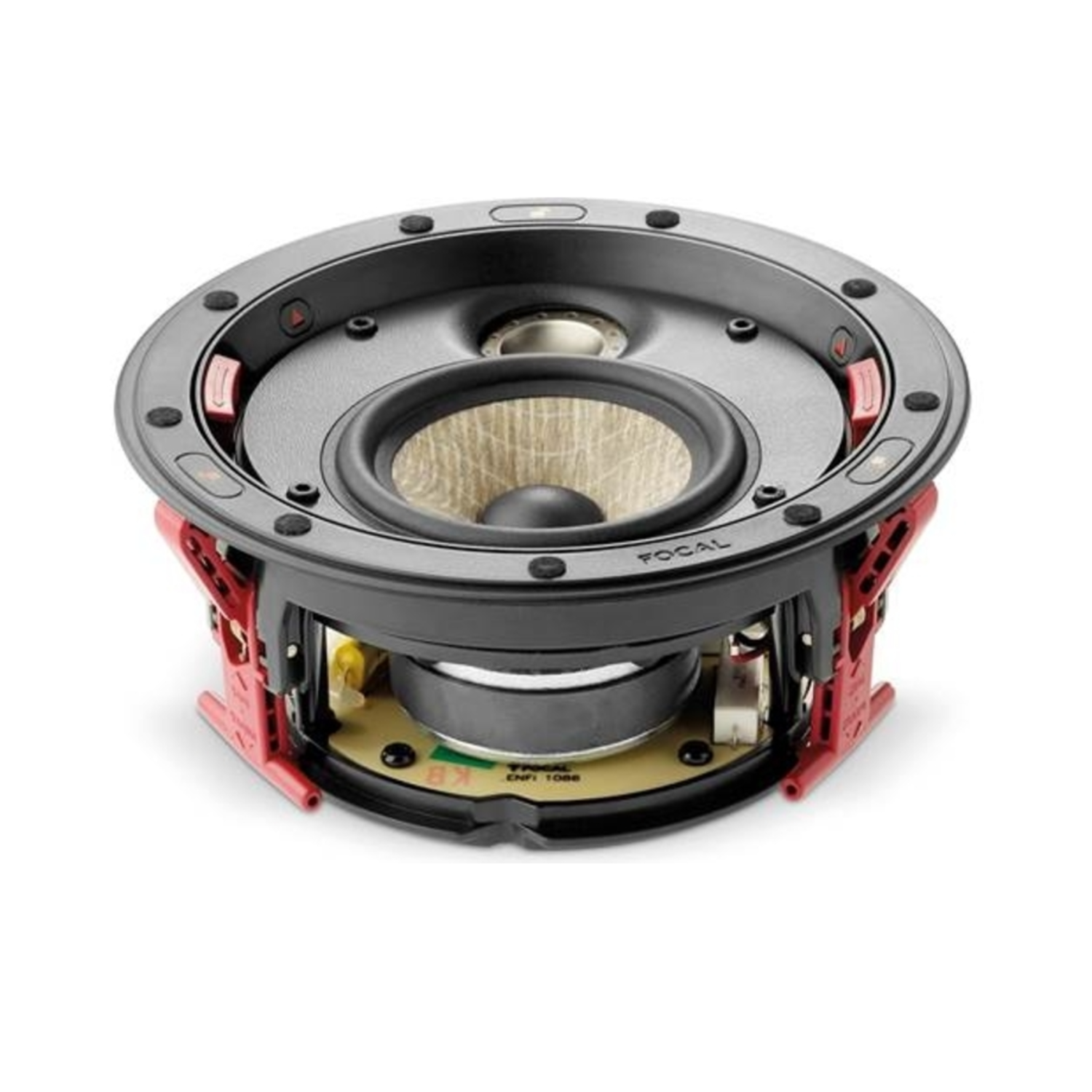

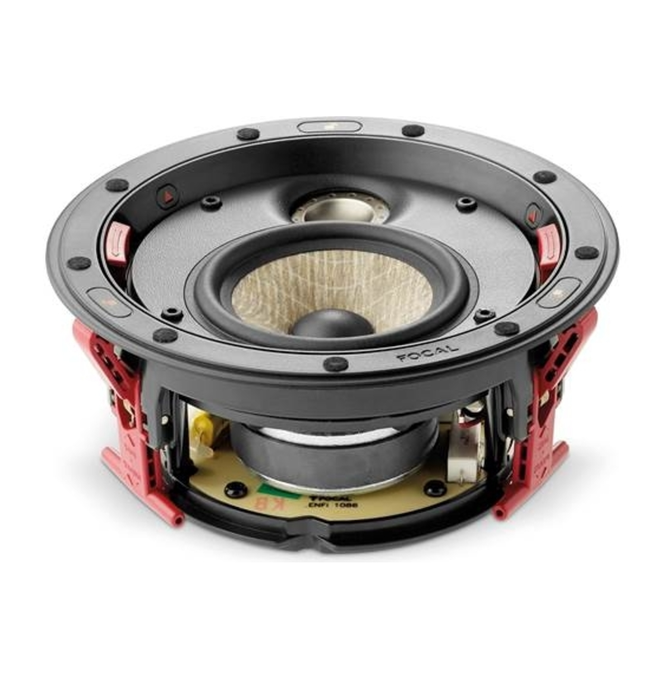

All the speaker driver cones of the 300 Series range are made using Flax sandwich technology. Flax is an eco-textile with astounding structural properties: it is light, rigid and well damped for providing greater neutrality of the timbre and better definition.

TNV2 Tweeter developed for these products uses Focal’s exclusive inverted dome technology, allowing for optimal energy transfer and limited directivity.

Simply Composed

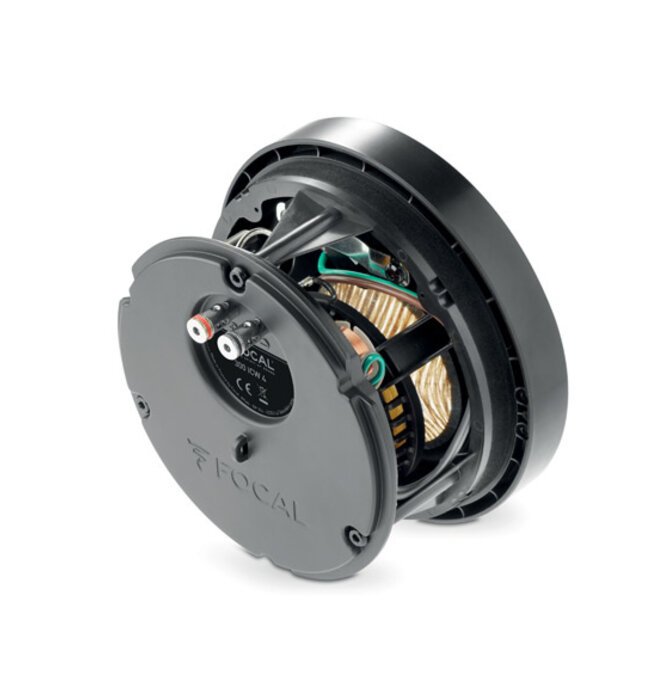

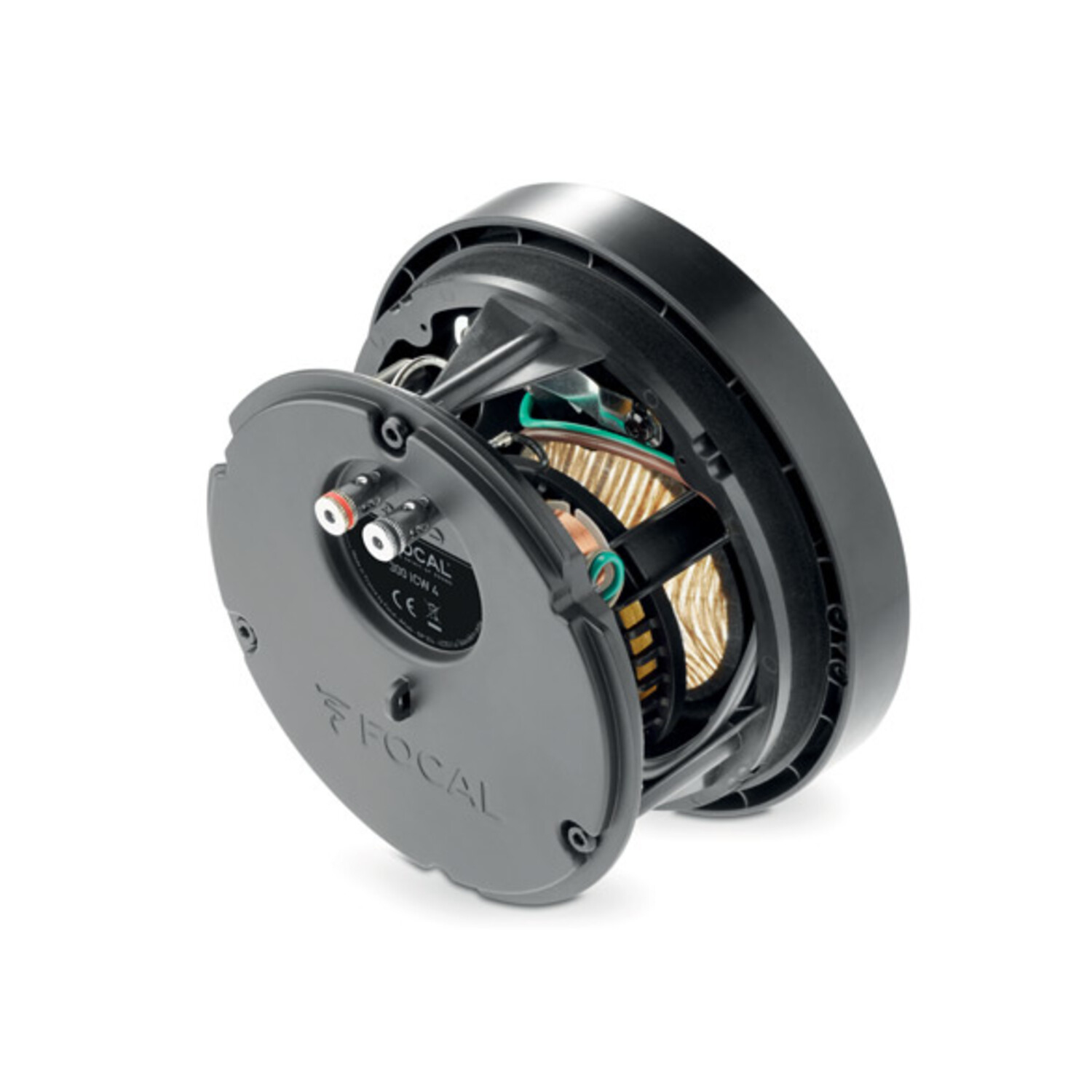

Each 300 ICW is simply composed of two parts: a mounting frame and a loudspeaker. The mounting frame is fixed to the wall or ceiling using mounting brackets which can be manipulate single-handedly. Once the frame has been fixed securely in place, the loudspeaker can be quickly assembled to the mounting frame thanks to a quarter-turn locking mechanism.

One last important point: the magnetic grilles supplied with each product are perfect for quick and easy assembly.

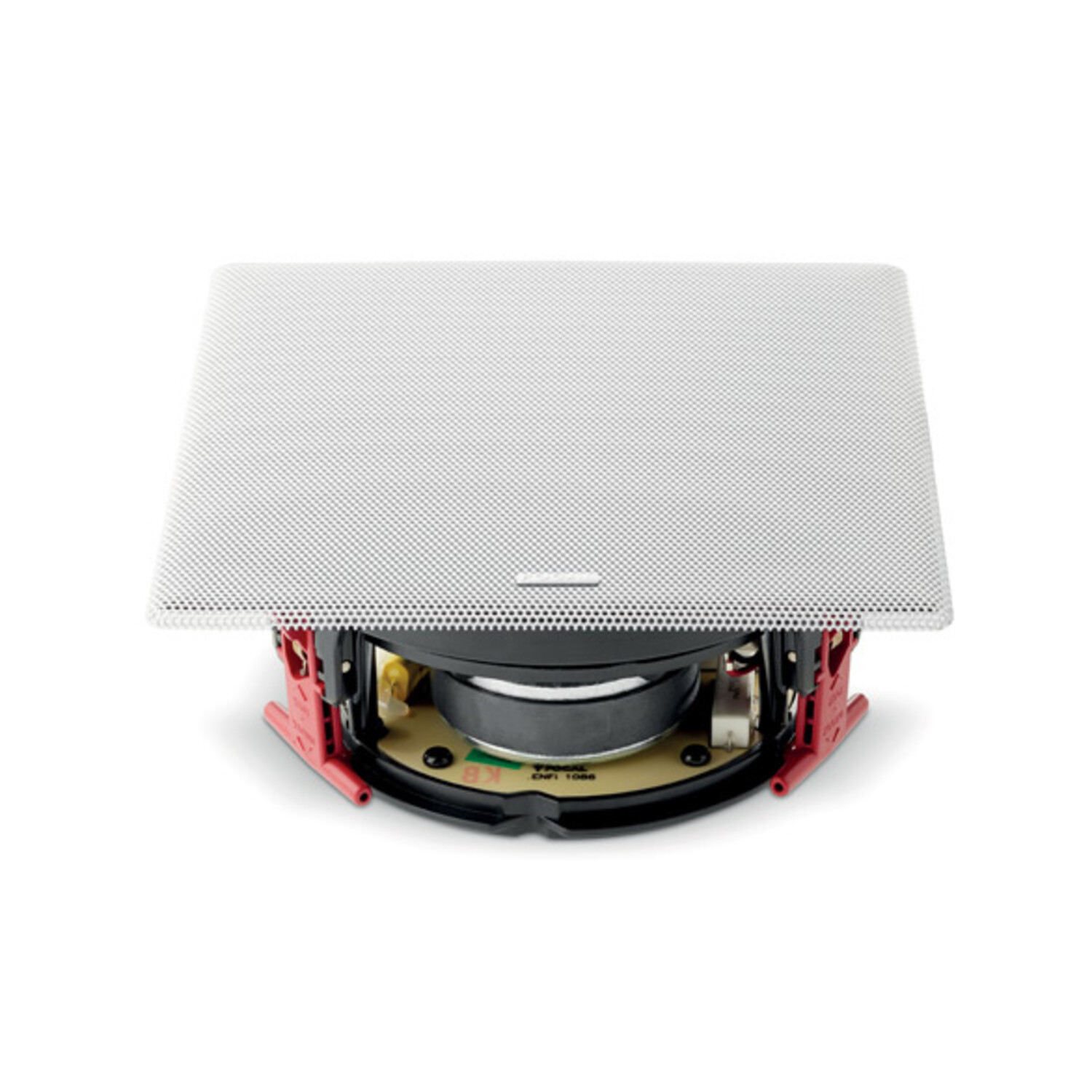

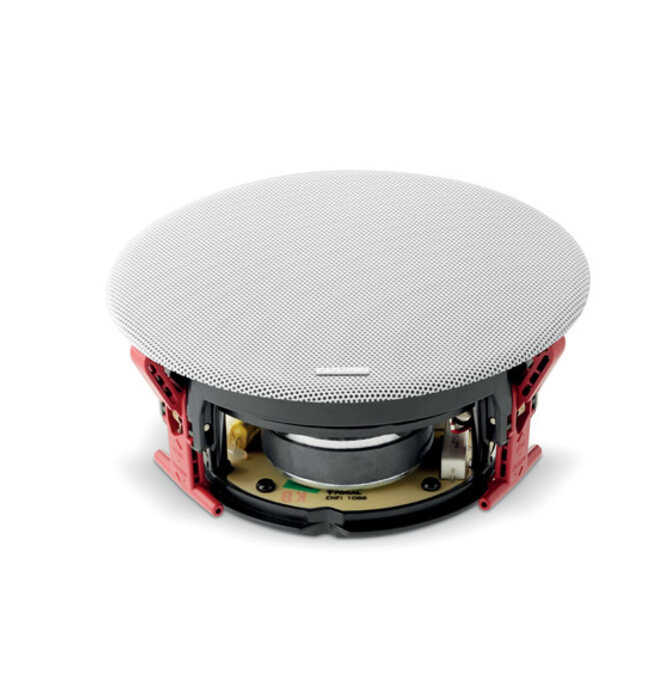

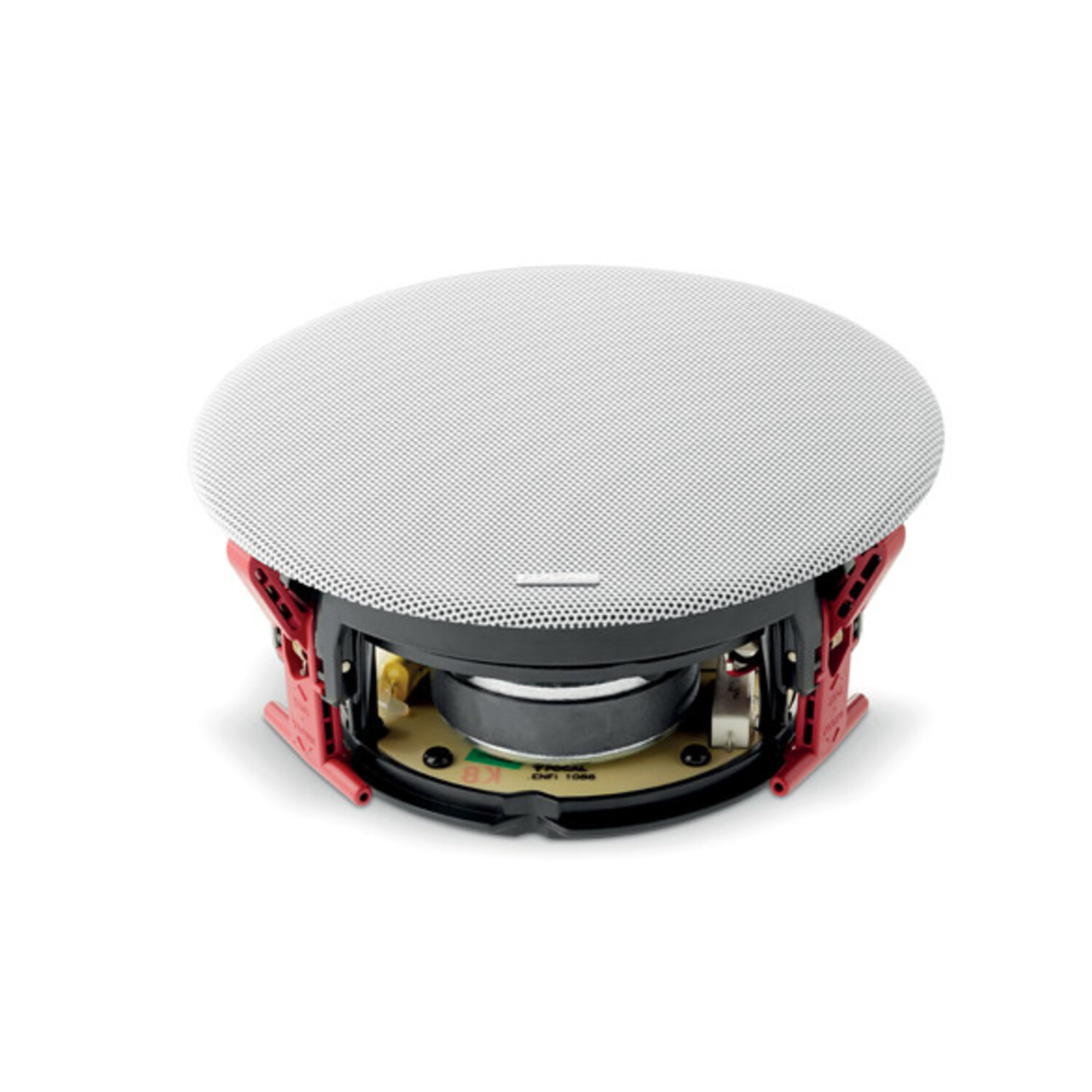

In terms of design, all the products of the 300 Series line come with two types of grilles: a square grille and a circular one, to ensure they blend in perfectly with your interior. Another key aspect of the design is that the grilles are frameless, making them even more discreet and elegant.

Create an Invisible Home Theater

Each of these loudspeakers is suitable for both in wall and in ceiling installation, making the products of the 300 Series line extremely versatile and ideal for hi-fi systems, home cinema systems or to complement classic hi-fi systems, particularly loudspeakers from the Aria 900 line.

For the finest audio systems, the products of the 300 Series line are perfectly adapted for Dolby Atmos technology for total 3D immersion. Optional installation kits are available, particularly to facilitate installation in new environments.

Easy Installation

Today, quality sound isn’t enough to offer a product which meets all the expectations in this market. That’s why Focal has gone one step further by focusing on two new qualities required by built-in loudspeakers: a discreet design and ease of installation.

Assembling the products in this line has never been easier. Installation time is kept to a minimum thanks to the EQI. This ingenuous mechanism allows you to install the products without any tools whatsoever.

Key Points

- Ultra compact 2-way speaker for custom install

- No tools required to install the product

- Loudspeaker developed and manufactured in France by Focal

- Delivered with ready-to-paint square and circular front grilles and painting protective mask

- Excellent size-performance ratio

Specifications

Type: 2-Way

Drivers:  1 x 4" Flax Mid-bass and 1 x 1" Al/Mg inverted dome Tweeter

Sensitivity: 88 dB

Frequency Response: ( +/-3dB ) 80Hz - 28kHz

Low Frequency Point: ( -6dB ) 72Hz

Nominal Impedance: 8 Ohms

Minimal Impedance: 4.5 Ohms

Recommended Amplifier Power: 25 - 100 Watt

Dimensions: (Ø/Depth) 7 9⁄16 x 3 55/64"

Cut-Out Diameter: 6 27/64"

Depth Behind Surface: 3 21⁄32"

Net Weight : 2.6 lbs

Packaging Dimensions: 11" ( W ) x 11" ( D ) x 10" ( H )

Total Weight in Box: 5.07 lbs

- Product Documentation -

Focal 300 ICW4 User's Manual

Focal 300 ICW4 Mounting Manual

Focal 300 ICW4 Cut-Out Template

Focal 300 ICW4 Specification Sheet
