Focal Series 100 IC6ST In-Wall/In-Ceiling Stereo Speaker

Product description

Comfort of the Stereo

The 100 IC6ST loudspeaker which is dedicated to home audio delivers an amazing sound quality and has a compact design. Its dual voice coil Polyglass mid-bass driver makes it ideal for acoustics in small to medium sized rooms, such as a bedroom, a kitchen, a hall or even in humid environments – bathrooms for example.

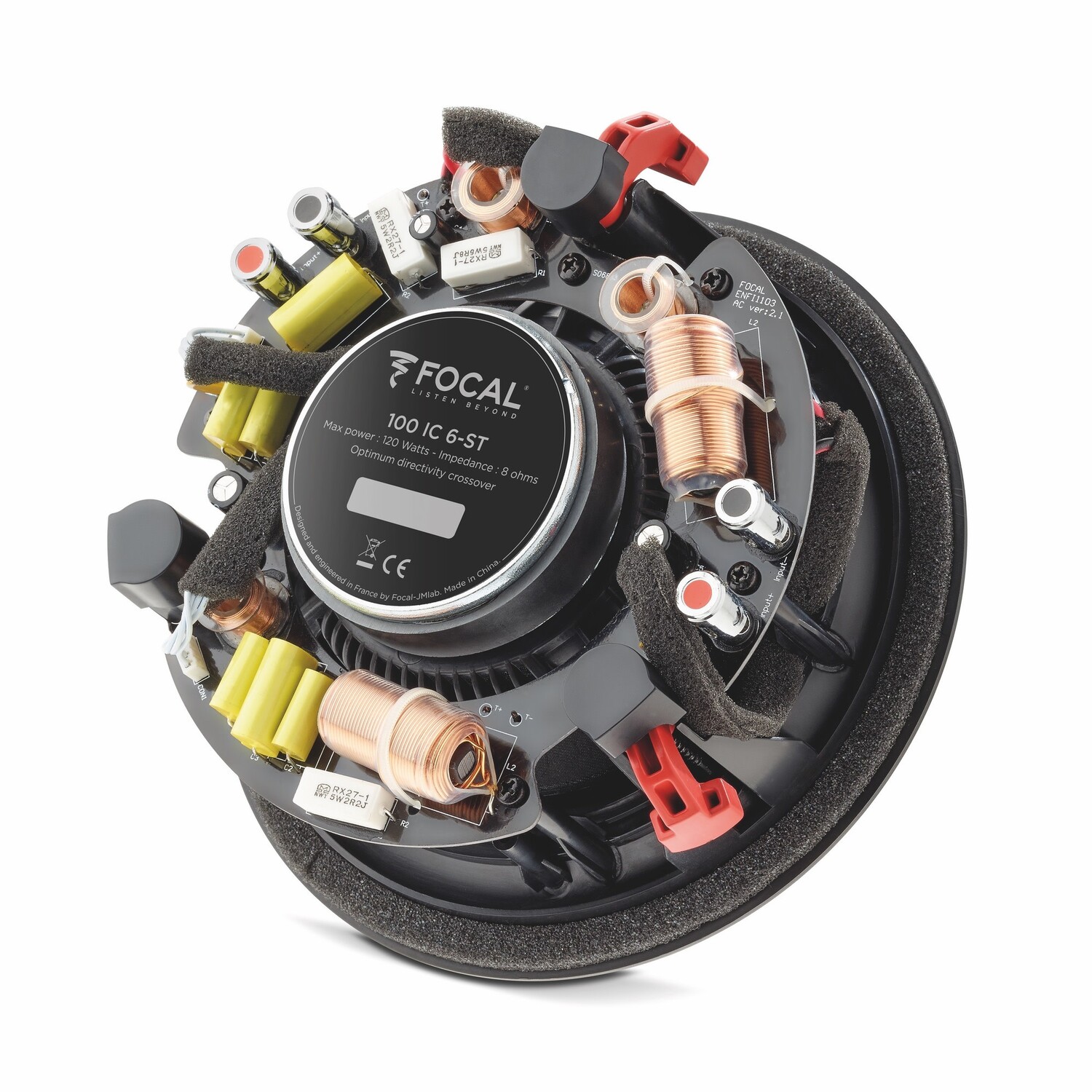

This coaxial loudspeaker has a new aluminum inverted dome adjustable tweeter, more compact, improving the sound dispersion. It is also equipped with a new Polyglass cone (6^1/2” – 16.5 cm). A new crossover improves the off-axis listening and avoids the “shower effect”.

This product can be installed everywhere thanks to a compact design with the speaker driver’s basket and chassis being redesigned as one only piece, frameless square and circular front grilles. The 100 Series brings an unexpected musicality to your home with ease. Let yourself be surprised by the technology behind this product, an efficient design and ideal features for an easy use at this price.

Perfect Acoustics

100 ICW5, 100 ICW6 and 100 ICW8, 100 IC6ST and ICLCR5 offer three position switch (-3dB, 0 dB, +3 dB) to adjust the treble according to the acoustic environment (reverberation on windows or on tiles for example). Two loudspeakers can be connected to the same amplifier.

Hi-Fi for Home Cinema

All the products from the 100 Series can be used to reinforce classic Hi-Fi systems, particularly the loudspeakers from the Chorus 700 series, for those looking for discreet, high-quality Home Cinema system.

Easy to Install

Installation is an important criterion: the three mounting brackets with optimised grips ensure a quick and easy installation. The screw system prevents screws from falling out when dismantling the product. The installation time is reduced at its bare minimum. The 100 Series products have a shallow mounting depth which greatly facilitates installation.

Installation in Humid Environments

Tropicalization used on Poly-glass membranes to allow the installation in humid environments, such as bathrooms.

Key Points

- Stereo-input speaker plays both the left and right channels of the stereo mix

- Dual 1" aluminum inverted dome tweeters

-Three-position tweeter level control cuts or boosts high-frequency output to ideally suit your room's acoustics

- 6-1/2" Polyglass woofer

- Humidity-resistant design (not recommended for direct exposure to water)

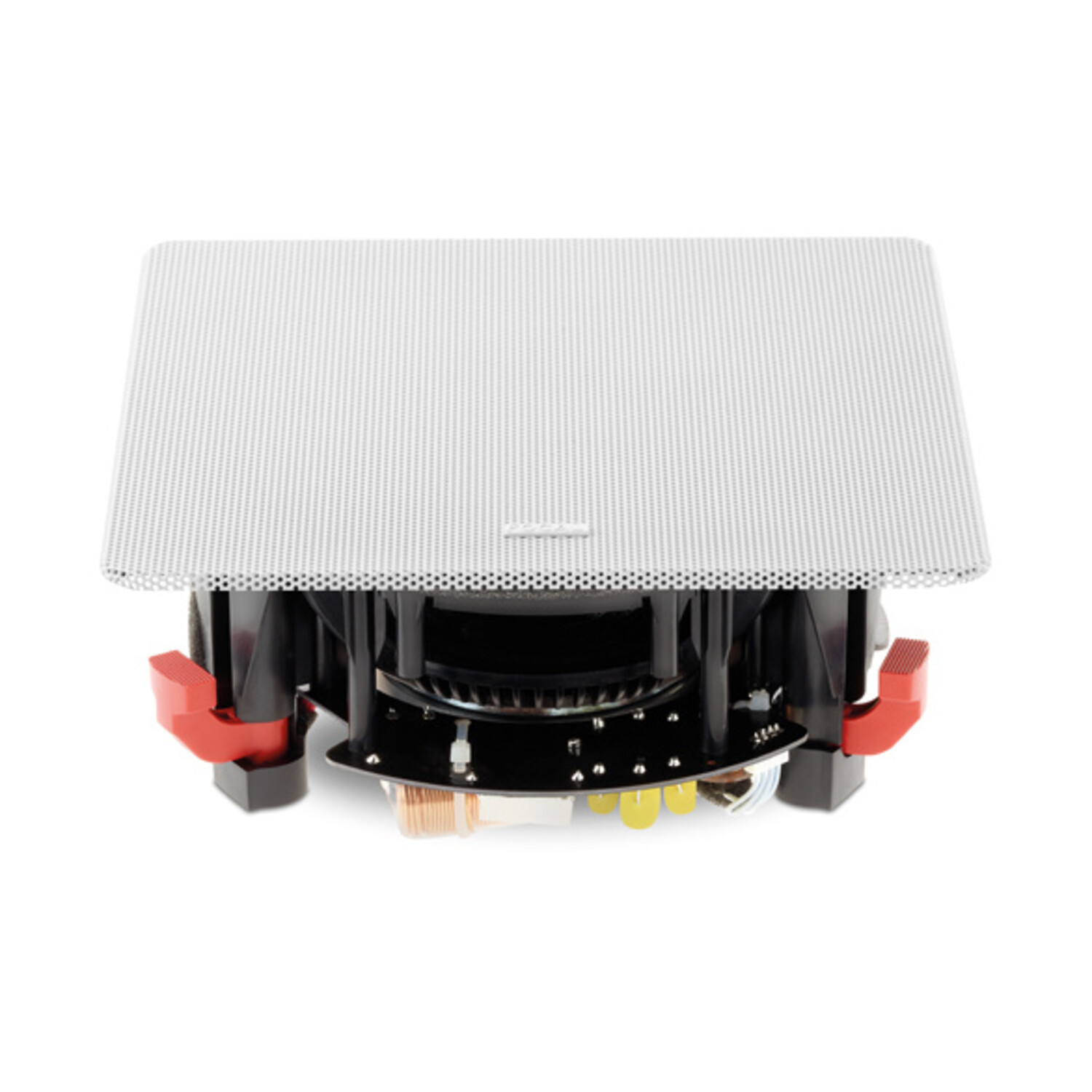

- Unobtrusive frame and low-profile grille for discreet installation

- Includes round and square paintable magnetic grilles

- Designed & Developed in France

*Accessories required for installation are sold separately* ( pre-mounting kit & fire rated back box )

Specifications

Recommended Amplifier Power: 25-100 watts

Frequency Response: 60-23,000 Hz

Sensitivity: 89 dB

Impedance: 8 ohms

Cutout Diameter: 7-1/8"

Overall Diameter: 8-1/8"

Mounting Depth: 3-3/4"

Weight: 3.9 lbs.

Warranty: 5 years

MFR #: F100IC6ST

- Product Documentation -

Focal 100 Series IC6ST Quick Start Guide

Focal 100 Series IC6ST User's Manual

Focal 100 Series IC6ST Cut-Out Template

Focal 100 Series IC6ST Specification Sheet
