Marantz MODEL 10 Reference Integrated Amplifier

$15,000.00

(0 reviews)

The new reference in amplifier design. Featuring a newly designed dual-mono symmetrical amplifier topology, it is the most powerful, highest performing Marantz amplifier ever with 250 Watts / Channel. Fully balanced dual mono amplifiers & MM/MC phono stag

The Best of The Best

From the triple-layer aluminum chassis with copper shielding to entirely original multi-layer PCBs, isolated sub-enclosures, and all new HDAM modules, MODEL 10 is the product of decades of expertise in audio engineering, setting a new benchmark with meticulous construction, state-of-the art technologies, and elegant design.

Sound Master Tuned

MODEL10 retains the sonic Marantz signatures of warmth, spaciousness, and resolution. However, advances in design and precise tuning by the Sound Master result in the purest expression of the Marantz sound ever. As a result, the listener experiences more detail, lower distortion, and higher dynamic range than ever before.

Iconic Details Reimagined for Tomorrow

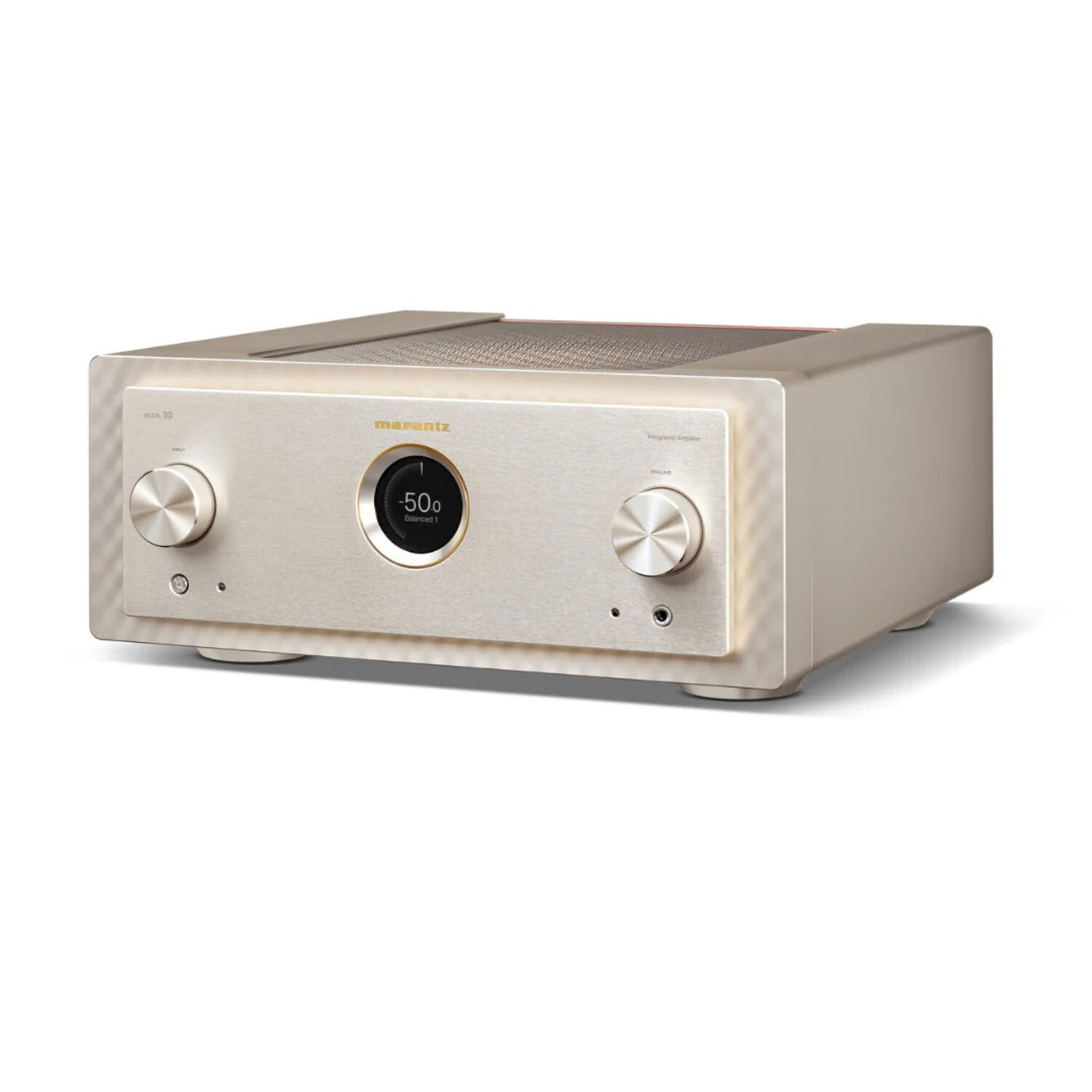

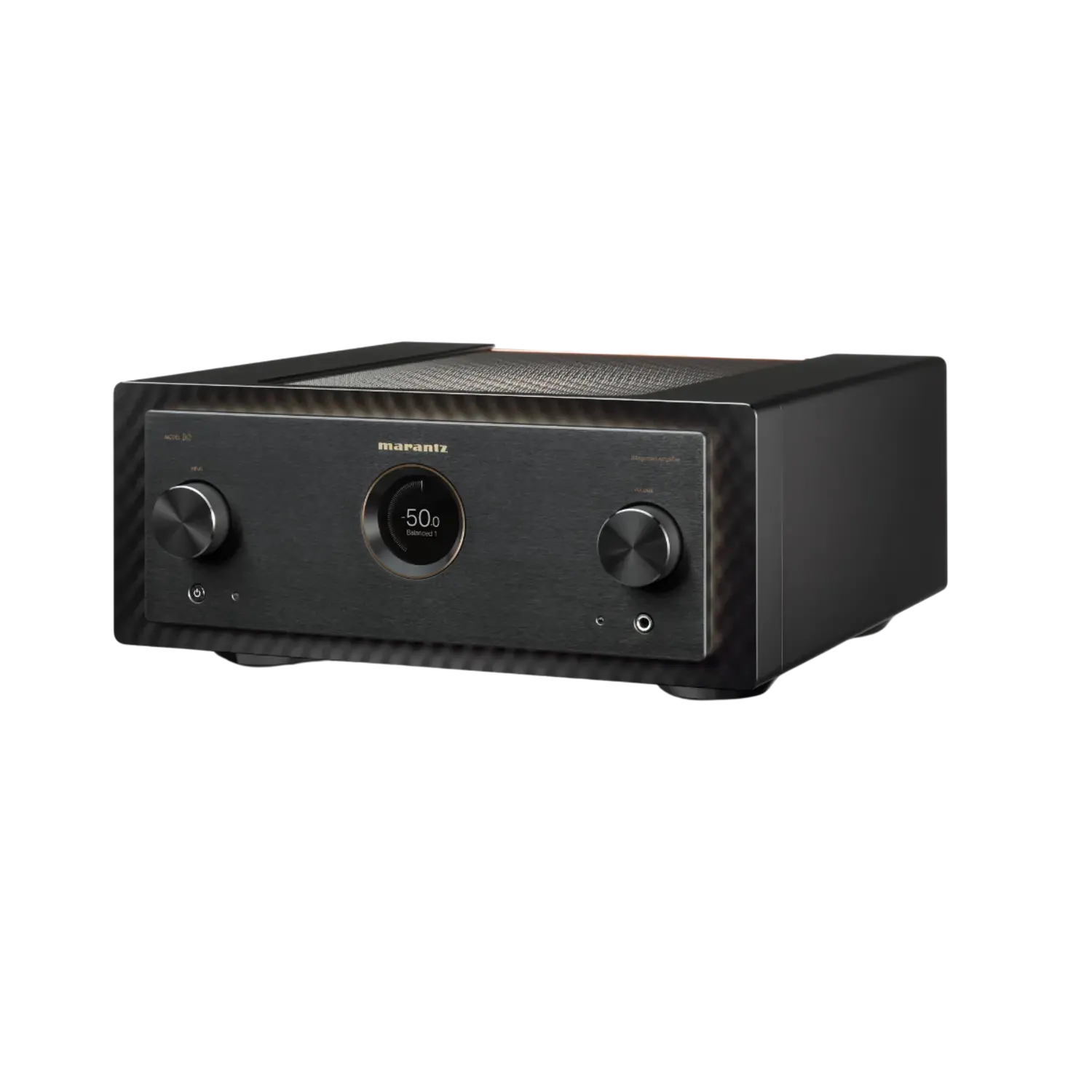

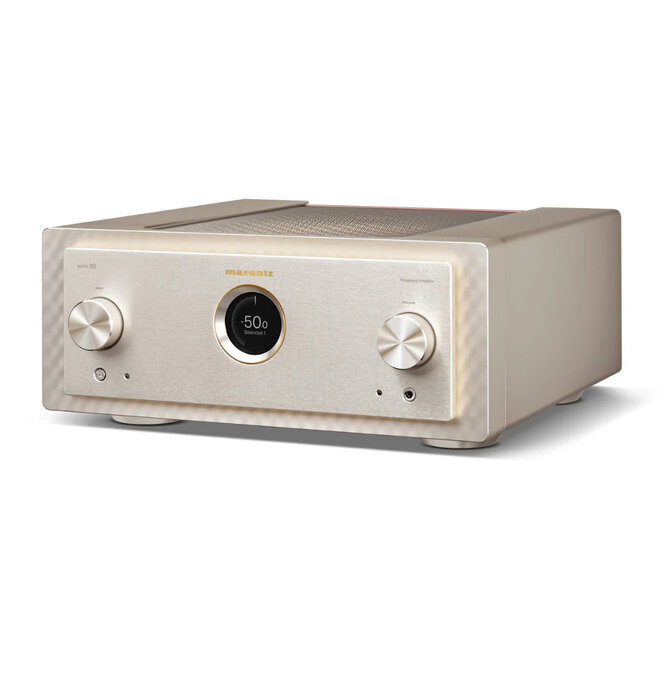

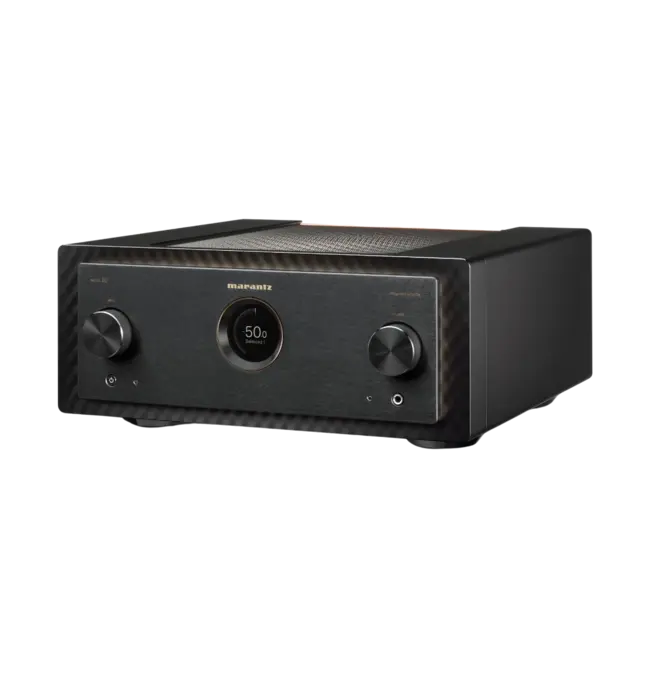

Designed with a brushed aluminum front, MODEL 10 is encased in a copper-plated, triple-layered chassis with illuminated mesh cover grille. Lighting inside the amplifier showcases the circuit boards, high-quality components, and specially designed transformer case. In a nod to the Marantz design DNA, MODEL10’s porthole houses a HD TFT Color Display for volume and input selection, along with a digital level meter that behaves like vintage analog meters.

The MODEL 10 Integrated Amplifier was fully conceived and engineered in our facilities in Shirakawa, Japan to deliver the highest performance.

General Specifications:

- Unit Dimensions ( W × H × D ): 440 × 192 × 473 mm

- Net Weight: 33.7 kg

- Packaging Dimensions ( W × H × D ): 600 × 379 × 540 mm

- Packaging Gross Weight: 39.0 kg

- Front (Center) Panel: Anodized Machined Aluminum

- Back-shell: Anodized machined aluminum

- Rear Panel: Copper Plated

- Chassis Material: Copper Plated

- Bottom Layer / Bottom Plate: Triple layer, Copper plated

- Volume Knob: Solid aluminum ( Bearing construction )

- Input Selector: Solid aluminum ( Bearing construction )

- Heatsink for Power Amplifier: Extruded Aluminum

Audio Specifications:

- Rated Output Power:

- 250W + 250W (8 ohm, 20Hz-20kHz, THD 0.05%)
- 500W + 500W (4 ohm, 20Hz-20kHz, THD 0.05%)
- Speaker Impedance: 4~16 ohm
- Frequency Response: 5Hz~60kHz +0dB/-3dB
  - 20Hz~20kHz +0dB/-0.3dB
Total Harmonic Distortion: 0.005% (125W, 8 ohm, 20-20kHz) (CCIF IMD, DFD IMD)
Damping Factor: 500 (8 ohm, 20Hz-20kHz)
Input Sensitivity:
- Phono Input:
  - MM: 3.6 mV / 36 kohm
  - MC (Low): 400 µV / 33 ohm
  - MC (Mid): 400 µV / 100 ohm
  - MC (High): 400 µV / 390 ohm
- CD/LINE/RECORDER: 350 mV/41 kohm (Unbalanced), 700 mV/36 kohm (Balanced) (Gain = 42dB)
- Power Amp Input: Unbalanced: 1.58V / 41 kohm (Gain: 29dB), Balanced: 3.16V / 15 kohm (Gain: 24dB)
RIAA Deviation: 20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input:
- MM: 80 mV
- MC: 8 mV
Signal-to-Noise Ratio:
- PHONO (MM): 88 dB
- PHONO (MC): 76 dB
- CD: 122 dB
- Balanced: 122 dB
Headphone Output Level: 130 mW / 32 ohms
Tone Control:
- BASS: 50Hz ±10 dB
- TREBLE: 15kHz ±10 dB
Power Consumption: 270 W
Standby Power Consumption: 0.1 W

Audio Features:

Power Amplifier Circuit: Switch Mode BTL
Power Transformer: Toroidal transformer in shielding case for preamplifier section only
Power Supply: SMPS for Power amplifier, L/R independent
Pre Amplifier Circuit: New HDAM High Grade, Full balance
Volume Control: Electric / Variable gain
Tone Control: Electric (Bass / Treble / Balance Control)
Headphone Circuit: HDAM-SA2 + Diamond buffer
Source Direct: Yes
Power Amp Mode: Turns off Pre-Amp power supply
Mono Mode: Yes
Switch: Stereo / Bi-Amp on Rear Panel

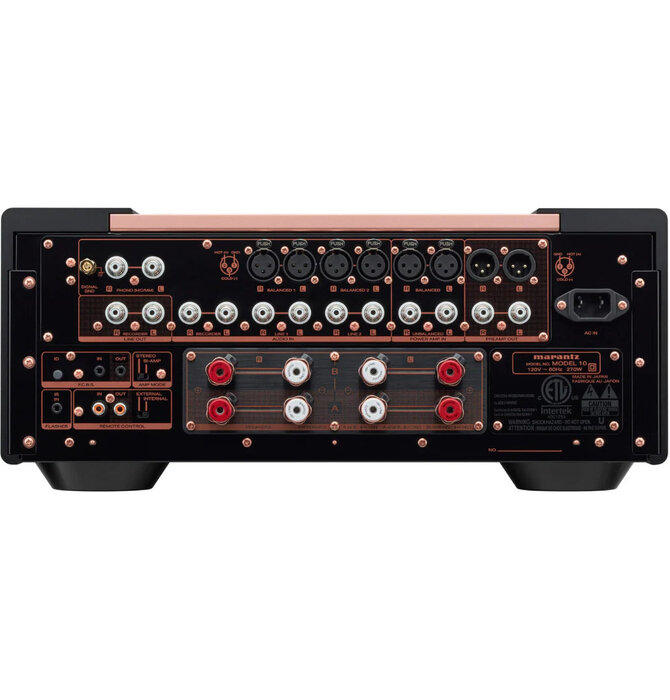

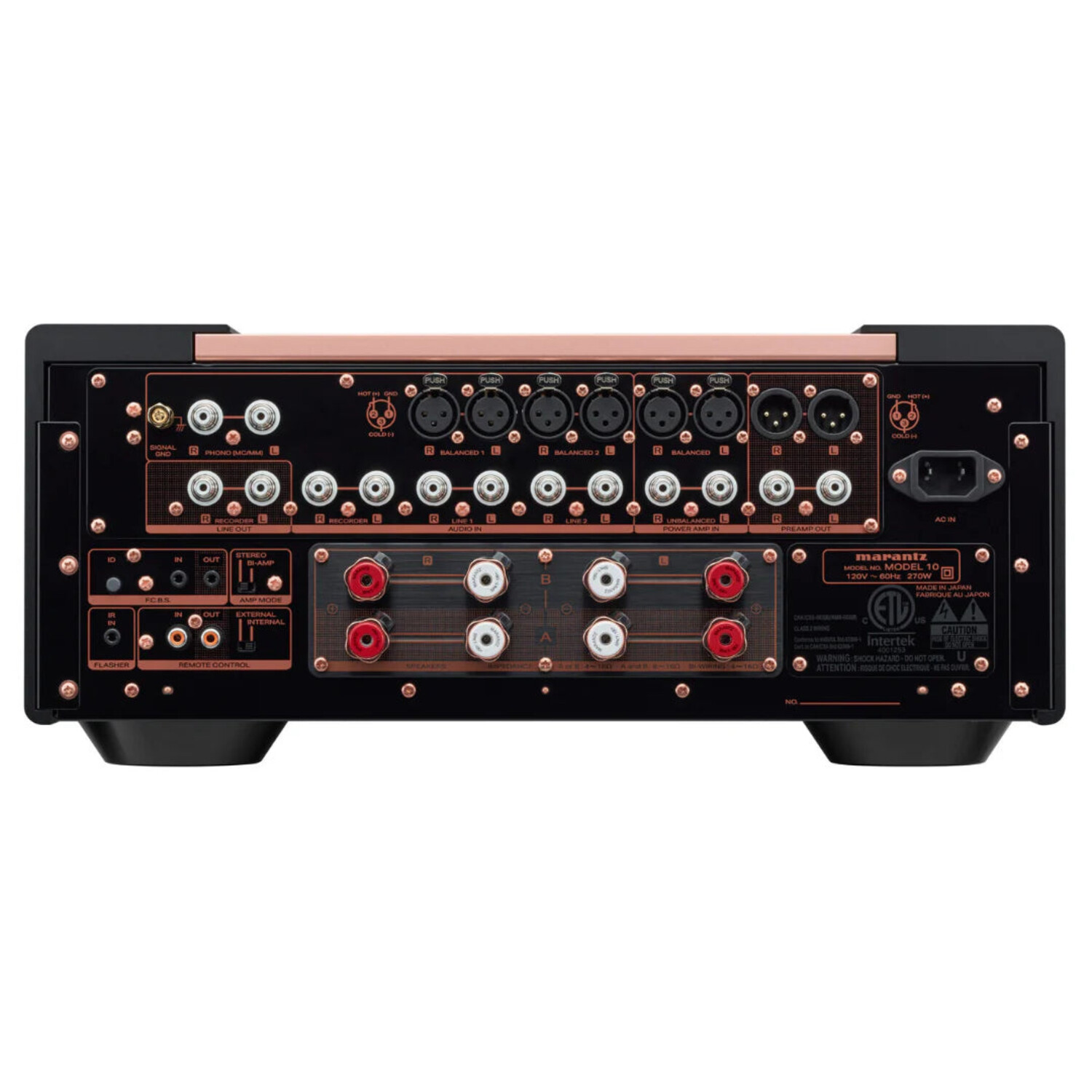

Connectivity:

Phono Input: Yes (MM / MC) with Marantz Musical Premium Phono EQ and Selectable MC impedance (3 positions)
Analog Input (including Phono) / REC Out (RCA): 4 / 1 (Thick nickel-plated independent terminals)
Balanced XLR Input: 2
Power Amp Direct: Yes [RCA (Thick nickel-plated independent terminals) / XLR]
Pre Out: Yes [RCA (Thick nickel-plated independent terminals) / XLR]
Speaker Output: 2 sets (Bi-wiring)
Speaker Terminal: Marantz Original SPKT-100+ (High quality and high-purity copper plated)
Headphone Output: 1 (Automatically turns off the speaker when headphone is inserted)

Control and Other Features:

Remote Control Bus Terminal: Yes (RC-5 In / Out)
Remote Internal / External Switch: Yes
Flasher Input: Yes
AC Inlet: Yes
Floating Control Bus System (F.C.B.S.): Yes
Remote Controller: 10 series Universal Remote Control
Unit Control (Button): Tact Switch (POWER)
Unit Control (Knob): 2 (VOLUME, INPUT SELECTOR)
LED Indicators:
- POWER: 1 White
- Protection: 1 Orange
- Illumination (Edge): White
- Interior: White
Front Panel Display: New HD TFT Color Display
Dimmer for Front Display: 20 steps
Level Meter: Yes (HD Display)
Volume Display: -Infinity/-99.5dB - 0dB / 0.5 step (default), 0-100 / 0.5 step (switchable)
Last Function Memory: Yes
Auto Standby Mode: Yes
Remote Controller: RC004PMND
Battery: Yes (AAA ×2)
Power Cord: Yes (ALL region / Audio Grade / OFC)
