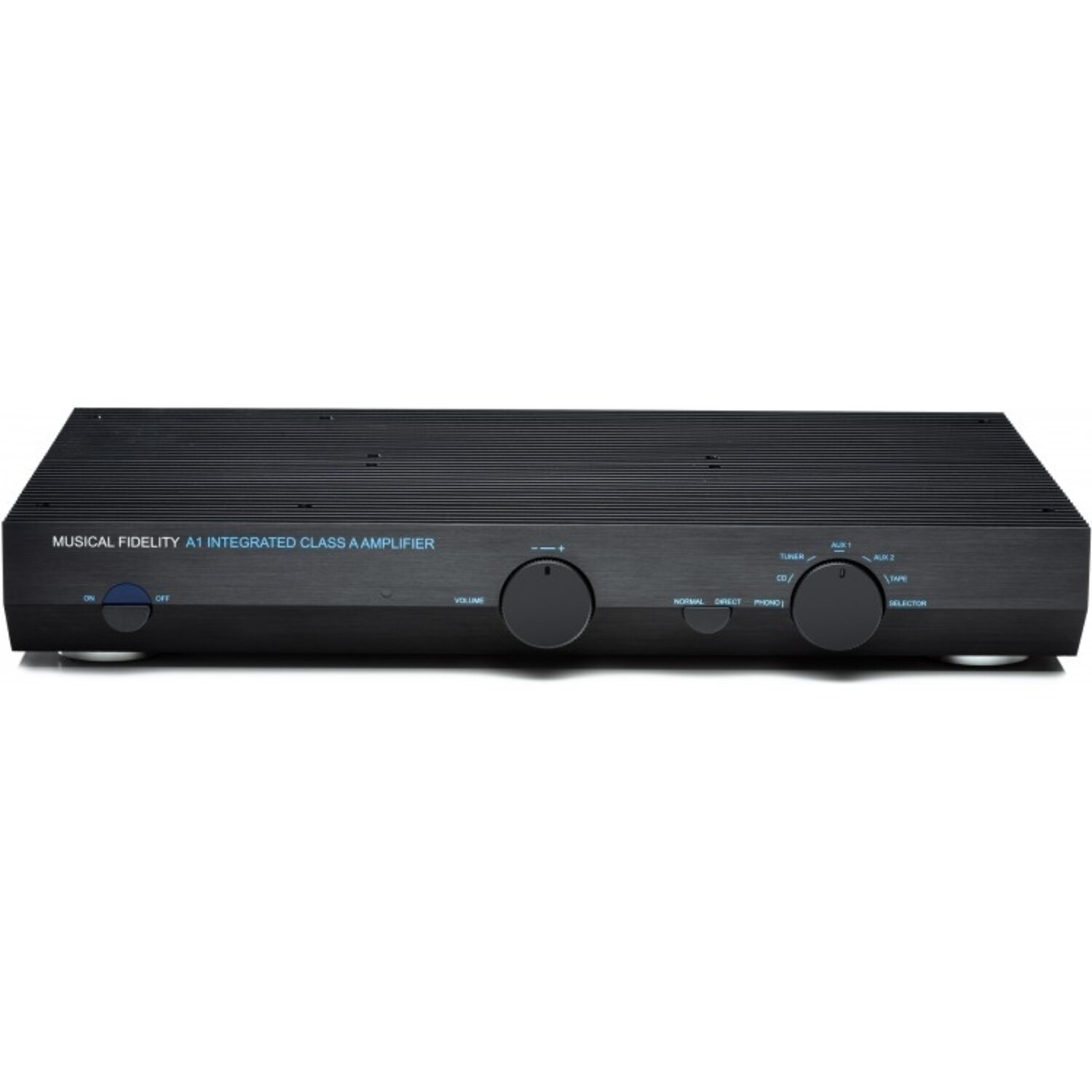

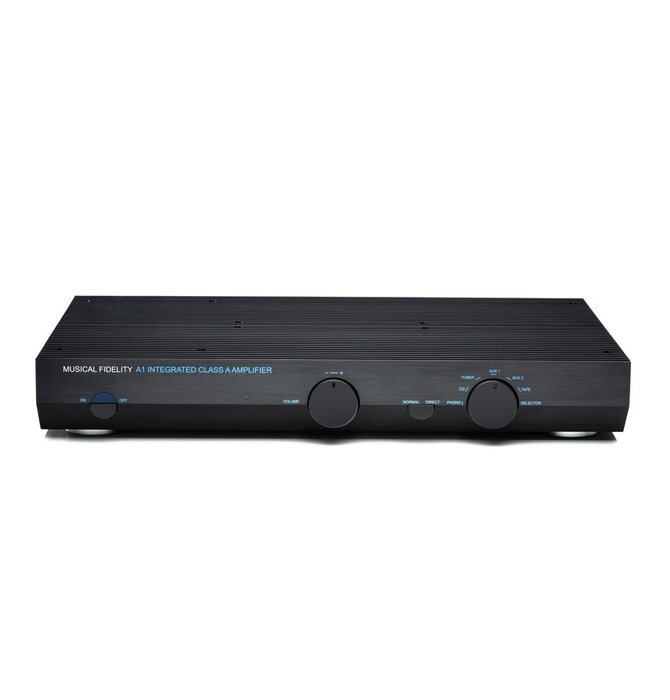

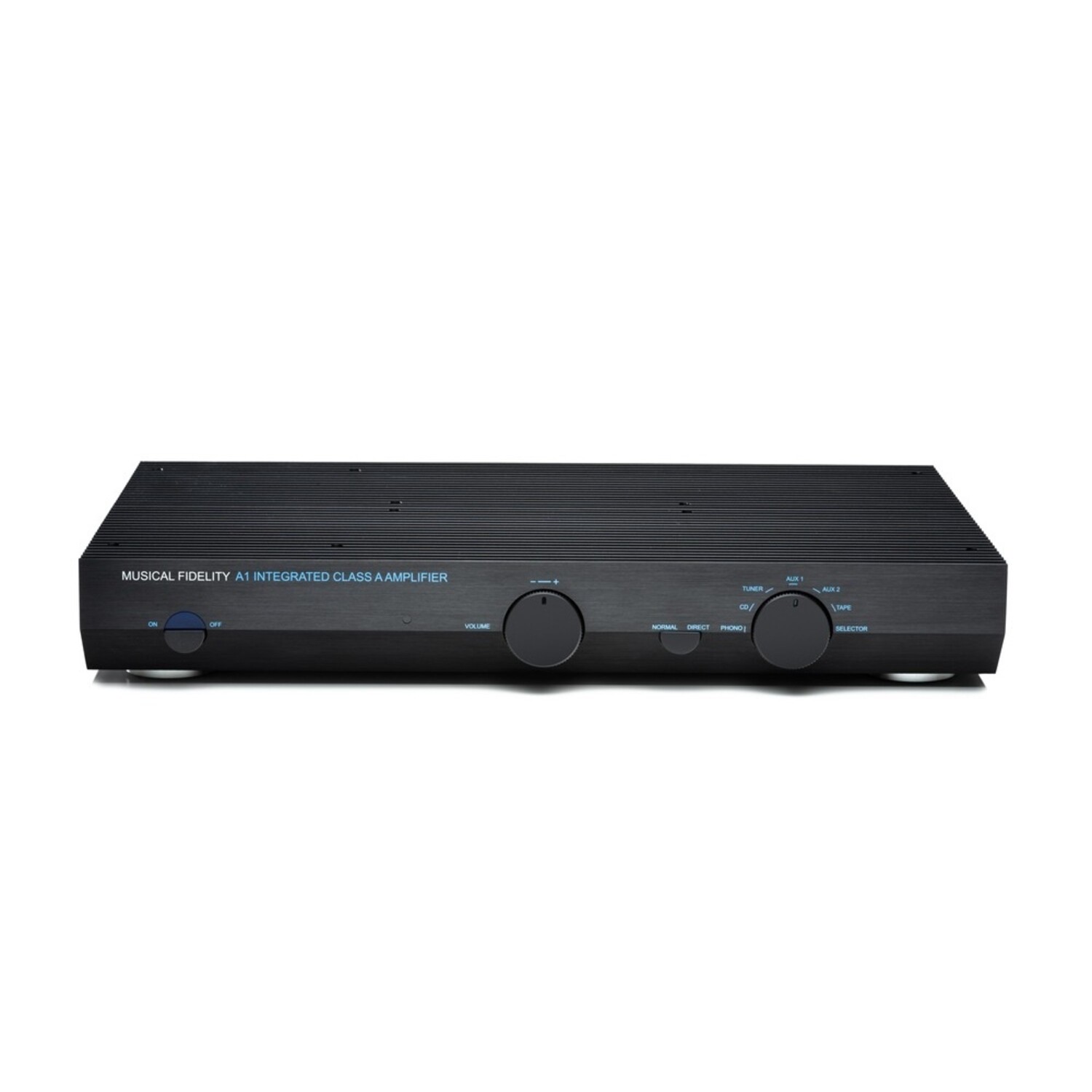

Musical Fidelity A1 Integrated Class A Amplifier

- Power: 25 Watts per channel into 8 Ohms

- Voltage: 42.5 Volts peak to peak

- Current: 25 Amps peak to peak

- Damping Factor: 150

- Gain ( volume max ): 32 dB ( Direct Mode ), 42dB ( Normal Mode )

- Output devices: 2 per channel

- Signal / noise ratio: 82dB

- Channel separation: 85dB

- Frequency response: + 0, –1dB, 10Hz to 40 kHz

- Line level sensitivity: 300mV rms nominal, 8V rms max

- Line level inputs impedance: 25k Ohms

- Tape Out impedance: 220 Ohms

- Pre Out impedance: 100 Ohms

Phono Preamp

- Phono RIAA Response: +/- 1dB

- MM Sensitivity: 5mV nominal

- MM Capacitance / impedance / gain: 100pF / 50k Ohms / 40dB

- MM signal / Noise Ratio: 75dB

- MC Sensitivity: 450μV nominal

- MC Impedance / Gain: 1k Ohm / 60dB

- MC Signal / Noise Ratio: 70dB

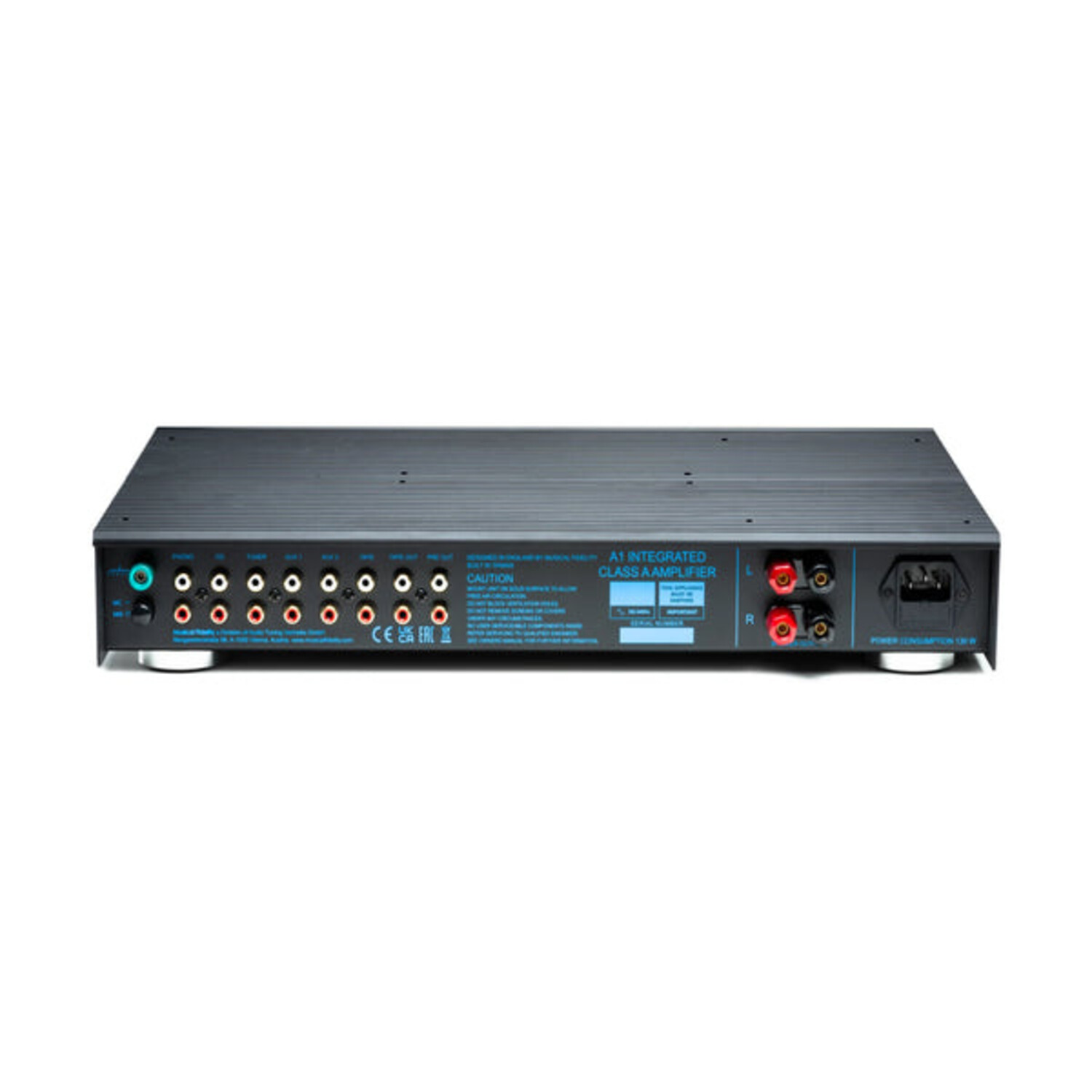

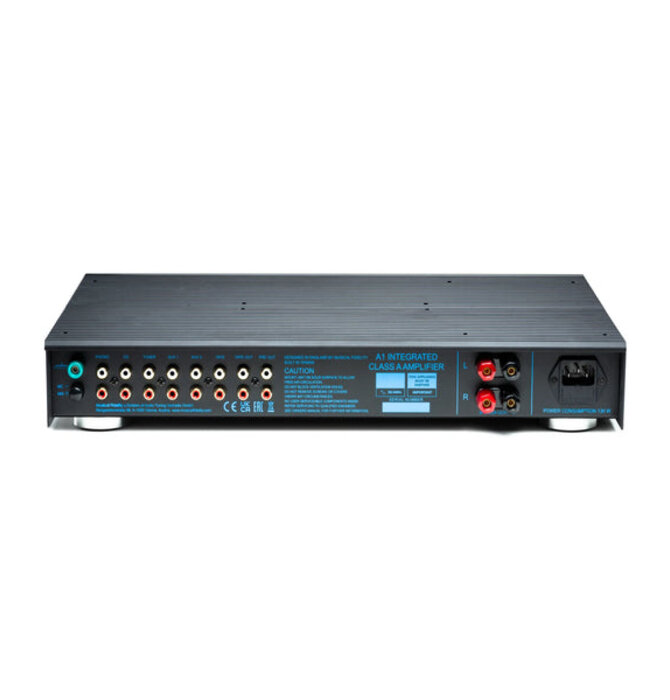

Inputs

- 1 x Phono RCA MM/MC

- 5 x Line RCA

Outputs

- 1 x Line level RCA fix TAPE OUT

- 1 x Line level RCA var PRE OUT

- 1 x 4 mm banana/binding posts

General Information

- Dimensions ( W x H x D ): 440 x 68.3 x 283.3 mm

- Main voltages: 230V/115V Internally set or 100V optional

- Max. Consumption: 130W, 0W in standby

- Weight: 10.5 kg
