Product description
New Version v.2
This is the new v.2 version of the Model 2250 with several new features for enhanced performance and convenience. First is a new A/B speaker button lockout switch on the rear panel. When this switch is set to Lockout, the front panel A and B buttons are disabled and speakers A and B will always be on. This can be particularly useful for a professional audio installer who never intends for the client to use the front panel buttons.
The new ultra-sensitive two-position audio trigger allowed Parasound to eliminate the audio trigger sensitivity knob. A 'Quieter' setting will automatically turn on the amp at a very low volume. If this isn't sensitive enough for your system needs, you can also use the 'Louder' setting.
The 12 volt trigger jacks change from 2.5mm to 3.5mm. The standard for 12 volt triggers in the audio world has become the 3.5mm size and all new Parasound products will change to use this larger size.
Here's one more change to the rear panel. The ground lift switch has been removed. Changes to the internal grounding of the amps make this switch unnecessary.
To conserve energy and meet Energy Star and EU power consumption requirement NewClassic amps only require 0.5 watts in standby.

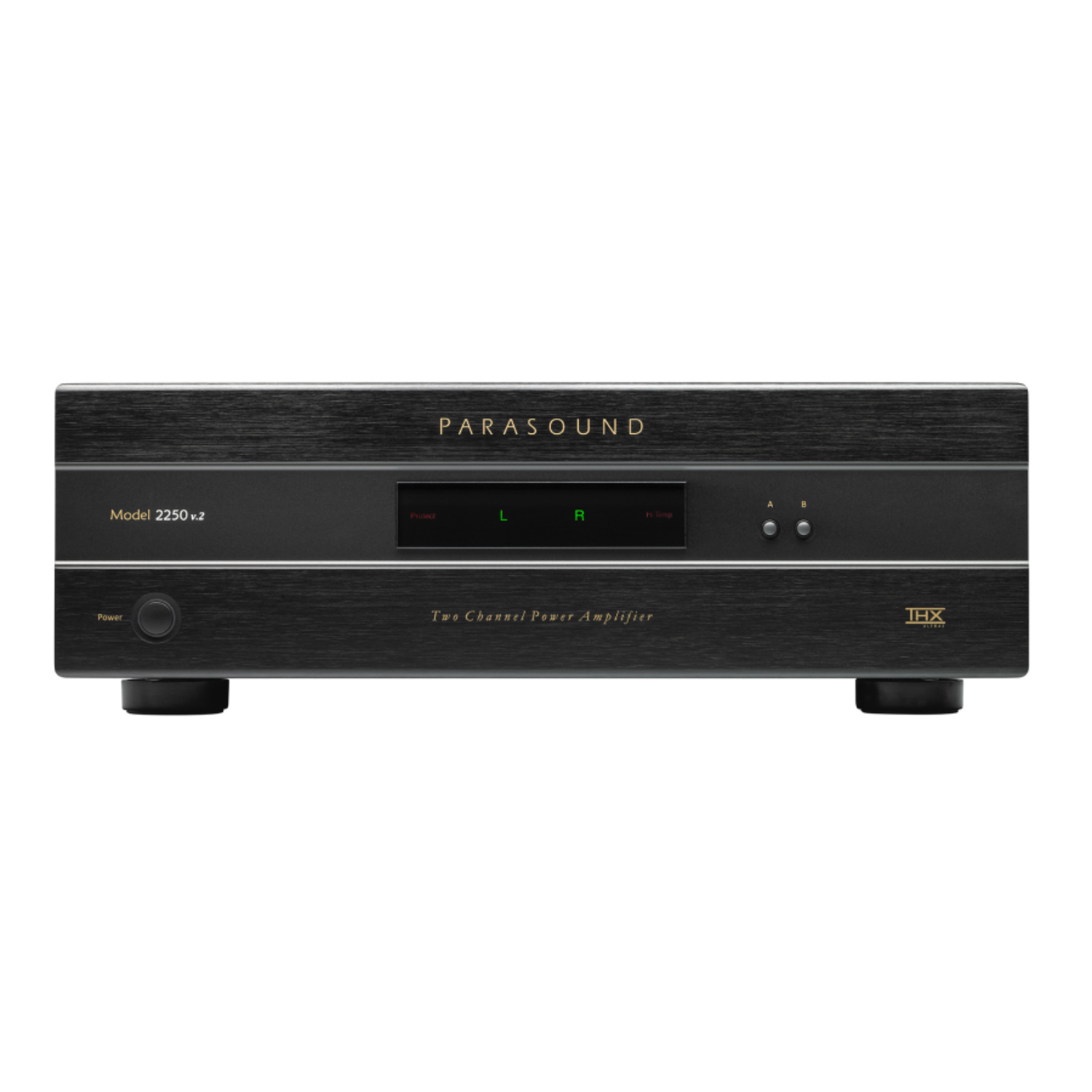

Updated front and rear cosmetics give the v.2 amps a fresh new look. The front panel has been updated with rounded corners, a new display lens, and updated silk screening. The rear panel has updated silk screening making it easier to read and understand the functions.
There's also a power specification increase. The original versions of the NewClassic amps were underrated. With the v.2 amps, Parasound has changed the specification to match the actual capability of each amp. There is an average rating increase of 10-15%. Both version 1 and v.2 amps have the same power and there are no changes to the audio circuits.
Features
- THX Ultra2 certified
- 275 watts x 2 into 8 Ω (all channels driven)
- 400 watts x 2 into 4 Ω or 2 Ω (all channels driven)
- 750 watts x 1 bridged into 8 Ω or 4 Ω
- 45 amps peak current per channel
- 2 Ohm stable operation with load selector switch
- Two pairs of speaker outputs with front panel A/B buttons
- Rear-mounted lockout switch disables front A/B buttons
- High pass filter, switchable for 20Hz or 40Hz
- Automatic on/off by DC trigger with looping output
- Automatic on/off by audio signal with 2 sensitivity settings
- Fully discrete circuitry with high current toroid transformer
- Bridging switch for stereo or mono operation
- Efficient, low heat design
- DC Servo and relay protection circuits
- Rear-mounted left and right gain controls
- Standby, channel status and high temperature indicators
- Gold-plated RCA input jacks
- Heavy duty 24k gold-plated 5-way speaker terminals
- 115/230v selector on rear panel
- 3U rack mount kit available separately (Model RMK33)
Parasound NewClassic 2250 v.2 Power Amplifier User's Manual
Specifications
All Channels Driven
275 watts x 2, 8Ω
400 watts x 2, 4Ω
400 watts x 2, 2Ω (Load switch set to 2-3Ω)
Bridged Mono
750 watts x 1, 8Ω
750 watts x 1, 4Ω (Load switch set to 2-3Ω)
Current Capacity: 45 amps peak per channel
Frequency Response: 20 Hz - 50 kHz, +0/-3 dB, 1 watt
Dynamic Headroom: - 1.6 dB
Total Harmonic Distortion
0.20% at full rated output
0.015% at average listening levels
IM Distortion: 0.05 %
Transient IM Distortion: Not measurable
S/N Ratio :
114 dB at rated output, IHF A-weighted
106 dB at rated output, unweighted
93 dB at 2.828 V output, IHF A-weighted
84 dB at 2.828 V output, unweighted
Input Impedance: 33 k Ω
Input Sensitivity:
1 V in for 28.28 V out, THX standard
Inter-Channel Crosstalk:
85 dB @1 kHz, 73 dB @10 kHz, 67 dB @ 20kHz
Damping Factor - Over 150 at 20Hz
12V Trigger Turn On - DC 9 – 12V, 15 mA
Audio Turn On
Quieter: 1 mV
Louder: 6 mV
AC Power Requirement
110 - 120 V / 220 -240 V, 50 - 60 Hz
0.5 watts standby
35 watts Idle (no audio)
1000 watts full output
Dimensions
17.25" Wide
18.5" Deep, with cables connected
6" High with feet, 5.25" panel only (3U)
(437 x 470 x 153mm, 133mm panel only)
Net Weight: 43 lbs
Rack Mount Accessory
May be Purchased Separately: RMK33
