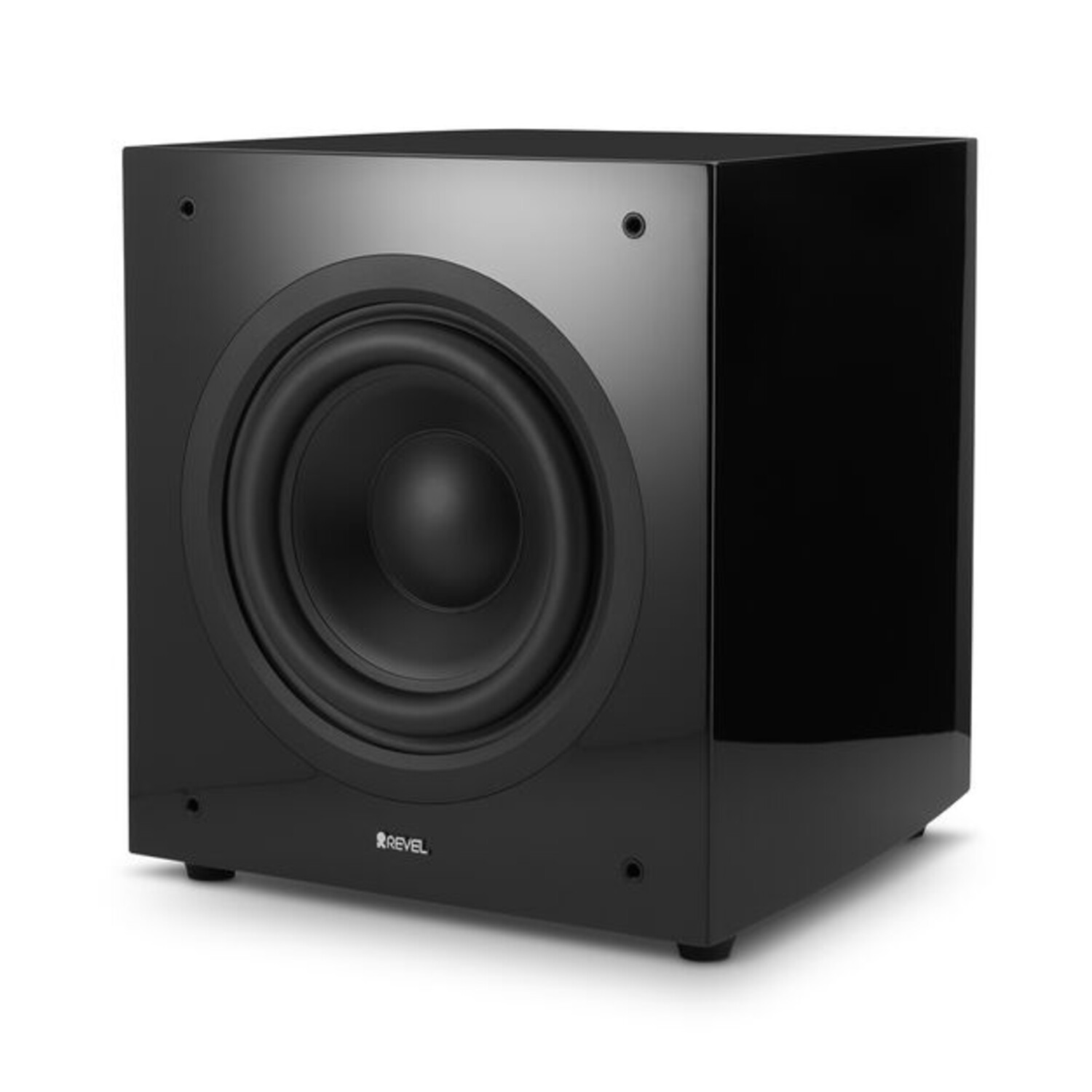

The B10 is a powerful 800 watt 10” powered subwoofer that was designed to provide powerful and clear low frequency response. It will add essential bass response to any music or home theater system.
The 800 Watt RMS (1600 Watt peak) amplifier powers the voice coil to provide ample power for the large diaphragm area and long-excursion capability.
By repositioning the voice coil in the woofer, Revel engineers discovered they could improve the symmetry of the woofer displacement and thereby lower distortion. Additionally, asymmetry attributed to spider non-linearity can also lead to higher distortion. This was solved by adjusting the spider progression to greatly improve the symmetry and as a result, lowered distortion. To finish the enclosure, we selected high gloss black and white finishes to highlight the features of this beautiful subwoofer.
- Derived from Revel’s award-winning Performa3 Series Loudspeakers
- 10" Coated Fiber-Composite Cone
- Constant Pressure Gradient Port Design
- Detectable grilles with brushed metallic logos

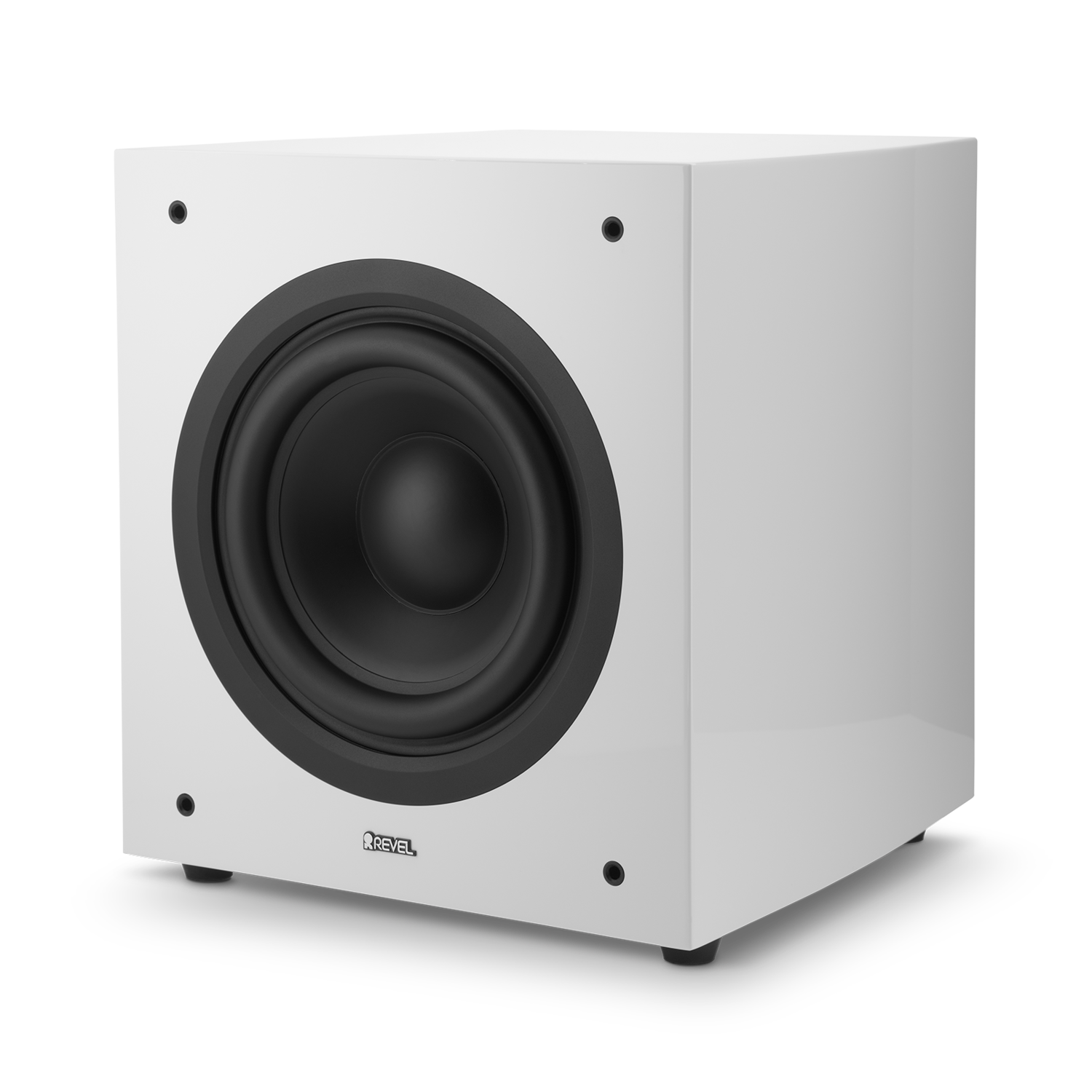

- High-gloss Black and High-gloss White painted finishes
- 800 Watt 10” Powered Subwoofer
- Single band parametric EQ
Variable 50 – 150Hz
Bass-Reflex via Rear-Firing Port
L/R Stereo RCA Input
Low Frequency Extension
35Hz, 32Hz, 29Hz (-3 dB, -6 dB, -10 dB)
Low-frequency Driver Components
10” Coated Fiber-Composite Cone, Cast-Frame Woofer
Recommended Amplifier Power
800W Class D Amplifier
16.45" x 14.85"x 15.45" —Including Feet
