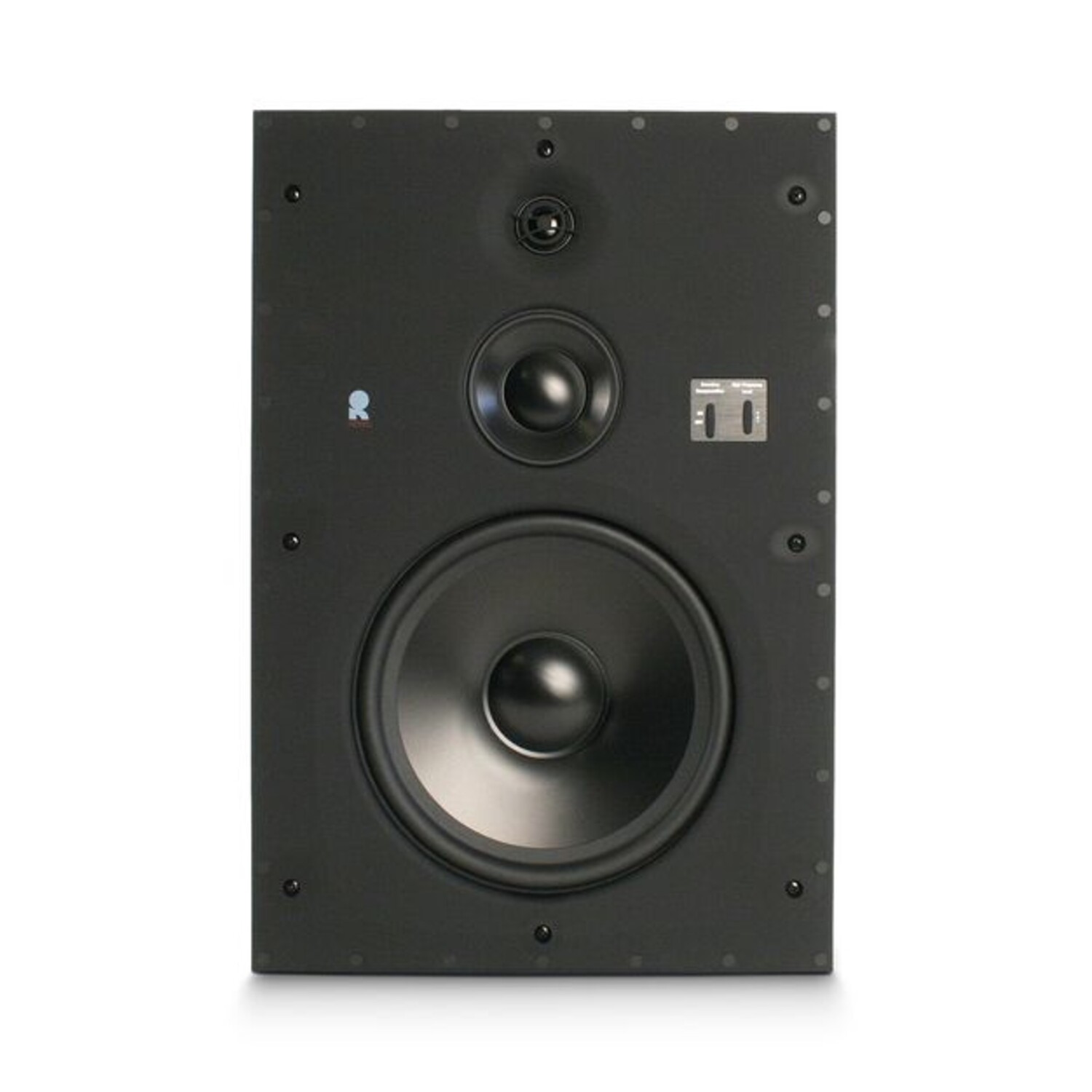

W893 9" Micro-Ceramic Composite (MCC) Cone Speaker

W893 9" Micro-Ceramic Composite (MCC) Cone Speaker

$1,100.00
          (0 reviews)
Available
+
  Add to Wishlist
Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Free shipping to Continental US only !

Revel W893 9" Micro-Ceramic Composite (MCC) Cone Speaker

Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.

Highlights

- Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.

- 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.

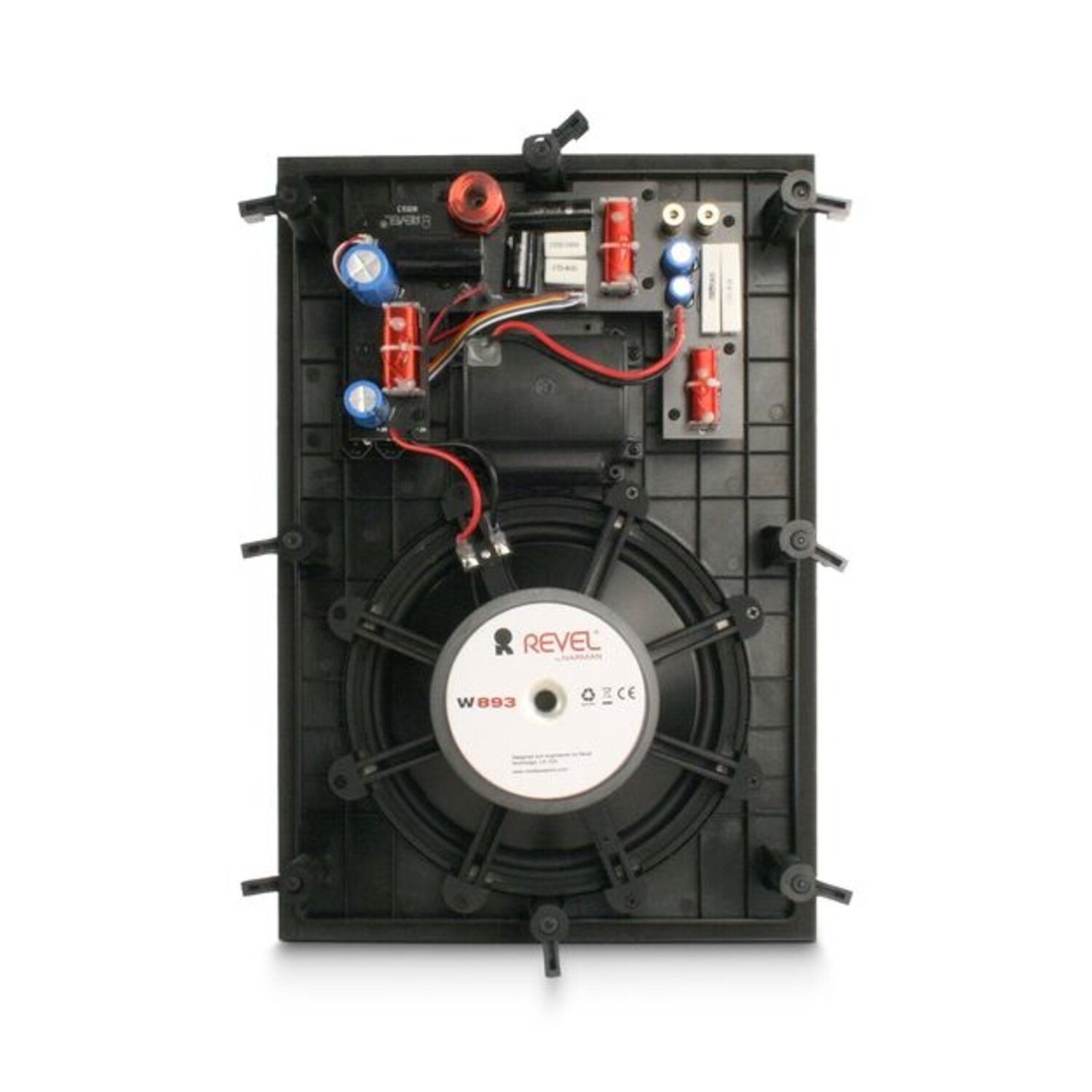

- High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.

- Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling.

- Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.

Specifications

Depth

Mounting depth 3.7"

Weight

10.8 lbs / Shipping weight 12.8 lbs

Crossover Frequencies

Advanced high-order crossover network

Features

Cutout dimensions (H x W) 17.4" x 11.6"  • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 18.5" x 12.7"

High Frequency Driver Components

1" aluminum dome swiveling high-output tweeter with waveguide

Low Frequency Extension

High Frequency Extension (-10dB) 3-position HF level control / Low Frequency Extension LF boundary compensation

Low Frequency Driver Components

9" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer

Mid-Frequency Driver Components

3.5" micro-ceramic composite (MCC) cone, cast-aluminum frame high-output midrange

Mounting

C-2 mounting mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm)

Recommended Amplifier Power

10 - 200 Watts RMS
