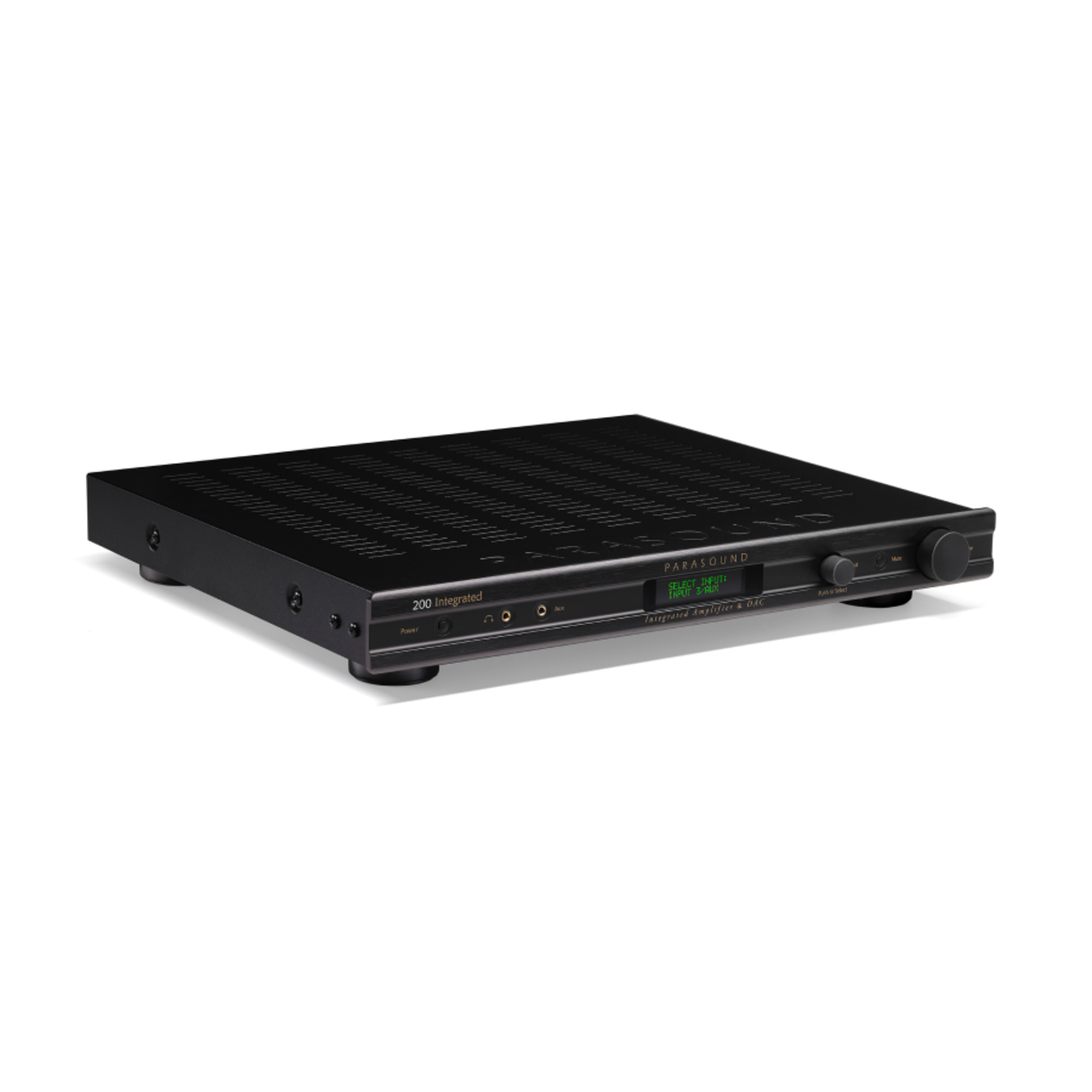

Parasound NewClassic 200 Integrated Amplifier & DAC

Product description

Home Theater Bypass and Analog Bass Management

These NewClassic products have inherited features developed for Parasound's premium Halo product family, renowned for their home theater bypass and crossover functions plus great sounding DACs. The 200 Integrated's and 200 Preamp’s Home Theater Bypass function similarly with an adjustable 40-140 Hz high-pass crossovers for the L and R outputs, plus they generate full range and <80Hz sub outputs.

Built-in DAC

The Parasound NewClassic 200 Integrated Amp is ready to bring you maximum enjoyment from your digital music files. It incorporates a very high quality state-of-the-art DAC using circuitry from the highly regarded Halo P 5 preamp. This DAC can process a wide range of digital sources with its coaxial and optical inputs accepting up to 192 kHz rates, and the USB input accepts up to 96 kHz.

The NewClassic 200 Integrated Amp's Cirrus Logic Digital Receiver scrubs the digital clock to attenuate jitter not only for the USB but for all inputs. This enables its acclaimed Burr-Brown PCM1798 DAC to achieve outstanding, natural sound quality for all of your digital sources.

Line-level Sources Plus a Phono Input

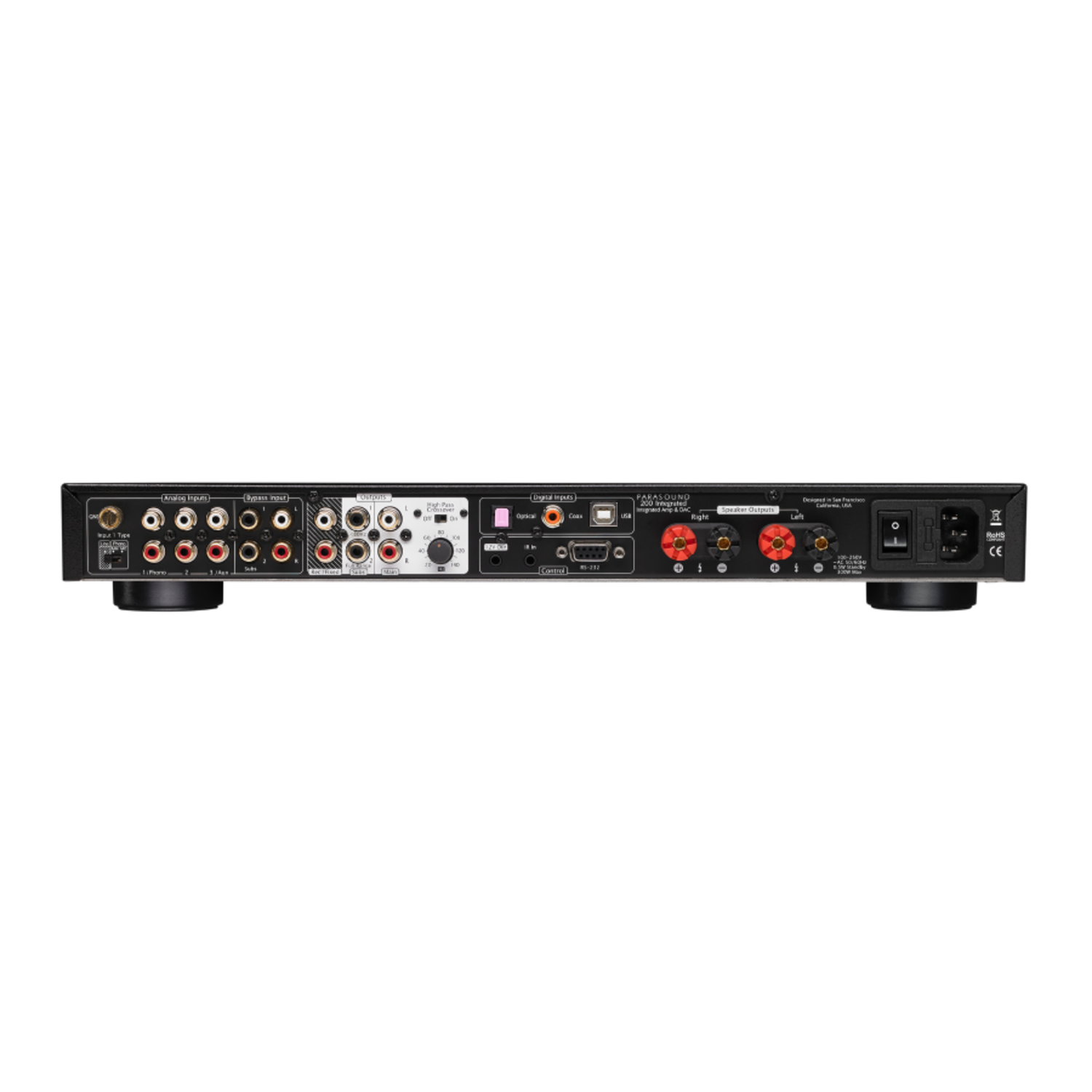

The 200 Integrated features a pure analog signal path for the analog inputs plus input level matching (offset +/- 8dB per input) to keep input levels similar from your source gear. The analog inputs consist of one phono in, two line level inputs, and L, R, and subwoofer bypass inputs. A front panel 3.5mm mini jack is perfect for portable audio players or smartphones. The outputs consist of full-range stereo preamp output jacks, a full-range mono preamp output jack, and an 80 Hz mono low-pass subwoofer output jack.

And since vinyl has once again become a big part of home hi-fi, Parasound includes the same high-quality built-in phono stage that is used in the Halo P 5 preamp and the NewClassic 200 Pre. The phono input is compatible with all moving magnet cartridges, and virtually all moving coil cartridges, with a 100 ohm/47k ohm switch to select the appropriate load impedance matching.

Headphone jacks are an afterthought on many other manufacturers' hi-fi gear, but this has never been true of Parasound. The 200 Integrated includes a newly designed dedicated headphone stage for the best in private listening with your favorite pair of 'phones.

Features

- 110 Watts @ 8 or 4 Ohms

- Class D amplification by Pascal

- Burr-Brown 192kHz-24 bit DAC from the Halo P 5

- USB, Optical and Coax digital audio inputs

- 4 Analog audio inputs

- Phono input for MM or MC cartridges

- Pure analog signal path from input to output

- Analog bass management w/ variable 20-140Hz high pass crossover

- Subwoofer On/Off & level by remote control

- 80Hz low pass subwoofer output

- Full range mono output can be used for subwoofer or mono listening area

- Variable and fixed stereo preamp outputs

- Bypass input for surround sound or music streamer integration

- Default turn on volume memory

- Favorite volume memory with remote control button

- Input level matching ( source volume offset )

- Bass, treble and balance adjustments by remote control

- Front panel LCD display with dimming

- 2-way RS232 w/ exact volume control & feedback

- Control4 Driver available

- Rename inputs to match connected source

- Front panel Aux input with12dB of additional gain

- Dedicated headphone amplifier

- Back-lit remote control with discrete buttons

- 12V trigger output

- Rear panel IR input

- 0.5w standby power consumption meets Energy Star & EU specs

- 1U rack mount kit available separately ( Model RMK11 )

Parasound NewClassic 200 Integrated Amplifier User's Manual

Specifications

Power Output - Both channels driven
( 0.05% THD, 20 Hz - 20 kHz )
110 watts x 2 @ 4 Ω or 8 Ω ( RMS )

Power Output - Both channels driven
( 1% THD, 20 Hz - 20 kHz )
125 watts x 2 @ 4 Ω or 8 Ω ( RMS )

Frequency Response:
20 Hz - 20 kHz, +0 / -0.05 dB
10 Hz - 80 kHz, +0 / -3 dB

Total Harmonic Distortion ( 20 Hz - 20 kHz ):
< 0.05 %, ( 110 watts, 8 Ω )

Interchannel Crosstalk:
-75 dB at 20 kHz
-85dB at 1 kHz

Preamp Output:
250mv = 1V output
Total gain = 12 dB (volume set to 100)
Unity gain = Volume set to 76
Maximum output = 3.5V

Phono Stage Gain / Input Impedance:
MM: 40 dB / 47 k Ω
MC: 50 dB / 100 Ω

Line Level Input Impedance: 24k Ohms

Preamp Output Impedance: 470 Ohms

S/N Ratio – Line Inputs:
> 100 dB, input shorted, IHF A-weighted

S/N Ratio – Digital Inputs:
> 110 dB, input shorted, IHF A-weighted

DAC IC: Burr-Brown PCM1798

DAC Maximum Sampling Rates ( PCM only ):
USB: 96kHz - 24 bit
Optical: 192kHz - 24 bit
Coax: 192kHz - 24 bit

DC Trigger Output: 12 Vdc, 50mA

AC Power Requirement:
Standby: 0.5 watts
Idling: 15 watts ( no music playing )
Typical: 50 watts ( music playing )
Maximum: 300 watts
100-250 VAC 50/60 Hz ( automatic )

Dimensions:
Width: 17.25"
Depth: 14.75"
Depth: 16.75"  with cables connected
Height, with feet: 2.5"
Height, without feet: 1.75"
Rack mounting requires RMK-11(sold separately)

Weight:
Net: 11.5 lbs
Shipping: 17.5 lbs
