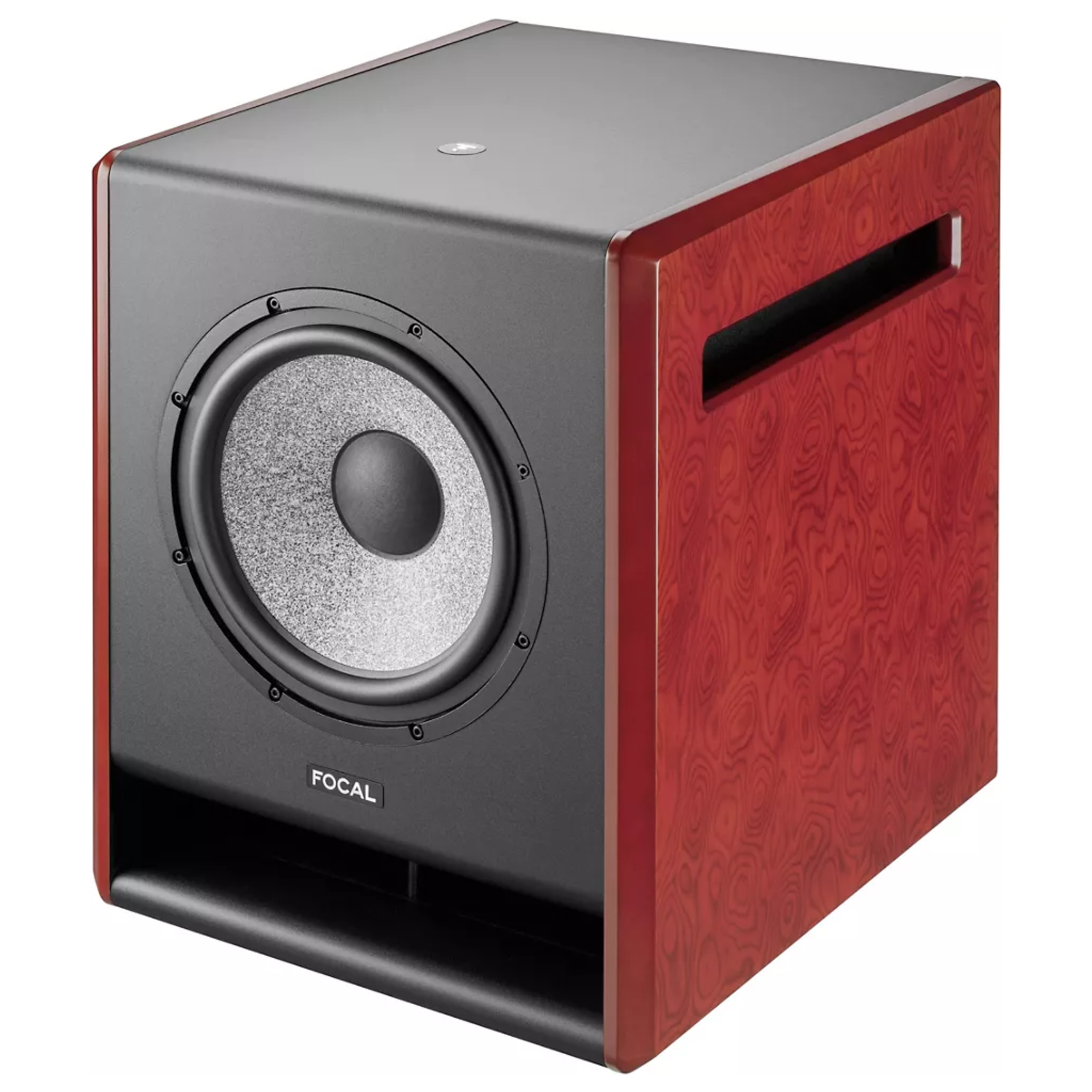

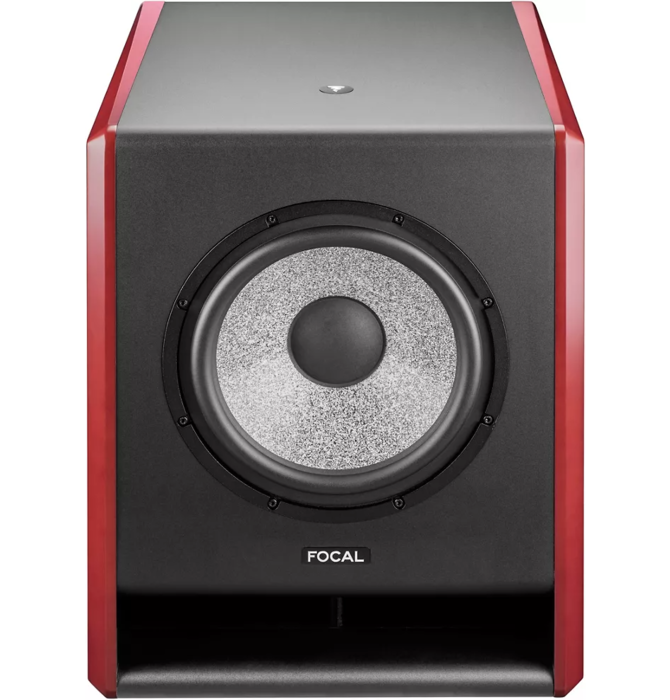

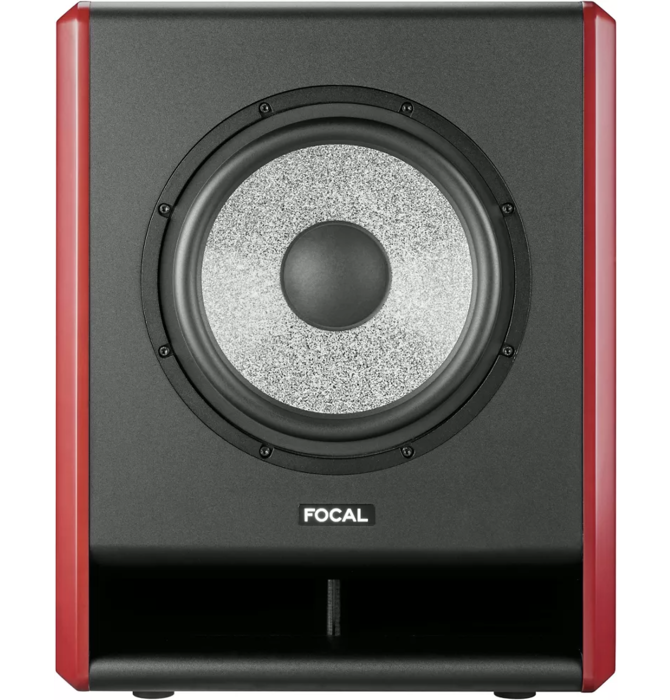

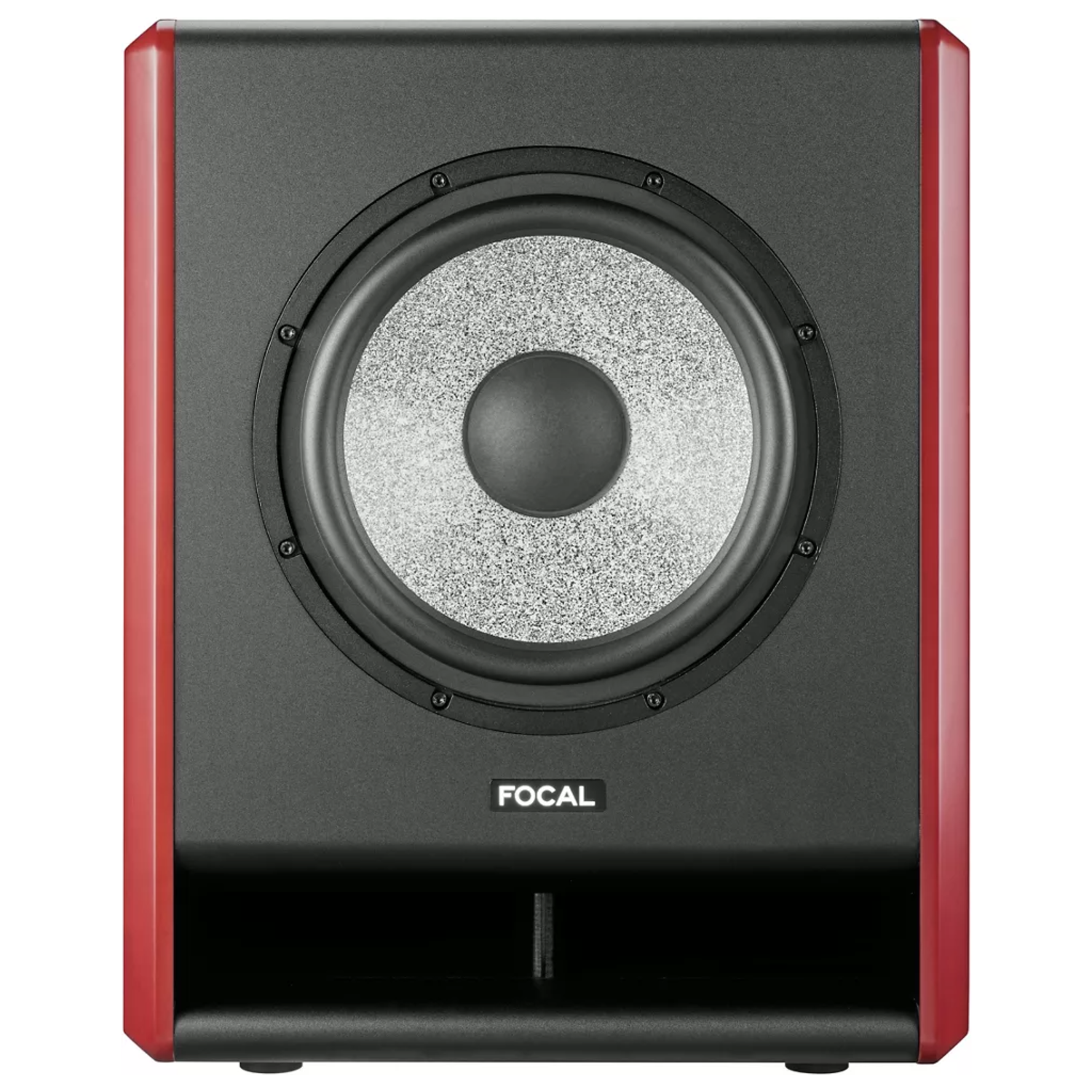

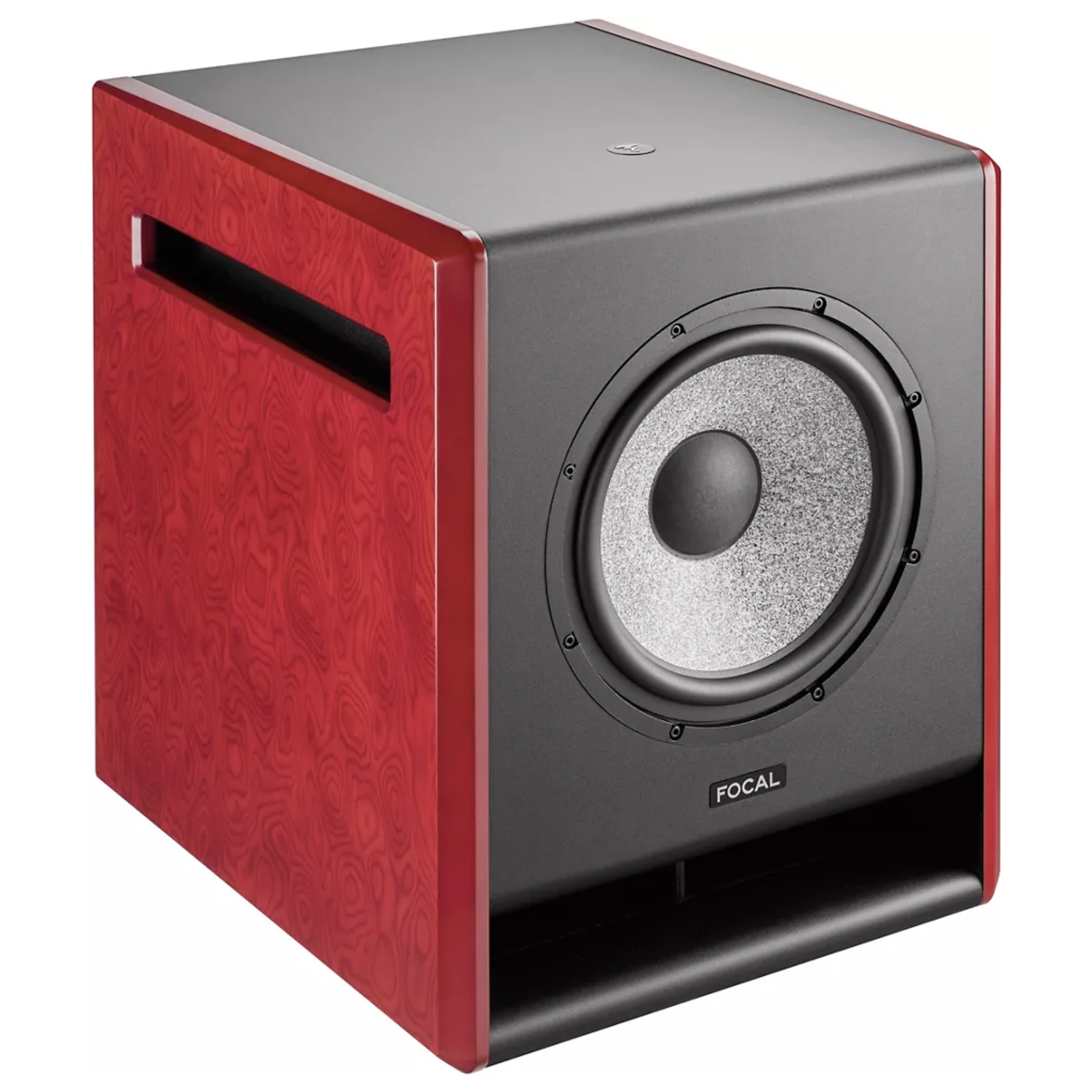

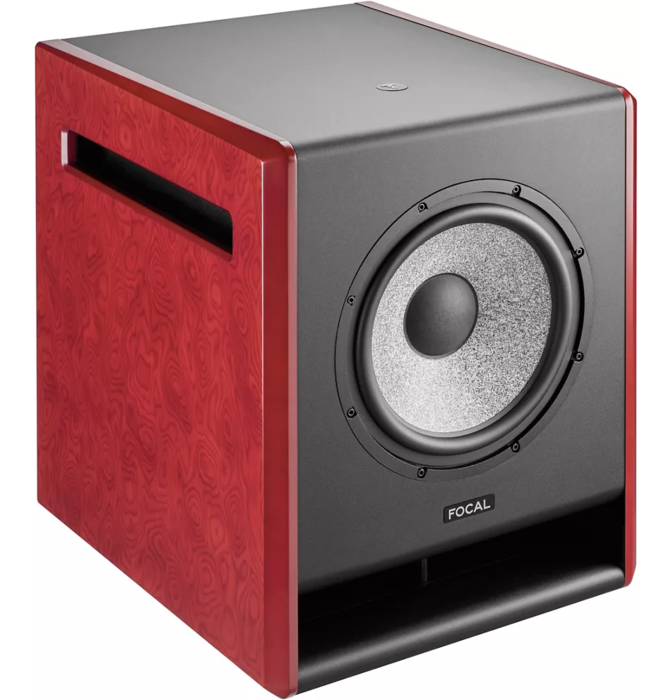

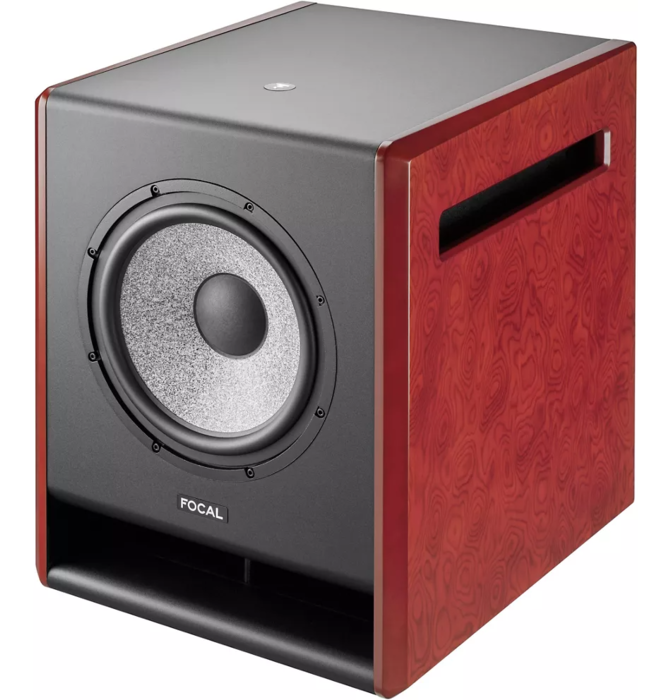

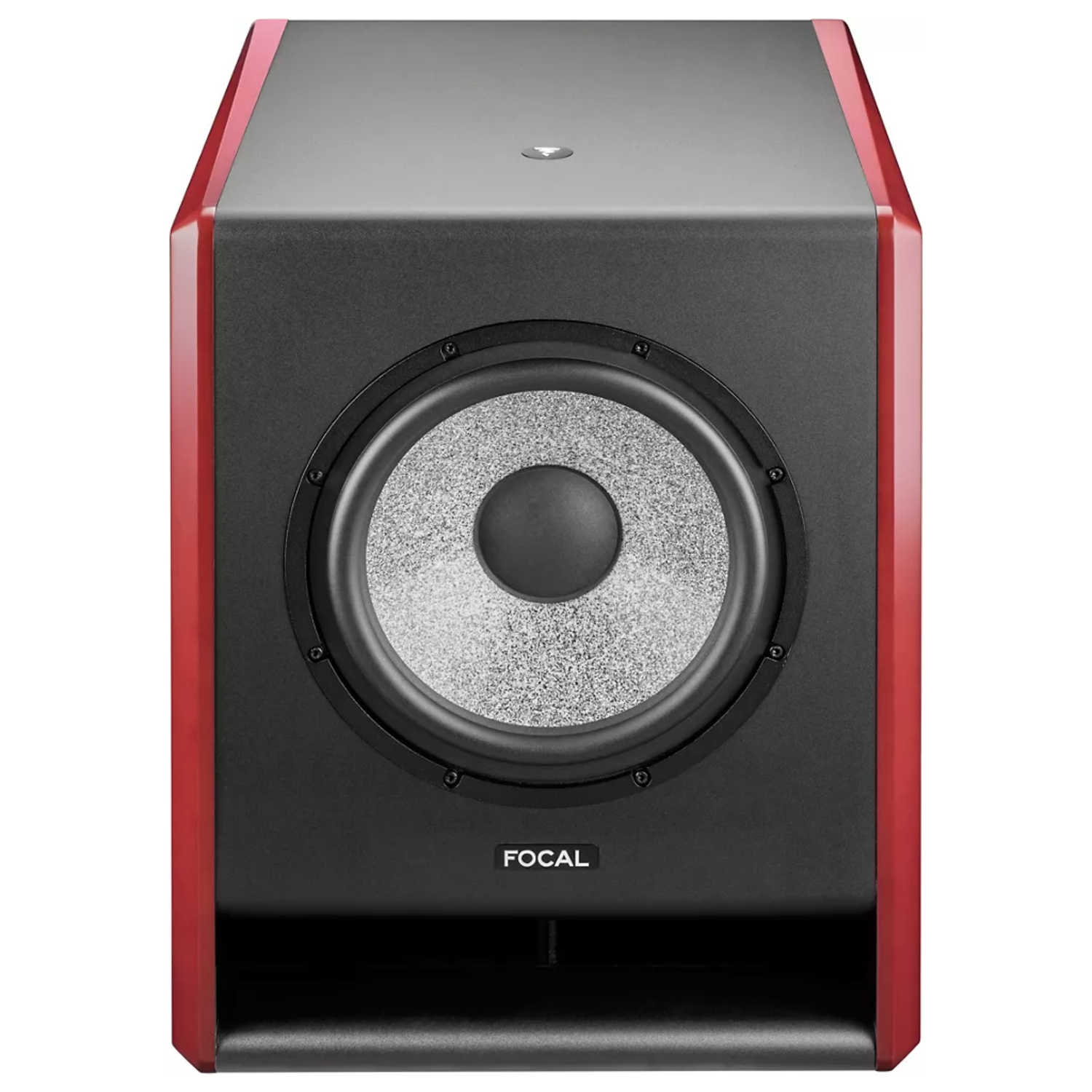

Focal Series SUB12 13" Active Studio Subwoofer ( Each )

Product description

The Focal Sub12 features a 13" W-composite sandwich cone driver housed in a high-volume MDF cabinet with integrated carrying handles. The laminar bass port helps extend bass response while mitigating port noise and distortion.

The Sub12 has right, left, and LFE balanced XLR inputs for connecting to pro-level audio systems, while the right, left, and LFE balanced outputs allow you to connect satellites and additional subwoofers. It also has a 1/4" foot switch input that allows you to connect a pedal for hands-free control of the subwoofer. Signal treatment and control options include mono left/right summation, phase adjustment, polarity switch, high/low pass filters, level control, muting, and bypass.

Features

- Provides bass reinforcement for the Solo6 and Twin6 studio monitors

- 13" W-composite sandwich cone driver is housed in a high-volume MDF cabinet

- Amplification: 600W RMS, 1000W peak

- Large laminar bass port, which helps extend bass while reducing noise and distortion

- Right, left, and LFE balanced XLR inputs for connecting to pro-level audio systems

- Right, left, and LFE balanced XLR outputs for connecting to satellites and additional subs

- 1/4" footswitch input allows you to connect a pedal for hands-free control

- Signal treatment and control options include mono left/right summation, phase adjustment, polarity switch, high-/low-pass filters, level control, muting, and bypass

- Integrated carrying handle

Specifications

Frequency Response: 30Hz–400Hz

Low Cut-off Frequency: 28Hz

Maximum SPL: ( Average CEA2010B 30-200 Hz free field @ 1 m ): 124.5dB

Inputs: Balanced XLR LFE 10 kohms, Left & Right 10 kohms

Outputs: Balanced XLR LFE ( in parallel) , Left & Right 50 ohms

Bass Amplifier Stage: 600W RMS

Nominal Power Supply: ~100–120 VAC/220–240 VAC 50/60Hz

User Controls: Sensitivity, Stand-by, Polarity, Phase, LPF, Volume, HPF

Fuses: ~100–120V, T10AL/250V; ~220–240V, T5AL/250V

Bass: 1 x 13" x "W" cone

Shielding: No

Construction: Dark red natural veneering side panels, black body

Internal signal processing and functions ( subwoofer section )

Left/right mono summation

LFE + mono low-pass

24dB/octave

Phase adjustment

Polarity selection

Switchable high-pass crossover, frequency cut-off selection

24dB/octave

Outputs ( to satellites)

Right, left

Electronically balanced/50 ohms

3-point male XLR

Dimensions: 23-5/8" ( H ) x 19-1/8" ( W ) x 22-3/8" ( D )

Weight: 127.8 lbs

Temperature Range

During use: 5–35° C

In storage: 0–50° C
