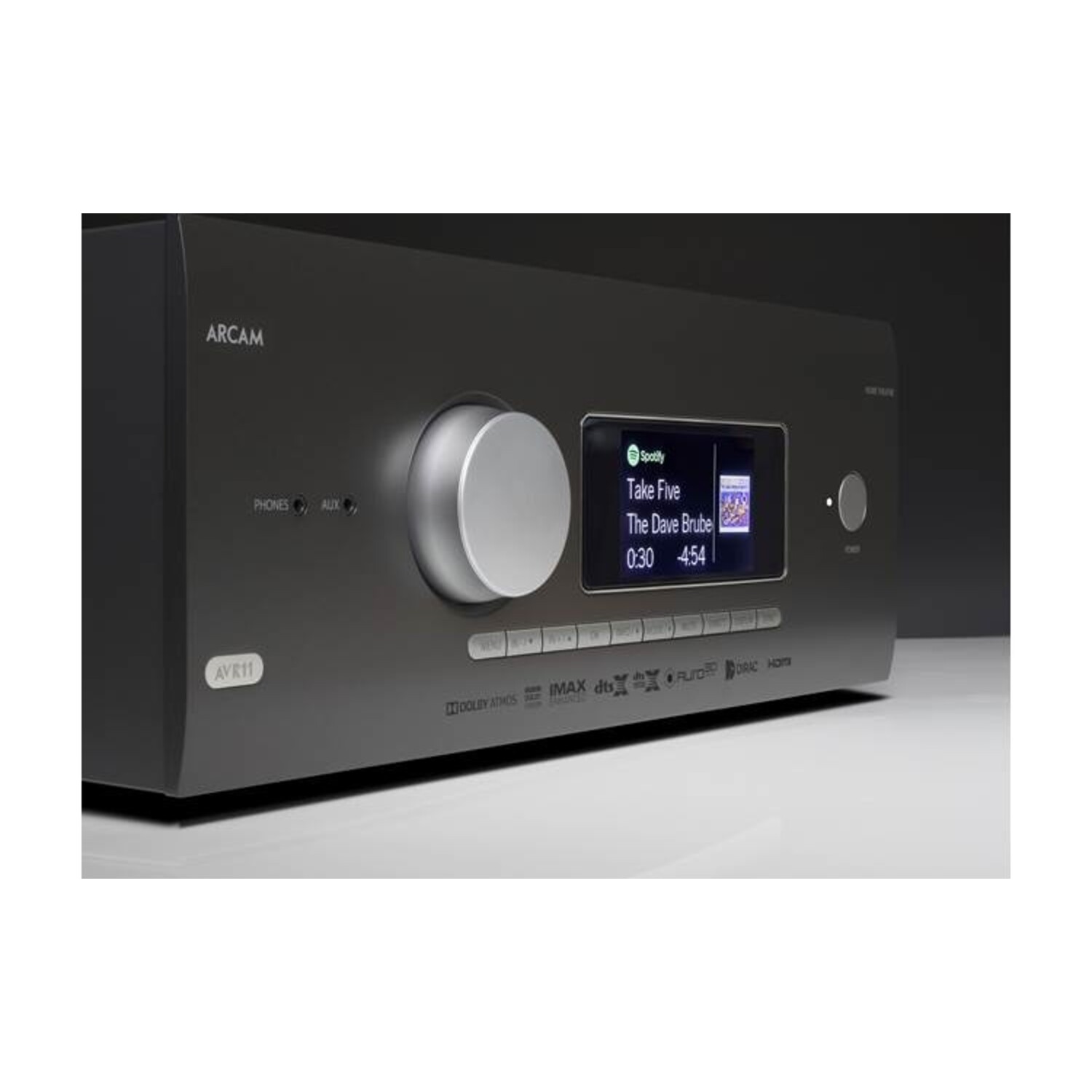

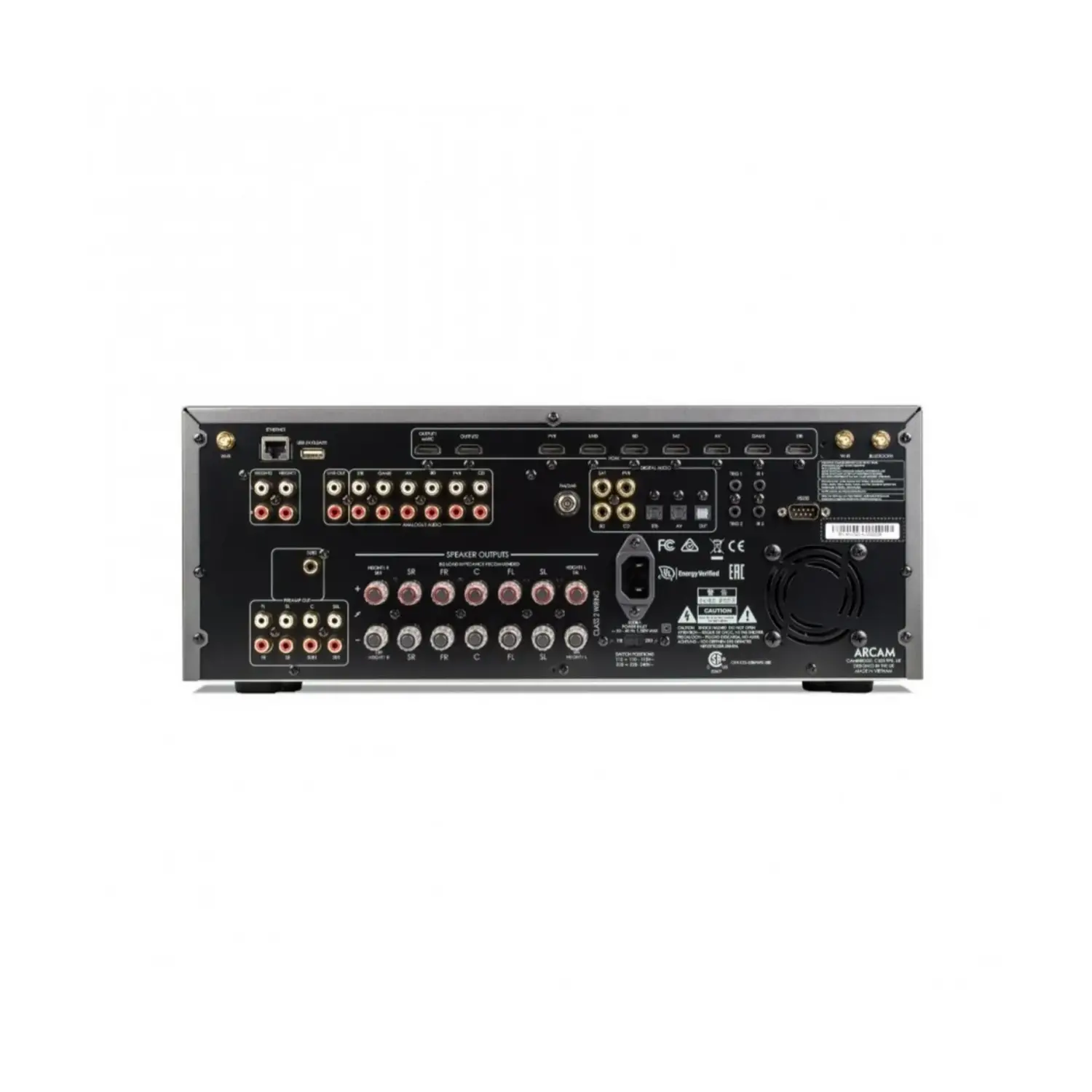

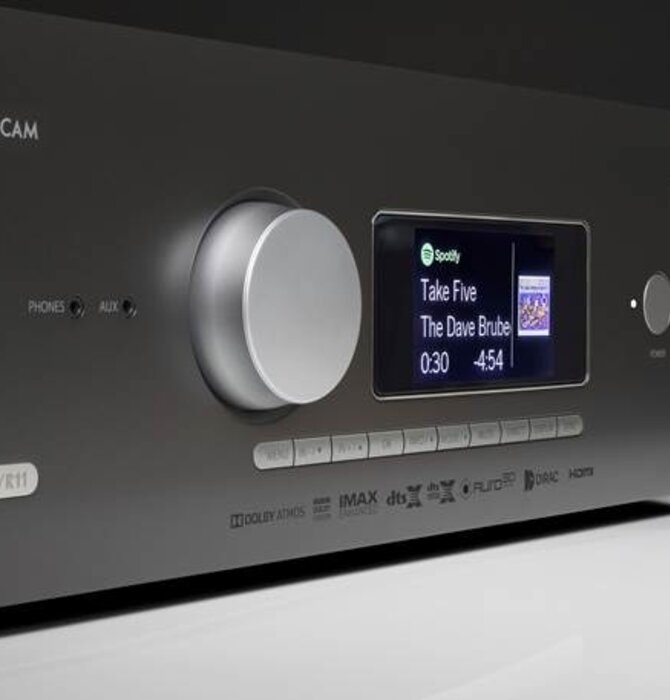

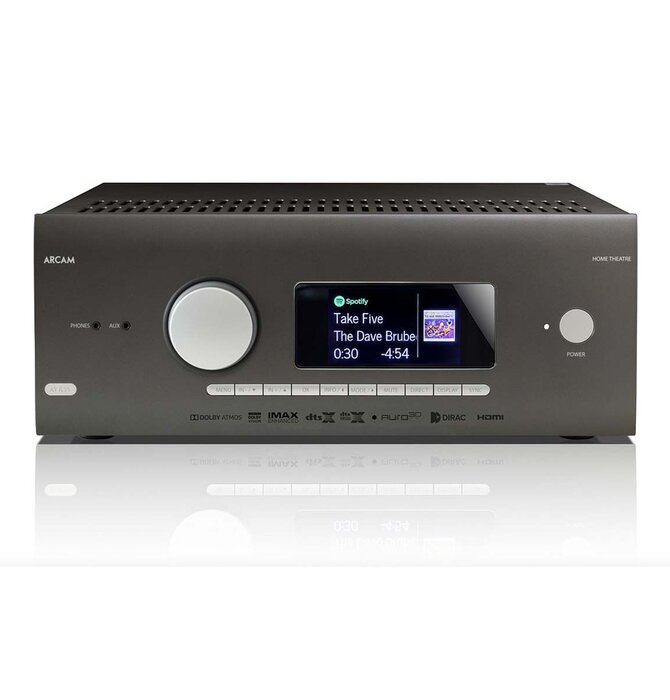

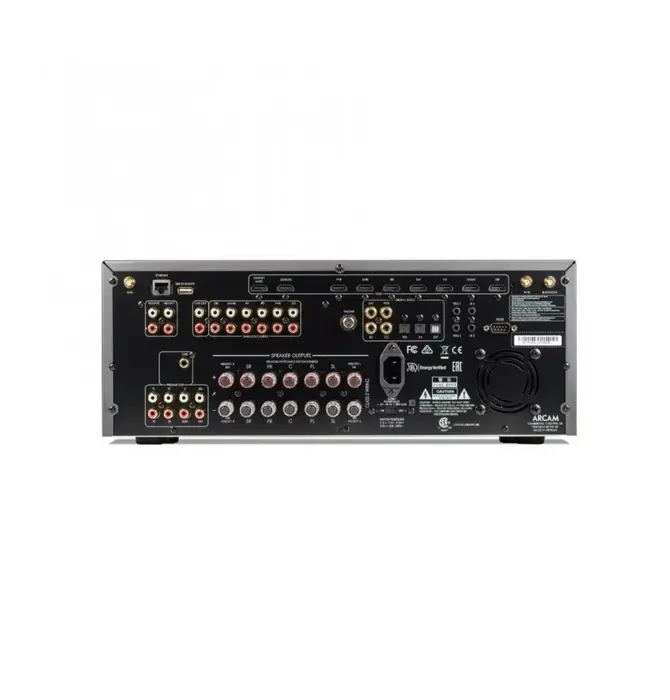

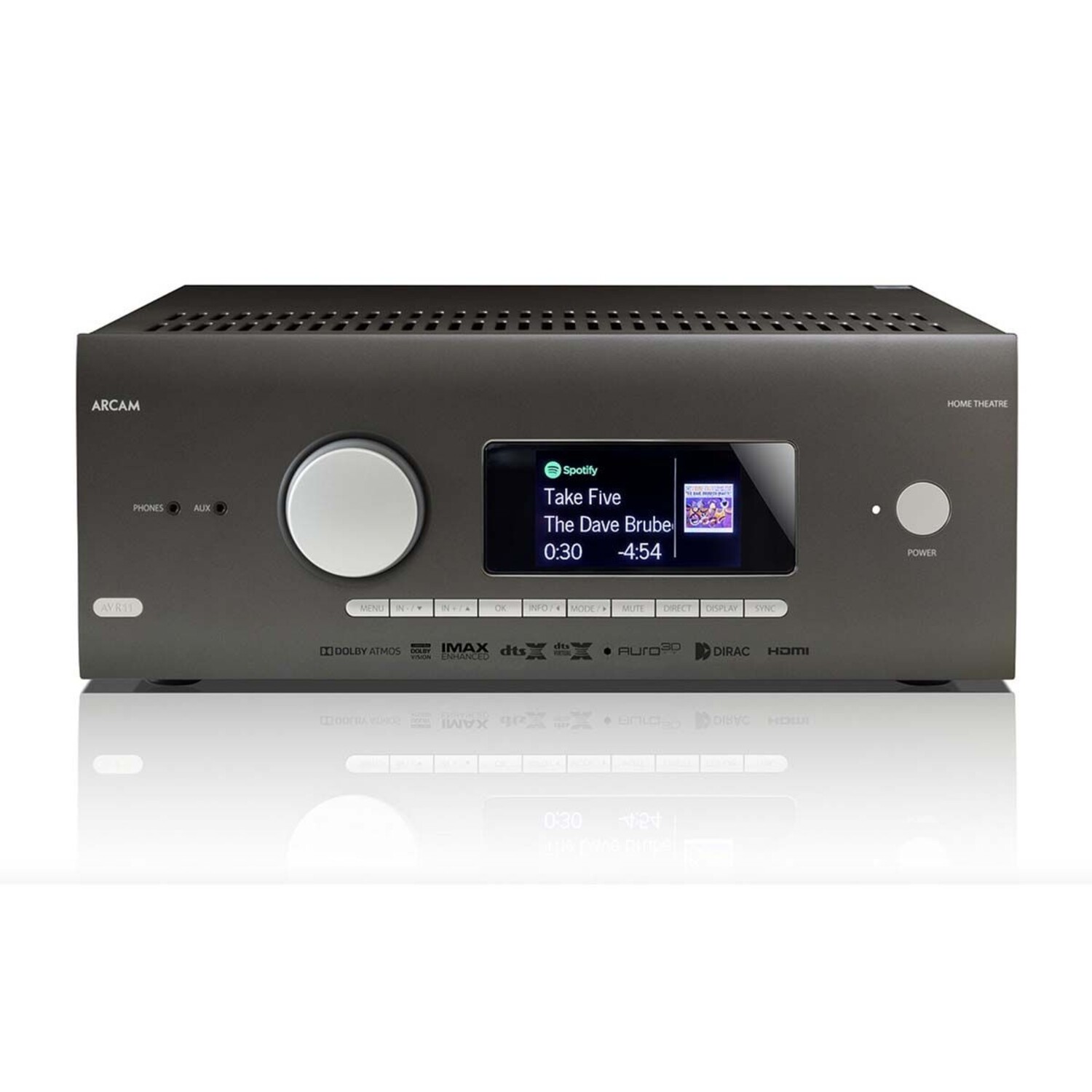

Arcam AVR11 HDMI 2.1 Class AB AV Receiver

Product description

Rich Musicality + Immersive Sound = Stunning Realism

The AVR11 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR11 can deliver incredible theatre experiences.

The Arcam AVR11 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR11 features an over-engineered power supply and transformer for real world power with low noise. The 7 channels of Class AB amplification are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.

The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.

Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.

Details & Specifications

Continuous power output, per channel, 8Ω/4Ω:

2 channels driven, 20Hz - 20kHz, <0.02% THD 80W/100W

2 channels driven, 1kHz, 0.2% THD 85W/120W

7 channels driven, 1kHz, 0.2% THD 60W/85W

Residual Noise & Hum (A-wtd): <0.15mV

Maximum Input: 4.5V rms

Nominal Sensitivity: 1V, 2V, 4V (user adjustable)

Input Impedance: 47kΩ

Signal/Noise Ratio (A-wtd ref 100W) normal/stereo direct: 100dB/110dB

Frequency Response: 20Hz-20kHz ± 0.2dB

Preamplifier Outputs

Nominal output level: 1V RMS (max. 5V RMS)

Output impedance: 560Ω

THD+N (20Hz-20kHz): – 100dB

Headphone Output:

Maximum output level into 32Ω: 5Vrms
Output impedance: <100Ω

Mains voltage: 110 – 120V or 220 – 240V, 50 – 60Hz

Power Consumption:

Maximum: 1.5kW (Thermal dissipation approx. 5200 BTU/hour)

Idle, typical: 90W (Thermal dissipation approx. 340 BTU/hour)

Standby: <0.5W

Dimensions (WDH): 17.0" x 16.7" x 6.7"

Weight: 36.4 lbs.

Supplied Accessories:

Mains lead Remote control with 2 x AAA batteries. Quick Start Guide (full manual online) DAB/FM aerial 3 x Wi-Fi/Bluetooth antennas  Calibration microphone USB cable
