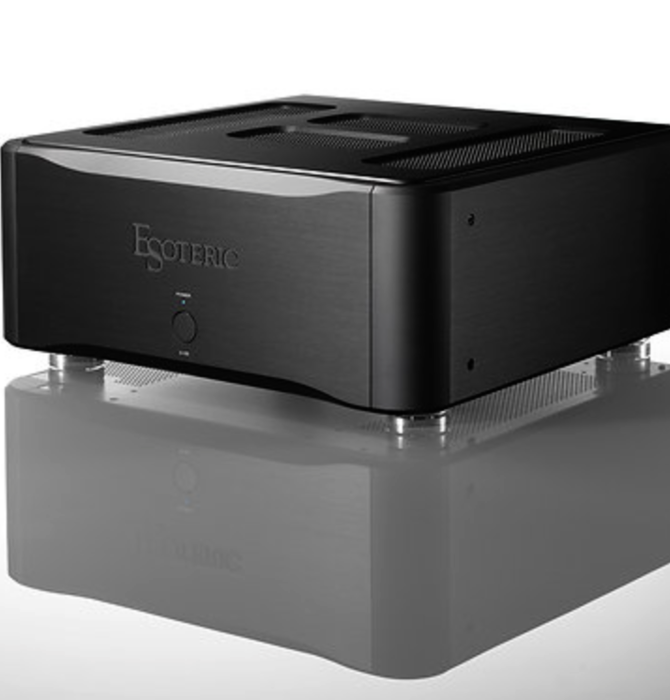

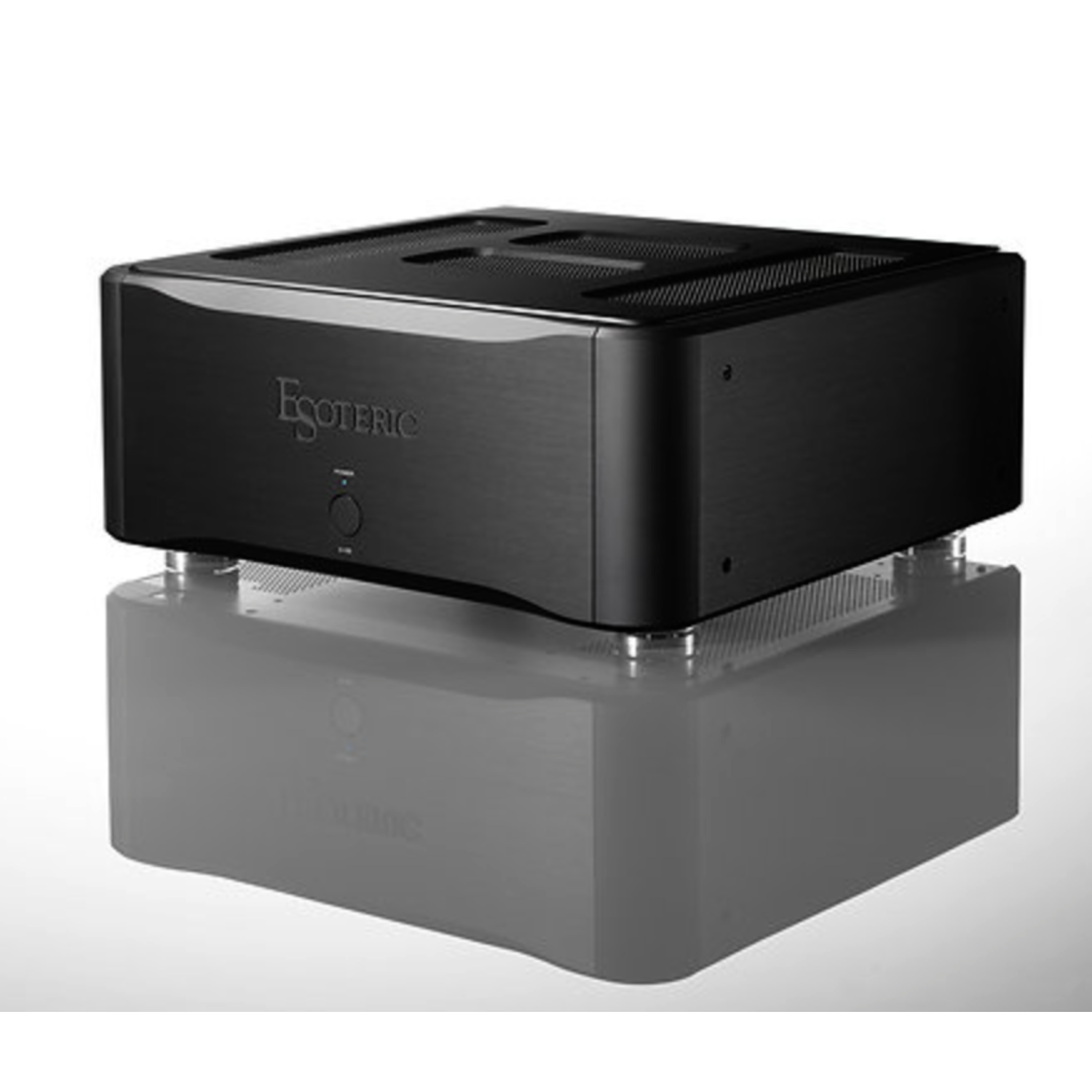

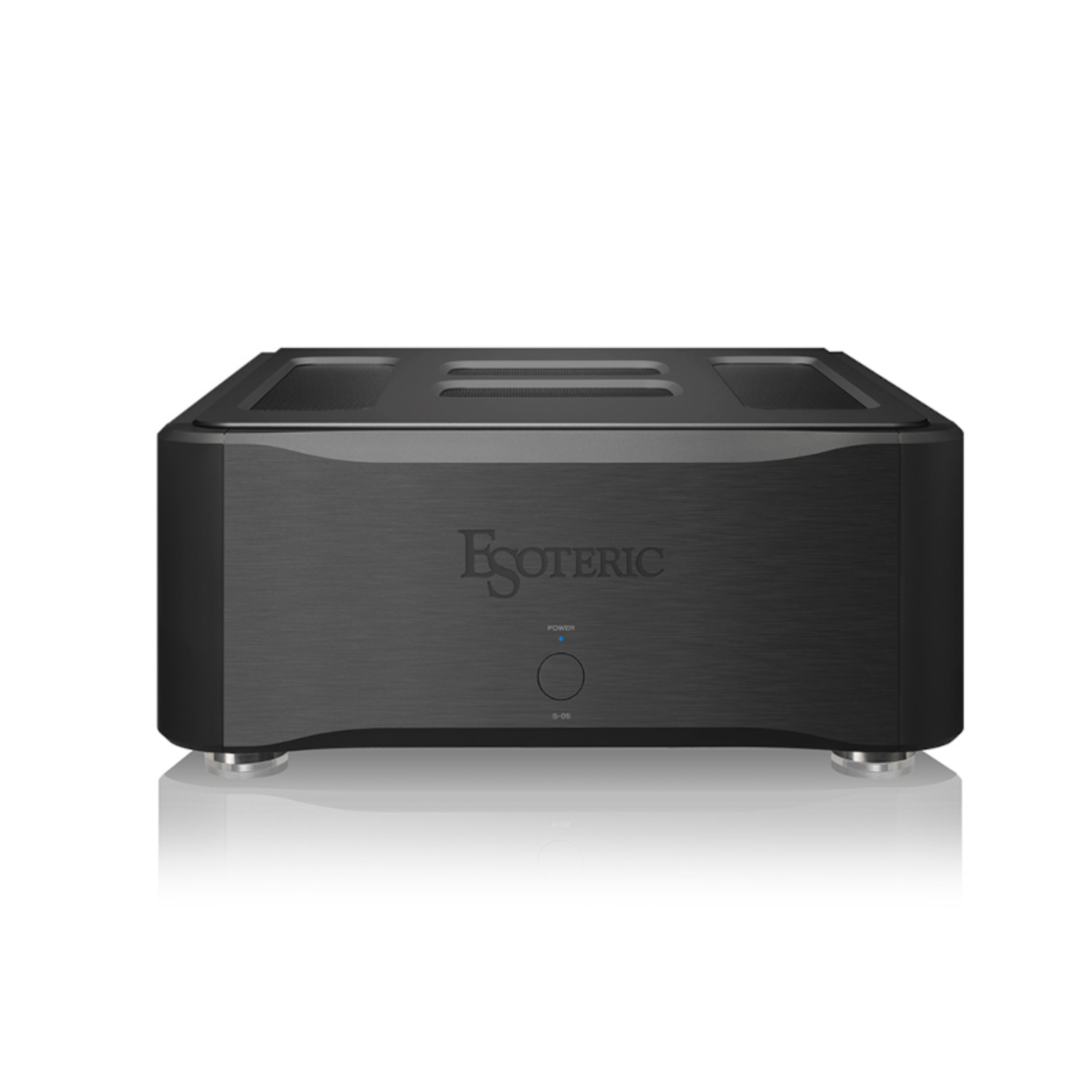

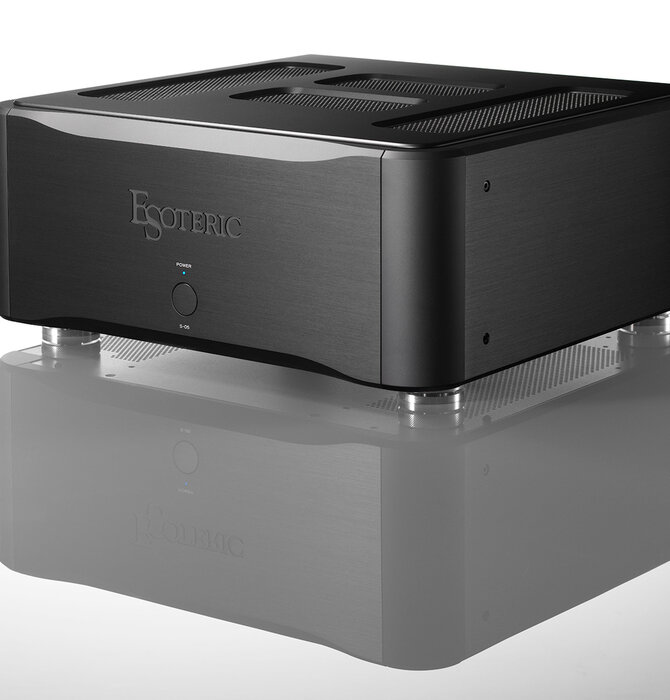

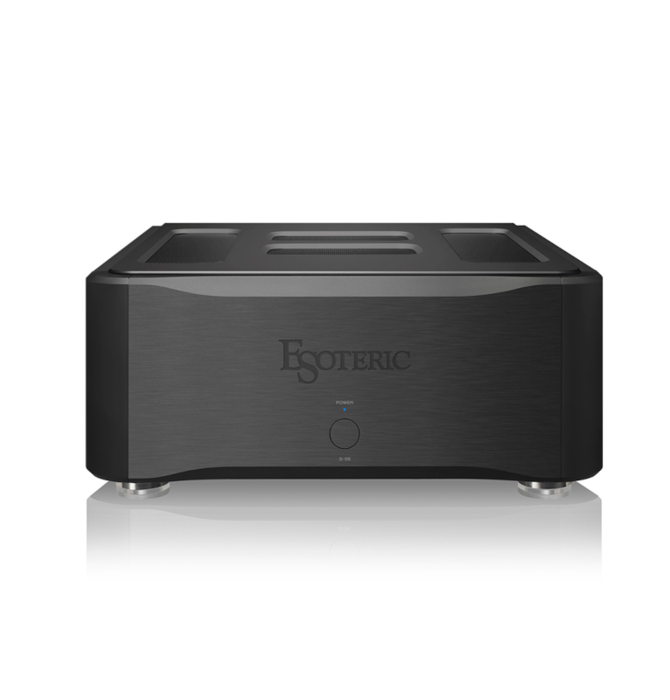

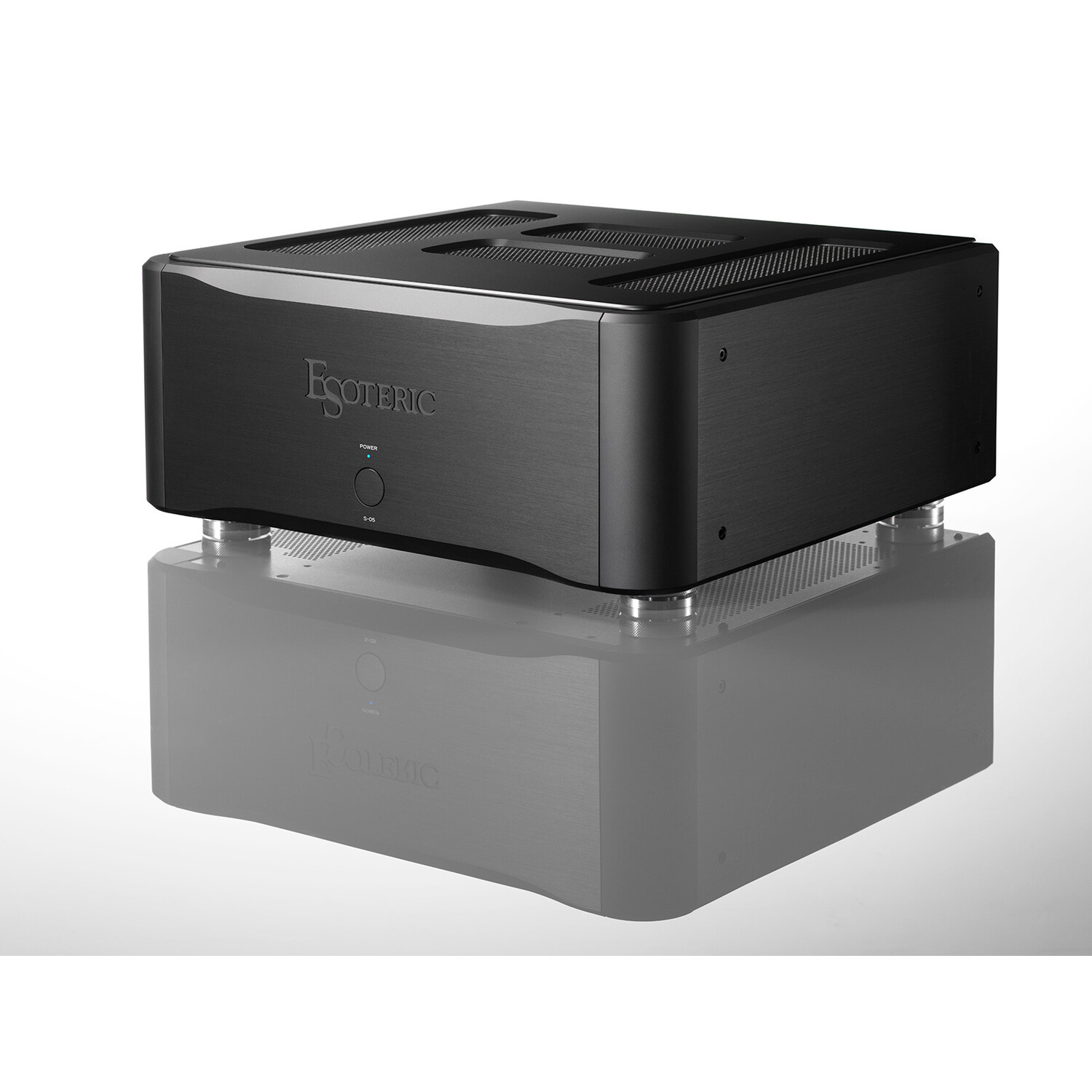

Esoteric S-05 Class A Stereo Power Amplifier

Esoteric S-05 Class A Stereo Power Amplifier

$12,500.00
          (0 reviews)
Out of stock
+
  Add to Wishlist
Witness the birth of an all-new stereo power amplifier, borrowing from the engineering techniques utilized in our flagship Grandioso M1X mono block.

Compact - Pure - Class A

Witness the birth of an all-new stereo power amplifier, borrowing from the engineering techniques utilized in our flagship Grandioso M1X mono block.

The new S-05 – a class-A power amplifier thoroughly focused on delivering all of music’s unique tonal qualities from a more compact stereo configuration, embracing the philosophy of the Grandioso M1X:

“Minimal Circuitry – Maximum Output”.

Key Features

- Lavish material employment, simple and straight circuit design concept borrowed from the Grandioso M1X

- Finely detailed Class-A sound with super dynamics – an Esoteric’s signature tone

- Dual monaural construction in all stages including current smoothing circuit for better channel separation

- Esoteric’s proprietary current signal transmission, “ES-Link Analog” delivers music signal with exceptional high power and fidelity.

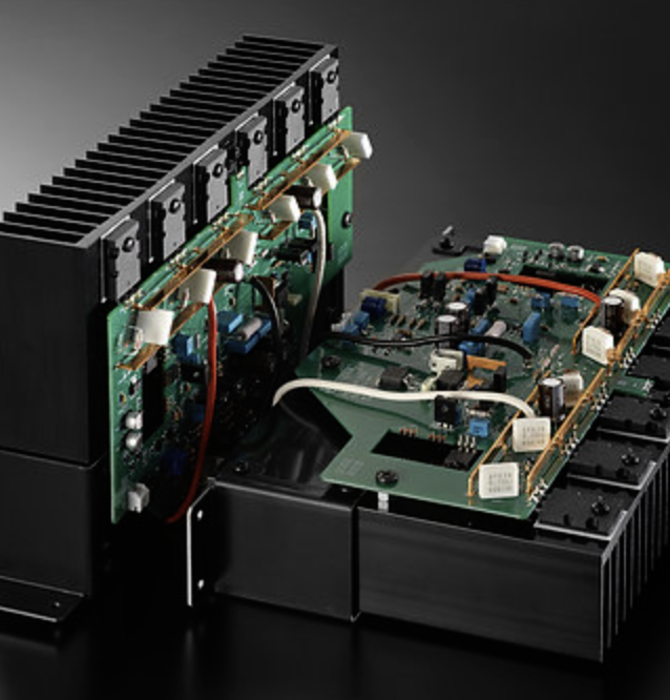

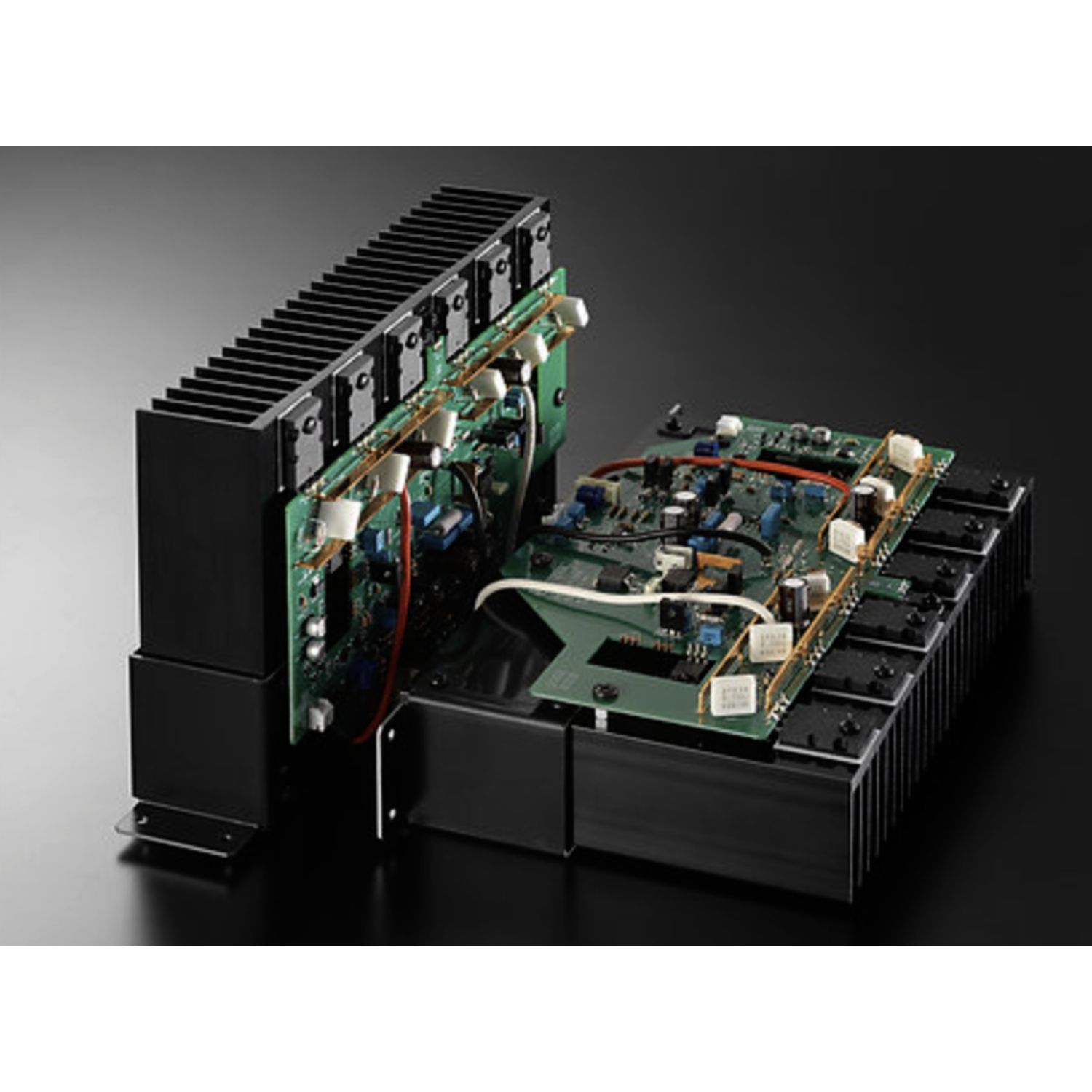

- High capacity bi-polar 3 parallel push/pull circuit that instantaneously responds to the music signal

- 940VA large EI-core power transformer that responds to dynamic current supply changes with high speed

- Large “Grandioso grade” custom capacitors on each channel ( 10,000μF × 4/ channel )

- Balanced input amplifier for stable, noise-free signal transmission

- BTL / Bi-amp mode switch for dual amplifier configuration

- DC Trigger for sequential power ON/OFF with the N-05XD

- Esoteric’s unique isolation feet and semi-floating top panel

- Unique shaped heat-sink to minimize its own peak resonance

Specifications





Rated Output Power

30 watt+ 30 watt ( 8Ω, Class-A )
60 watt + 60 watt ( 4Ω)
120 watt ( BTL, 8Ω )

BTL: Bridge Tied Load, Amp has 2 outputs per speaker

Compatible Speaker Impedance

4Ω to 16Ω
8Ω to 16Ω ( BTL mode )

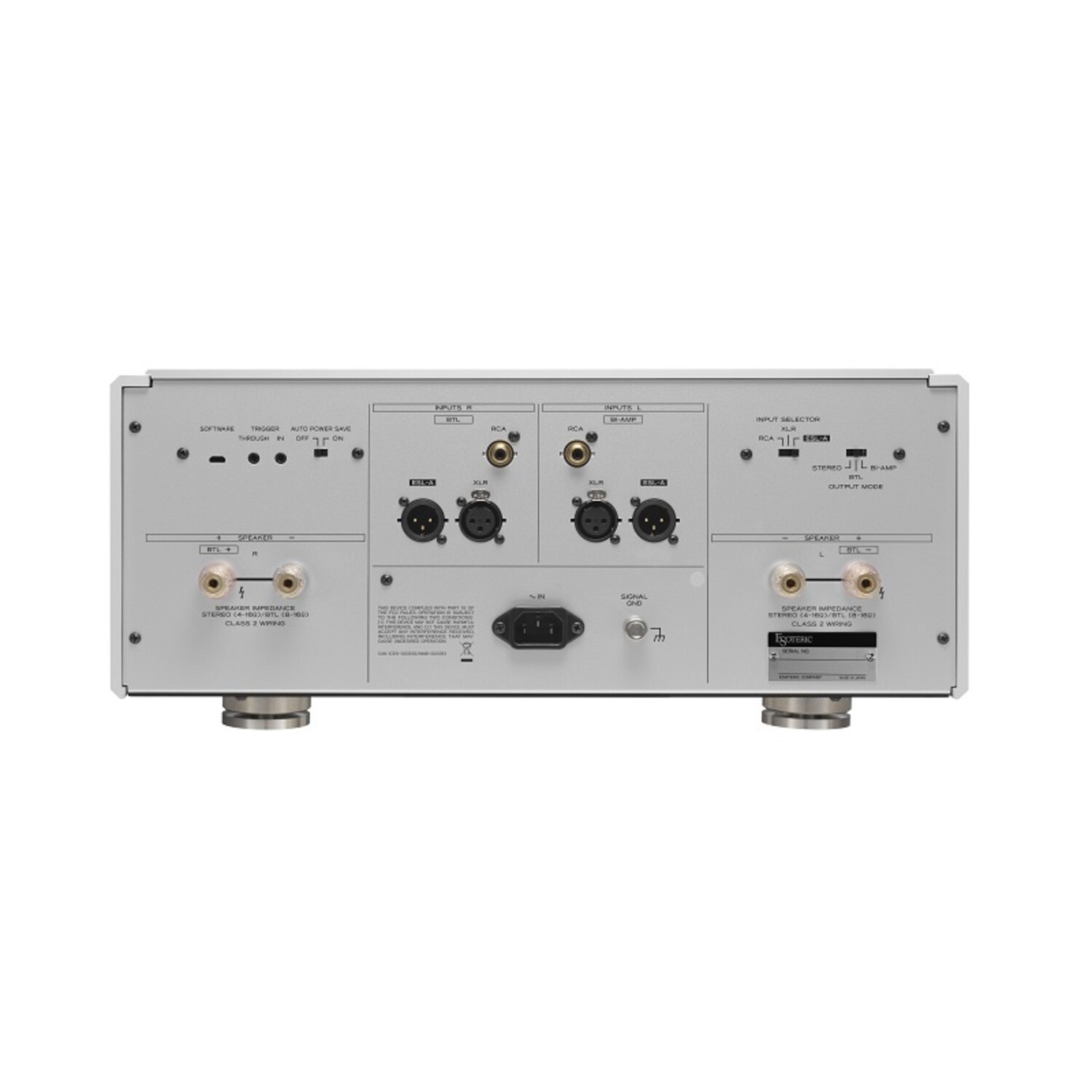

Analog Audio Inputs



ESL-A

1 pair

XLR

1 pair

RCA

1 pair

General



Power Consumption

245 watt

Dimensions ( W × H × D )

445 × 191 × 444 mm
17.5" × 7.5" × 17.5" including protrusions

Weight

67-¾ lbs

Frequency Response

5Hz to 100kHz ( +0 dB, –3 dB, 8Ω )

Signal to Noise Ratio

102dB ( IHF-A, XLR )

Total Harmonic Distortion

0.007% ( 1kHz, 8Ω, 30 watt )

Compatible Speaker Impedance

4Ω to 16Ω
8Ω to 16Ω ( BTL mode )

Gain

28.5 dB

Shipping Weight & Dimensions: 78 lbs, 24" x 24" x 14"
