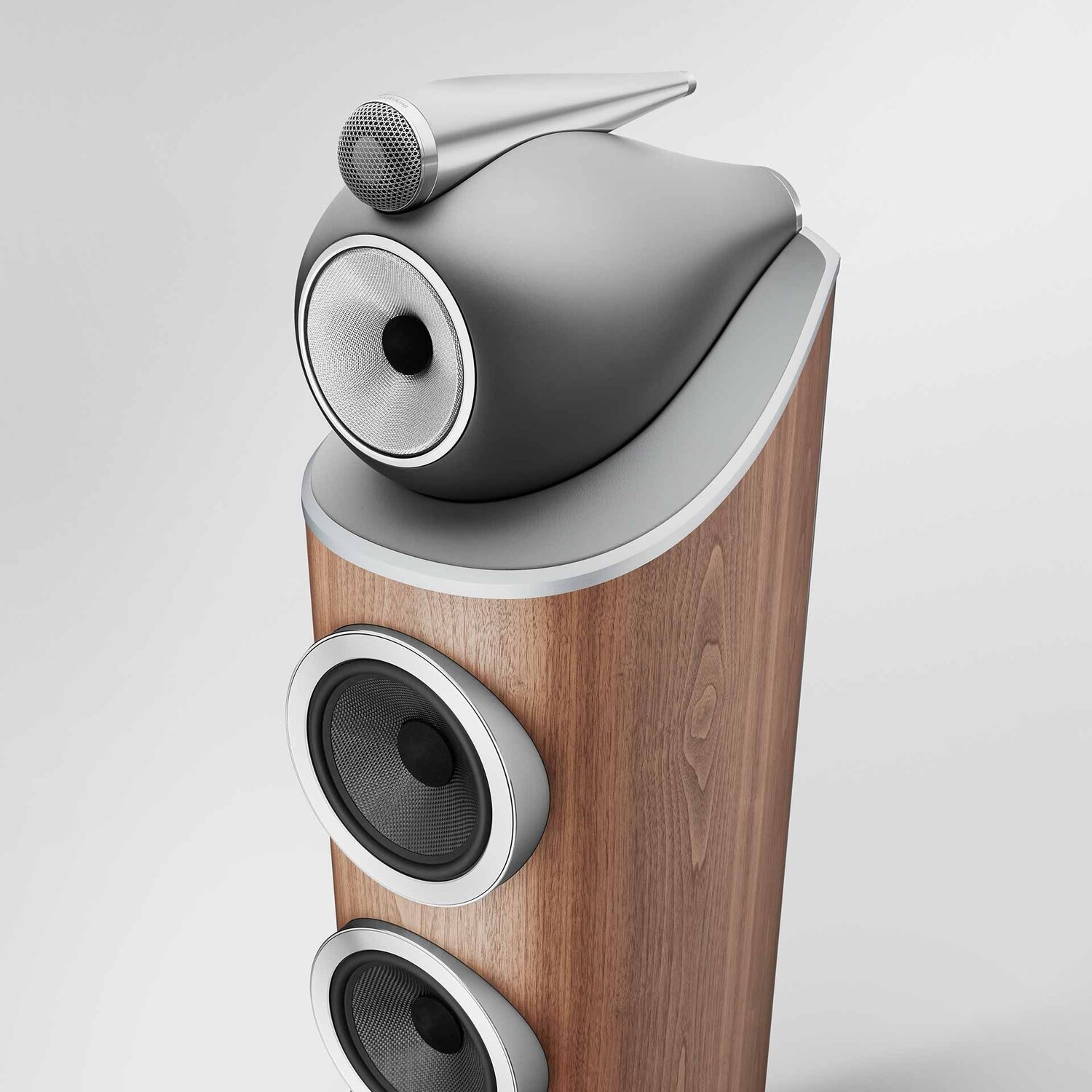

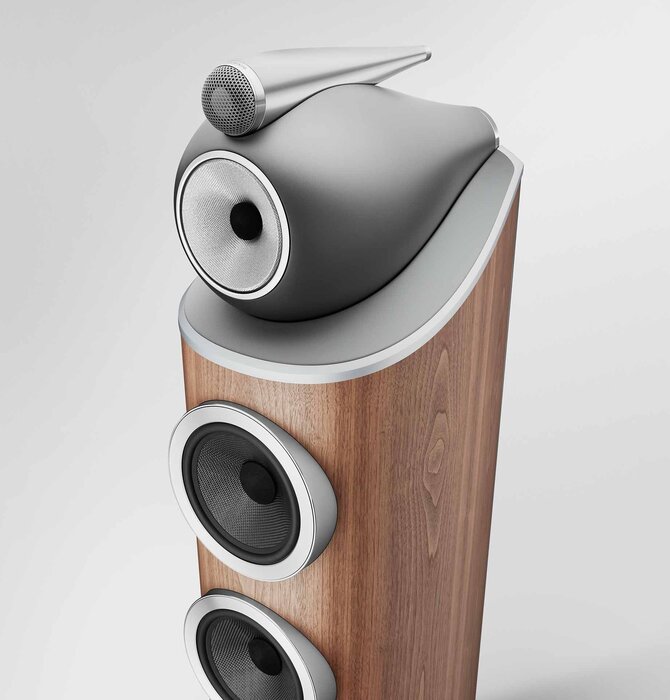

803 D4 may be notably more compact than the 801 D4 or 802 D4, but it still bristles with technical innovation, most obviously in its use of a three-box construction. Its 5 inch midrange cone is carefully isolated from the impact of its bass cones thanks to its Turbine Head enclosure.
Reverse Wrap cabinet
Instead of a conventional loudspeaker box, our cabinets are made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.
Matrix bracing uses interlocking panels to reinforce loudspeaker cabinet walls in all directions internally, reducing resonance and creating a more believable soundstage. The Matrix assembly in 803 D4 is our best yet, ensuring optimum scale, power and intelligibility.
Aluminum bass pods
803 D4 mounts two Aerofoil™ bass cones in twin solid aluminum bass pods, each of which is clamped into an aluminum plate fixed to the stiffest part of its curved cabinet. Formed as single pieces of metal, these stiff structures provide the perfect mechanical location for those powerful bass cones.
The science of sound
Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modelling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond so special here.
803 D4 features all the most iconic ingredients in the 800 Series Diamond range including, of course, that famous headed enclosure. It is, however, smaller than its other siblings. Step up to the 802 D4, and you’ll get both larger 8" bass cones and a larger 6" midrange driver.
Continuum™ Cone FST™
Aerofoil™ cone bass units
Solid body tweeter
Description: 3-way vented-box system
1 x 1" Diamond dome high-frequency
1 x 5" Continuum™ cone FST™ midrange
2 x 7" Aerofoil™ cone bass units
Frequency range: 16Hz to 35kHz
Frequency response ( +/-3dB from reference axis ): 19Hz to 28kHz
Sensitivity ( 1m on axis at 2.83Vrms ): 90dB
2nd and 3rd harmonics ( 90 dB, 1m on axis )
<1 % 70Hz - 20kHz
<0.3% 100Hz - 20kHz
Nominal impedance ( min ): 8Ω ( minimum 3.0Ω )
Recommended amplifier power: 50 watt - 500 watt into 8Ω on unclipped program
Max. recommended cable impedance 0.1Ω
Dimensions: ( H ) 1160mm x ( W ) 334 mm x ( D ) 498 mm not including feet
Net weight: 65.5kg ( 144 lb )

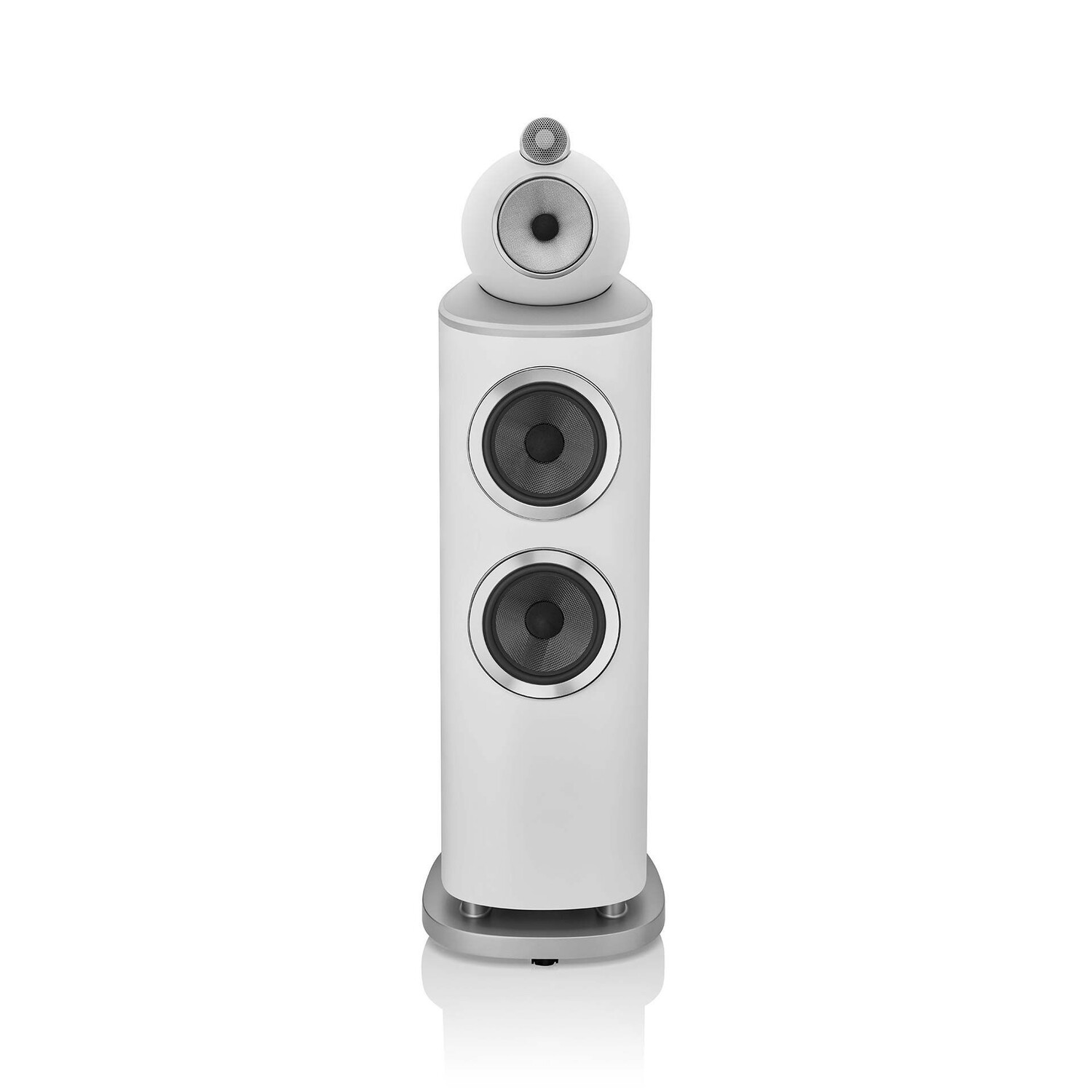

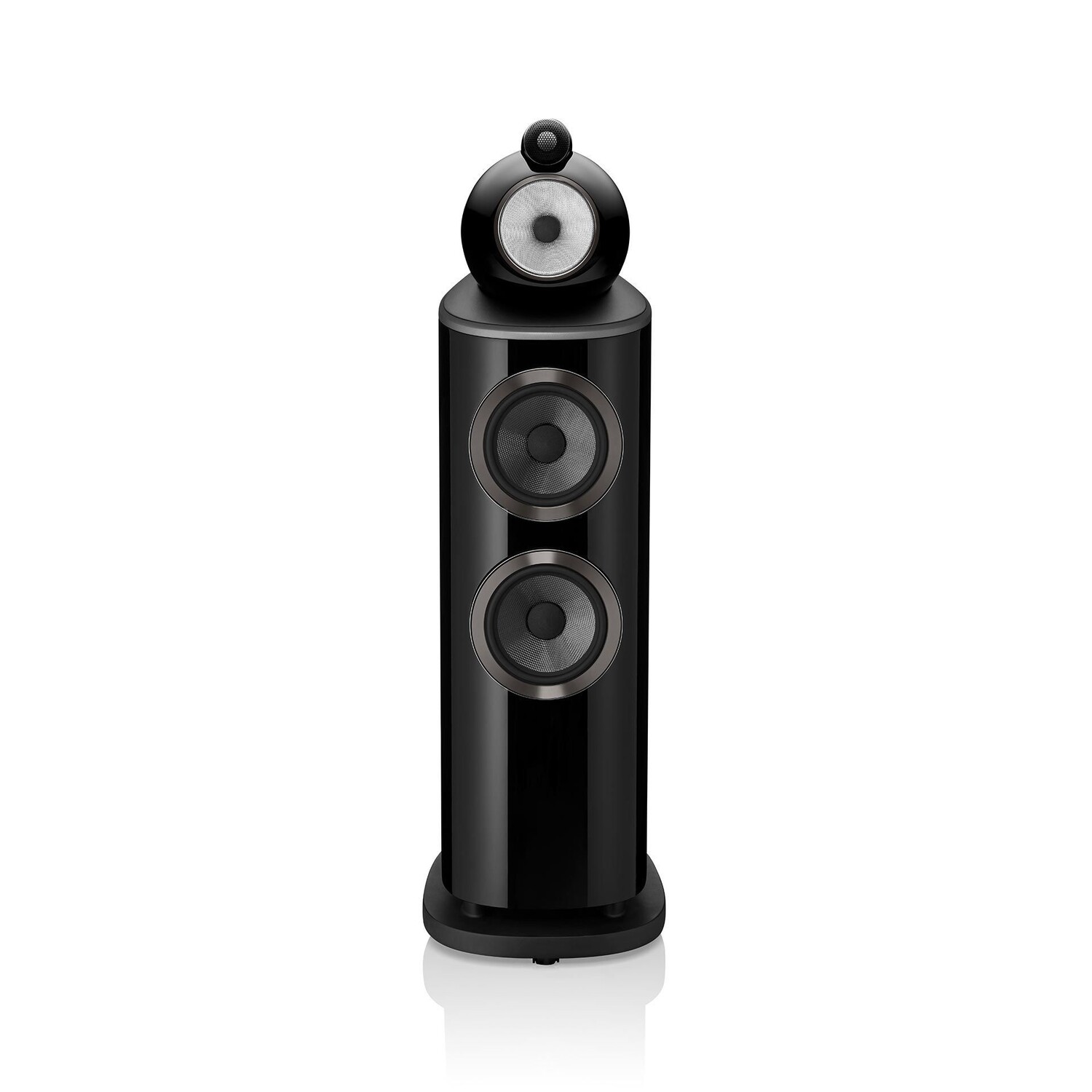

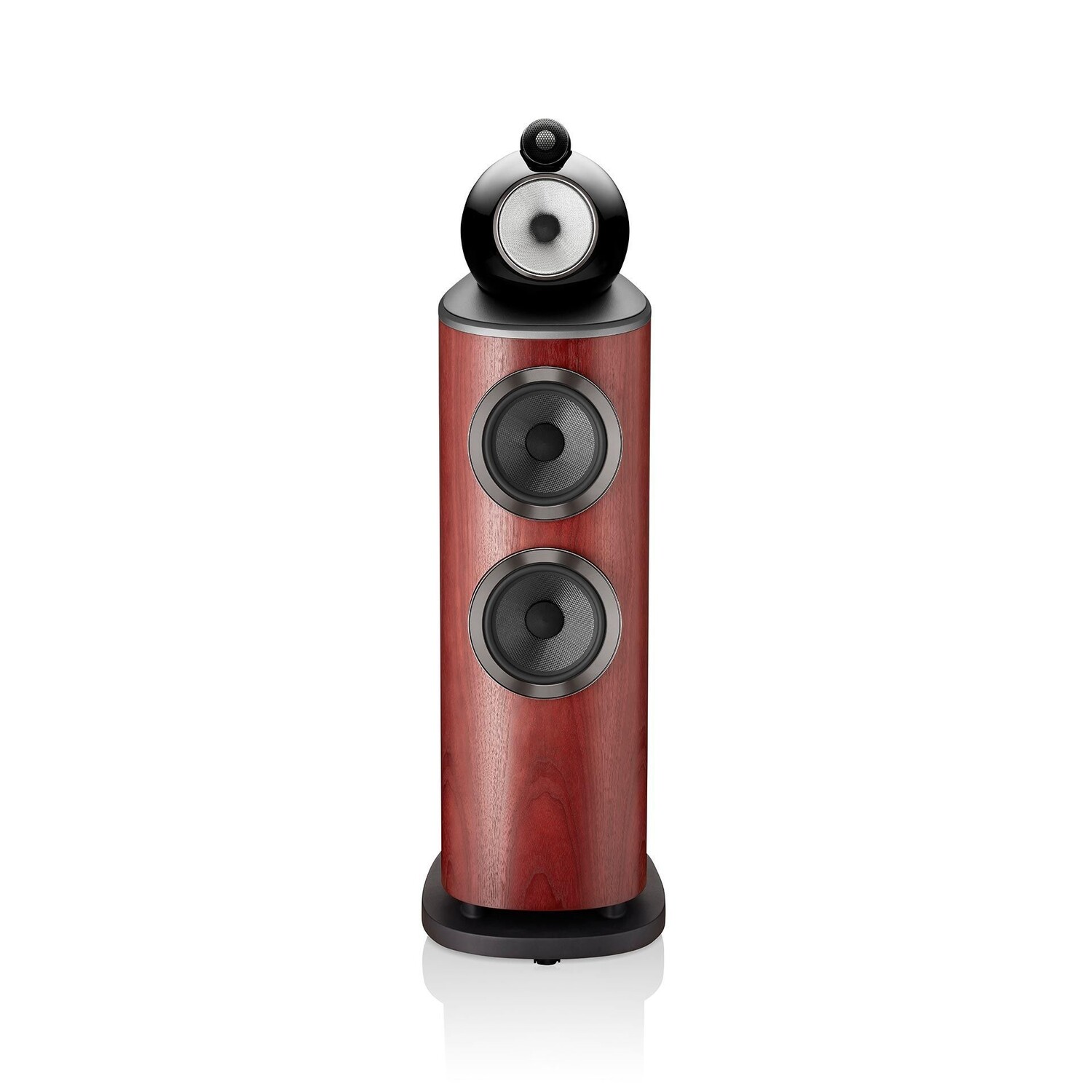

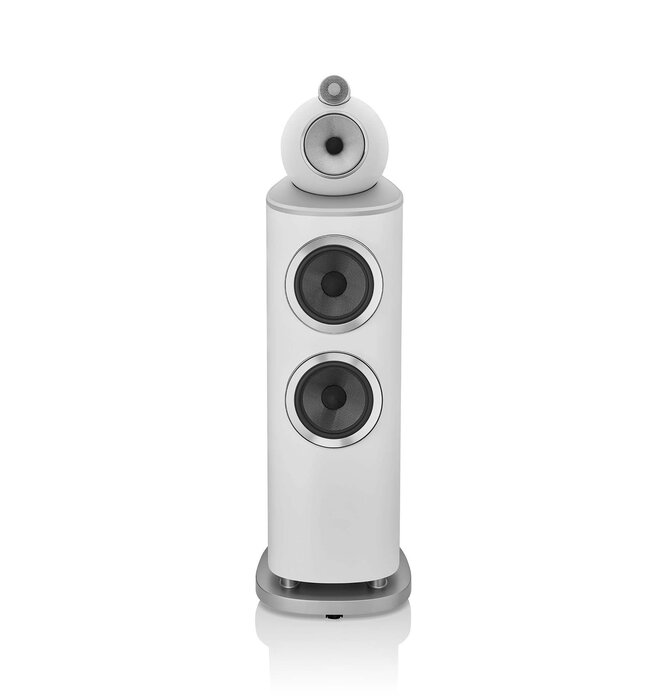

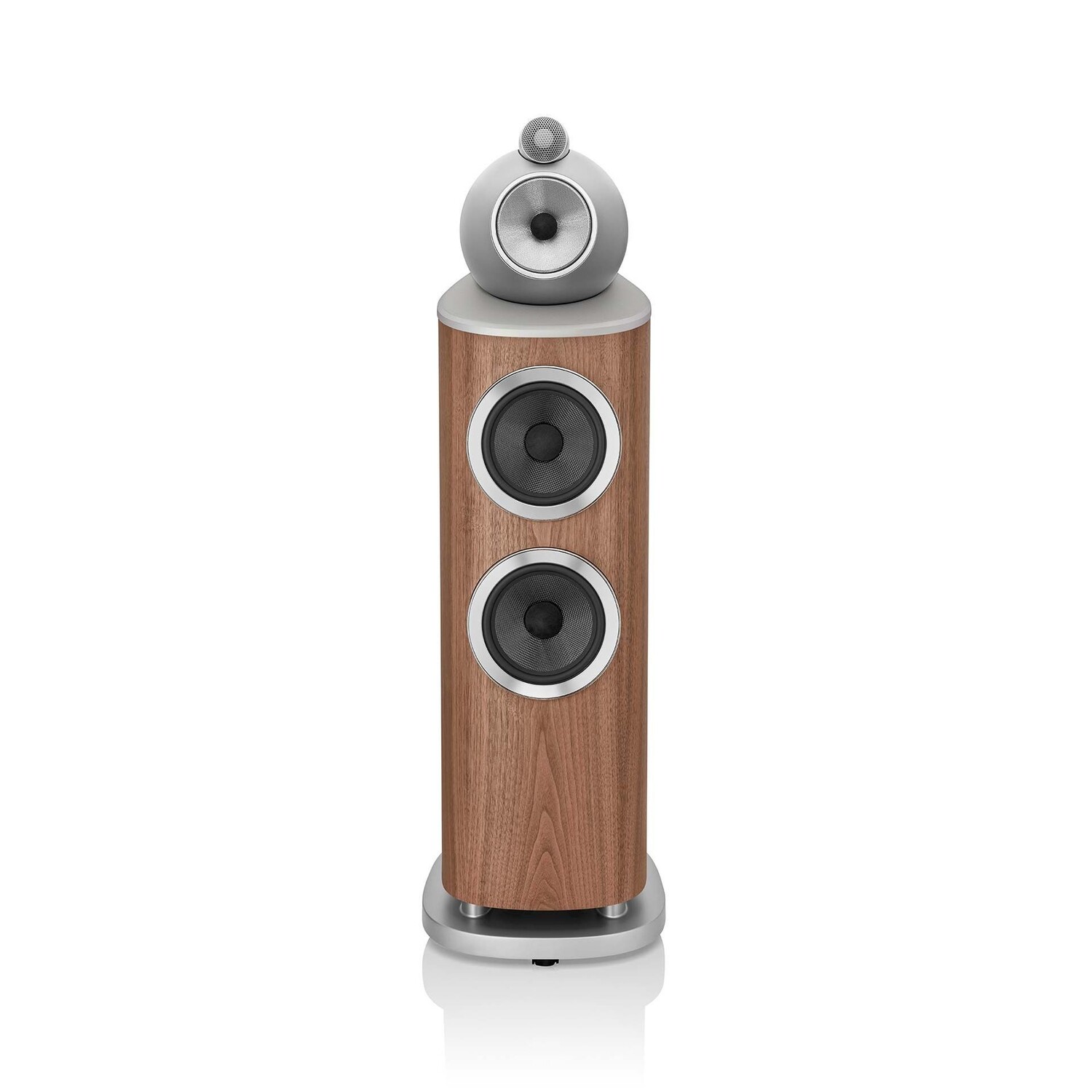

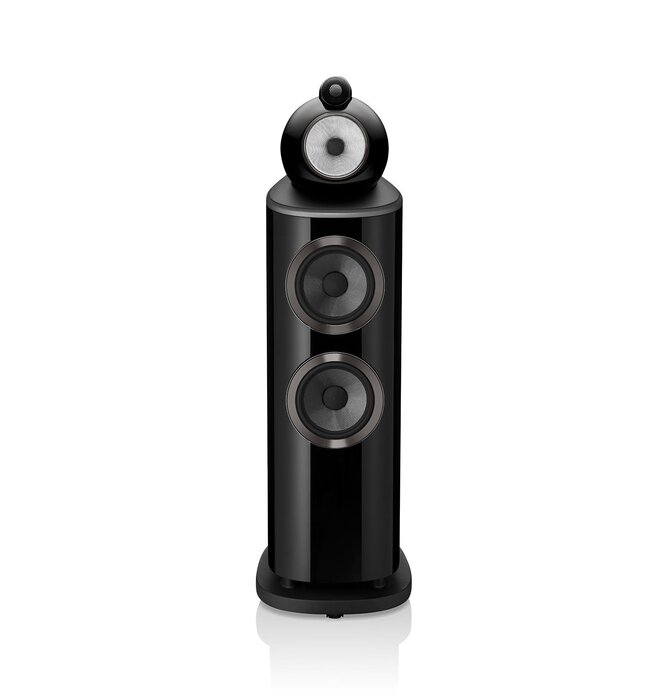

Cabinet finishes: Gloss black, Satin White, Satin Rosenut & Walnut
Grille finishes: Black or Gray depending on finish
